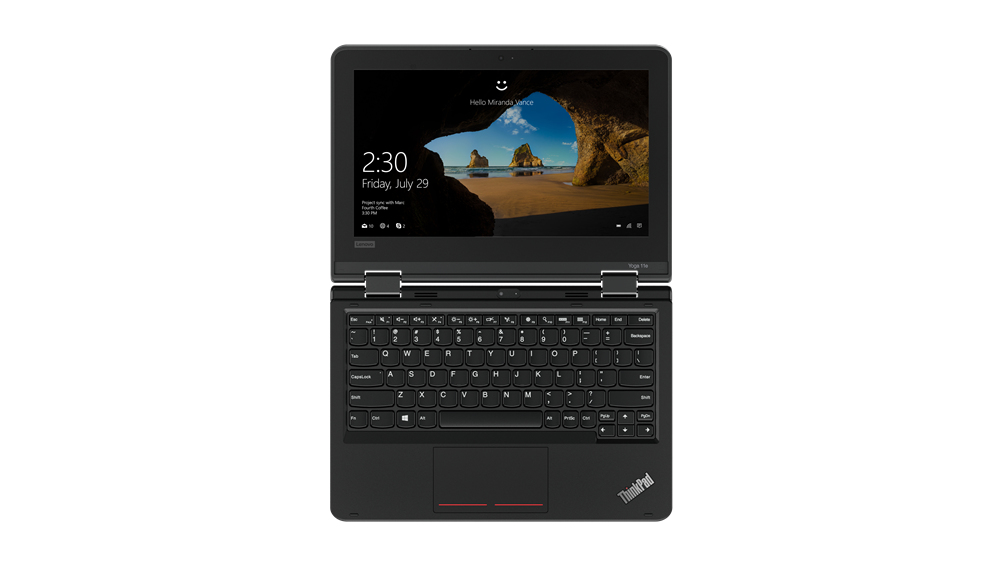

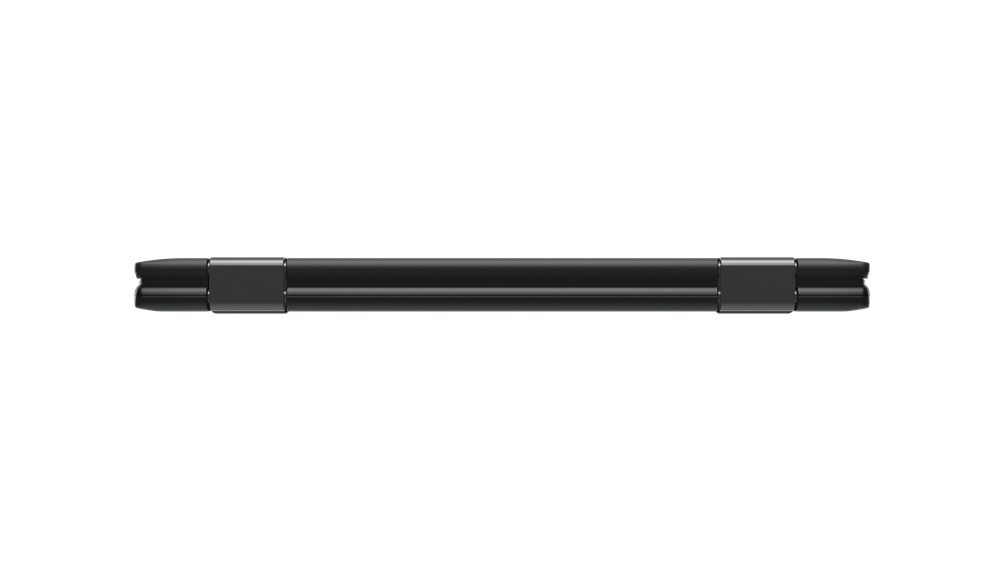

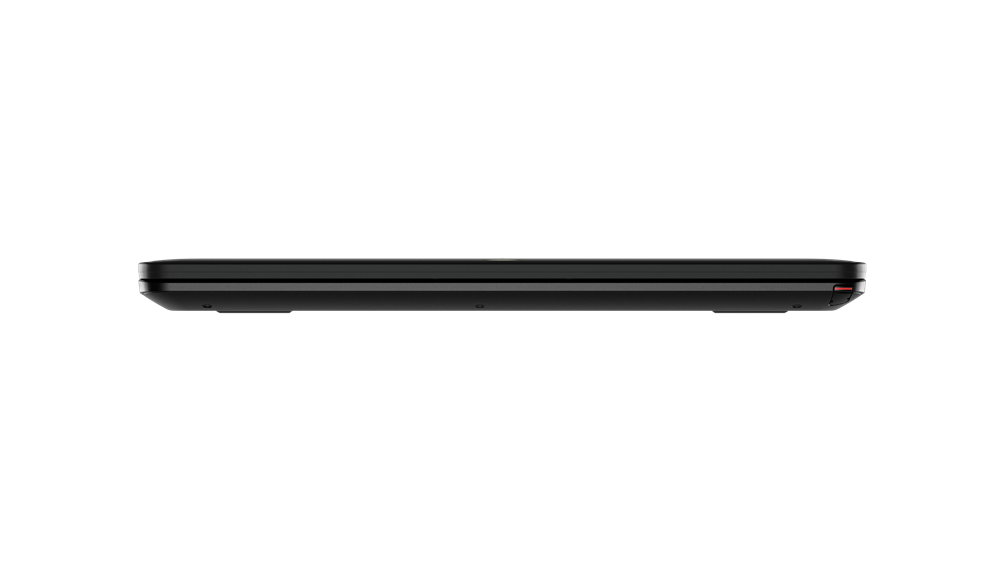

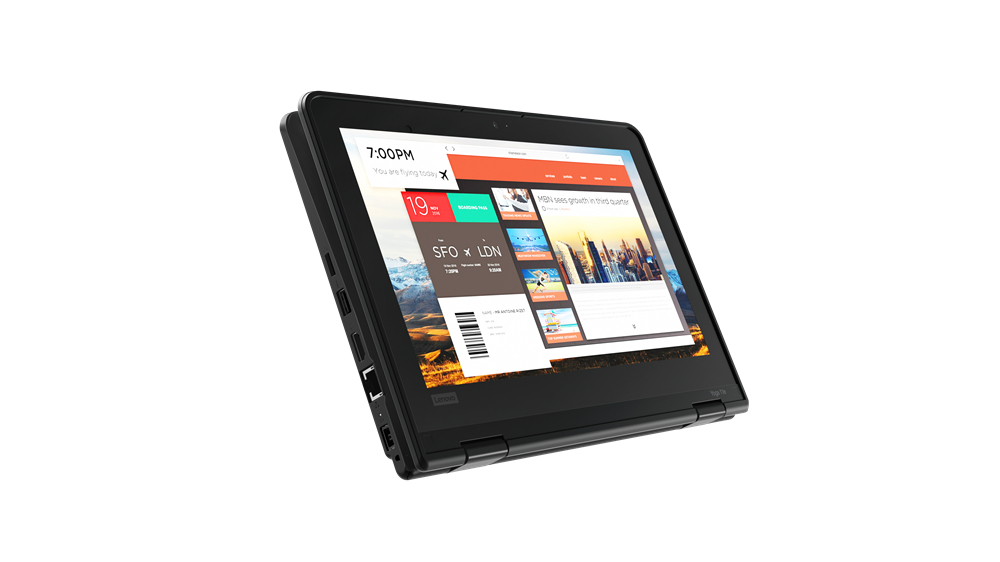

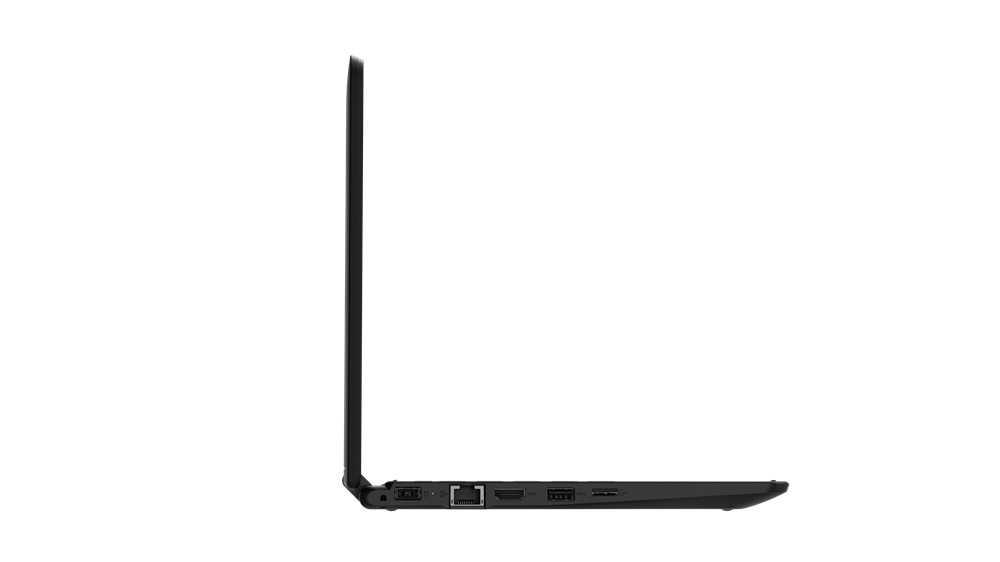

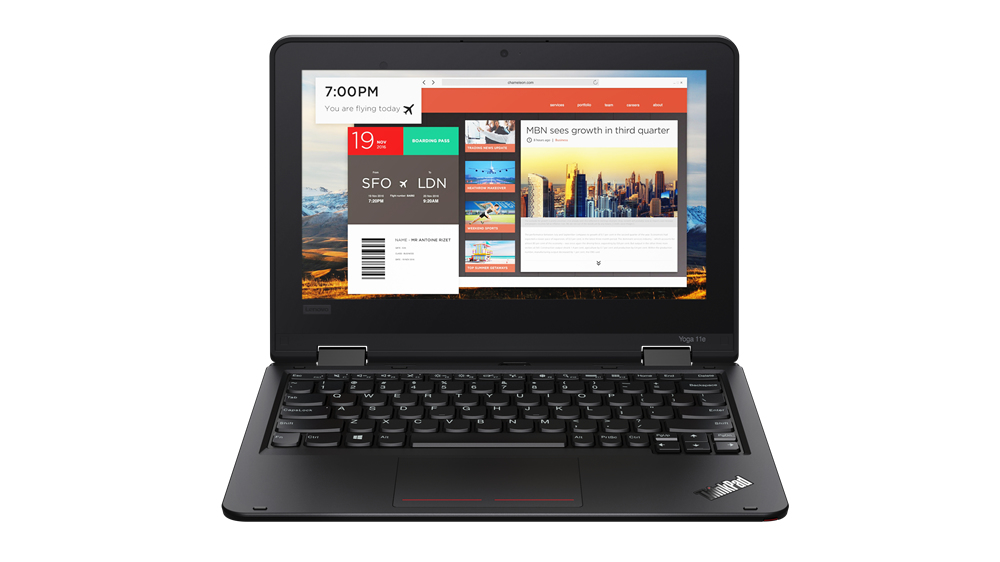

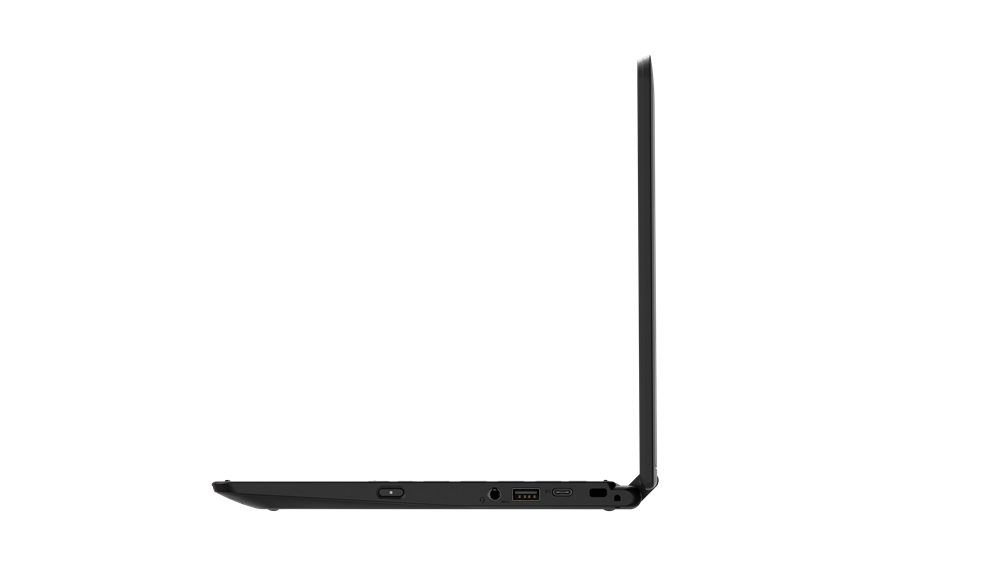

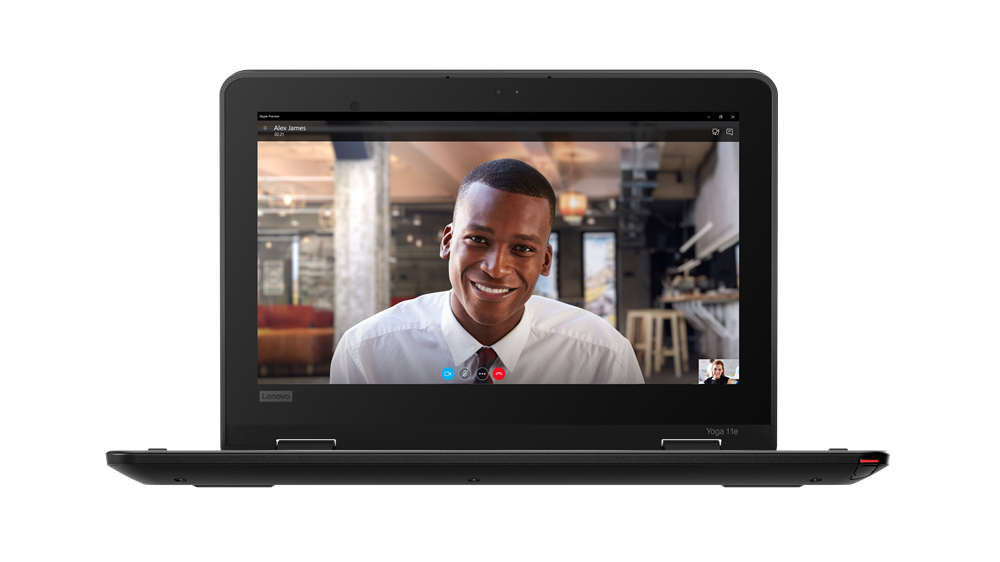

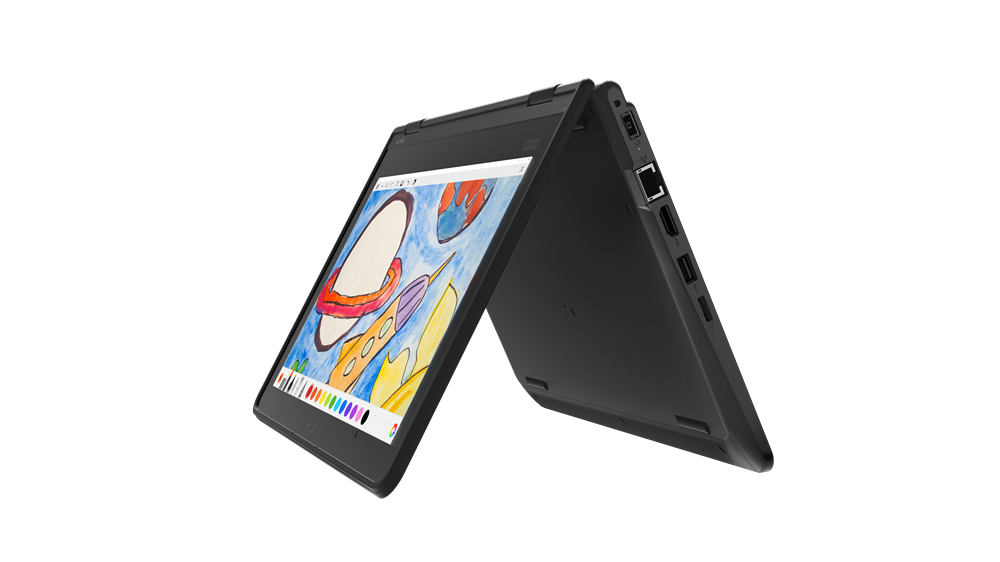

Lenovo ThinkPad Yoga 11e (5th Gen)

ThinkPad Yoga 11e (5th Gen)

Model ThinkPad Yoga 11e (5th Gen)Part no. 20LM001FUKEAN 196800476852

108 specifications Checked today

Display29.5 cm (11.6")
Resolution1366 x 768 pixels
ProcessorIntel® Celeron®
Memory8 GB
Storage128 GB
GraphicsNot available

See all specifications

Overview

Display: 29.5 cm (11.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Celeron®
Memory: 8 GB
Storage: 128 GB
Graphics: Not available

Brand: Lenovo
Category: Laptop
Model: ThinkPad Yoga 11e (5th Gen)
Part number: 20LM001FUK
EAN / UPC: 196800476852
Also known as: Lenovo ThinkPad Yoga 11e (5th Gen) Intel® Celeron® N4120 Hybrid (2-in-1) 29.5 cm (11.6") Touchscreen HD 8 GB DDR4-SDRAM 128 GB SSD Wi-Fi 6 (802.11ax) Windows 10

Specifications

108 specifications in 21 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Black
Colour name	Black
Form factor	Convertible (Folder)
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)

Display

Specification	Value
Display diagonal	29.5 cm (11.6")
Display resolution	1366 x 768 pixels
Touchscreen	Yes
HD type	HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Gloss
Display brightness	250 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	N4120
Processor cores	4
Processor boost frequency	2.6 GHz
Processor frequency	1.1 GHz
Processor cache	4 MB

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory form factor	On-board
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	128 GB
Storage media	SSD
Total SSDs capacity	128 GB
Number of SSDs installed	1
SSD capacity	128 GB
NVMe	Yes
SSD interface	NVMe, PCI Express 3.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 600

Audio

Specification	Value
Audio chip	Realtek ALC3287
Audio system	Dolby Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Realtek
WLAN controller model	Realtek RTL8852AE
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2
Near Field Communication (NFC)	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	1.4
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Motherboard chipset	Intel SoC

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	No
Numeric keypad	No
Keyboard language	English

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Operating system language	English

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery capacity	42 Wh
Battery life (max)	12 h

Power

Specification	Value
AC adapter power	45 W
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	No
Smart card reader	No
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	RoHS
MIL-STD-810G compliant	Yes

Weight & dimensions

Specification	Value
Weight	1.54 kg
Width	300 mm
Depth	210 mm
Height	22.5 mm

Packaging content

Specification	Value
Stylus pen	Yes

Logistics data

Specification	Value
Harmonized System (HS) code	84713000
