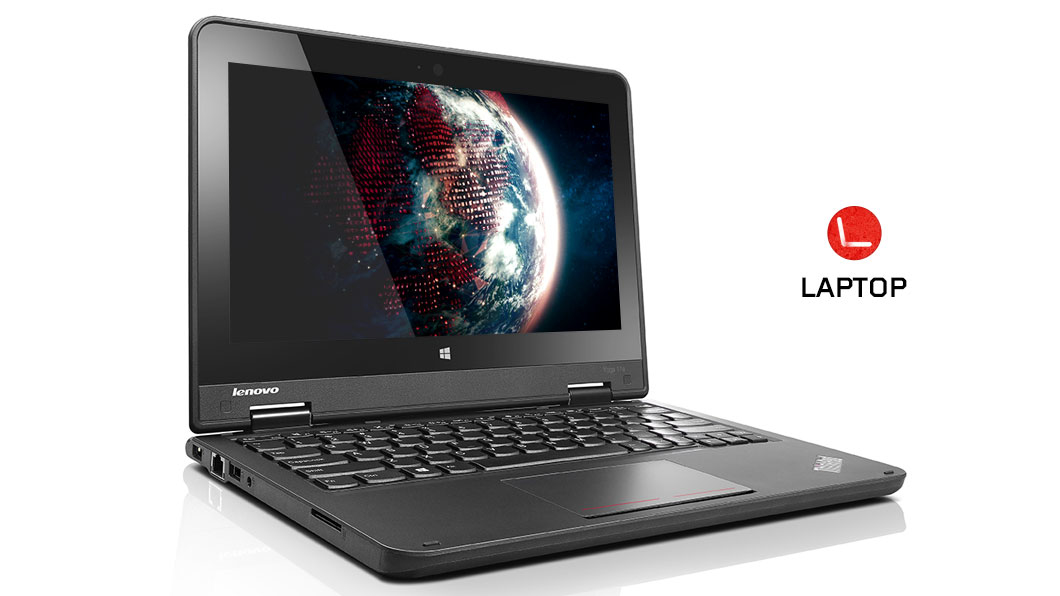

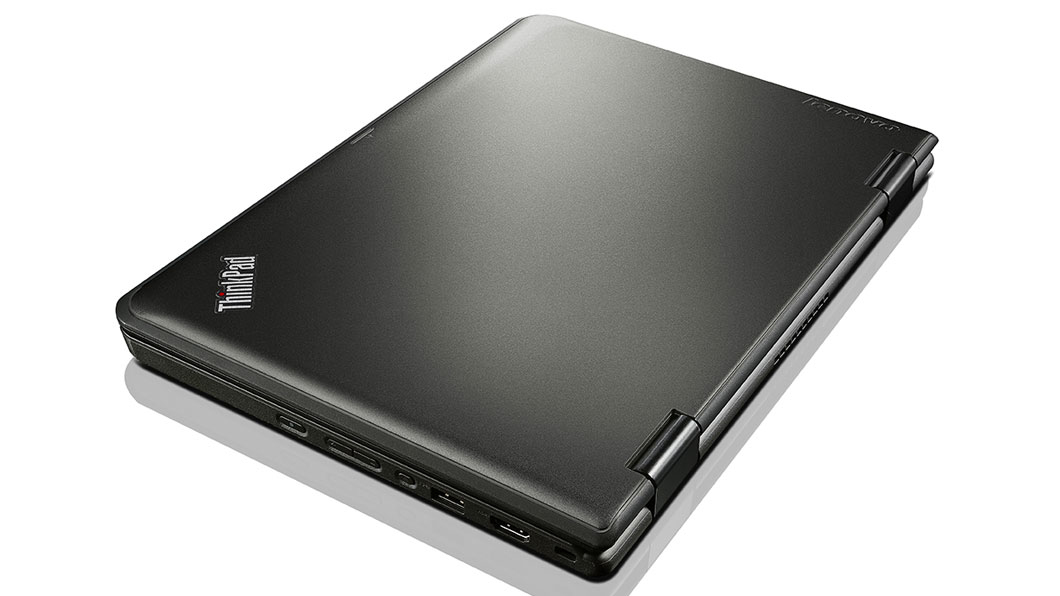

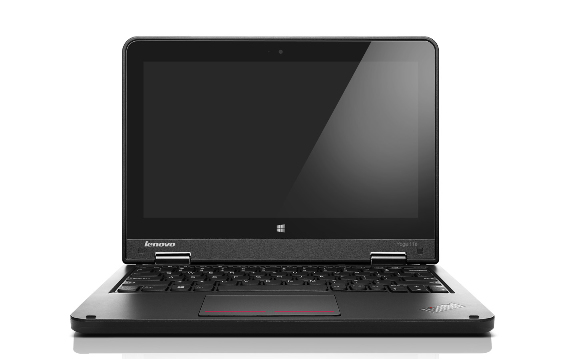

Lenovo ThinkPad Yoga 11e (2nd Gen)

Model ThinkPad Yoga 11e (2nd Gen)Part no. 20E7001EUSEAN 889233956564

183 specifications Checked 3 days ago

Display29.5 cm (11.6")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ M
Memory4 GB
Storage192 GB
GraphicsNot available

See all specifications

Overview

Display: 29.5 cm (11.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ M
Memory: 4 GB
Storage: 192 GB
Graphics: Not available

Brand: Lenovo
Category: Laptop
Model: ThinkPad Yoga 11e (2nd Gen)
Part numbers: 20E7001EUS, 20E7001FUS, 20E7001GUS, 20E7001HUS, 20E5000DUS, 20E5000FUS +19 more
EAN / UPC: 889233956564, 889233956588, 889233962053, 889233961865 +18 more
Also known as: Lenovo ThinkPad Yoga 11e (2nd Gen) Intel® Core™ M M-5Y10c Laptop 29.5 cm (11.6") Touchscreen HD 4 GB DDR3L-SDRAM 192 GB SSD Windows 8.1 Pro Black

Specifications

183 specifications in 23 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black

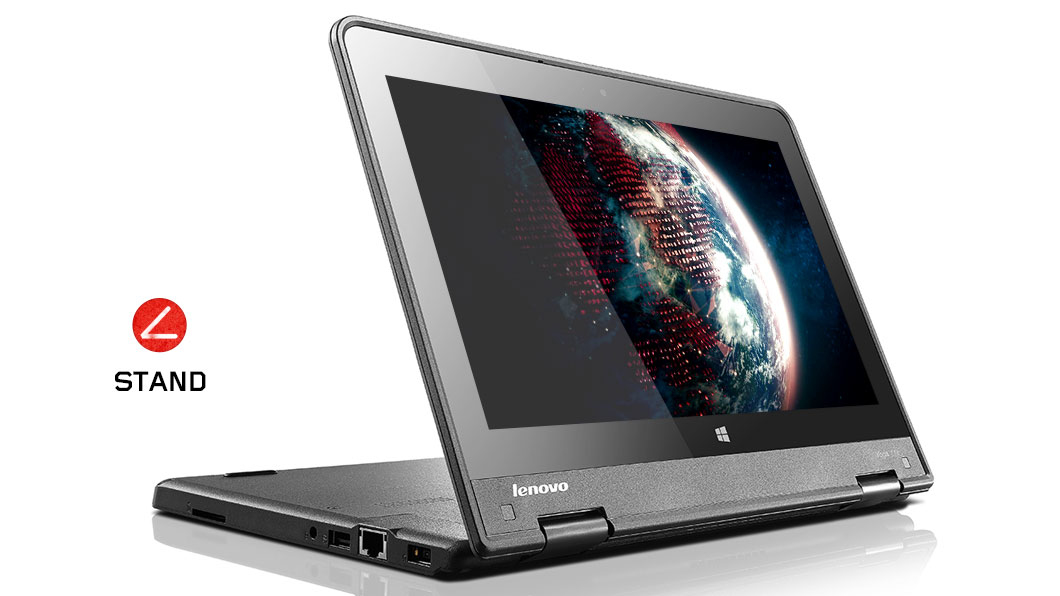

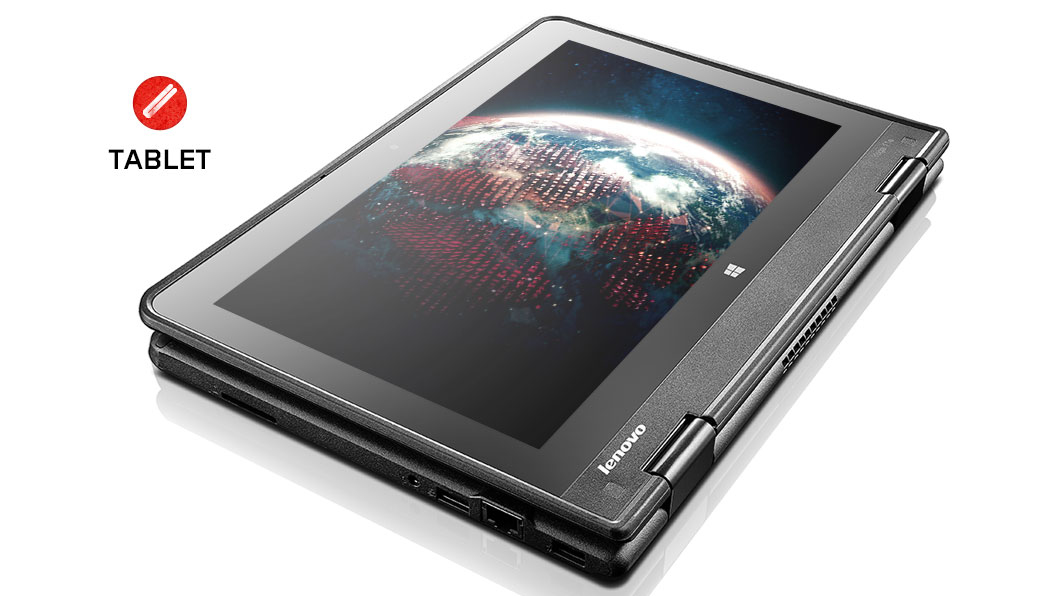

Form factor	Convertible (Folder)

Display

Specification	Value
Display diagonal	29.5 cm (11.6")
Display resolution	1366 x 768 pixels
Touchscreen	Yes
HD type	HD
Touch technology	Multi-touch
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	300 cd/m²
Contrast ratio (typical)	800:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ M
Processor generation	Intel® Core™ m-5xxx
Processor model	M-5Y10c
Processor cores	2
Processor threads	4
Processor boost frequency	2 GHz
Processor frequency	0.8 GHz
Processor cache	4 MB
Processor cache type	L3
Processor socket	BGA 1234
Processor lithography	14 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Core M-5Y Mobile series
Processor codename	Broadwell
FSB Parity	No
Stepping	F0
Thermal Design Power (TDP)	4.5 W
Configurable TDP-up frequency	1 GHz
Configurable TDP-up	6 W
Configurable TDP-down	3.5 W
Configurable TDP-down frequency	0.6 GHz
Scenario Design Power (SDP)	3.5 W
Tjunction	95 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	x1 (6), x2 (4), x4 (3)
PCI Express slots version	2.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3L-SDRAM
Memory clock speed	1600 MHz
Memory form factor	On-board
Memory layout (slots x size)	1 x 4 GB
Maximum internal memory	4 GB
Maximum internal memory (64-bit)	4 GB

Storage

Specification	Value
Total storage capacity	192 GB
Storage media	SSD
Number of HDDs installed	0
Number of SSDs installed	1
SSD capacity	192 GB
SSD interface	SATA III
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 5300
Maximum on-board graphics card memory	16 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	800 MHz
On-board graphics card DirectX version	11.2/12
On-board graphics card OpenGL version	4.3
On-board graphics card ID	0x161E

Audio

Specification	Value
Audio system	Dolby Advanced Audio v2
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value

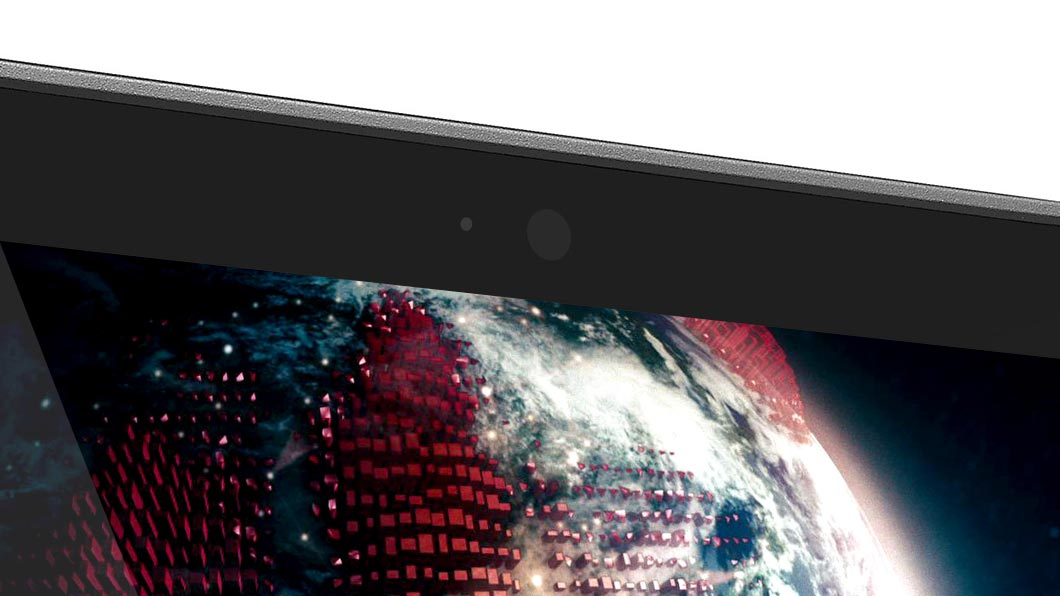

Front camera	Yes
Front camera resolution	1280 x 720 pixels

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0

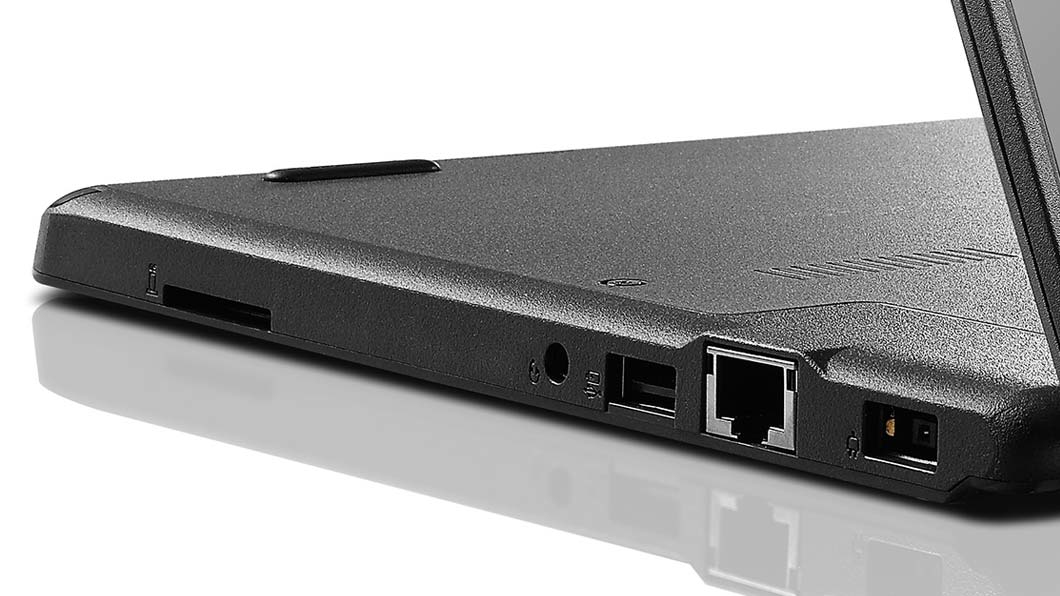

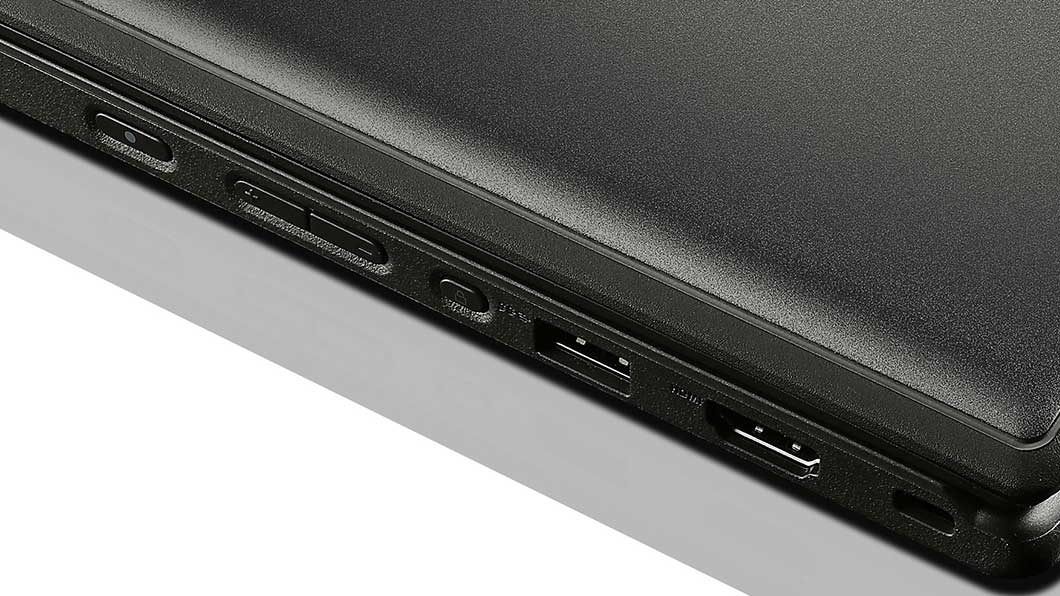

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Thunderbolt 2 ports quantity	0
Headphone outputs	0
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
HDMI	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Motherboard chipset	Intel SoC

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 8.1 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Built-in Visuals Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Processor ARK ID	85234
Processor code	SR23C
Processor package size	30 x 16.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	4
Battery capacity	35 Wh
Battery life (max)	8.1 h

Power

Specification	Value
AC adapter power	45 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	HDD, Power on, Supervisor

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.59 kg
Width	300 mm
Depth	216 mm
Height	25.3 mm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes
Quick start guide	Yes
Warranty card	Yes

Other features

Specification	Value
3D	No
Intel segment tagging	Education, Industrial
Supplied AC adapter type	AC
