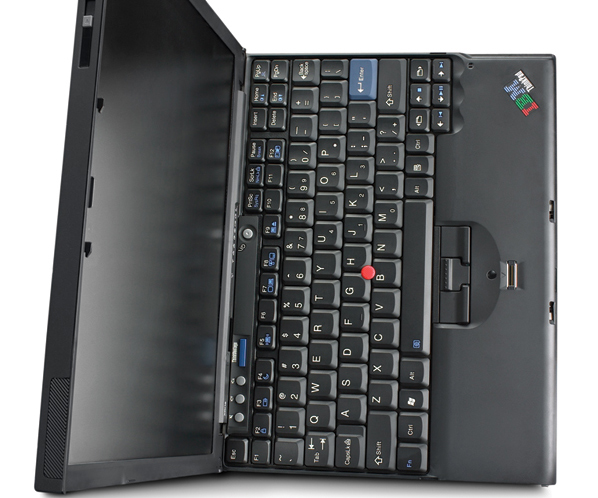

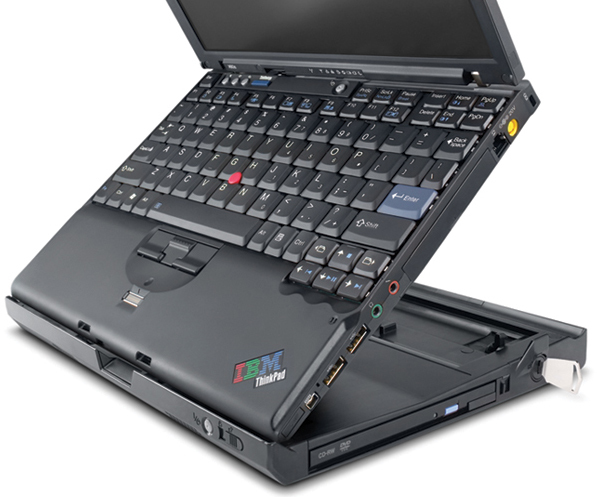

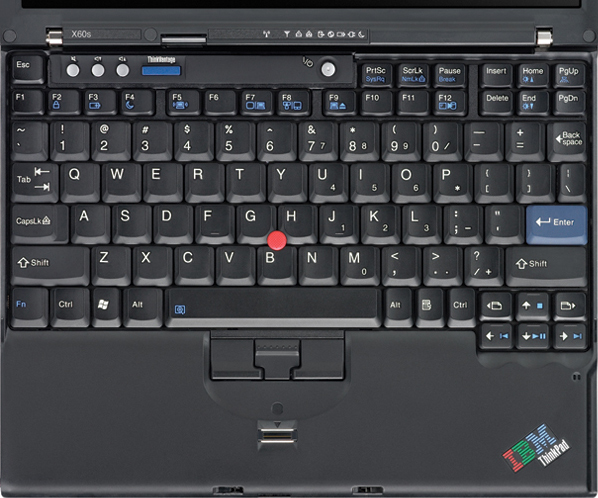

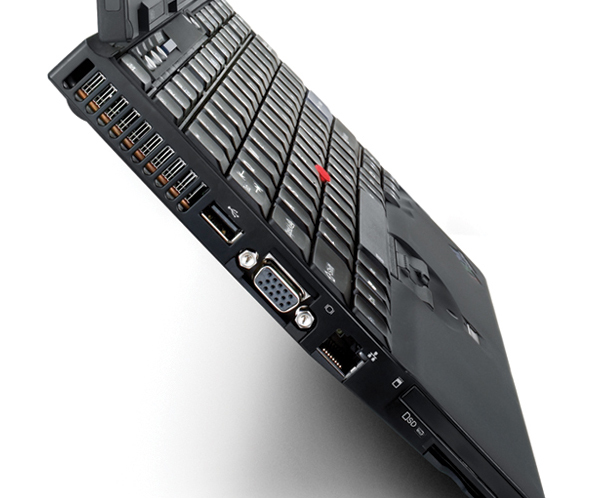

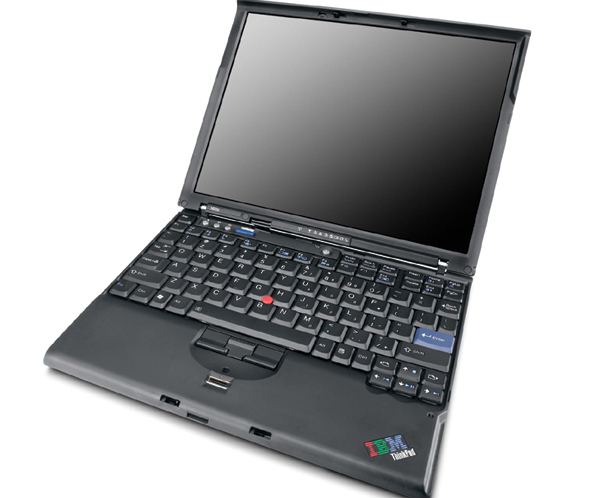

Lenovo ThinkPad X61s

Model ThinkPad X61sPart no. UK383MHEAN 883609623784

117 specifications Checked 2 days ago

Display30.7 cm (12.1")
Resolution1024 x 768 pixels
ProcessorIntel® Core™2 Duo
Memory1 GB
Storage120 GB
GraphicsIntel® GMA X3100

See all specifications

Overview

Display: 30.7 cm (12.1")
Resolution: 1024 x 768 pixels
Processor: Intel® Core™2 Duo
Memory: 1 GB
Storage: 120 GB
Graphics: Intel® GMA X3100

Brand: Lenovo
Category: Laptop
Model: ThinkPad X61s
Part numbers: UK383MH, UK427LE, UK449UK, UK936ND, UK936NH, UK936NI +34 more
EAN / UPC: 883609623784, 883609320508, 883609624057, 883609625252 +4 more
Also known as: Lenovo ThinkPad X61s Intel® Core™2 Duo L7300 30.7 cm (12.1") 1 GB DDR2-SDRAM 120 GB Intel® GMA X3100 Windows Vista Business

Specifications

117 specifications in 17 groups

Display

Specification	Value
Display diagonal	30.7 cm (12.1")
Display resolution	1024 x 768 pixels
Native aspect ratio	4:3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	L7300
Processor cores	2
Processor threads	2
Processor frequency	1.4 GHz
Processor cache	4 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	Socket 479
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo L7000 Series
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Thermal Design Power (TDP)	17 W
Tjunction	100 °C
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	7
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	667 MHz
Memory layout (slots x size)	2 x 0.5 GB
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	120 GB
HDD interface	SATA
HDD speed	5400 RPM
Compatible memory cards	SD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA X3100

Audio

Specification	Value
Audio system	High Definition Audio
Number of built-in speakers	1
Speaker power	0.5 W

Camera

Specification	Value
Front camera	No

Network

Specification	Value
Networking features	Gigabit Ethernet
Wireless technology	IEEE 802.11a/b/g
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
USB 1.1 ports quantity	0

Keyboard

Specification	Value
Pointing device	Trackpad

Software

Specification	Value
Operating system installed	Windows Vista Business

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	29756
Processor code	SLA3S
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	4
Battery life (max)	3.1 h

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	IBM
Fingerprint reader	Yes
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	1.32 kg
Width	268 mm
Depth	211 mm
Height	20 mm
Dimensions (WxDxH)	268 x 211 x 20 mm

Other features

Specification	Value
Infrared data port	No
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	V.92
Docking solution	X6 UltraBase
Supplied AC adapter type	AC
