Lenovo ThinkPad X301 SU9600-1.6 ULV 2X2GB

Model ThinkPad X301 SU9600-1.6 ULV 2X2GBPart no. NRF3RGEEAN 884942714450

115 specifications Checked 5 days ago

Display33.8 cm (13.3")
Resolution1440 x 900 pixels
ProcessorIntel® Core™2 Duo
Memory4 GB
Storage128 GB
GraphicsIntel® GMA 4500MHD

See all specifications

Overview

Display: 33.8 cm (13.3")
Resolution: 1440 x 900 pixels
Processor: Intel® Core™2 Duo
Memory: 4 GB
Storage: 128 GB
Graphics: Intel® GMA 4500MHD

Brand: Lenovo
Category: Laptop
Model: ThinkPad X301 SU9600-1.6 ULV 2X2GB
Part number: NRF3RGE
EAN / UPC: 884942714450
Also known as: Lenovo ThinkPad X301 SU9600-1.6 ULV 2X2GB Intel® Core™2 Duo 33.8 cm (13.3") 4 GB DDR3-SDRAM 128 GB Intel® GMA 4500MHD Windows 7 Professional

Specifications

115 specifications in 17 groups

Display

Specification	Value
Display diagonal	33.8 cm (13.3")
Display resolution	1440 x 900 pixels
LED backlight	Yes
Native aspect ratio	16:10
Display surface	Matt
Display brightness	300 cd/m²
Contrast ratio (typical)	250:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	SU9600
Processor cores	2
Processor threads	2
Processor frequency	1.6 GHz
Processor cache	3 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	BGA 956
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo SU9000 Series
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Stepping	R0
Thermal Design Power (TDP)	10 W
Tjunction	105 °C
Processor core voltage (AC)	1.050 - 1.150 V
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	8
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1066 MHz
Memory layout (slots x size)	2 x 2 GB
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	128 GB
HDD interface	SATA II
Card reader integrated	No

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA 4500MHD
Maximum graphics card memory	0.384 GB

Audio

Specification	Value
Audio system	HD AD1984

Network

Specification	Value
Networking type	WLAN, Gigabit Ethernet
Wireless technology	802.11 a/g/n
Bluetooth	Yes
Bluetooth version	2.0+EDR
Cabling technology	10/100/1000Base-T(X)

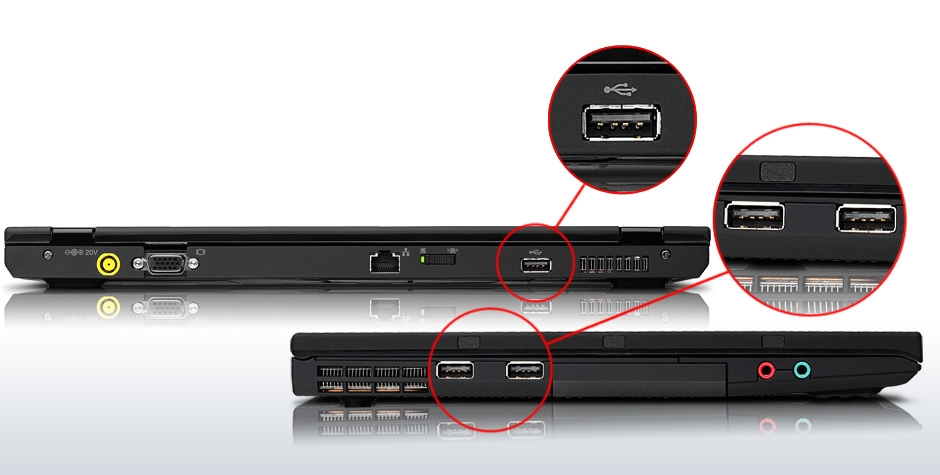

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® GS45 Express

Software

Specification	Value
Operating system installed	Windows 7 Professional

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	37264
Processor code	SLGEX
Processor package size	22 x 22 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	IBM
Fingerprint reader	Yes

Weight & dimensions

Specification	Value
Weight	1.3 kg
Width	318 mm
Depth	231 mm
Height	23 mm

Packaging content

Specification	Value
Remote control included	No

Other features

Specification	Value
Infrared data port	No
Internal modem	Yes
Supplied AC adapter type	AC
