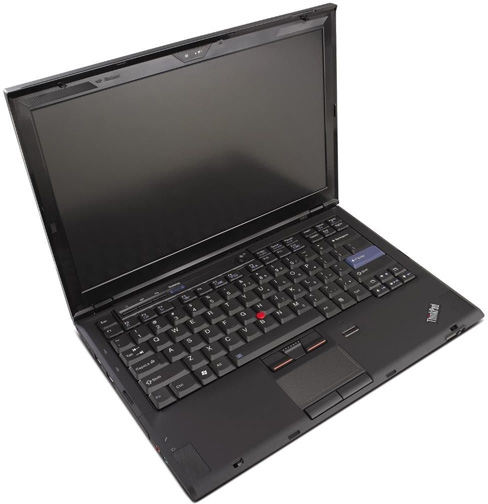

Lenovo ThinkPad X301 (2774LBG), UK

Model ThinkPad X301 (2774LBG), UKPart no. NRDLBUK

112 specifications Checked 2 days ago

Display33.8 cm (13.3")
Resolution1440 x 900 pixels
ProcessorIntel® Core™2 Duo
Memory2 GB
Storage128 GB
GraphicsIntel® GMA 4500MHD

See all specifications

Overview

Display: 33.8 cm (13.3")
Resolution: 1440 x 900 pixels
Processor: Intel® Core™2 Duo
Memory: 2 GB
Storage: 128 GB
Graphics: Intel® GMA 4500MHD

Brand: Lenovo
Category: Laptop
Model: ThinkPad X301 (2774LBG), UK
Part number: NRDLBUK
Also known as: Lenovo ThinkPad X301 (2774LBG), UK Intel® Core™2 Duo SU9400 33.8 cm (13.3") 2 GB DDR3-SDRAM 128 GB Intel® GMA 4500MHD Windows Vista Business

Specifications

112 specifications in 17 groups

Display

Specification	Value
Display diagonal	33.8 cm (13.3")
Display resolution	1440 x 900 pixels
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	SU9400
Processor cores	2
Processor threads	2
Processor frequency	1.4 GHz
Processor cache	3 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	BGA 956
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo SU9000 Series
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Thermal Design Power (TDP)	10 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	7
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1066 MHz
Memory layout (slots x size)	1 x 2 GB
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	128 GB
Optical drive type	DVD-RW
Card reader integrated	No

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA 4500MHD

Audio

Specification	Value
Audio system	Intel HDA 24-bit
Number of built-in speakers	2
Speaker power	2 W

Network

Specification	Value
Networking features	WLAN, Gigabit Ethernet
Wireless technology	Intel WiFi 5300AGN
Bluetooth	No
Cabling technology	10/100/1000Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	No
Docking connector	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav

Software

Specification	Value
Operating system installed	Windows Vista Business
Drivers included	Yes
Trial software	Microsoft Office 2007

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	36697
Processor package size	22 x 22 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery life (max)	6 h

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	IBM
Fingerprint reader	Yes

Weight & dimensions

Specification	Value
Weight	1.42 kg
Width	318 mm
Depth	231 mm
Height	23.4 mm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Internal modem	Yes
Modem speed	56 Kbit/s
Supplied AC adapter type	AC
