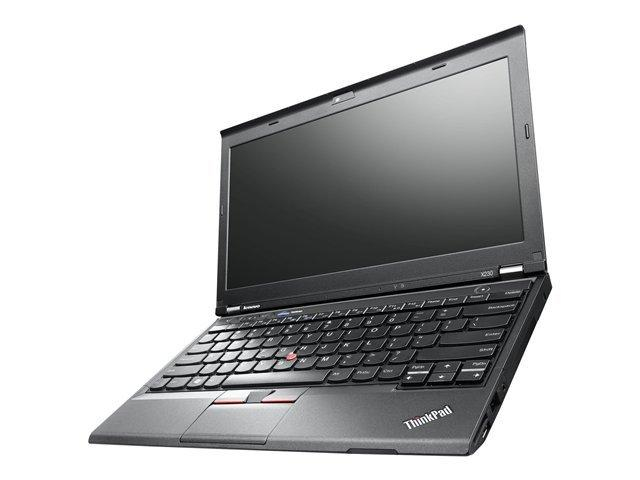

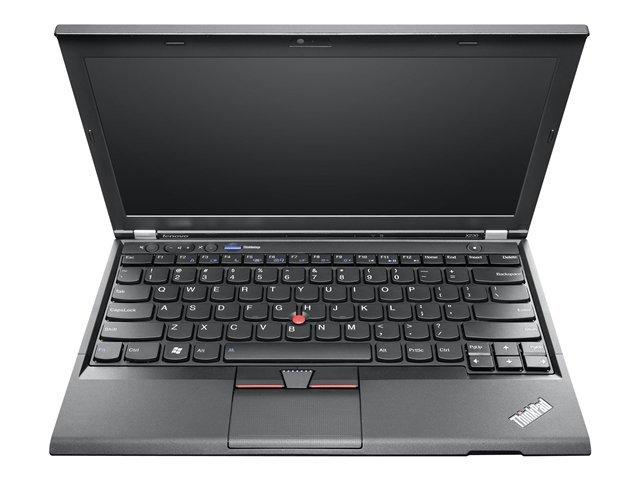

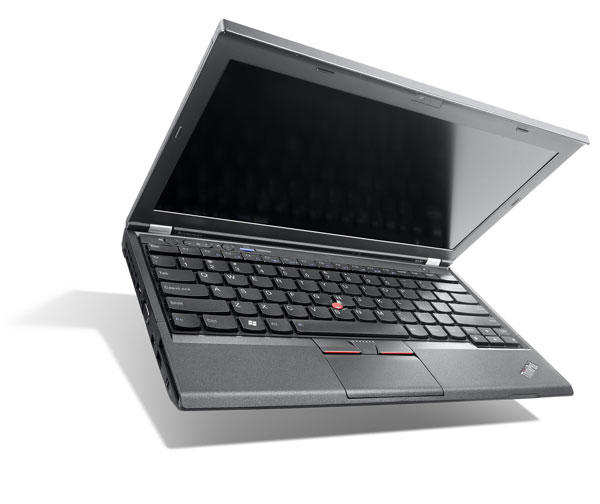

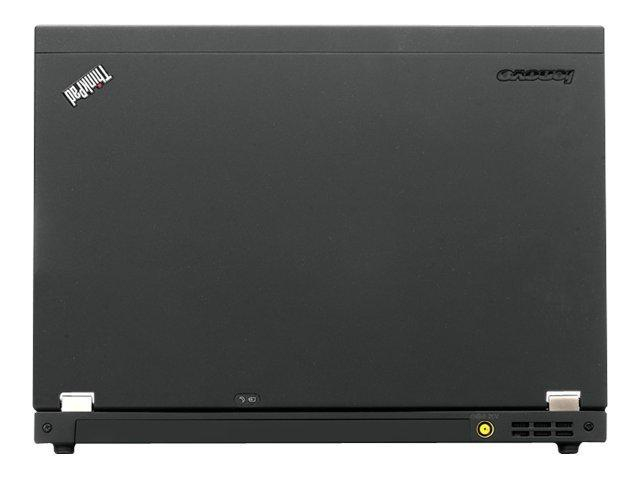

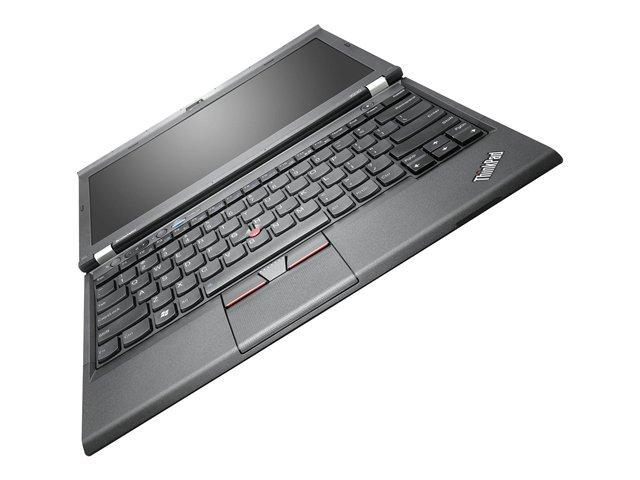

ThinkPad X230

Model ThinkPad X230Part no. NZC22UKEAN 888228343075

199 specifications Checked today

Display31.8 cm (12.5")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage180 GB
GraphicsNot available

See all specifications

Overview

Display: 31.8 cm (12.5")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 180 GB
Graphics: Not available

Brand: Lenovo
Category: Laptop
Model: ThinkPad X230
Part numbers: NZC22UK, NZD3QSP, NZD5VSP, 751D908, 728D474, 727D769 +34 more
EAN / UPC: 888228343075, 887037630970
Also known as: Lenovo ThinkPad X230 Intel® Core™ i7 i7-3520M 31.8 cm (12.5") HD 8 GB DDR3-SDRAM 180 GB SSD Wi-Fi 4 (802.11n) Windows 7 Professional Black QWERTY

Specifications

199 specifications in 23 groups

Design

Specification	Value
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	31.8 cm (12.5")
Display resolution	1366 x 768 pixels
Touchscreen	No
HD type	HD
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	300 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	3rd gen Intel® Core™ i7
Processor model	i7-3520M
Processor cores	2
Processor threads	4
Processor boost frequency	3.6 GHz
Processor frequency	2.9 GHz
System bus rate	5 GT/s
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	BGA 1023
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-3500 Mobile series
Processor codename	Ivy Bridge
Bus type	DMI
FSB Parity	No
Stepping	L1
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x8, 1x16, 2x4, 2x8
PCI Express slots version	3.0
CPU multiplier (bus/core ratio)	29
Maximum number of SMP processors	1
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1600 MHz
Memory layout (slots x size)	2 x 4 GB
Memory slots	2x SO-DIMM
Memory slots (available)	0
Maximum internal memory	16 GB
Maximum internal memory (64-bit)	16 GB

Storage

Specification	Value
Total storage capacity	180 GB
Storage media	SSD
Number of HDDs installed	0
Number of SSDs installed	1
SSD capacity	180 GB
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1250 MHz
On-board graphics card ID	0x166

Audio

Specification	Value
Audio system	Dolby Advanced Audio 2.0
Built-in speaker(s)	Yes
Number of built-in speakers	2
Built-in subwoofer	No
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution	1280 x 720 pixels

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Mobile network connection	Yes
Mobile network generation	3G
2G standards	GPRS
3G standards	HSPA, HSPA+, WCDMA
Wi-Fi	Yes
Networking features	Gigabit Ethernet, WLAN, WWAN
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0
WWAN	Installed
Cabling technology	10/100/1000Base-T(X)
Integrated 4G WiMAX	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	0
Mini DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Micro HDMI ports quantity	0
Mini VGA ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
Headphone connectivity	3.5 mm
Microphone connectivity	3.5 mm
S-Video port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
USB 1.1 ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® QM77 Express

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Full-size keyboard	No
Windows keys	Yes
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Drivers included	Yes
Pre-installed software	SimpleTap, Microsoft Office 2010, Adobe Acrobat Reader, Skype, Microsoft Windows Live Essentials 2011, Evernote, Lenovo Cloud Storage by Sugarsync, Symantec VIP (Verisgn Identify Protection)
Trial software	Norton Internet Security
Bundled software	- Power Manager 6.0 - Access Connections 5.9 - Active Protective SystemTM - Password Manager 4.0
Compatible operating systems	Windows® 7 Home Premium 32 bit / 64 bit Windows® 7 Professional 32 bit / 64 bit Windows® 7 Ultimate 64 bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	64893
Processor code	SR0MU
Processor package size	37.5 x 37.5 (rPGA988B); 31.0 x 24.0 (BGA1023)
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	9
Battery capacity	93.6 Wh
Battery life (max)	15.5 h

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	120 - 230 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Face recognition	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
HDD user password	Yes

Certificates

Specification	Value
Certification	Windows® 7 Home Premium 32 bit / 64 bit Windows® 7 Professional 32 bit / 64 bit Windows® 7 Ultimate 64 bit

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.34 kg
Width	305 mm
Depth	206.5 mm
Height (front)	1.9 cm
Height (rear)	2.66 cm
Width (imperial)	30.5 cm (12")
Depth (imperial)	20.6 cm (8.13")
Height (front) (imperial)	1.91 cm (0.75")
Height (rear) (imperial)	2.67 cm (1.05")
