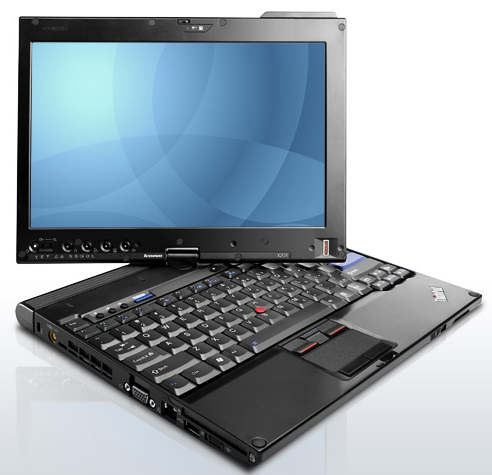

Lenovo ThinkPad X201 Tablet + 73Y2650

Model ThinkPad X201 Tablet + 73Y2650Part no. NU7FJMD+73Y2650

114 specifications Checked 3 days ago

Display30.7 cm (12.1")
Resolution1280 x 800 pixels
ProcessorIntel® Core™ i5
Memory4 GB
Storage320 GB
TypeHybrid (2-in-1)

See all specifications

Overview

Display: 30.7 cm (12.1")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 320 GB
Type: Hybrid (2-in-1)

Brand: Lenovo
Category: Laptop
Model: ThinkPad X201 Tablet + 73Y2650
Part numbers: NU7FJMD+73Y2650, NU7F8GESET, NU7F8GE+73Y2650, NU7FWGESET, NU7FWGE+73Y2650, NU7FJUK+73Y2650 +1 more
Also known as: Lenovo ThinkPad X201 Tablet + 73Y2650 Intel® Core™ i5 i5-520UM Hybrid (2-in-1) 30.7 cm (12.1") Touchscreen 4 GB Windows 7 Professional

Specifications

114 specifications in 17 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Form factor	Convertible (Swivel)

Display

Specification	Value
Display diagonal	30.7 cm (12.1")
Display resolution	1280 x 800 pixels
Touchscreen	Yes
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5
Processor model	i5-520UM
Processor cores	2
Processor threads	4
Processor boost frequency	1.87 GHz
Processor frequency	1.07 GHz
System bus rate	2.5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1288
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-500 Mobile Series
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Stepping	C2
Thermal Design Power (TDP)	18 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	8
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Memory clock speed	1066 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
HDD capacity	320 GB
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, SDHC

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	166 MHz
On-board graphics card dynamic frequency (max)	500 MHz

Audio

Specification	Value
Audio system	High Definition Audio
Built-in microphone	Yes

Network

Specification	Value
Mobile network connection	Yes
Mobile network generation	3G
Networking features	Gigabit Ethernet
Wireless technology	IEEE 802.11a/g/n
Bluetooth	Yes
Bluetooth version	2.1+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Headphone outputs	1
Microphone in	Yes
Docking connector	No
Modem (RJ-11) ports	1

Performance

Specification	Value
GPS (satellite)	No

Software

Specification	Value
Operating system installed	Windows 7 Professional

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit
Processor ARK ID	47554
Processor code	SLBQP
Processor package size	BGA 34 x 28
Supported instruction sets	SSE4.1/4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	8
Battery life (max)	7.9 h

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Fingerprint reader	Yes

Weight & dimensions

Specification	Value
Weight	1.76 kg
Width	295 mm
Depth	257 mm
Height	33.3 mm

Other features

Specification	Value
Internal modem	Yes
Modem speed	56 Kbit/s
Supplied AC adapter type	AC
