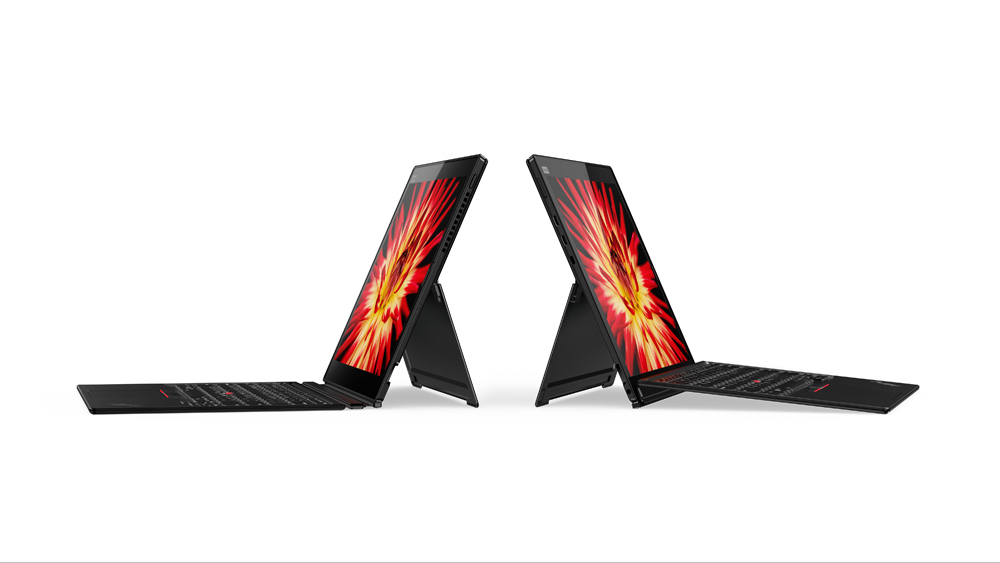

Lenovo ThinkPad X1 Tablet (3rd Gen)

Model ThinkPad X1 Tablet (3rd Gen)Part no. 20KJ001FUSEAN 192330413015

132 specifications Checked 3 days ago

Display33 cm (13")
Resolution3000 x 2000 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage256 GB
Camera8 MP

See all specifications

Overview

Display: 33 cm (13")
Resolution: 3000 x 2000 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 256 GB
Camera: 8 MP

Brand: Lenovo
Category: Laptop
Model: ThinkPad X1 Tablet (3rd Gen)
Part numbers: 20KJ001FUS, 20KJ0017US, 20KJ0018US, 20KJ0019US, 20KJ001AUS, 20KJ001BUS +3 more
EAN / UPC: 192330413015, 192330412643, 192330412827, 192330412568 +5 more
Also known as: Lenovo ThinkPad X1 Tablet (3rd Gen) Intel® Core™ i7 i7-8650U Hybrid (2-in-1) 33 cm (13") Touchscreen Quad HD+ 8 GB LPDDR3-SDRAM 256 GB SSD Wi-Fi 5 (802.11ac) Wi

Specifications

132 specifications in 19 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Black
Form factor	Convertible (Detachable)

Display

Specification	Value
Display diagonal	33 cm (13")
Display resolution	3000 x 2000 pixels
Touchscreen	Yes
Touchscreen type	Capacitive
HD type	Quad HD+
Touch technology	Multi-touch
Panel type	IPS
LED backlight	Yes
Native aspect ratio	3:2

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	8th gen Intel® Core™ i7
Processor model	i7-8650U
Processor cores	4
Processor threads	8
Processor boost frequency	4.2 GHz
Processor frequency	1.9 GHz
System bus rate	4 GT/s
Processor cache	8 MB
Processor socket	BGA 1356
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Kaby Lake R
Bus type	OPI
Stepping	Y0
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.1 GHz
Configurable TDP-up	25 W
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	LPDDR3-SDRAM
Memory clock speed	2133 MHz
Memory form factor	On-board

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
On-board GPU manufacturer	Intel
On-board graphics card model	Intel® UHD Graphics 620
Maximum on-board graphics card memory	32 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	0x5917

Audio

Specification	Value
Number of built-in speakers	2
Speaker power	1 W

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2 MP
Rear camera	Yes
Rear camera resolution (numeric)	8 MP

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	4.1
Near Field Communication (NFC)	Yes

Ports & interfaces

Specification	Value
Thunderbolt 3 ports quantity	2
Headphone outputs	1
Combo headphone/mic port	Yes

Keyboard

Specification	Value
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	124968
Processor code	SR3L8
Processor package size	42 x 24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)

Power

Specification	Value
AC adapter power	65 W

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold

Weight & dimensions

Specification	Value
Weight	1.27 kg
Width	304.1 mm
Depth	226 mm
Height	15.1 mm
Weight (tablet mode)	890 g
Width (tablet mode)	30.4 cm
Depth (tablet mode)	22.6 cm
Height (tablet mode)	8.9 mm
