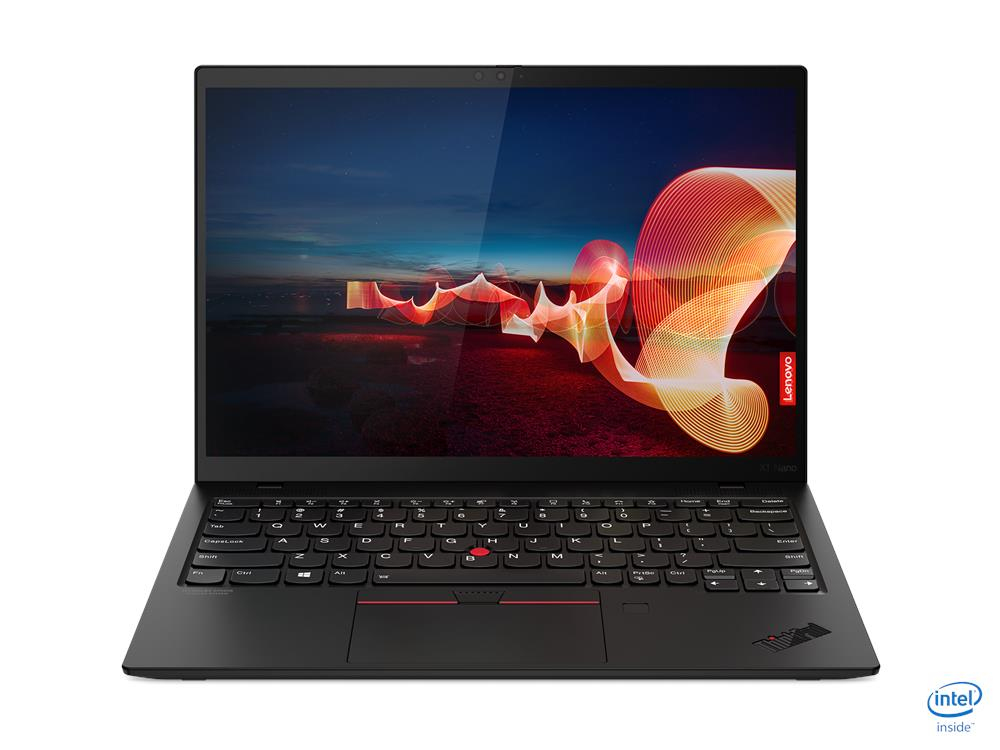

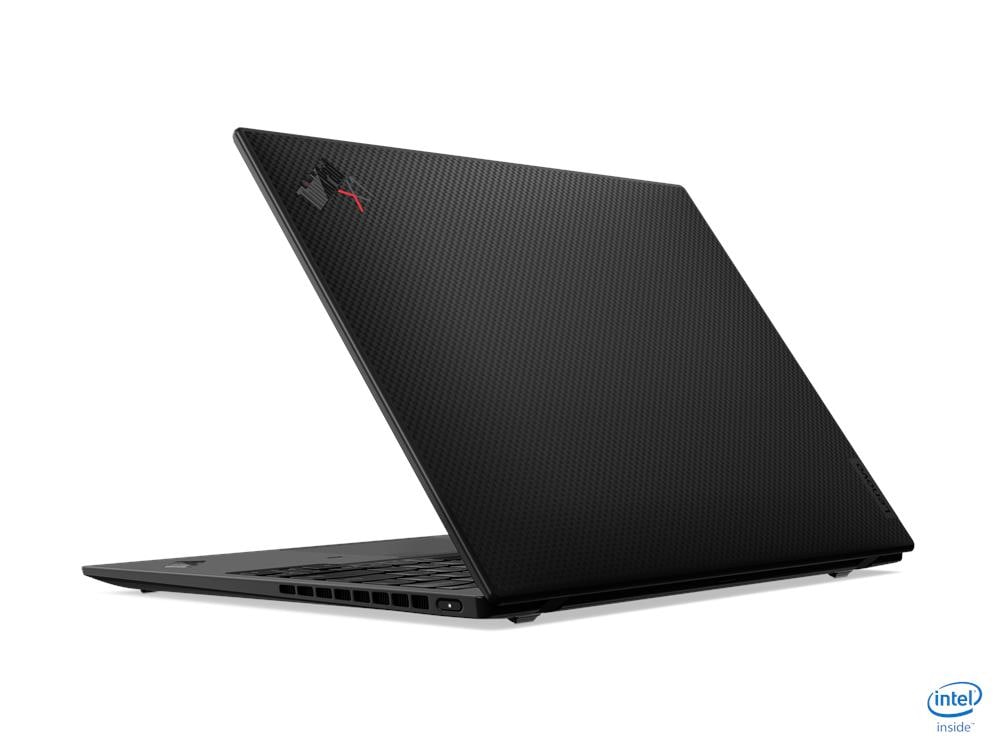

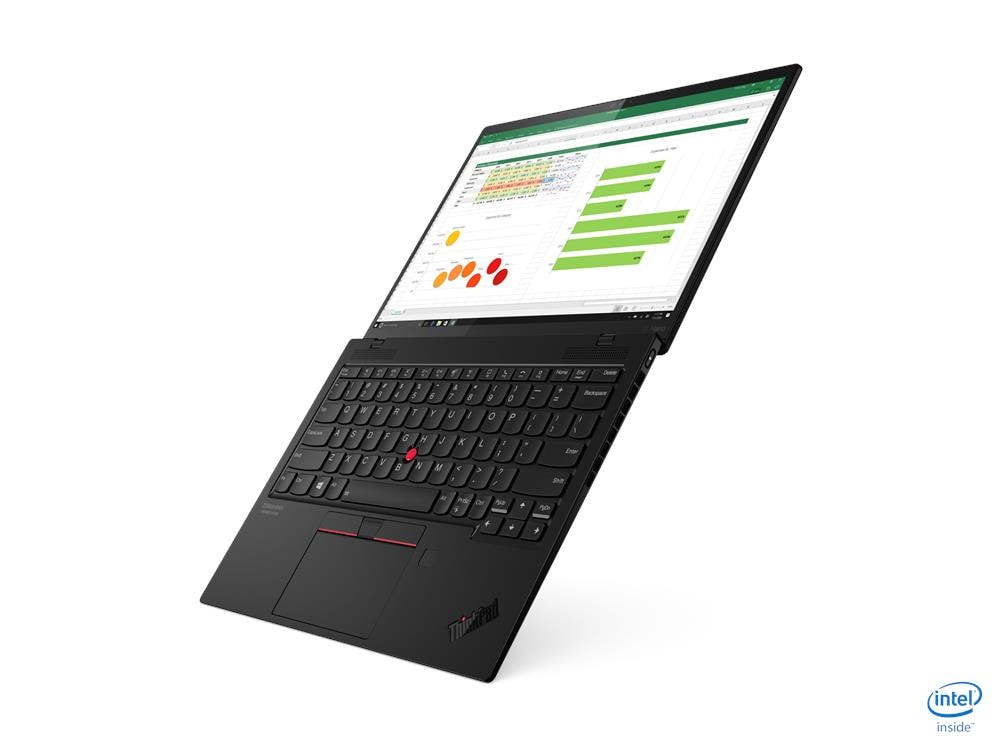

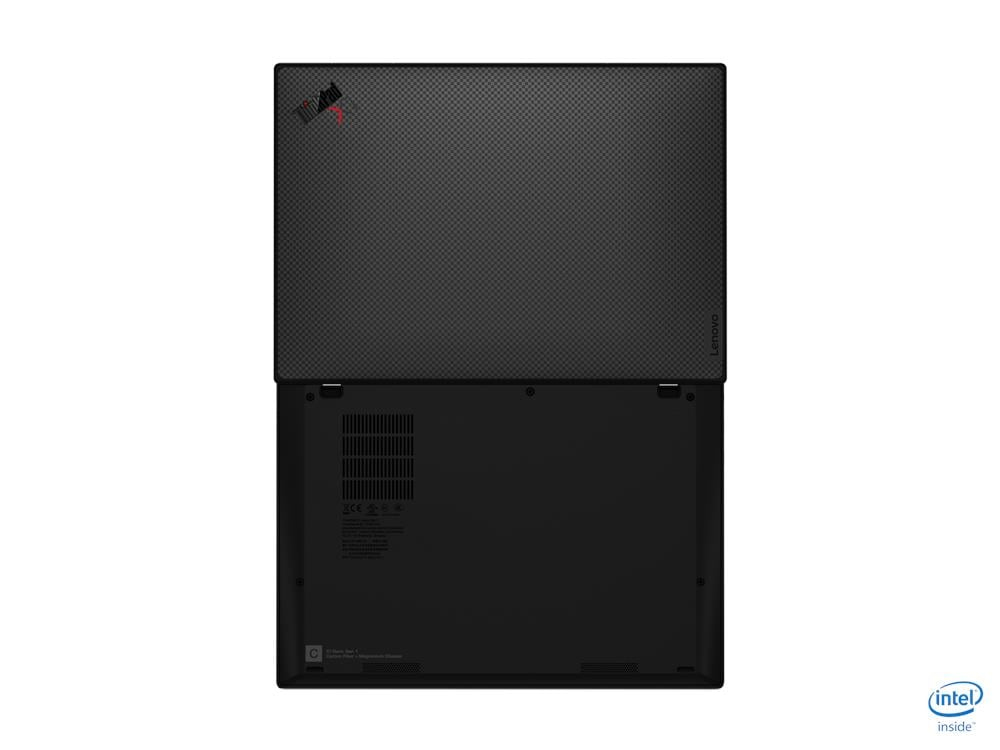

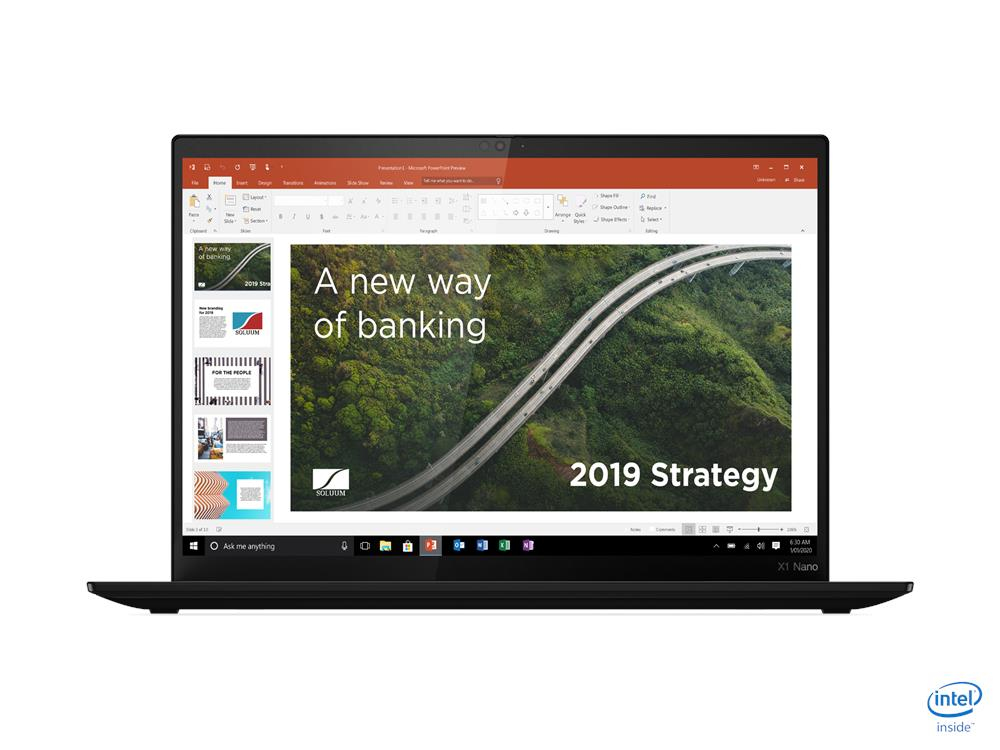

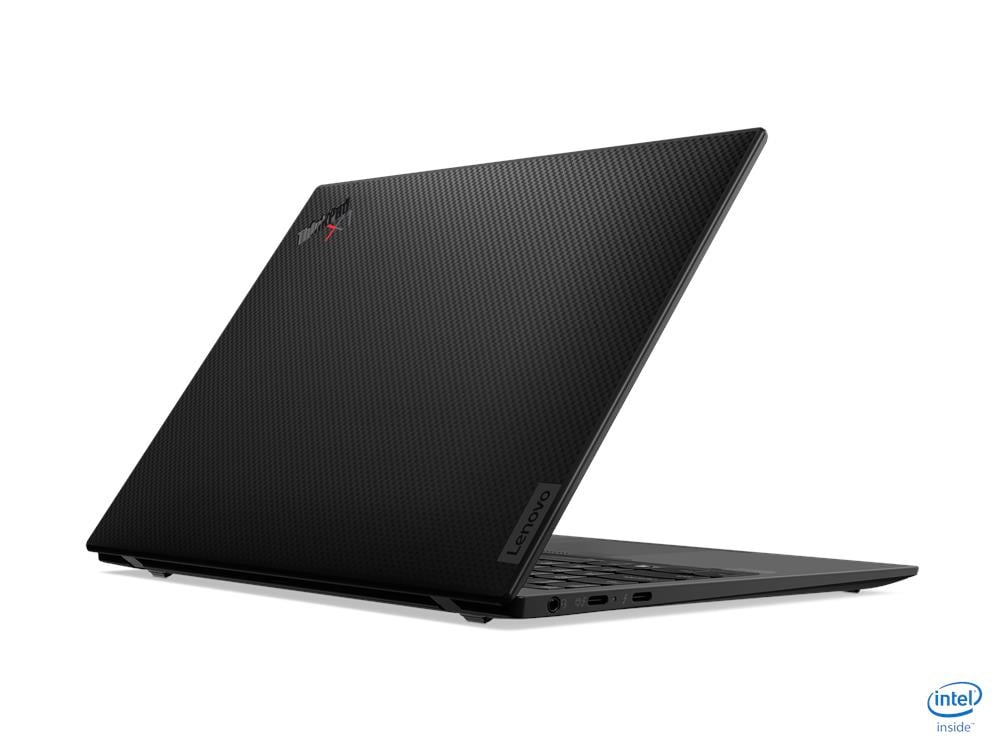

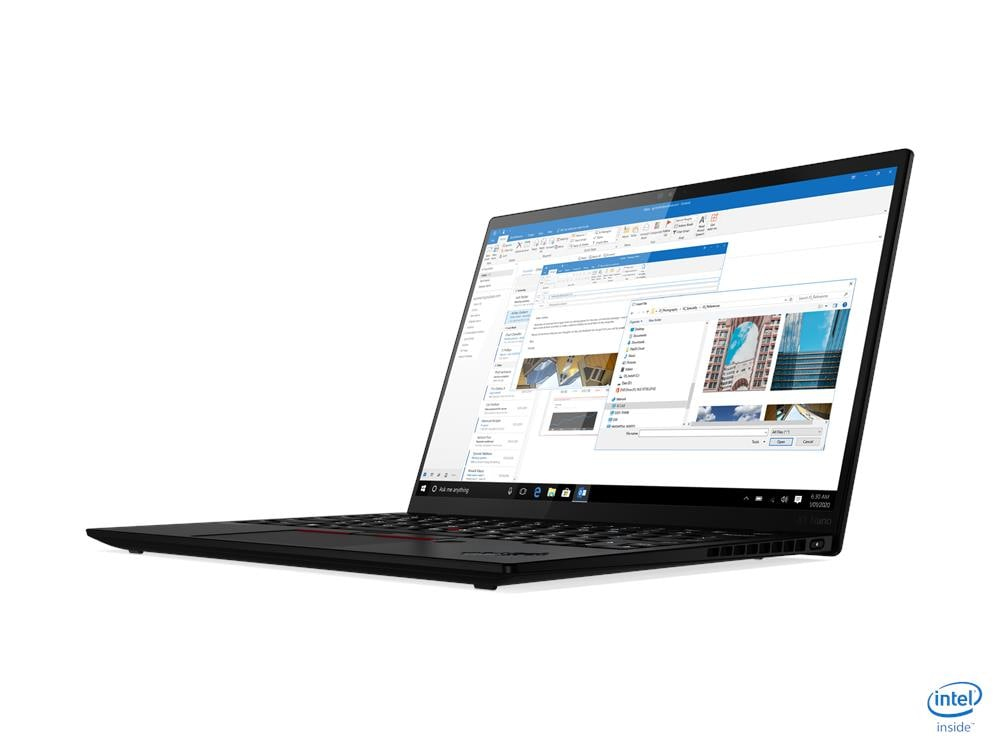

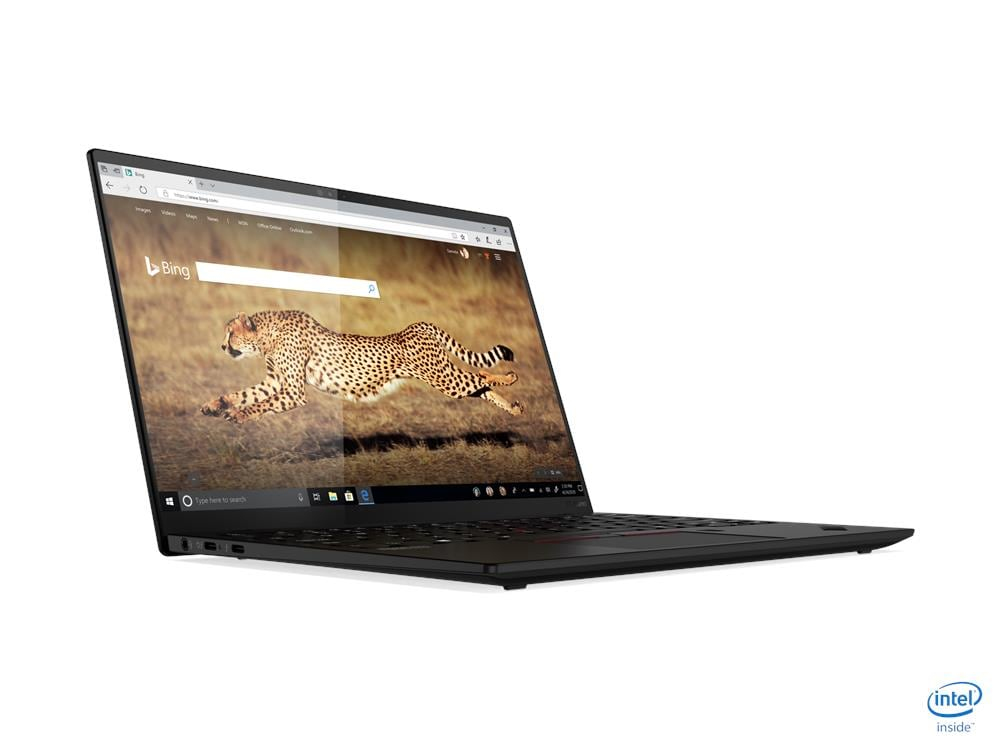

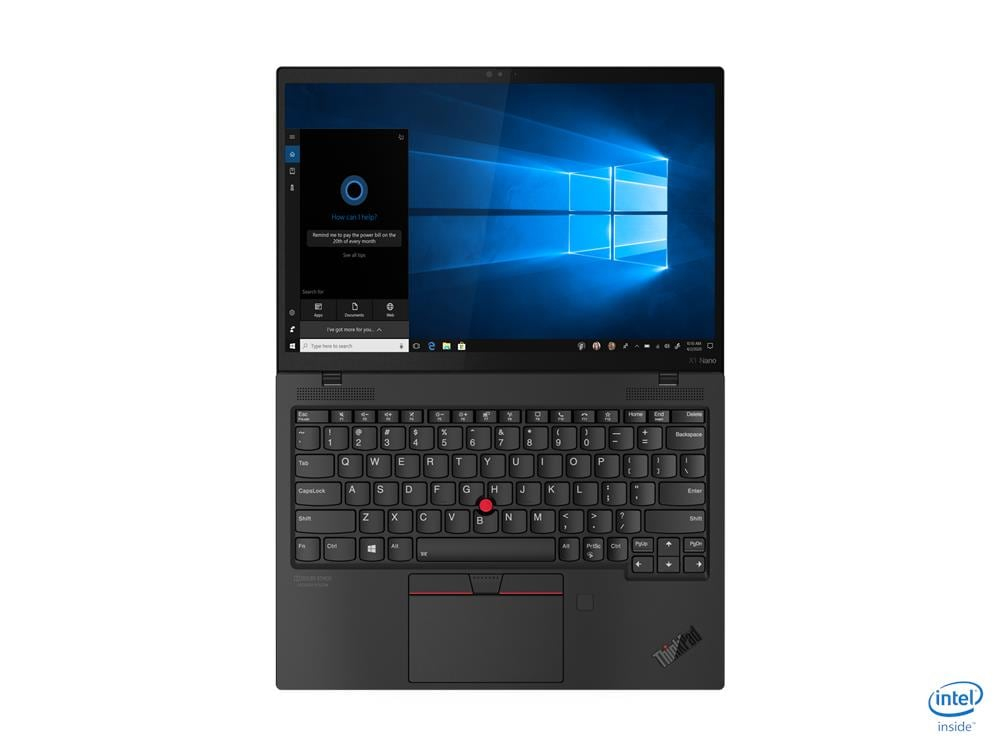

ThinkPad X1 Nano Gen 1
Model ThinkPad X1 Nano Gen 1Part no. 20UN0057USEAN 195477137820
92 specifications Checked today
- Display33 cm (13")
- Resolution2160 x 1350 pixels
- ProcessorIntel® Core™ i5
- Memory16 GB
- Storage512 GB
- GraphicsNot available
Overview
- Display
- 33 cm (13")
- Resolution
- 2160 x 1350 pixels
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- Not available
- Brand
- Lenovo
- Category
- Laptop
- Model
- ThinkPad X1 Nano Gen 1
- Part numbers
- 20UN0057US, 20UN0003SG, 20UN00C9SG, 20UN00DASG, 20UNS00G00, 20UN002JFR +34 more
- EAN / UPC
- 195477137820, 195348812344, 196119708743, 196119726167 +56 more
- Also known as
- Lenovo ThinkPad X1 Nano Gen 1 Intel® Core™ i5 i5-1130G7 Laptop 33 cm (13") 16 GB LPDDR4x-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Windows 10 Pro Black
Specifications
92 specifications in 19 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Black |
| Colour name | Black, Paint |
| Form factor | Clamshell |
Display
| Specification | Value |
|---|---|
| Display diagonal | 33 cm (13") |
| Display resolution | 2160 x 1350 pixels |
| Touchscreen | No |
| Panel type | IPS |
| LED backlight | Yes |
| Anti-glare screen | Yes |
| Display brightness | 450 cd/m² |
| Colour gamut | 100% |
| RGB colour space | sRGB |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor model | i5-1130G7 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4 GHz |
| Processor frequency | 1.8 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | LPDDR4x-SDRAM |
| Memory clock speed | 4266 MHz |
| Memory form factor | On-board |
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel Iris Xe Graphics |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3306 |
| Built-in microphone | Yes |
| Number of microphones | 4 |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera HD type | HD |
| Front camera resolution | 1280 x 720 pixels |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Specification | Value |
|---|---|
| Mobile network connection | Yes |
| Mobile network generation | 4G |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Near Field Communication (NFC) | No |
| WWAN | Installed |
| WWAN controller | Fibocom L850-GL, 4G LTE CAT9 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel SoC |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Keyboard backlit | Yes |
| Numeric keypad | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Operating system language | English |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 48 Wh |
| Battery life (max) | 13.6 h |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
| USB Type-C charging port | Yes |
| USB Power Delivery (USB PD) | Yes |
Security
| Specification | Value |
|---|---|
| Fingerprint reader | Yes |
| Smart card reader | No |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Certificates
| Specification | Value |
|---|---|
| Certification | ENERGY STAR,TCO,EPEAT Gold,RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 939 g |
| Width | 292.8 mm |
| Depth | 207.7 mm |
| Height (front) | 1.39 cm |
| Height (rear) | 1.67 cm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
