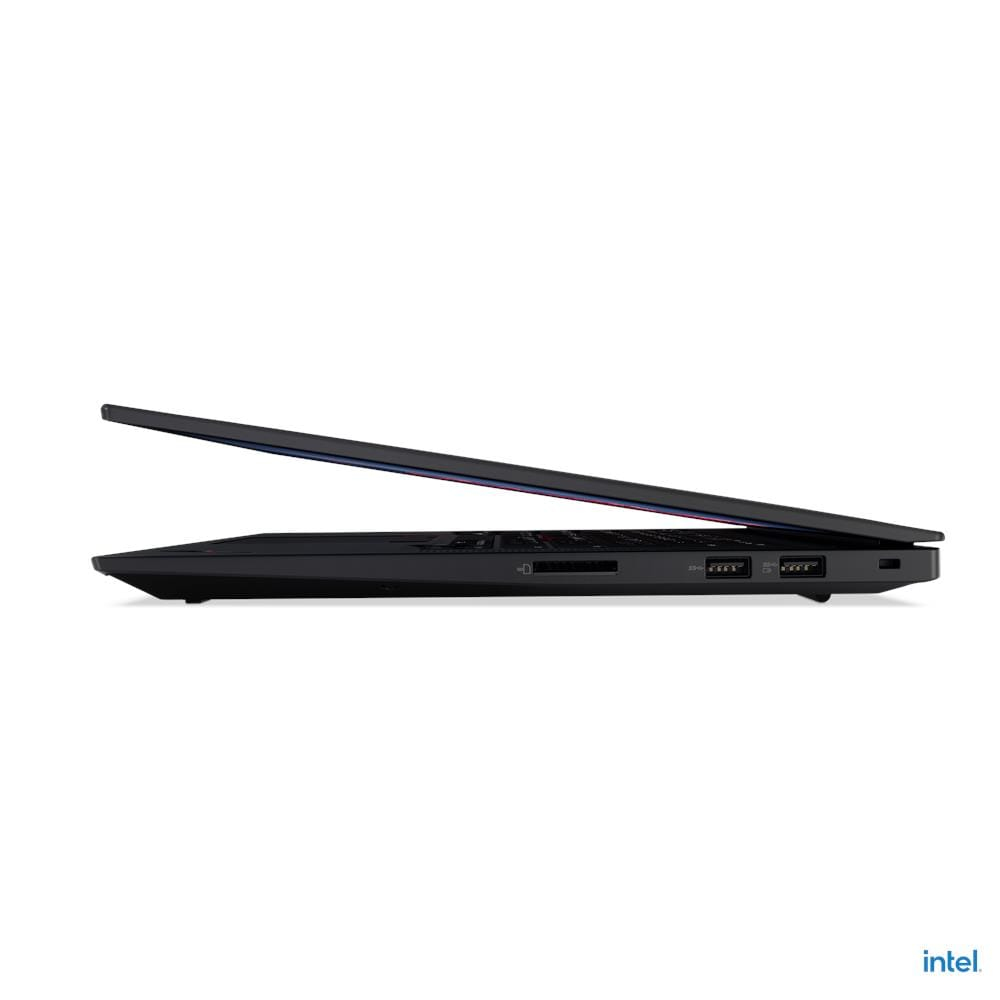

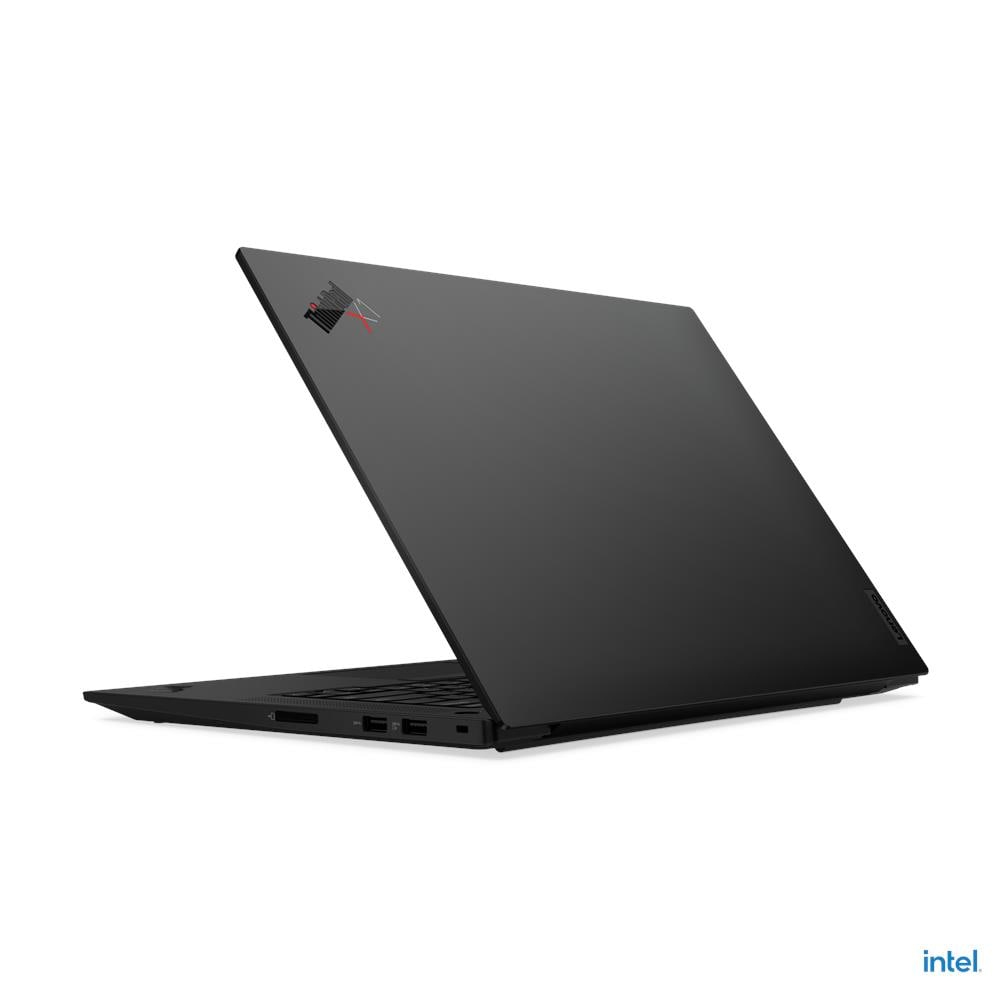

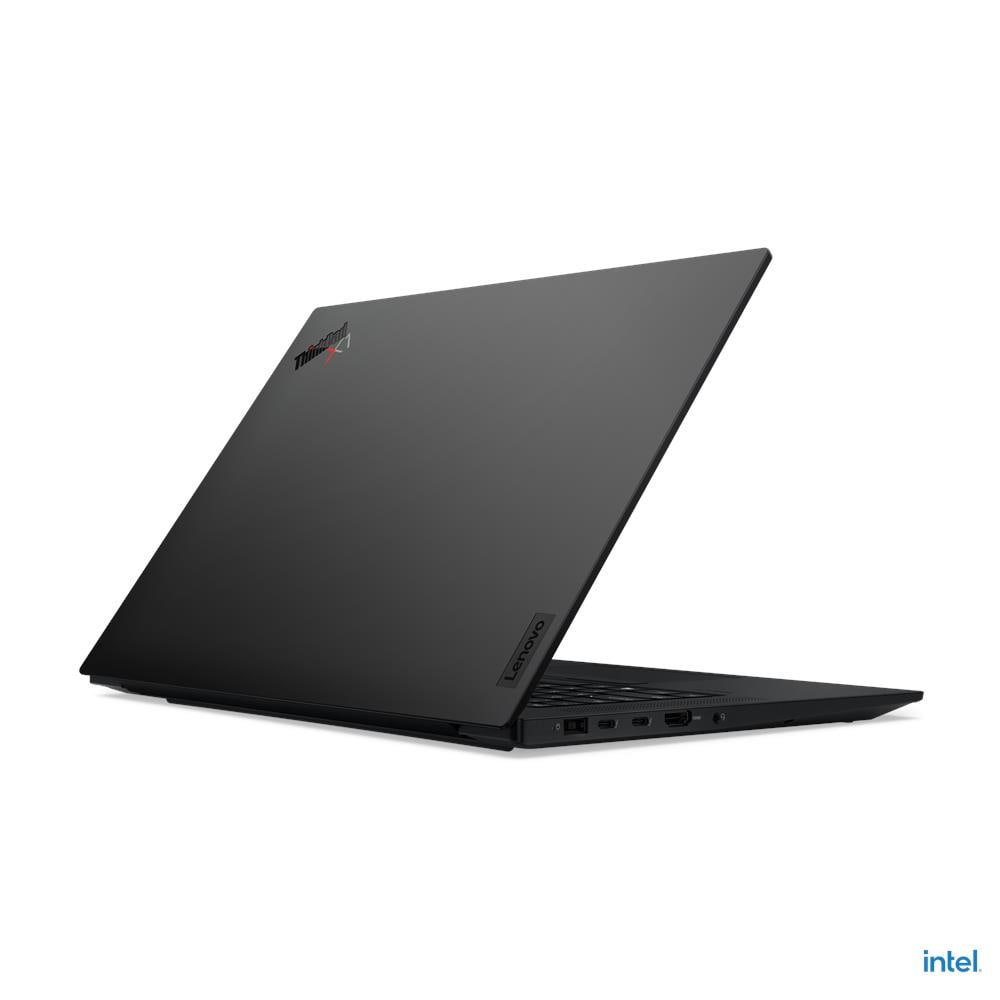

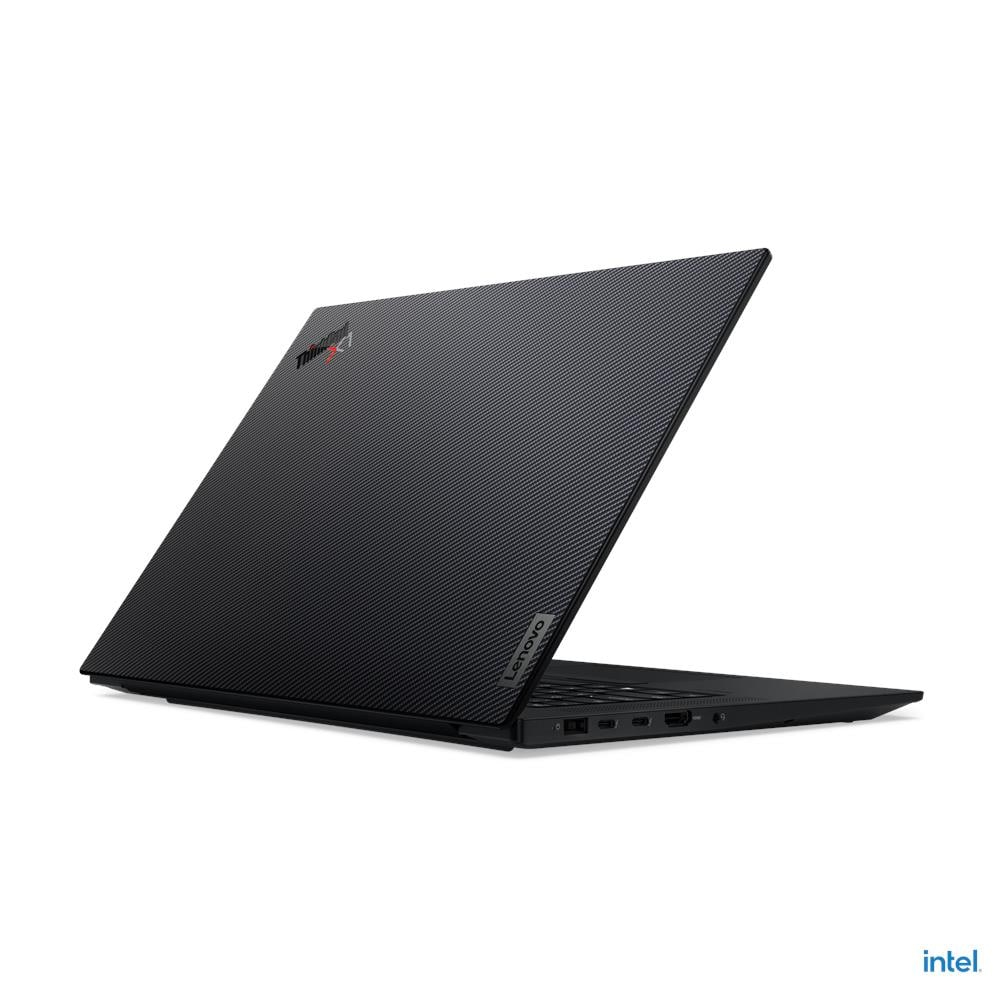

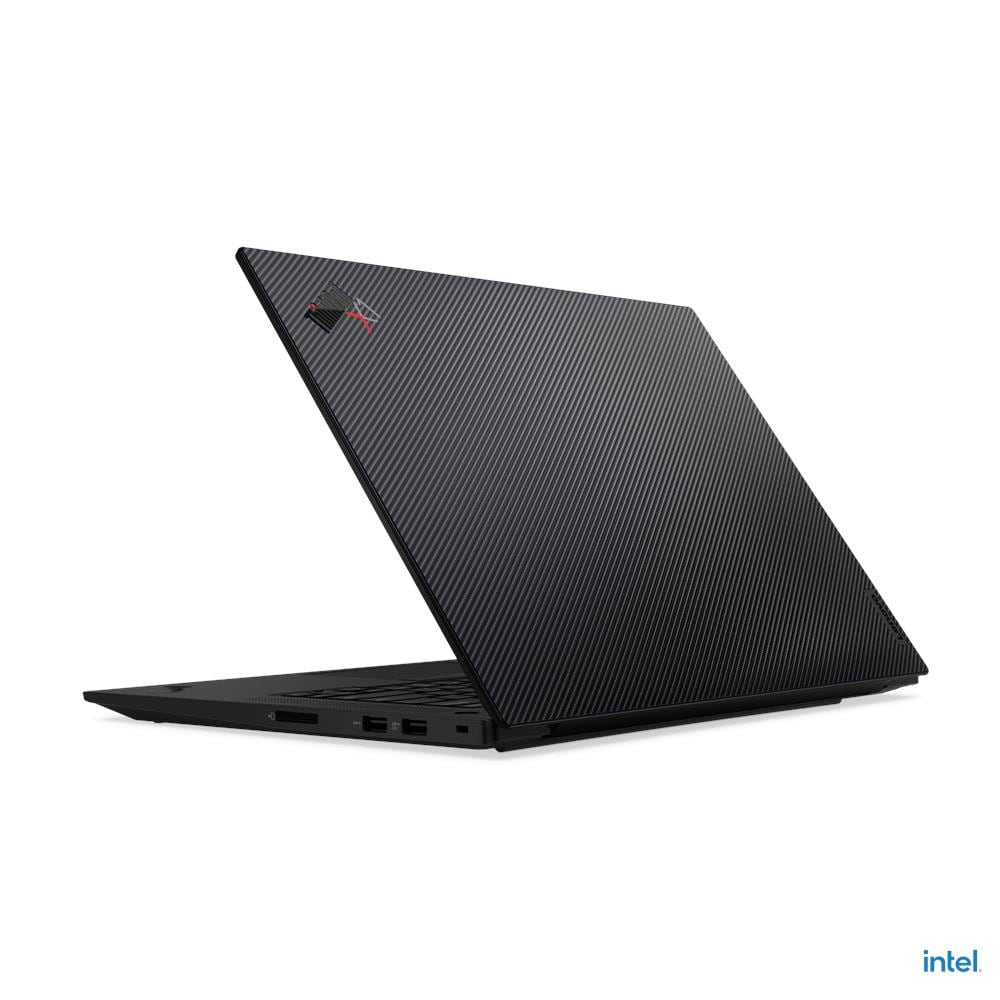

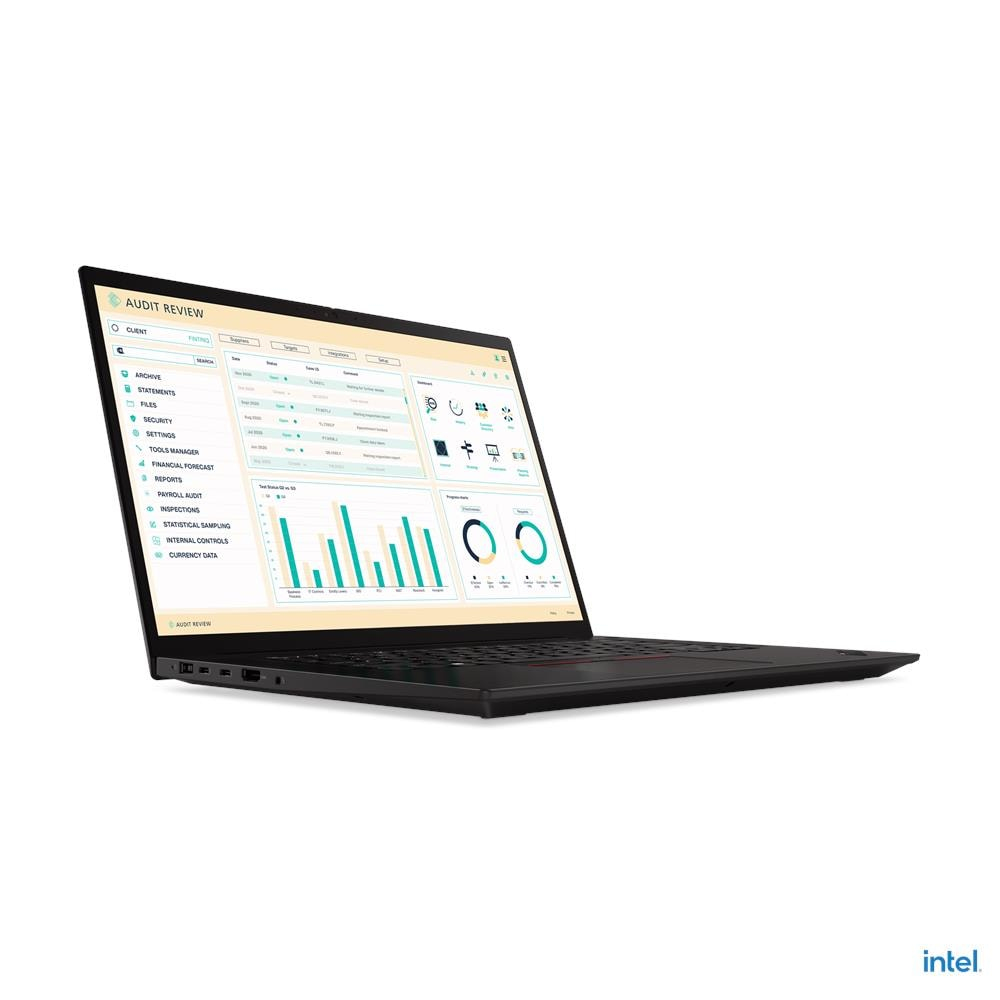

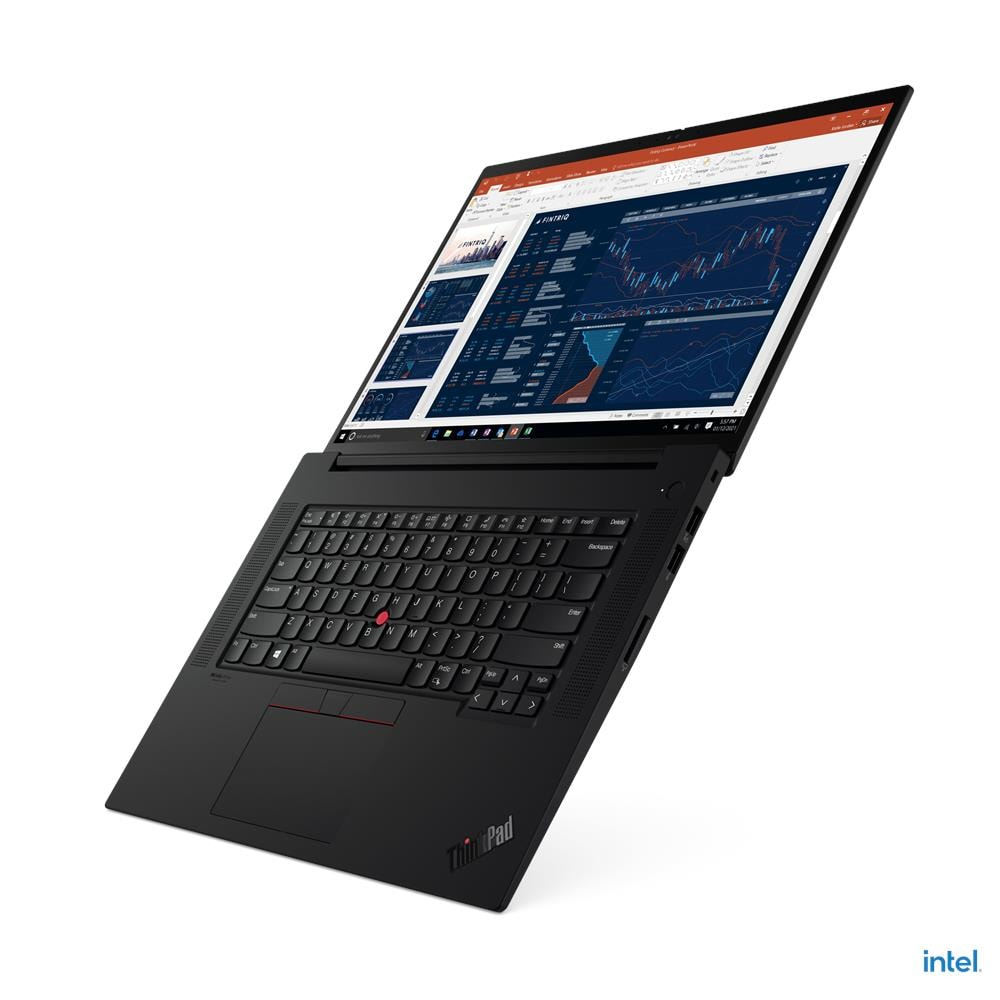

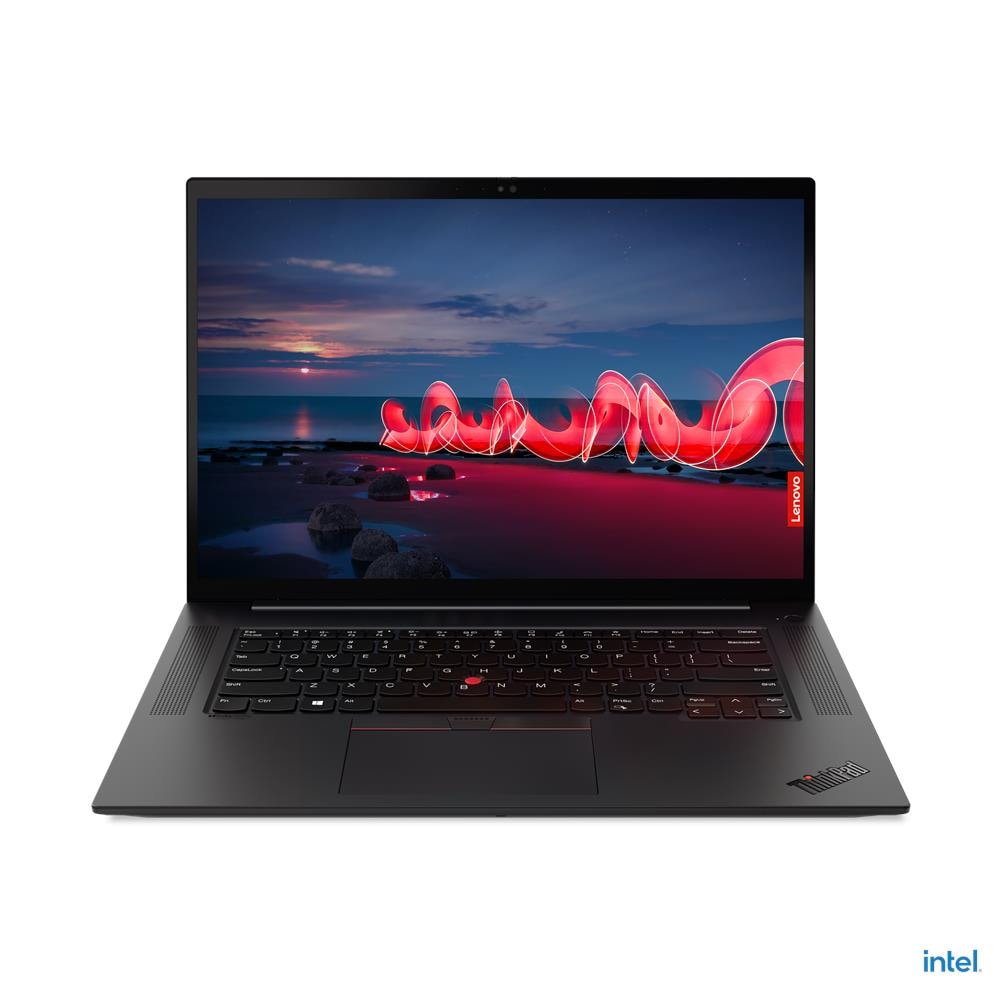

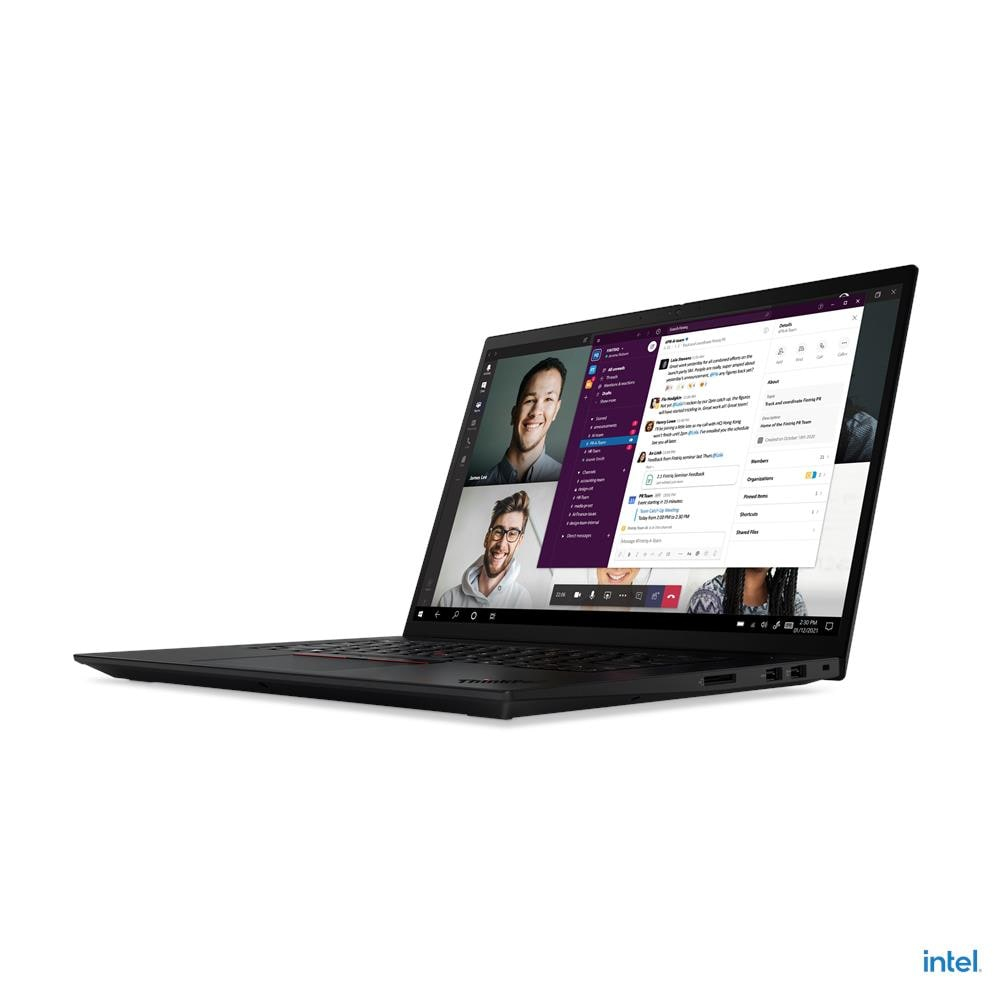

Lenovo ThinkPad X1 Extreme Gen 4

ThinkPad X1 Extreme Gen 4

Model ThinkPad X1 Extreme Gen 4Part no. 20Y5002BMXEAN 196118011158

99 specifications Checked today

Display40.6 cm (16")
Resolution2560 x 1600 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
GraphicsNVIDIA GeForce RTX 3060

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2560 x 1600 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA GeForce RTX 3060

Brand: Lenovo
Category: Laptop
Model: ThinkPad X1 Extreme Gen 4
Part numbers: 20Y5002BMX, 20Y50081CA, 20Y6000SBR, 20Y6001XBR, 20Y6001YBR, 20Y50028MH +34 more
EAN / UPC: 196118011158, 197528070490, 196119523117, 196379491737 +56 more
Also known as: Lenovo ThinkPad X1 Extreme Gen 4 Intel® Core™ i7 i7-11800H Laptop 40.6 cm (16") WQXGA 16 GB DDR4-SDRAM 512 GB SSD NVIDIA GeForce RTX 3060 Wi-Fi 6E (802.11ax) Wi

Specifications

99 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Black, Paint
Form factor	Clamshell
Display back cover material	Carbon

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	400 cd/m²
Colour gamut	100%
RGB colour space	sRGB

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor model	i7-11800H
Processor cores	8
Processor threads	16
Processor boost frequency	4.6 GHz
Processor frequency	2.3 GHz

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 3060
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6

Audio

Specification	Value
Audio chip	Realtek ALC3306
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX210
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.1
Near Field Communication (NFC)	No
WWAN	Not installed

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes

Performance

Specification	Value
Motherboard chipset	Intel WM590

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Keyboard backlit	Yes
Numeric keypad	No
Keyboard language	French

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system language	French

Battery

Specification	Value
Battery capacity	90 Wh

Power

Specification	Value
AC adapter power	230 W
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	No
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Certificates

Specification	Value
Certification	ENERGY STAR,TCO,EPEAT Gold,RoHS

Weight & dimensions

Specification	Value
Weight	1.81 kg
Width	359.5 mm
Depth	253.8 mm
Height	17.7 mm

Packaging content

Specification	Value
AC adapter included	Yes
Stylus pen	No
