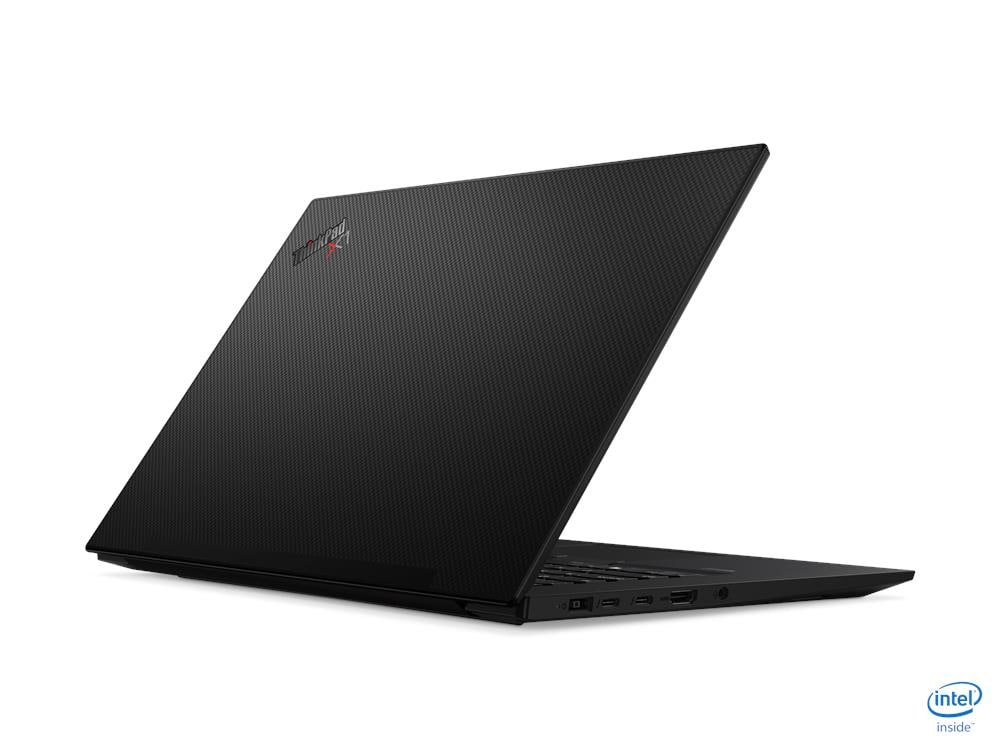

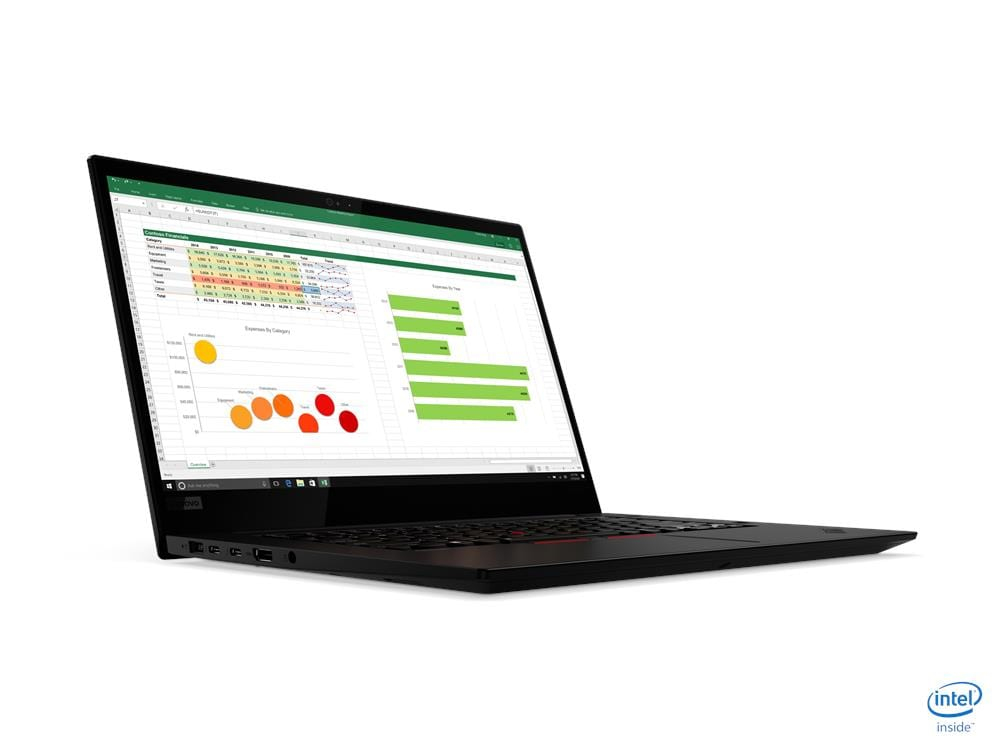

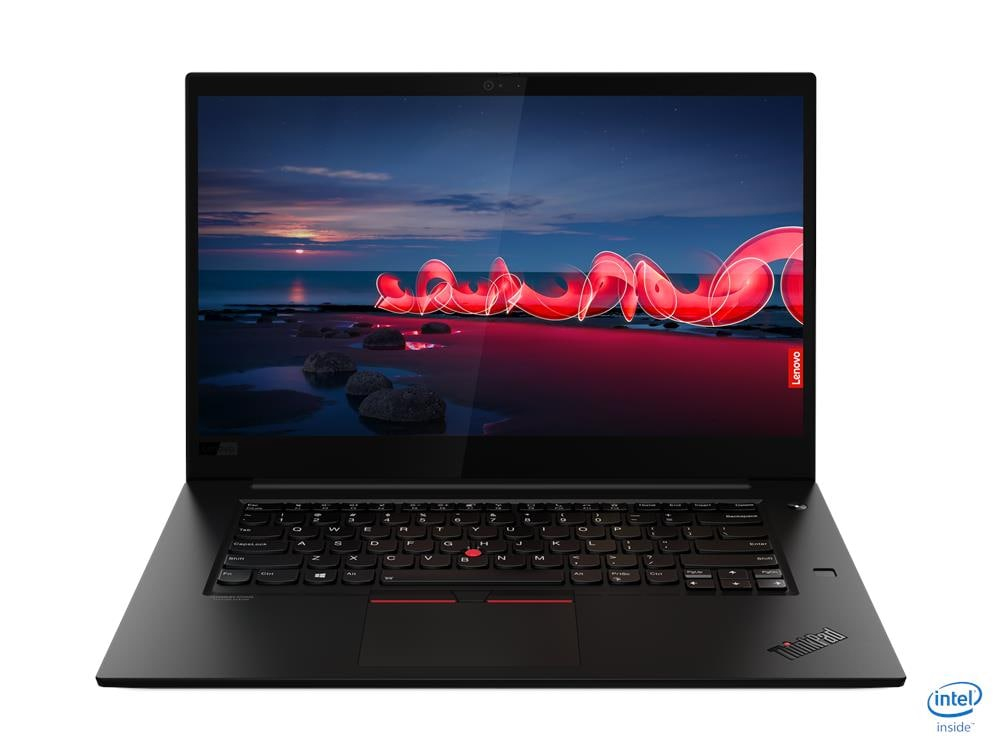

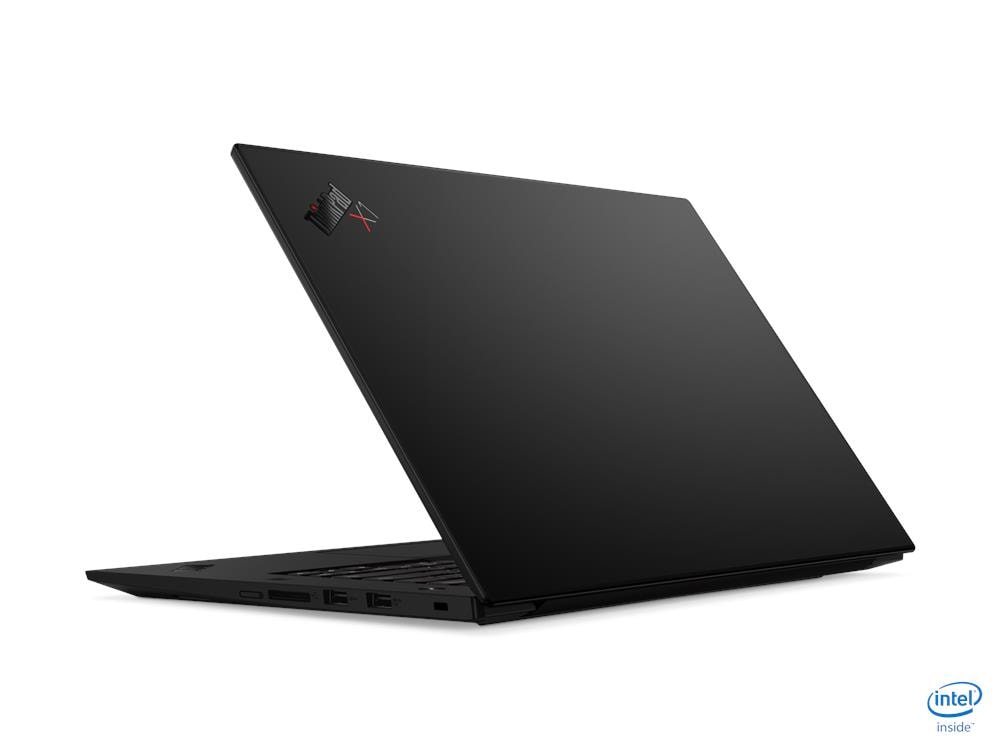

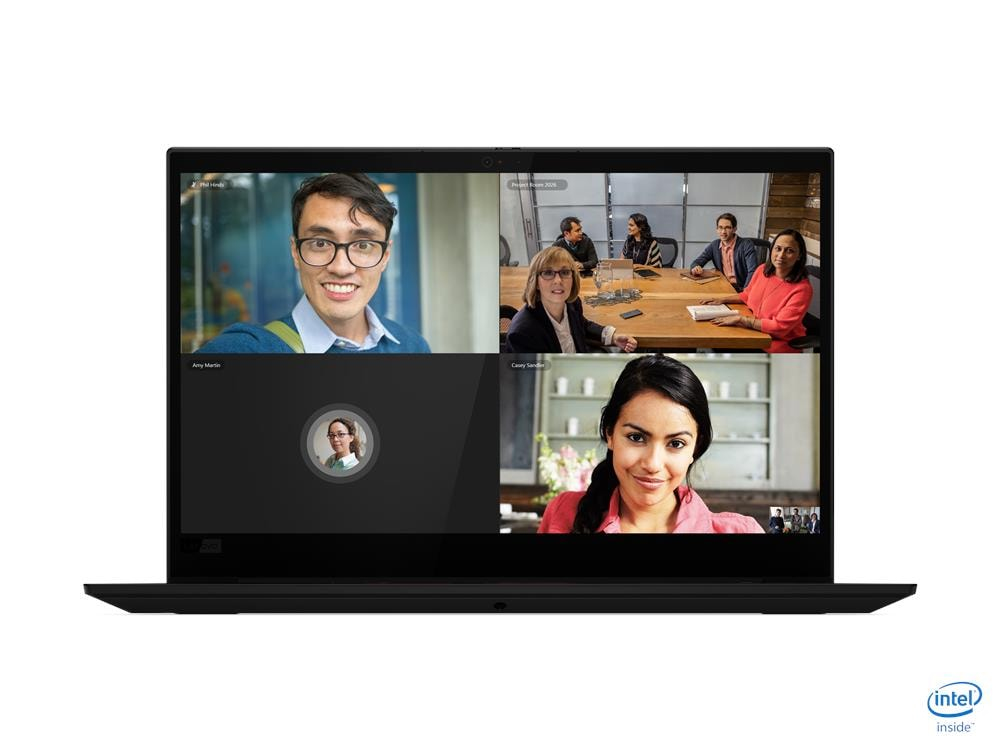

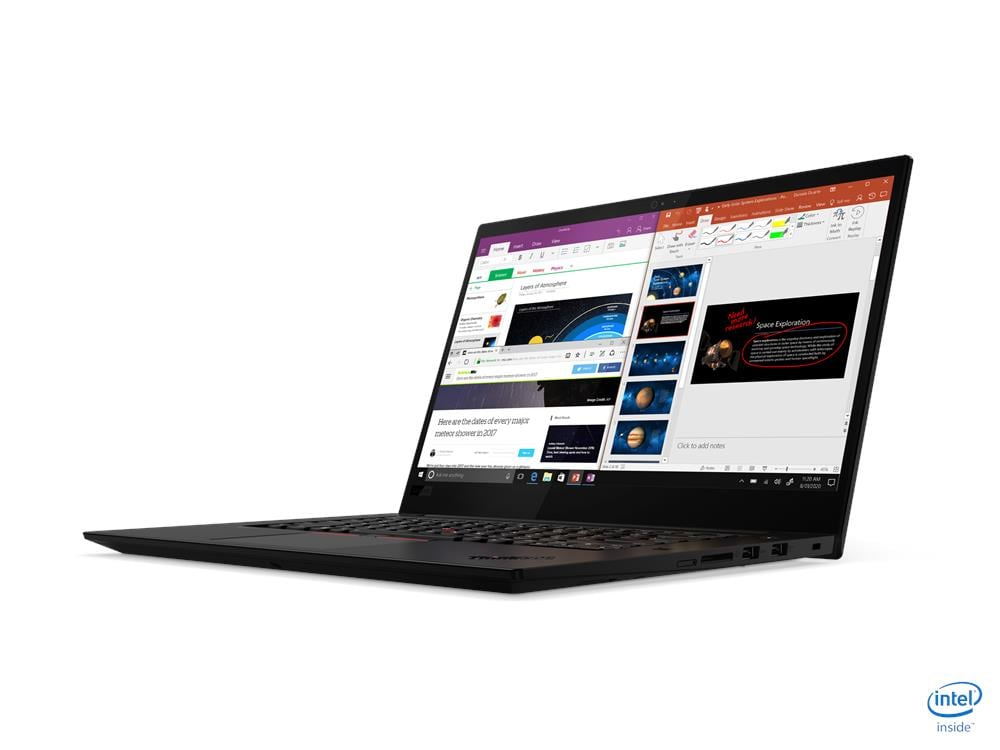

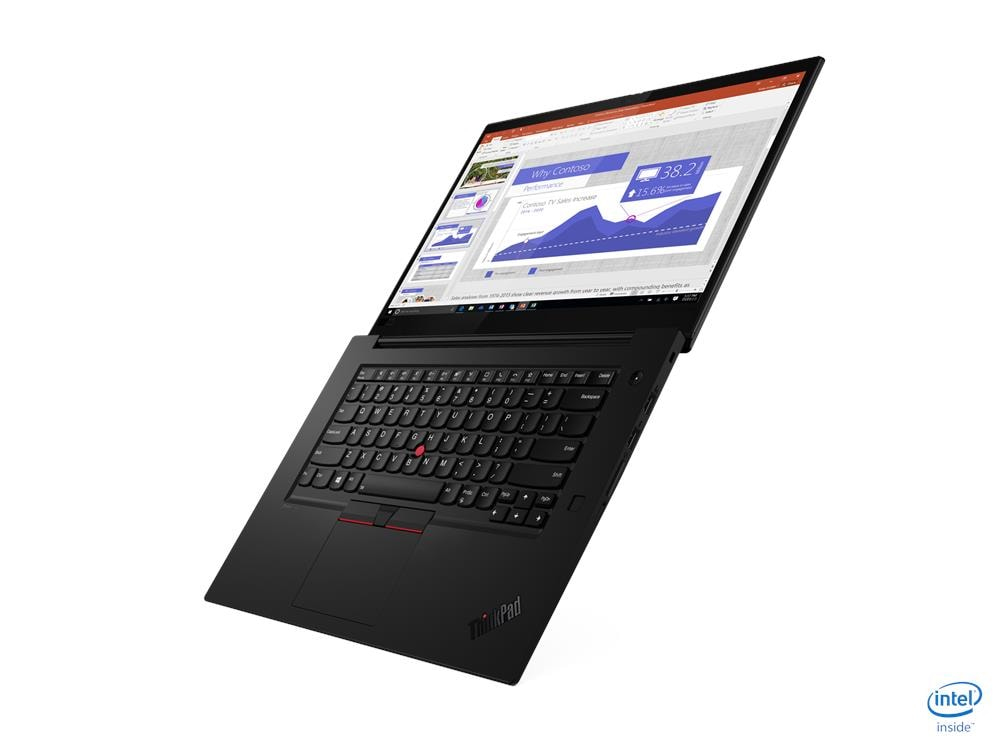

Lenovo ThinkPad X1 Extreme Gen 3

ThinkPad X1 Extreme Gen 3

Model ThinkPad X1 Extreme Gen 3Part no. 20TK002BUSEAN 195235041987

98 specifications Checked today

Display39.6 cm (15.6")
Resolution3840 x 2160 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
GraphicsNVIDIA GeForce GTX 1650 Ti Max-Q

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 3840 x 2160 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA GeForce GTX 1650 Ti Max-Q

Brand: Lenovo
Category: Laptop
Model: ThinkPad X1 Extreme Gen 3
Part numbers: 20TK002BUS, 20TL000BAU, 20TK000AIX, 20TK000HIX, 20TK000PIX, 20TK002CCA +34 more
EAN / UPC: 195235041987, 195235045640, 195235280911, 195235286579 +56 more
Also known as: Lenovo ThinkPad X1 Extreme Gen 3 Intel® Core™ i7 i7-10850H Laptop 39.6 cm (15.6") 4K Ultra HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA GeForce GTX 1650 Ti Max-Q Wi-Fi

Specifications

98 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Black, Weave
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	3840 x 2160 pixels
Touchscreen	No
HD type	4K Ultra HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	600 cd/m²
Colour gamut	100%
RGB colour space	Adobe RGB
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Dolby Vision

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor model	i7-10850H
Processor cores	6
Processor threads	12
Processor boost frequency	5.1 GHz
Processor frequency	2.7 GHz

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2933 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 16 GB
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 3.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce GTX 1650 Ti Max-Q
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR6
NVIDIA Max-Q	Yes

Audio

Specification	Value
Audio chip	Realtek ALC3286
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6 AX201
Bluetooth	Yes
Bluetooth version	5.1
Near Field Communication (NFC)	No
WWAN	Not installed

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI ports quantity	1
HDMI version	2.0
Thunderbolt 3 ports quantity	2
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes

Performance

Specification	Value
Motherboard chipset	Intel WM490

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Keyboard backlit	Yes
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Operating system language	English

Battery

Specification	Value
Battery capacity	80 Wh

Power

Specification	Value
AC adapter power	135 W
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	No
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Certificates

Specification	Value
Certification	ENERGY STAR,TCO,EPEAT Gold,RoHS

Weight & dimensions

Specification	Value
Weight	1.7 kg
Width	361.8 mm
Depth	245.7 mm
Height	18.4 mm

Packaging content

Specification	Value
AC adapter included	Yes
Stylus pen	No
