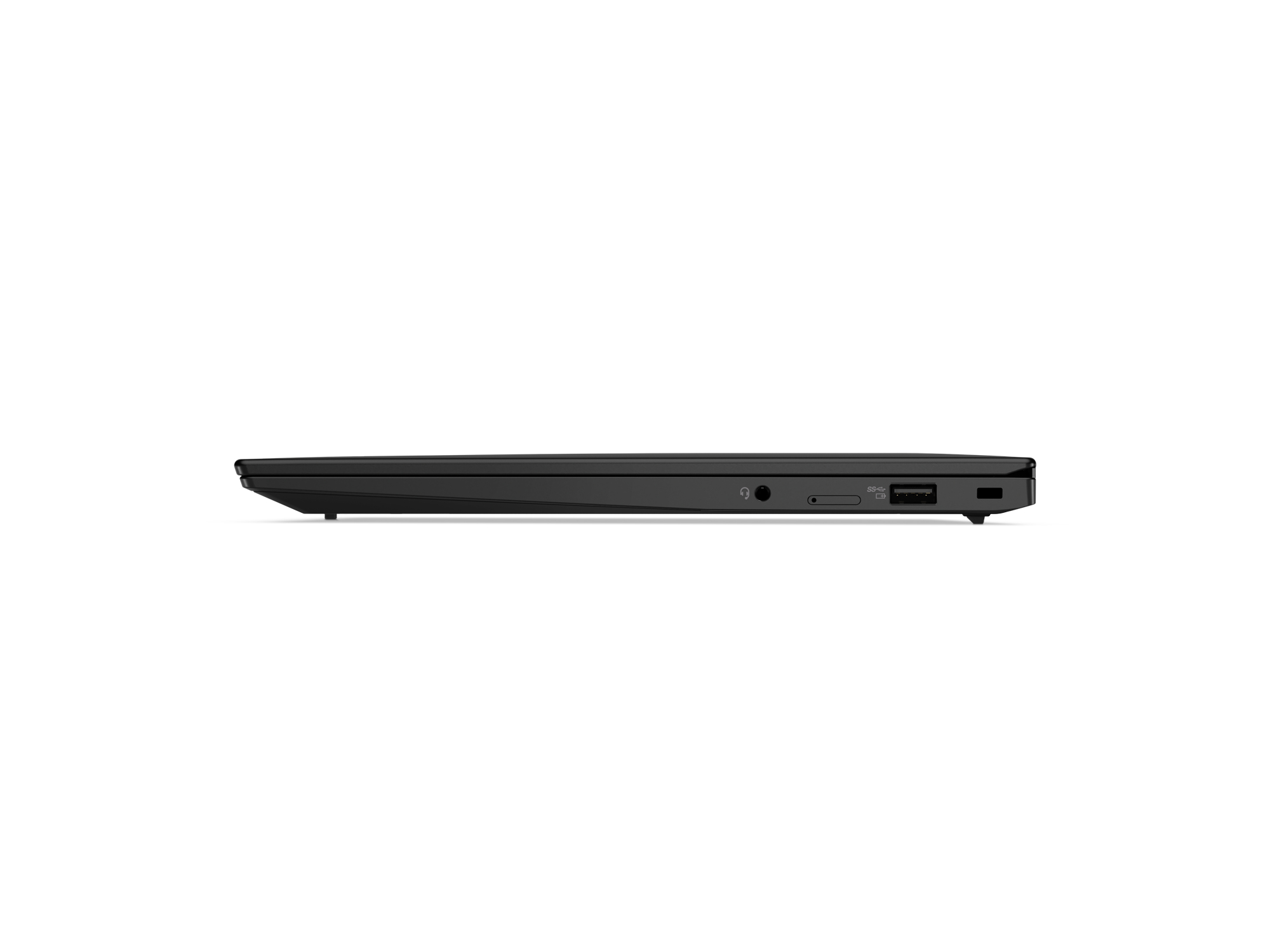

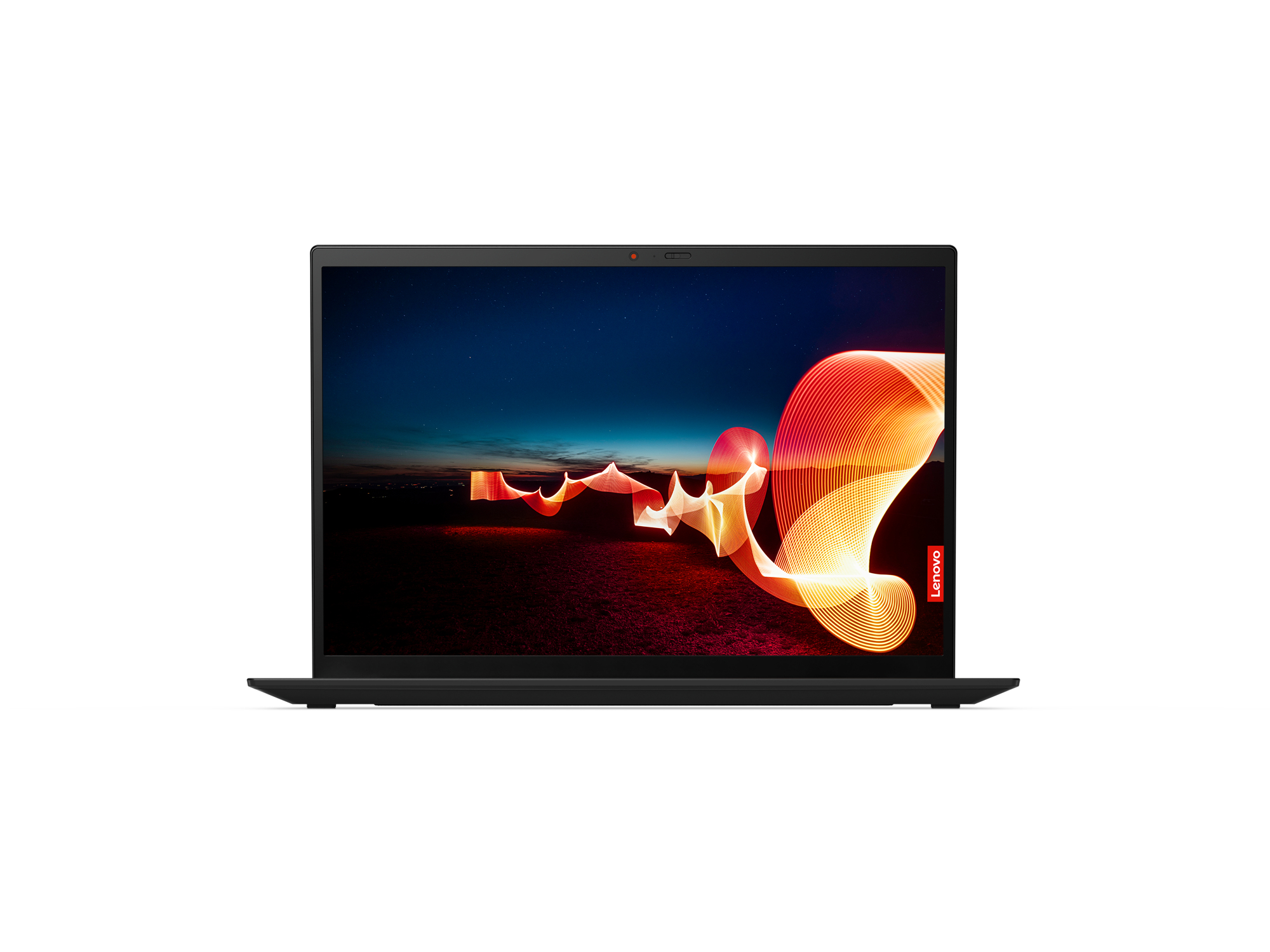

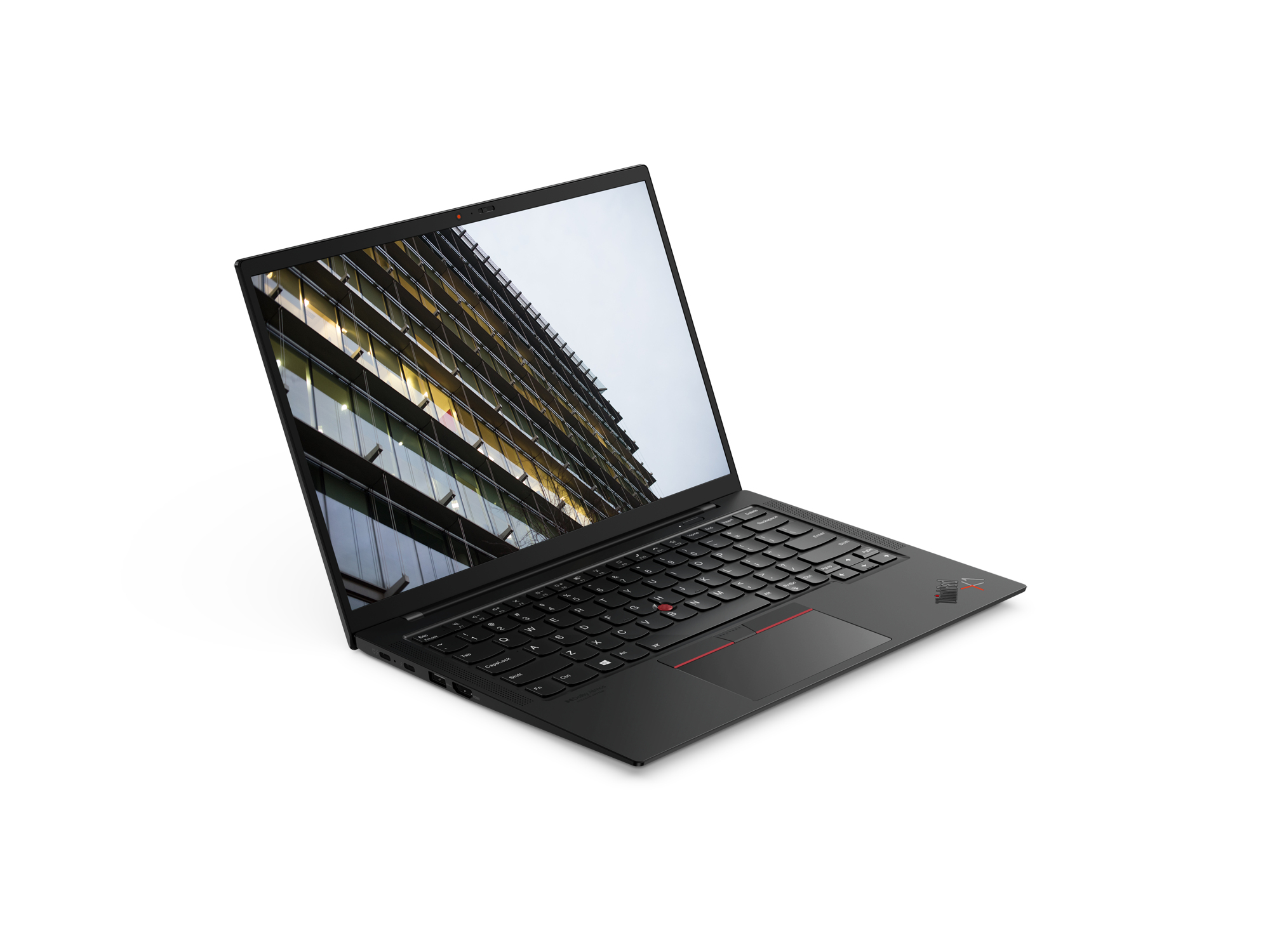

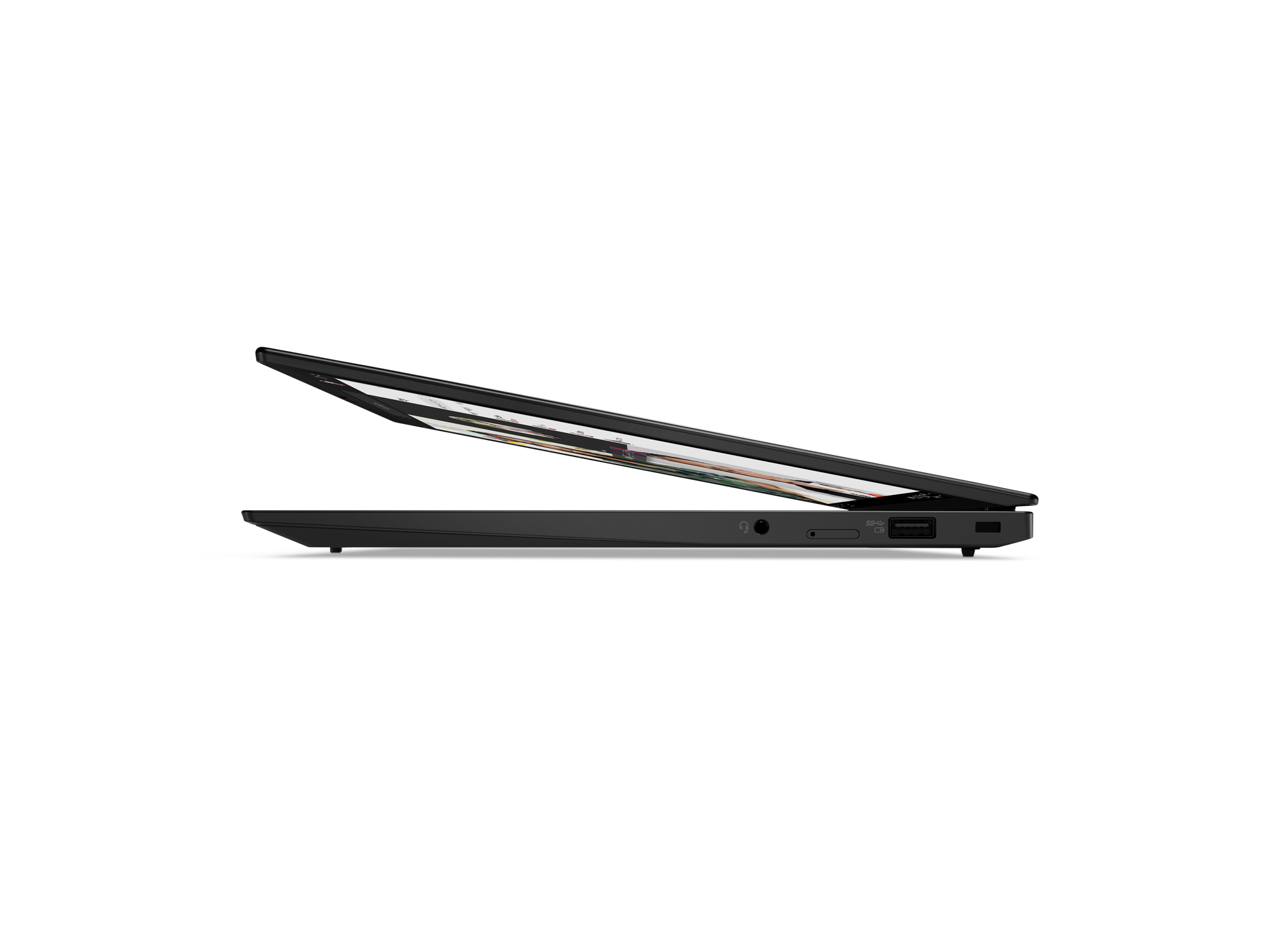

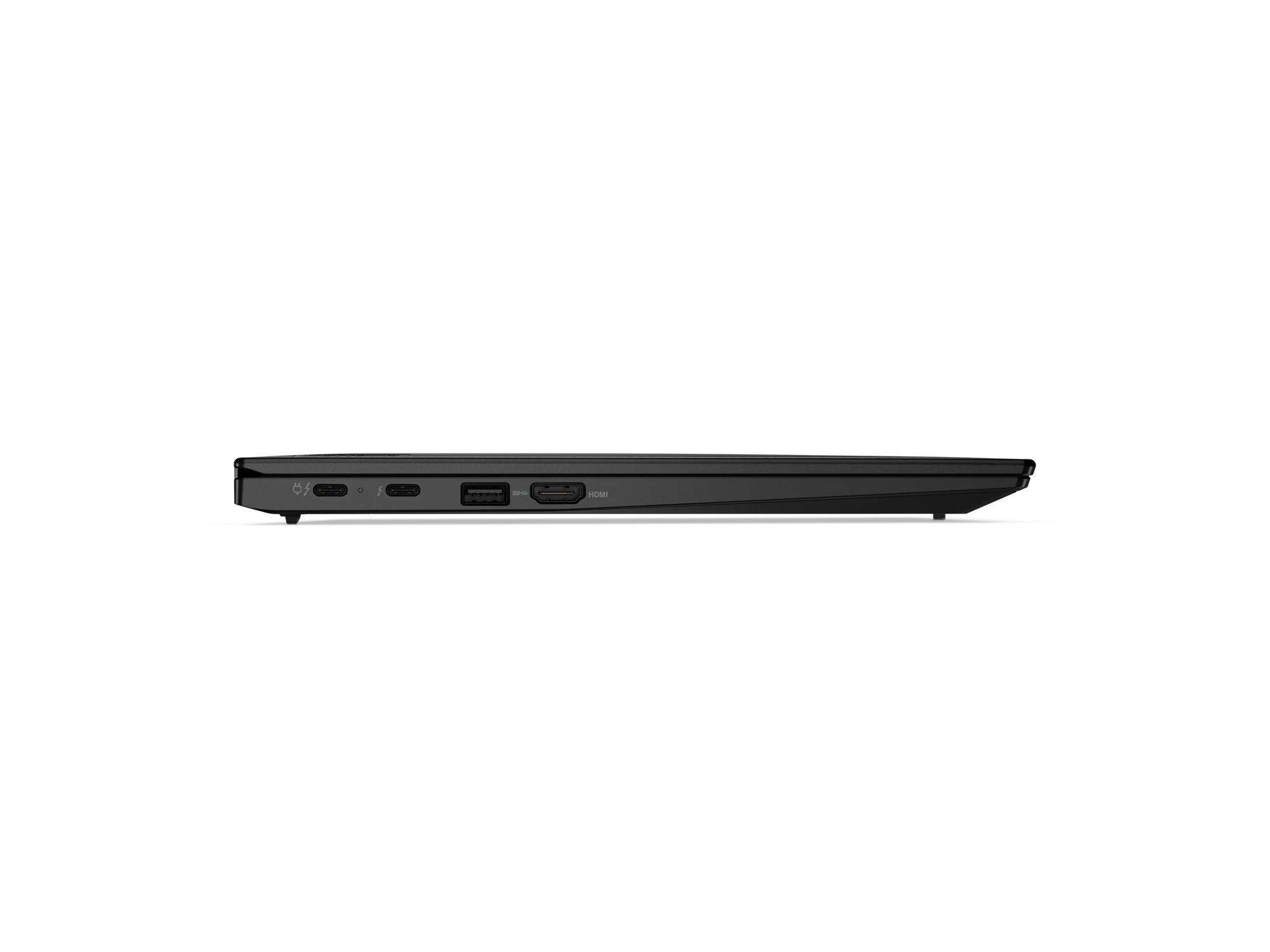

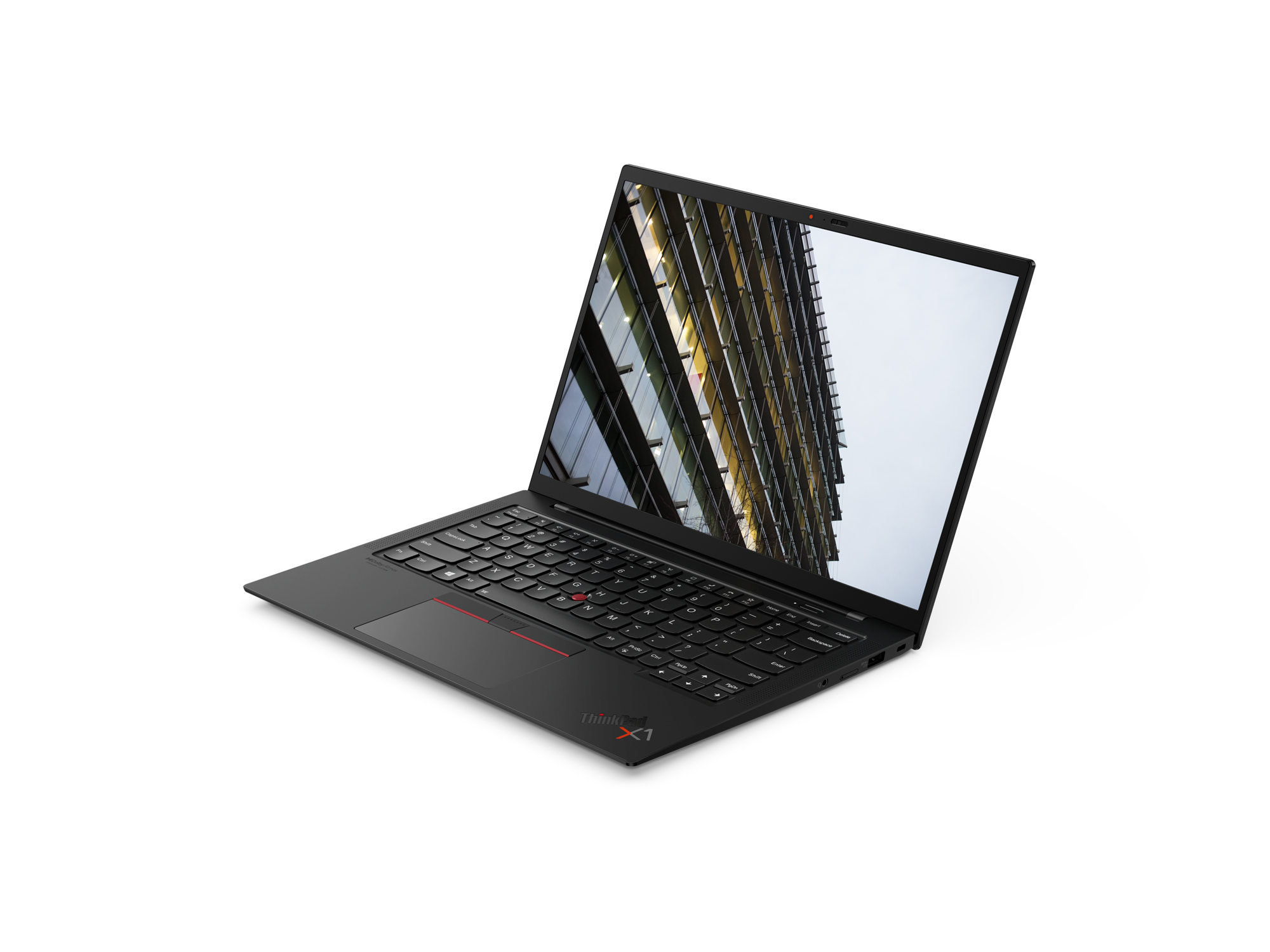

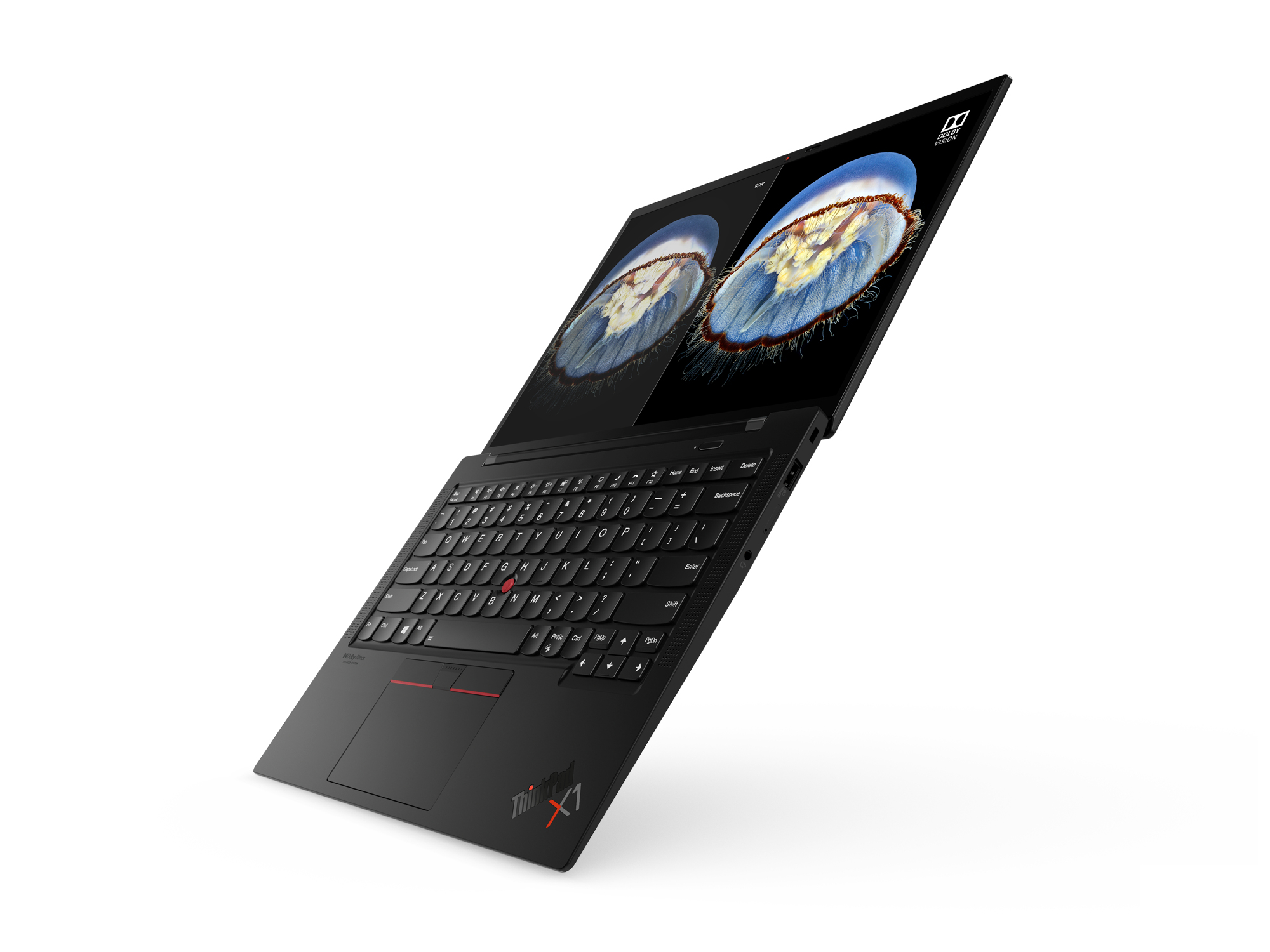

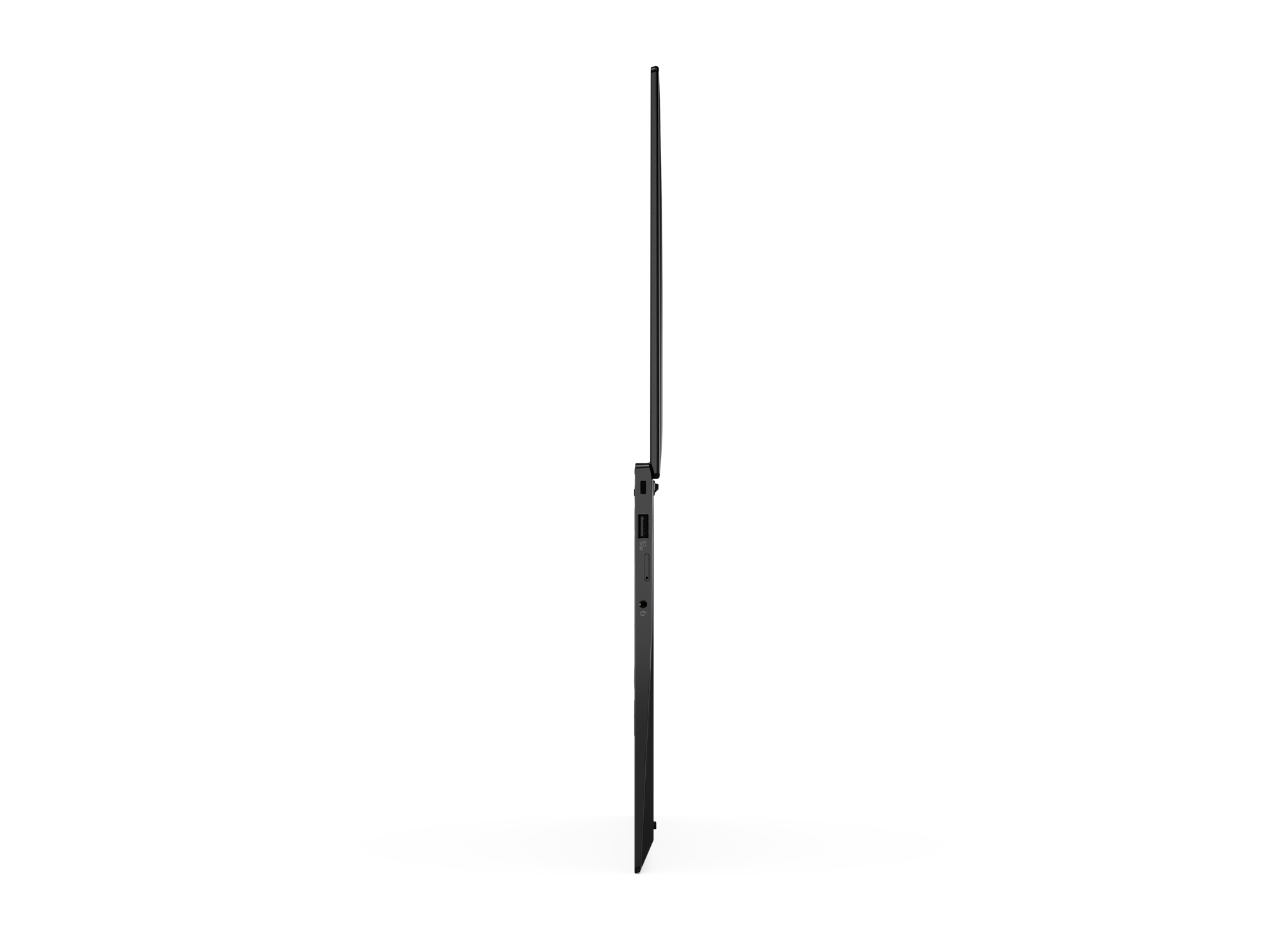

ThinkPad X1 Carbon Gen 9
Model ThinkPad X1 Carbon Gen 9Part no. 20XXS0AY00EAN 195713379366
117 specifications Checked today
- Display35.6 cm (14")
- Resolution1920 x 1200 pixels
- ProcessorIntel® Core™ i5
- Memory32 GB
- Storage256 GB
- GraphicsNot available
Overview
- Display
- 35.6 cm (14")
- Resolution
- 1920 x 1200 pixels
- Processor
- Intel® Core™ i5
- Memory
- 32 GB
- Storage
- 256 GB
- Graphics
- Not available
- Brand
- Lenovo
- Category
- Laptop
- Model
- ThinkPad X1 Carbon Gen 9
- Part numbers
- 20XXS0AY00, 20XXS1KS00, 20XXS1KS02, 20XXS1KS03, 20XXS1KS0E, 20XXS0Q600 +34 more
- EAN / UPC
- 195713379366, 195890268323, 195891837092, 196119836507 +56 more
- Also known as
- Lenovo ThinkPad X1 Carbon Gen 9 Intel® Core™ i5 i5-1145G7 Laptop 35.6 cm (14") WUXGA 32 GB LPDDR4x-SDRAM 256 GB SSD Wi-Fi 6 (802.11ax) Windows 10 Pro Black
Specifications
117 specifications in 20 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Black |
| Colour name | Black, Paint |
| Form factor | Clamshell |
| Housing material | Carbon fibre, Magnesium |
| Intel® vPro™ Platform Eligibility | Yes |
| Certified refurbished | No |
Display
| Specification | Value |
|---|---|
| Display diagonal | 35.6 cm (14") |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | WUXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Colour gamut | 100% |
| RGB colour space | sRGB |
| Contrast ratio (typical) | 1000:1 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 11th gen Intel® Core™ i5 |
| Processor model | i5-1145G7 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4.4 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | LPDDR4x-SDRAM |
| Memory clock speed | 4266 MHz |
| Memory form factor | On-board |
| Maximum internal memory | 32 GB |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD memory type | TLC |
| NVMe | Yes |
| SSD interface | PCI Express |
| M.2 SSD size | 2280 (22 x 80 mm) |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board graphics card model | Intel Iris Xe Graphics |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3306 |
| Audio system | Dolby Atmos |
| Number of built-in speakers | 4 |
| Built-in microphone | Yes |
| Number of microphones | 4 |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera HD type | HD |
| Front camera resolution | 1280 x 720 pixels |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Specification | Value |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel SoC |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Spill-resistant keyboard | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 4 |
| Battery capacity | 57 Wh |
| Battery life (max) | 21.3 h |
| Fast charging | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Type-C charging port | Yes |
| USB Power Delivery (USB PD) | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | BIOS, Power on, SSD, Supervisor |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Maximum shipping altitude | 3048 m |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold, TCO |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.13 kg |
| Width | 315 mm |
| Depth | 221.6 mm |
| Height | 14.9 mm |
