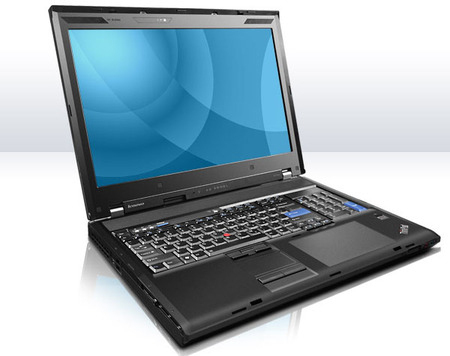

Lenovo ThinkPad W701

Model ThinkPad W701Part no. NTX5AHVEAN 884942986307

131 specifications Checked 3 days ago

Display17, 17.0
Resolution1920 x 1200 pixels
ProcessorIntel® Core™ i7
Memory2 GB
Storage320 GB
GraphicsNVIDIA® Quadro® FX 2800M

See all specifications

Overview

Display: 17, 17.0
Resolution: 1920 x 1200 pixels
Processor: Intel® Core™ i7
Memory: 2 GB
Storage: 320 GB
Graphics: NVIDIA® Quadro® FX 2800M

Brand: Lenovo
Category: Laptop
Model: ThinkPad W701
Part numbers: NTX5AHV, NTV5DHV, NTX4LHV, NTX2RHV, NTY5BHV, NTX2VHV +34 more
EAN / UPC: 884942986307, 885976140666, 885976890646, 885976227787 +19 more
Also known as: Lenovo ThinkPad W701 Intel® Core™ i7 i7-720QM 17, 17.0 2 GB 320 GB NVIDIA® Quadro® FX 2800M Windows 7 Professional

Specifications

131 specifications in 18 groups

Display

Specification	Value
Display diagonal	17, 17.0
Display resolution	1920 x 1200 pixels
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7
Processor model	i7-720QM
Processor cores	4
Processor threads	8
Processor boost frequency	2.8 GHz
Processor frequency	1.6 GHz
System bus rate	2.5 GT/s
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	Socket 988
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-700 Mobile Series
Processor codename	Clarksfield
Bus type	DMI
FSB Parity	No
Stepping	B1
Thermal Design Power (TDP)	45 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Number of Processing Die Transistors	774 M
Processing Die size	296 mm²
CPU multiplier (bus/core ratio)	12
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Memory clock speed	1066 MHz
Memory layout (slots x size)	1 x 2 GB

Storage

Specification	Value
Total storage capacity	320 GB
HDD capacity	320 GB
HDD interface	SATA
Optical drive type	DVD±RW
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® Quadro® FX 2800M
Graphics card family	NVIDIA
Maximum graphics card memory	0.001 GB
Maximum resolution	1920 x 1200 pixels

Audio

Specification	Value
Number of built-in speakers	2
Speaker power	2 W

Network

Specification	Value
Networking features	WLAN, Gigabit Ethernet
Wireless technology	IEEE 802.11b/g/n
Bluetooth	Yes
Cabling technology	10/100/1000Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
eSATA ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	Yes
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Keyboard

Specification	Value
Keyboard type	7-row with Trackpoint

Software

Specification	Value
Operating system installed	Windows 7 Professional
Drivers included	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	43122
Processor code	SLBLY
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	9

Power

Specification	Value
AC adapter power	230 W
DC-in jack	Yes

Security

Specification	Value
Fingerprint reader	Yes

Weight & dimensions

Specification	Value
Weight	4.07 kg
Depth	410 mm
Height	40.6 mm

Hard drive

Specification	Value
Storage drive type	320GB SATA/ 7200

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Security features	None
Infrared data port	No
Battery type	9 Cell Lithium-Ion
Internal modem	No
Modem type	56K V.92
Intel segment tagging	Professional
Drive bays	Ultrabay Enhanced
Expansion slots	PCI/PCI Express
Supplied AC adapter type	AC
