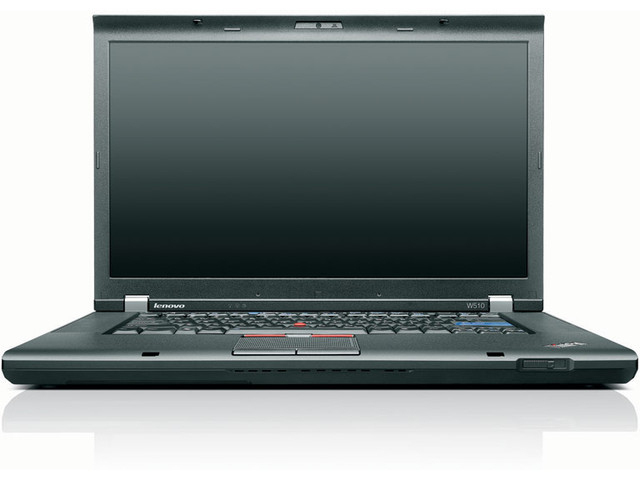

Lenovo ThinkPad W510

Model ThinkPad W510Part no. NTK29MS+45N6678EAN 885600252697

141 specifications Checked 3 days ago

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory4 GB
Storage320 GB
GraphicsNVIDIA® Quadro® NVS 5100M

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 4 GB
Storage: 320 GB
Graphics: NVIDIA® Quadro® NVS 5100M

Brand: Lenovo
Category: Laptop
Model: ThinkPad W510
Part numbers: NTK29MS+45N6678, NTK29UK, NTK29MS, NTK29SP, NTK3BPB, NTK29FR +34 more
EAN / UPC: 885600252697, 884942884474, 884942884313, 884942884443 +40 more
Also known as: Lenovo ThinkPad W510 Intel® Core™ i7 i7-820QM 39.6 cm (15.6") 4 GB 320 GB NVIDIA® Quadro® NVS 5100M Windows 7 Professional

Specifications

141 specifications in 17 groups

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7
Processor model	i7-820QM
Processor cores	4
Processor threads	8
Processor boost frequency	3.06 GHz
Processor frequency	1.73 GHz
System bus rate	2.5 GT/s
Processor cache	8 MB
Processor cache type	Smart Cache
L3 cache	8 MB
L2 cache	8 MB
Processor front side bus	1333 MHz
Processor socket	Socket 988
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-800 Mobile Series
Processor codename	Clarksfield
Bus type	DMI
FSB Parity	No
Stepping	B1
Thermal Design Power (TDP)	45 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8
PCI Express slots version	2
Number of Processing Die Transistors	774 M
Processing Die size	296 mm²
CPU multiplier (bus/core ratio)	13
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Memory clock speed	1066 MHz
Memory layout (slots x size)	2 x 2 GB
Memory slots	2x SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	320 GB
HDD capacity	320 GB
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	Yes
Compatible memory cards	MMC, MS PRO, SD, xD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® Quadro® NVS 5100M
Graphics card family	NVIDIA
Maximum graphics card memory	1.024 GB
Maximum resolution	1920 x 1080 pixels

Audio

Specification	Value
Audio system	High Definition Audio
Number of built-in speakers	2
Speaker power	2 W
Audio included	Mute Button, Speakers (integrated)

Network

Specification	Value
Networking features	Gigabit Ethernet
Wireless technology	IEEE 802.11a/g/n
Bluetooth	Yes
Bluetooth version	2.1+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
eSATA ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Keyboard type	7-row with Trackpoint

Software

Specification	Value
Operating system installed	Windows 7 Professional

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit
Processor ARK ID	43124
Processor code	SLBLX
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
AC adapter power	90 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	IBM
Fingerprint reader	Yes
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	2.67 kg
Width	372.8 mm
Depth	245 mm
Height	35.8 mm

Hard drive

Specification	Value
Storage drive type	320GB SATA/ 7200

Other features

Specification	Value
Security features	Client Security Solution, Hard disk drive password, Power-on password, Security lock slot, Supervisor password Fingerprint Reader
Infrared data port	No
Battery type	6 Cell Lithium-Ion
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	56K V.92
Intel segment tagging	Professional
Manageability features	Client Security Solution, ThinkVantage Access Connections, ThinkVantage Active Protection System, ThinkVantage Rescue and Recovery
Drive bays	Ultrabay Enhanced
Expansion slots	PCI/PCI Express
Supplied AC adapter type	AC
