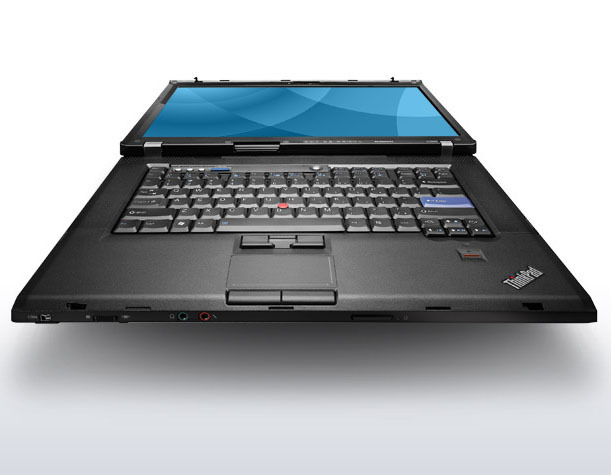

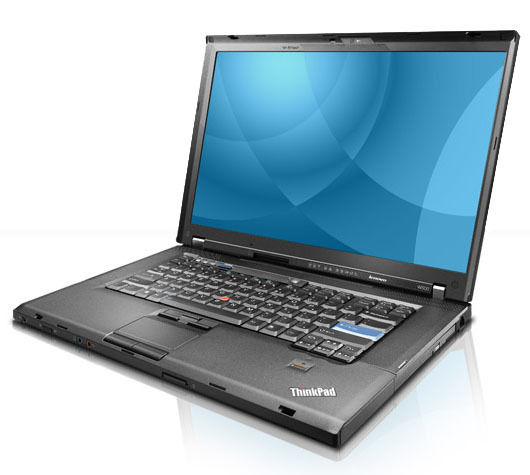

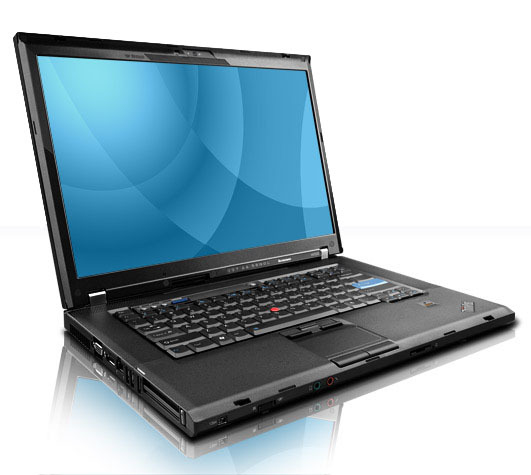

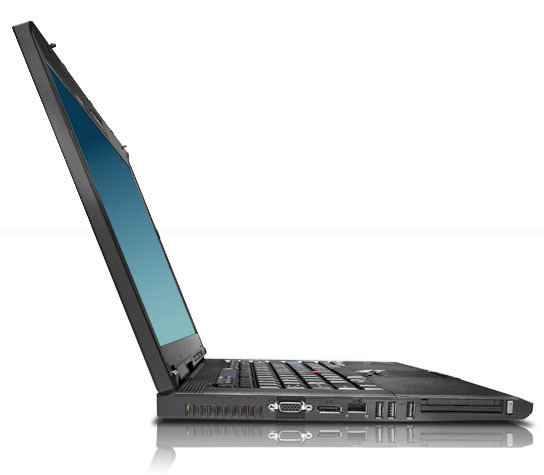

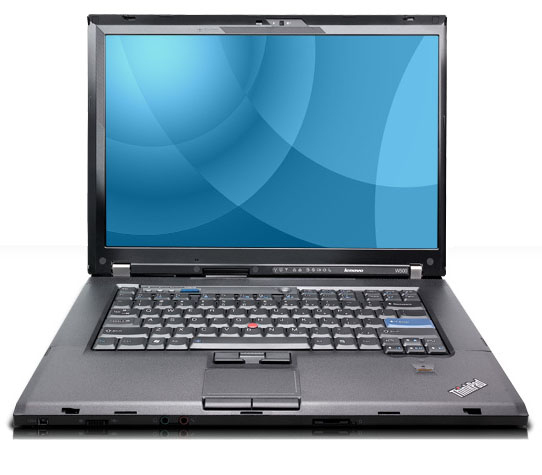

ThinkPad W500 + ThinkPad Advanced Mini Dock

Model ThinkPad W500 + ThinkPad Advanced Mini DockPart no. NRA3JGE?DOCKING

119 specifications Checked today

Overview

Brand: Lenovo
Category: Laptop
Model: ThinkPad W500 + ThinkPad Advanced Mini Dock
Part number: NRA3JGE?DOCKING
Also known as: Lenovo ThinkPad W500 + Advanced Mini Dock Intel® Core™2 Duo T9400 39.1 cm (15.4") 4 GB DDR3-SDRAM 200 GB AMD Mobility FireGL V5700 Windows Vista Business

119 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T9400
Processor cores	2
Processor threads	2
Processor frequency	2.53 GHz
Processor cache	6 MB
Processor cache type	L2
Processor front side bus	1066 MHz
Processor socket	Socket 479
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T9000 Series
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Stepping	E0
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	9.5
ECC supported by processor	No

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Mobility FireGL V5700
Maximum graphics card memory	0.5 GB

Specification	Value
Front camera	No

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Specification	Value
Pointing device	ThinkPad UltraNav

Specification	Value
Operating system installed	Windows Vista Business

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	35562
Processor code	SLGEK
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No
