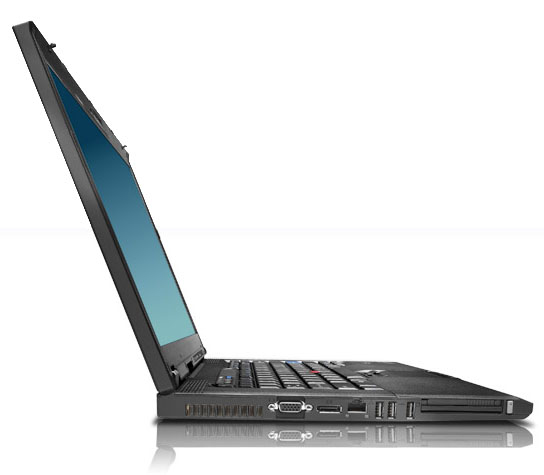

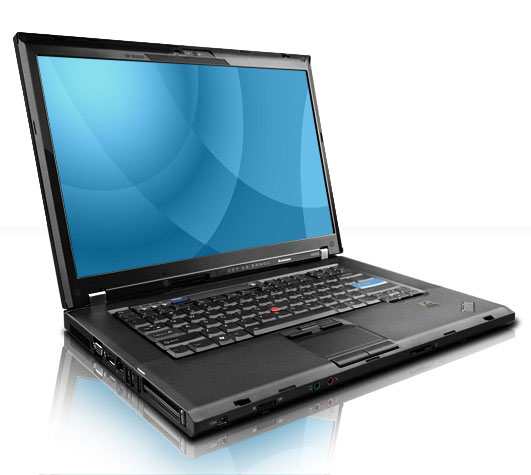

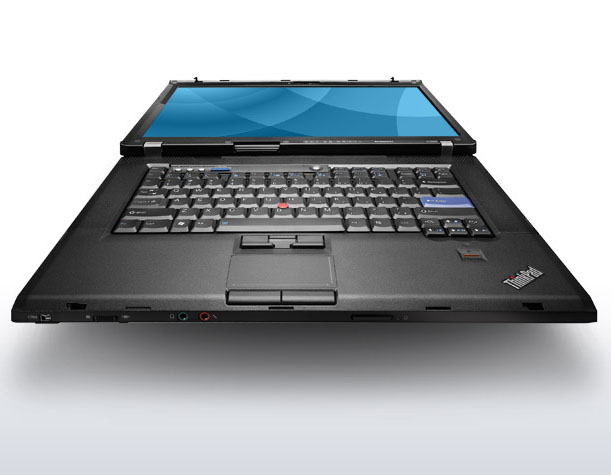

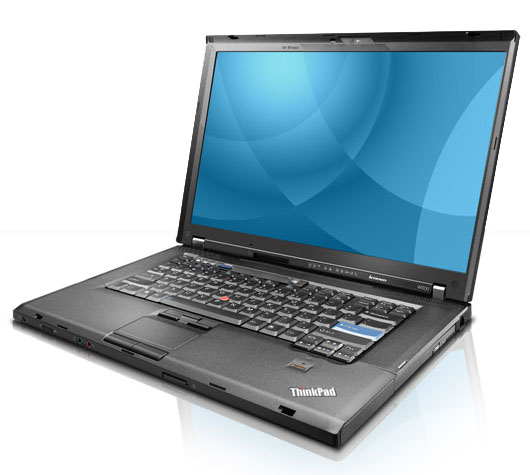

Lenovo ThinkPad W500 + ServicePack 3yr On-Site

Model ThinkPad W500 + ServicePack 3yr On-SitePart no. NRA3CGE?3_YEARS_ONSITE

119 specifications Checked 2 days ago

Display39.1 cm (15.4")
Resolution1920 x 1200 pixels
ProcessorIntel® Core™2 Duo
Memory2 GB
Storage200 GB
GraphicsAMD Mobility FireGL V5700

See all specifications

Overview

Display: 39.1 cm (15.4")
Resolution: 1920 x 1200 pixels
Processor: Intel® Core™2 Duo
Memory: 2 GB
Storage: 200 GB
Graphics: AMD Mobility FireGL V5700

Brand: Lenovo
Category: Laptop
Model: ThinkPad W500 + ServicePack 3yr On-Site
Part numbers: NRA3CGE?3_YEARS_ONSITE, NRA2XGE?3_YEARS_ONSITE, NRA3JGE?3JAHRE, NRA5YGE?3JAHRE
Also known as: Lenovo ThinkPad W500 + ServicePack 3yr On-Site Intel® Core™2 Duo T9400 39.1 cm (15.4") 2 GB DDR3-SDRAM 200 GB AMD Mobility FireGL V5700 Windows Vista Ultimate

Specifications

119 specifications in 17 groups

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display resolution	1920 x 1200 pixels
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T9400
Processor cores	2
Processor threads	2
Processor frequency	2.53 GHz
Processor cache	6 MB
Processor cache type	L2
Processor front side bus	1066 MHz
Processor socket	Socket 479
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T9000 Series
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Stepping	E0
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	9.5
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	200 GB
Number of HDDs installed	1
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	Yes
Compatible memory cards	MMC, MS Pro, SD, SDHC, xD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Mobility FireGL V5700
Maximum graphics card memory	0.5 GB

Audio

Specification	Value
Audio system	Conexant Azalia Audio Codec
Number of built-in speakers	2
Speaker power	2 W

Camera

Specification	Value
Front camera	No

Network

Specification	Value
Networking features	Gigabit Ethernet
Wireless technology	IEEE 802.11a/g/n
Bluetooth	Yes
Bluetooth version	2.0+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav

Software

Specification	Value
Operating system installed	Windows Vista Ultimate

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	35562
Processor code	SLGEK
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery life (max)	6.3 h

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	IBM
Fingerprint reader	Yes
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	2.49 kg
Width	357.5 mm
Depth	255 mm
Height	33.5 mm

Other features

Specification	Value
Infrared data port	No
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	V.92
Intel segment tagging	Professional
Supplied AC adapter type	AC
