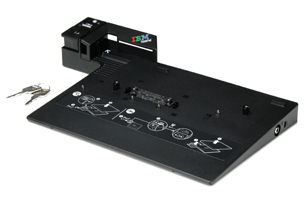

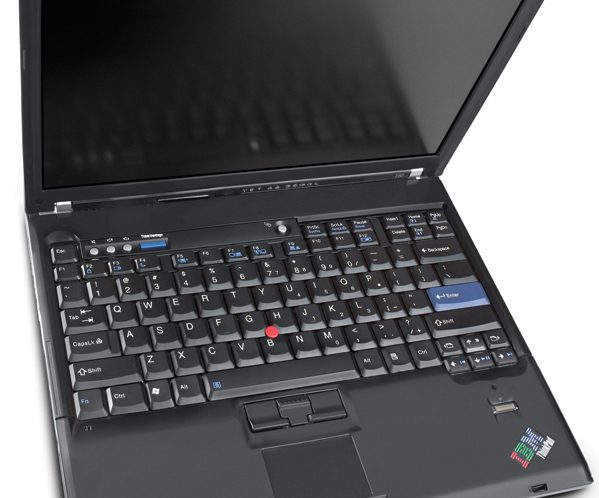

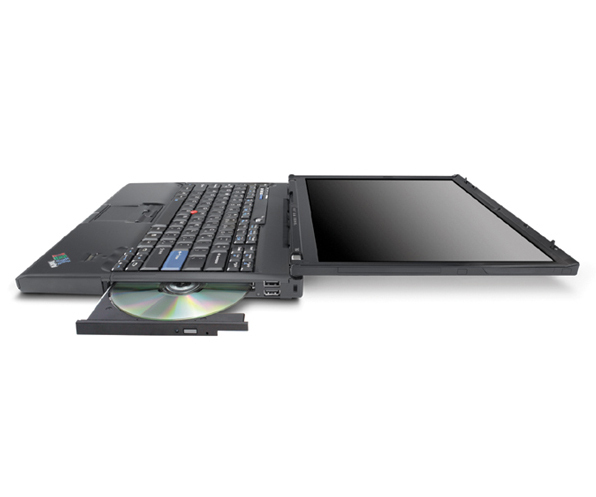

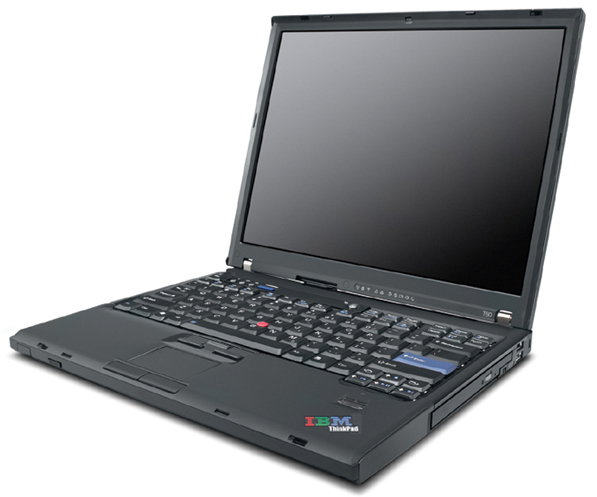

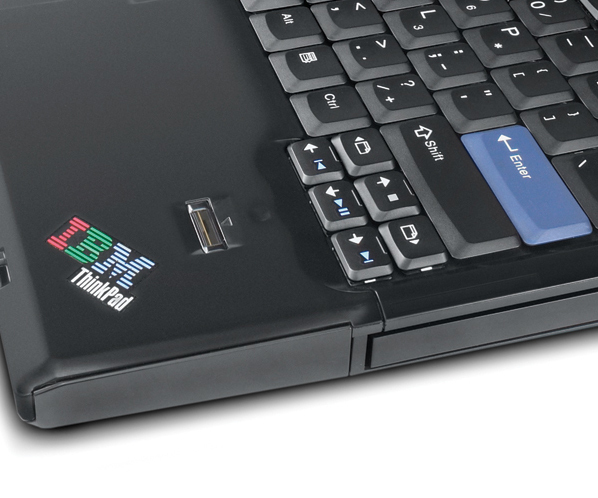

ThinkPad T61 + Advanced Mini Dock

Model ThinkPad T61 + Advanced Mini DockPart no. NH3DAPB?MINIDOCK

114 specifications Checked today

Overview

Brand: Lenovo
Category: Laptop
Model: ThinkPad T61 + Advanced Mini Dock
Part numbers: NH3DAPB?MINIDOCK, NH3DAGE?KIT, UI2B7GE?DOCKING, NH3D6GE_ADV_DOCK, NH3DAGE_ADV_DOCK, NH3DAGE_MINIDOCK +5 more
Also known as: Lenovo ThinkPad T61 + Advanced Mini Dock Intel® Core™2 Duo T8300 39.1 cm (15.4") 2 GB DDR2-SDRAM 160 GB NVIDIA Quadro NVS 140M Windows XP Professional

114 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T8300
Processor cores	2
Processor threads	2
Processor frequency	2.4 GHz
Processor cache	3 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	Socket 479
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T8000 Series
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Stepping	M0
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	12
ECC supported by processor	No

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA Quadro NVS 140M
Maximum graphics card memory	0.128 GB

Specification	Value
Front camera	No

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	Yes
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Specification	Value

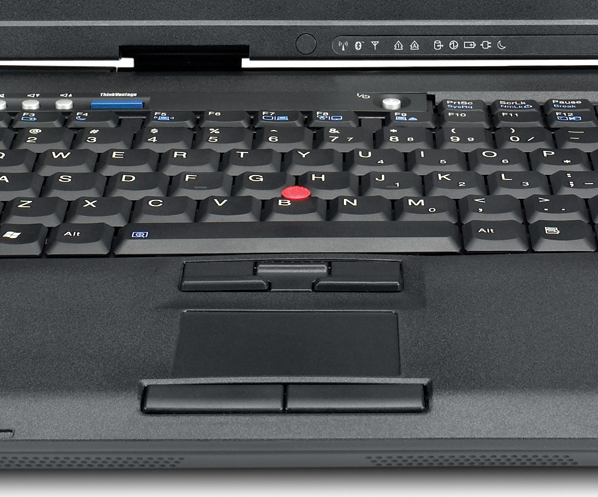

Pointing device	ThinkPad UltraNav

Specification	Value
Operating system installed	Windows XP Professional

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	33099
Processor code	SLAPR
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No
