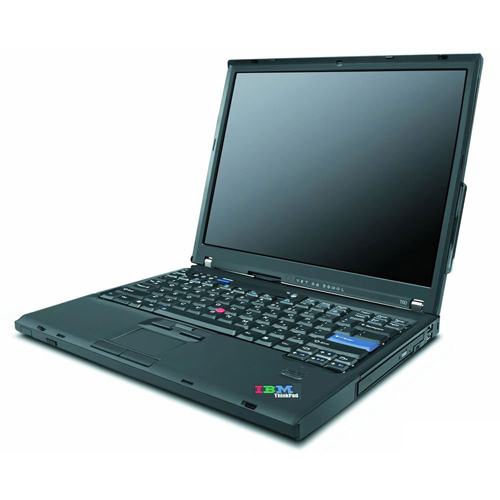

Lenovo ThinkPad T60p - 20078HG, fR

Model ThinkPad T60p - 20078HG, fRPart no. UT08HFR

117 specifications Checked 2 days ago

Display35.8 cm (14.1")
Resolution1400 x 1050 pixels
ProcessorIntel® Core™2 Duo
Memory2 GB
Storage100 GB
GraphicsAMD Mobility FireGL V5250

See all specifications

Overview

Display: 35.8 cm (14.1")
Resolution: 1400 x 1050 pixels
Processor: Intel® Core™2 Duo
Memory: 2 GB
Storage: 100 GB
Graphics: AMD Mobility FireGL V5250

Brand: Lenovo
Category: Laptop
Model: ThinkPad T60p - 20078HG, fR
Part number: UT08HFR
Also known as: Lenovo ThinkPad T60p - 20078HG, fR Intel® Core™2 Duo T7600 35.8 cm (14.1") 2 GB DDR2-SDRAM 100 GB AMD Mobility FireGL V5250 Windows XP Professional

Specifications

117 specifications in 18 groups

Display

Specification	Value
Display diagonal	35.8 cm (14.1")
Display resolution	1400 x 1050 pixels
Native aspect ratio	4:3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T7600
Processor cores	2
Processor threads	2
Processor frequency	2.33 GHz
Processor cache	4 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	Socket 478
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T7000 Series
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Stepping	B2
Thermal Design Power (TDP)	34 W
Tjunction	100 °C
Processor core voltage (AC)	1.0375 - 1.30 V
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	14
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	533 MHz

Storage

Specification	Value
Total storage capacity	100 GB
HDD interface	SATA
HDD speed	5400 RPM

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Mobility FireGL V5250
Maximum graphics card memory	0.256 GB

Audio

Specification	Value
Audio system	Intel HDA 24-bit
Number of built-in speakers	2
Speaker power	2 W

Camera

Specification	Value
Front camera	No

Network

Specification	Value
Networking features	Gigabit Ethernet, WLAN
Wireless technology	Intel 3945 a/b/g
Bluetooth	Yes
Bluetooth version	2.0+EDR
Cabling technology	10/100/1000Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
USB 1.1 ports quantity	0

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav

Software

Specification	Value
Operating system installed	Windows XP Professional
Bundled software	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	27257
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	9
Battery life (max)	6.1 h

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	IBM
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	2.09 kg
Width	311 mm
Depth	255 mm
Height	31 mm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	Yes
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	V.92
