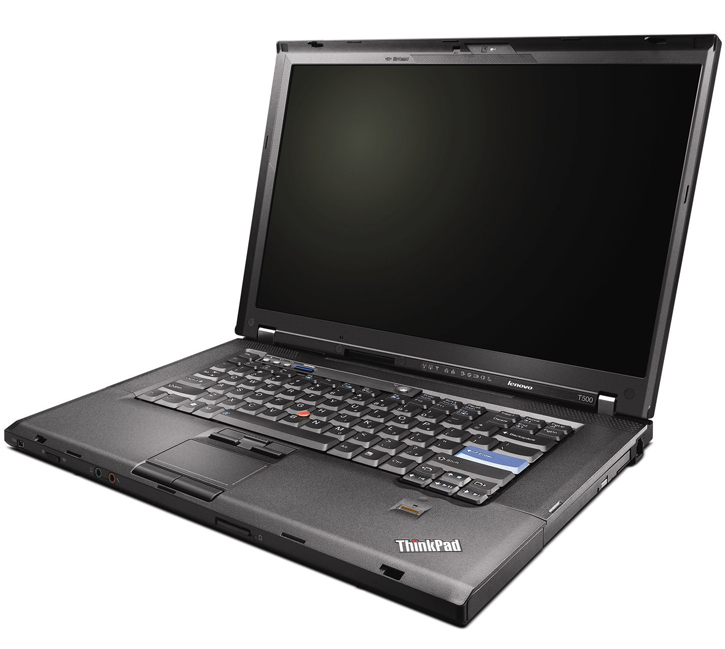

ThinkPad T500 (2055-3AG), FR
Model ThinkPad T500 (2055-3AG), FRPart no. NK13AFR
118 specifications Checked today
- Display39.1 cm (15.4")
- Resolution1680 x 1050 pixels
- ProcessorIntel® Core™2 Duo
- Memory4 GB
- Storage160 GB
- GraphicsAMD Mobility Radeon HD 3650
Overview
- Display
- 39.1 cm (15.4")
- Resolution
- 1680 x 1050 pixels
- Processor
- Intel® Core™2 Duo
- Memory
- 4 GB
- Storage
- 160 GB
- Graphics
- AMD Mobility Radeon HD 3650
- Brand
- Lenovo
- Category
- Laptop
- Model
- ThinkPad T500 (2055-3AG), FR
- Part number
- NK13AFR
- Also known as
- Lenovo ThinkPad T500 (2055-3AG), FR Intel® Core™2 Duo T9600 39.1 cm (15.4") 4 GB DDR3-SDRAM 160 GB AMD Mobility Radeon HD 3650 Windows Vista Business
Specifications
118 specifications in 17 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.1 cm (15.4") |
| Display resolution | 1680 x 1050 pixels |
| Native aspect ratio | 16:10 |
| Display surface | Gloss |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | T9600 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.8 GHz |
| Processor cache | 6 MB |
| Processor cache type | L2 |
| Processor front side bus | 1066 MHz |
| Processor socket | Socket 478 |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Duo T9000 Series |
| Processor codename | Penryn |
| Bus type | FSB |
| FSB Parity | No |
| Stepping | E1 |
| Thermal Design Power (TDP) | 35 W |
| Tjunction | 105 °C |
| Number of Processing Die Transistors | 410 M |
| Processing Die size | 107 mm² |
| CPU multiplier (bus/core ratio) | 10.5 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Memory clock speed | 1066 MHz |
| Memory layout (slots x size) | 2 x 2 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| Number of HDDs installed | 1 |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | AMD Mobility Radeon HD 3650 |
| Maximum graphics card memory | 0.256 GB |
Audio
| Specification | Value |
|---|---|
| Audio system | Conexant Azalia 24-bit |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
Camera
| Specification | Value |
|---|---|
| Front camera | No |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet, WLAN |
| Wireless technology | Intel 5100AGN |
| Bluetooth | No |
| Cabling technology | 10/100/1000Base-T(X) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| Headphone outputs | 1 |
| S/PDIF out port | No |
| Microphone in | Yes |
| Docking connector | Yes |
| ExpressCard slot | No |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
| Modem (RJ-11) ports | 1 |
| TV-in port | No |
| TV-out | No |
| PS/2 ports quantity | 0 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Business |
| Drivers included | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | No |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 35563 |
| Processor code | SLG9F |
| Processor package size | 35 x 35 mm |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 9 |
| Battery life (max) | 9.9 h |
Power
| Specification | Value |
|---|---|
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | IBM |
| Fingerprint reader | Yes |
| HDD user password | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.58 kg |
| Width | 357.5 mm |
| Depth | 255 mm |
| Height | 33.5 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Infrared data port | No |
| Internal modem | Yes |
| Modem speed | 56 Kbit/s |
| Modem type | 56K V.90 |
| Intel segment tagging | Home office, Small Business |
| Supplied AC adapter type | AC |
