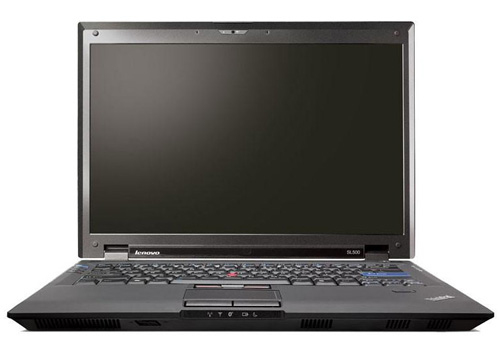

Lenovo ThinkPad SL510 - NSL6LCD
Model ThinkPad SL510 - NSL6LCDPart no. NSL6LCD
93 specifications Checked 3 days ago
- Display39.6 cm (15.6")
- Resolution1366 x 768 pixels
- ProcessorIntel® Core™2 Duo
- Memory2 GB
- Storage250 GB
- GraphicsIntel® GMA 4500MHD
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel® Core™2 Duo
- Memory
- 2 GB
- Storage
- 250 GB
- Graphics
- Intel® GMA 4500MHD
- Brand
- Lenovo
- Category
- Laptop
- Model
- ThinkPad SL510 - NSL6LCD
- Part number
- NSL6LCD
- Also known as
- Lenovo ThinkPad SL510 - NSL6LCD Intel® Core™2 Duo T5870 39.6 cm (15.6") 2 GB DDR3-SDRAM 250 GB Intel® GMA 4500MHD FreeDOS QWERTY
Specifications
93 specifications in 17 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1366 x 768 pixels |
| Native aspect ratio | 16:9 |
| Display surface | Gloss |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | T5870 |
| Processor cores | 2 |
| Processor frequency | 2 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 800 MHz |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Duo T5000 Series |
| FSB Parity | No |
| Stepping | M0 |
| Thermal Design Power (TDP) | 35 W |
| Tjunction | 100 °C |
| Number of Processing Die Transistors | 291 M |
| Processing Die size | 143 mm² |
| CPU multiplier (bus/core ratio) | 10 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3-SDRAM |
| Memory clock speed | 1066 MHz |
| Memory layout (slots x size) | 2 x 1 GB |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 250 GB |
| Number of HDDs installed | 1 |
| HDD interface | SATA |
| HDD speed | 5400 RPM |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, MS Pro, SD, SDHC, xD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | Intel® GMA 4500MHD |
Audio
| Specification | Value |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 6 W |
Camera
| Specification | Value |
|---|---|
| Swivel webcam | No |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
| Wireless technology | 802.11 b/g |
| Bluetooth | Yes |
| Bluetooth version | 2.1+EDR |
| Cabling technology | 10/100/1000Base-T(X) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| Headphone outputs | 1 |
| S/PDIF out port | No |
| Microphone in | Yes |
| Docking connector | No |
| ExpressCard slot | Yes |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
| Modem (RJ-11) ports | 1 |
| TV-in port | No |
| TV-out | No |
| PS/2 ports quantity | 0 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® GM45 Express |
Keyboard
| Specification | Value |
|---|---|
| Keyboard layout | QWERTY |
Software
| Specification | Value |
|---|---|
| Operating system installed | FreeDOS |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | No |
| Intel Trusted Execution Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 37034 |
| Processor code | SLAZR |
| Processor package size | 35 x 35 mm |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 6 |
| Battery life (max) | 4 h |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| DC-in jack | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.24 kg |
| Width | 380 mm |
| Depth | 247 mm |
| Height | 32 mm |
| Dimensions (WxDxH) | 380 x 247 x 32 mm |
Other features
| Specification | Value |
|---|---|
| Infrared data port | No |
| Wake-on-LAN ready | Yes |
| Internal modem | Yes |
| Modem speed | 56 Kbit/s |
| Modem type | V.92 |
| Supplied AC adapter type | AC |
