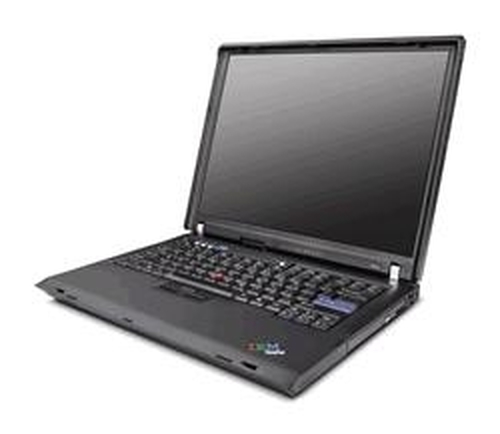

Lenovo ThinkPad R60

Model ThinkPad R60Part no. UL1DXBD

111 specifications Checked 2 days ago

Display38.1 cm (15")
Resolution1400 x 1050 pixels
ProcessorIntel® Core™ Duo
Memory0.5 GB
Storage80 GB
GraphicsAMD Mobility Radeon X1400

See all specifications

Overview

Display: 38.1 cm (15")
Resolution: 1400 x 1050 pixels
Processor: Intel® Core™ Duo
Memory: 0.5 GB
Storage: 80 GB
Graphics: AMD Mobility Radeon X1400

Brand: Lenovo
Category: Laptop
Model: ThinkPad R60
Part numbers: UL1DXBD, UL154BD, UL154BE, UL154BF, UE16ZNH, UE16ZNI +34 more
Also known as: Lenovo ThinkPad R60 Intel® Core™ Duo T2400 38.1 cm (15") 0.5 GB DDR2-SDRAM 80 GB AMD Mobility Radeon X1400 Windows XP Professional

Specifications

111 specifications in 17 groups

Display

Specification	Value
Display diagonal	38.1 cm (15")
Display resolution	1400 x 1050 pixels
Native aspect ratio	4:3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ Duo
Processor model	T2400
Processor cores	2
Processor threads	2
Processor frequency	1.83 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	Socket 478
Processor lithography	65 nm
Processor operating modes	32-bit
Processor series	Intel Core Duo T2000 Series
Processor codename	Yonah
Bus type	FSB
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	31 W
Tjunction	100 °C
Number of Processing Die Transistors	151 M
Processing Die size	90 mm²
CPU multiplier (bus/core ratio)	11
ECC supported by processor	No

Memory

Specification	Value
Internal memory	0.5 GB
Internal memory type	DDR2-SDRAM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	80 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD±RW

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Mobility Radeon X1400
Maximum graphics card memory	0.128 GB

Audio

Specification	Value
Audio system	Intel High Definition Audio
Number of built-in speakers	2

Camera

Specification	Value
Front camera	No

Network

Specification	Value
Networking features	Ethernet/Fast Ethernet/Gigabit Ethernet
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
USB 1.1 ports quantity	0

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav

Software

Specification	Value
Operating system installed	Windows XP Professional

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	No
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	27235
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery life (max)	3.1 h

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	IBM

Weight & dimensions

Specification	Value
Weight	2.65 kg
Width	332 mm
Depth	269 mm
Height	40 mm
Dimensions (WxDxH)	332 x 269 x 40 mm

Other features

Specification	Value
Infrared data port	No
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	V.92
Docking solution	UltraBase X2
Supplied AC adapter type	AC
