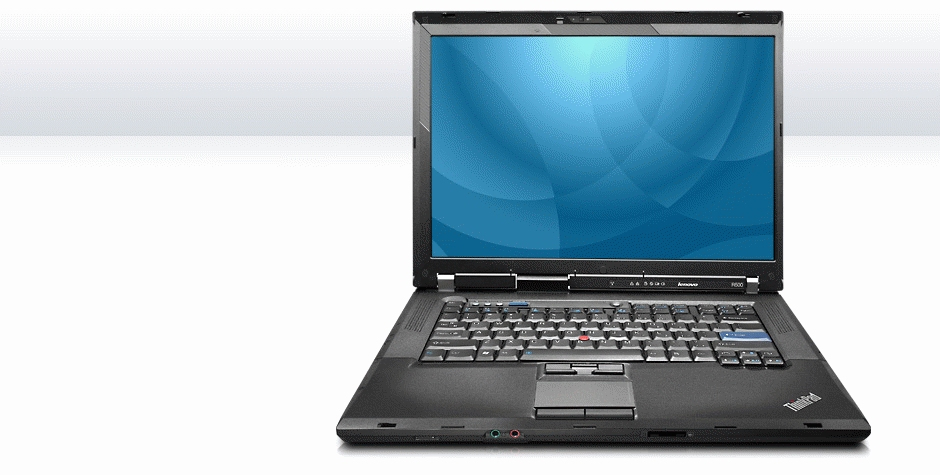

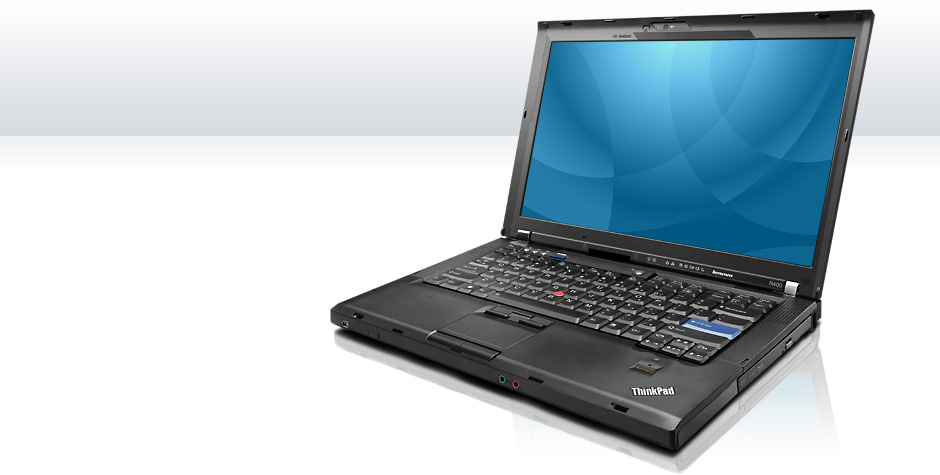

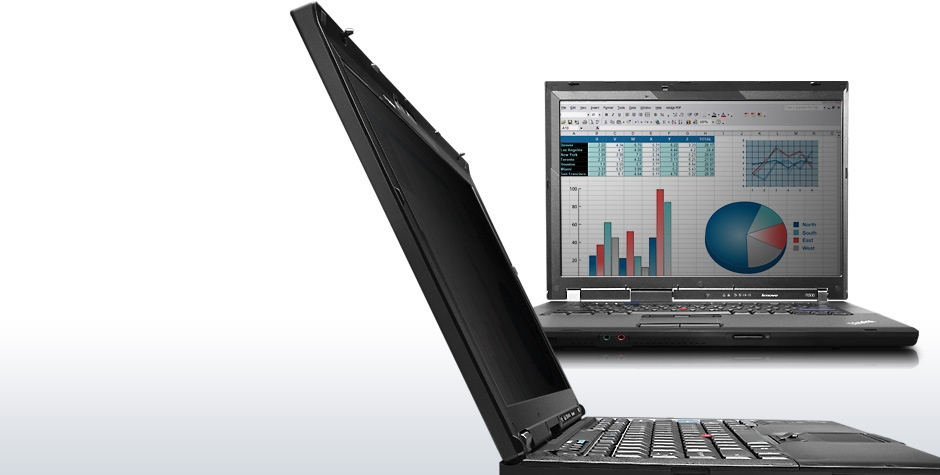

Lenovo ThinkPad R500 2714

Model ThinkPad R500 2714Part no. NP28UGEEAN 884343855998

117 specifications Checked 2 days ago

Display39.1 cm (15.4")
Resolution1280 x 800 pixels
ProcessorIntel® Core™2 Duo
Memory2 GB
Storage250 GB
GraphicsIntel® GMA 4500MHD

See all specifications

Overview

Display: 39.1 cm (15.4")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™2 Duo
Memory: 2 GB
Storage: 250 GB
Graphics: Intel® GMA 4500MHD

Brand: Lenovo
Category: Laptop
Model: ThinkPad R500 2714
Part number: NP28UGE
EAN / UPC: 884343855998, 8843438559984
Also known as: Lenovo ThinkPad R500 2714 Intel® Core™2 Duo T6570 39.1 cm (15.4") 2 GB DDR3-SDRAM 250 GB Intel® GMA 4500MHD Windows Vista Business

Specifications

117 specifications in 19 groups

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T6570
Processor cores	2
Processor threads	2
Processor frequency	2.1 GHz
Processor cache	2 MB
Processor cache type	L2
Processor socket	Socket 478
Processor lithography	45 nm
Processor operating modes	32-bit, 64-bit
Processor codename	Penryn
FSB Parity	No
Thermal Design Power (TDP)	35 W
Tjunction	100 °C
Processor core voltage (AC)	Mobile Intel GM45 Express
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1066 MHz
Memory layout (slots x size)	1 x 2 GB
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	250 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD±RW
Card reader integrated	Yes
Compatible memory cards	SDHC

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA 4500MHD

Audio

Specification	Value
Audio system	High Definition Audio

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Networking features	Gigabit Ethernet, WLAN
Wireless technology	802.11 a/b/g/n
Bluetooth	Yes
Bluetooth version	2.0+EDR

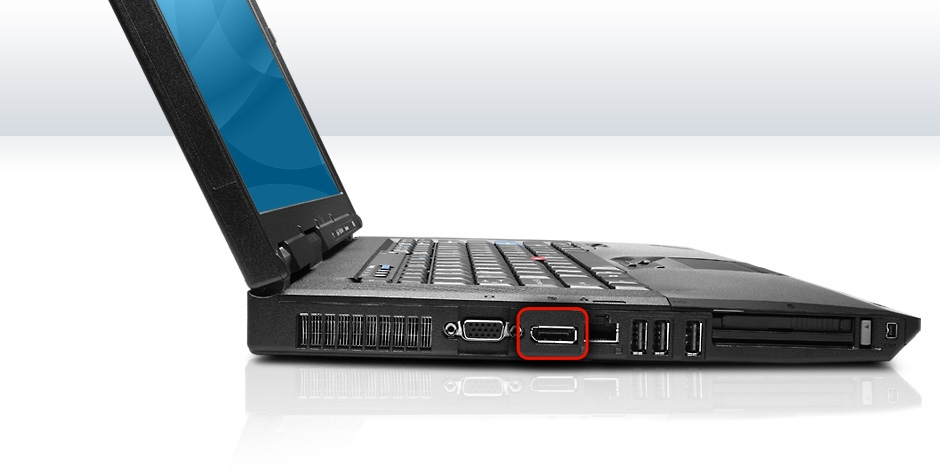

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Keyboard

Specification	Value

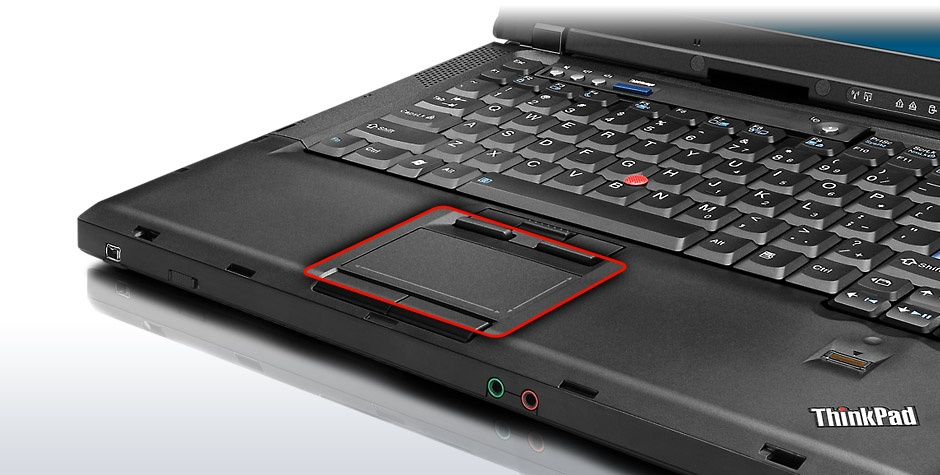

Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows Vista Business
Optional operating system supplied	Windows XP Professional
Trial software	McAfee VirusScan Plus
Bundled software	Adobe Acrobat Reader, PC Doctor, Intervideo WinDVD, Sun Java Runtime Environment, ThinkVantage Access Connections, ThinkVantage Rescue and Recovery, Fingerprint Software, ThinkVantage Client Security, ThinkVantage Productivity Center, ThinkVantage System Update, Roxio My DVD, Roxio Creator Business

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	42841
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery life (max)	4.5 h

Power

Specification	Value
AC adapter input voltage	120 - 230 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	BIOS
HDD user password	Yes

Certificates

Specification	Value
Certification	CE, MPR II, BSMI, GOST, cUL, MPR III, NOM, SASO, VCCI-II, UL 60950, CB, FCC Part 15 B, CER, CCC, MIC, RoHS

Weight & dimensions

Specification	Value
Weight	2.9 kg
Width	390 mm
Depth	359 mm
Height	26 mm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	ITU V.90
Supplied AC adapter type	AC
