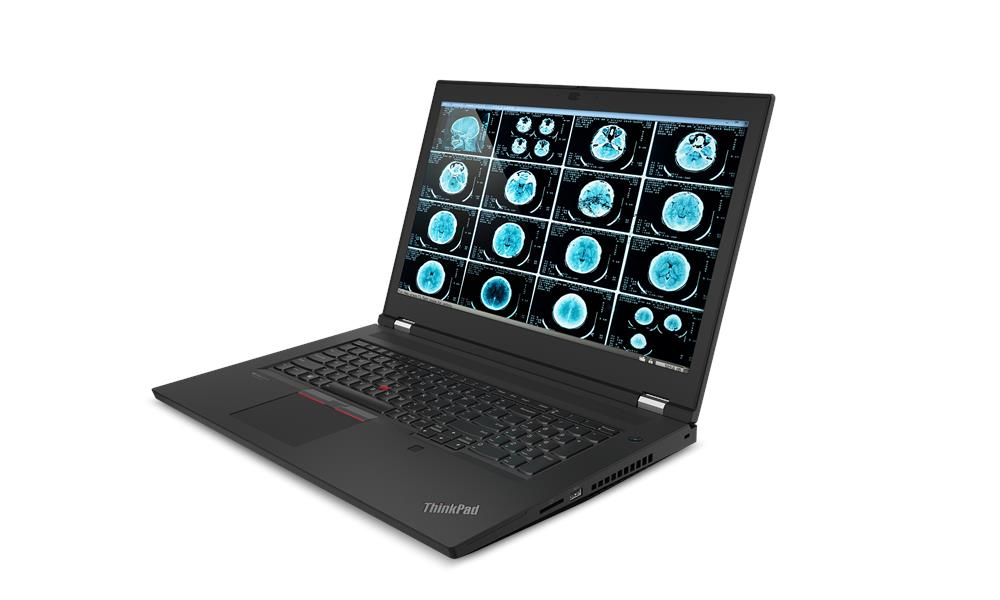

Lenovo ThinkPad P17 Gen 2

ThinkPad P17 Gen 2

Model ThinkPad P17 Gen 2Part no. 20YU001RCAEAN 195891327340

101 specifications Checked today

Display43.9 cm (17.3")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i9
Memory32 GB
Storage1 TB
GraphicsNVIDIA RTX A5000

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i9
Memory: 32 GB
Storage: 1 TB
Graphics: NVIDIA RTX A5000

Brand: Lenovo
Category: Laptop
Model: ThinkPad P17 Gen 2
Part numbers: 20YU001RCA, 20YU006RCA, 20YV0023BR, 20YV0024BR, 20YV0025BR, 20YU001JCA +34 more
EAN / UPC: 195891327340, 196803423556, 196118422640, 196118422657 +56 more
Also known as: Lenovo ThinkPad P17 Gen 2 Intel® Core™ i9 i9-11950H Mobile workstation 43.9 cm (17.3") Full HD 32 GB DDR4-SDRAM 1 TB SSD NVIDIA RTX A5000 Wi-Fi 6E (802.11ax) Wi

Specifications

101 specifications in 19 groups

Design

Specification	Value
Product type	Mobile workstation
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	300 cd/m²
Colour gamut	100%
RGB colour space	sRGB

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i9
Processor model	i9-11950H
Processor cores	8
Processor threads	16
Processor boost frequency	5 GHz
Processor frequency	2.6 GHz

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory slots	4x SO-DIMM
Maximum internal memory	128 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA RTX A5000
Discrete graphics card memory	16 GB
Discrete graphics memory type	GDDR6

Audio

Specification	Value
Audio chip	Realtek ALC3306
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX210
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	5.1
Near Field Communication (NFC)	No
WWAN	Upgradable

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes

Performance

Specification	Value
Motherboard chipset	Intel WM590

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard language	French

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	French
Recovery operating system	Windows 10 Pro

Battery

Specification	Value
Battery capacity	94 Wh
Battery life (max)	8.3 h

Power

Specification	Value
AC adapter power	230 W
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	No
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Certificates

Specification	Value
Certification	ENERGY STAR,EPEAT Gold,RoHS

Weight & dimensions

Specification	Value
Weight	3.56 kg
Width	415.4 mm
Depth	280.8 mm
Height (front)	2.43 cm
Height (rear)	3.25 cm

Packaging content

Specification	Value
AC adapter included	Yes
Stylus pen	No
