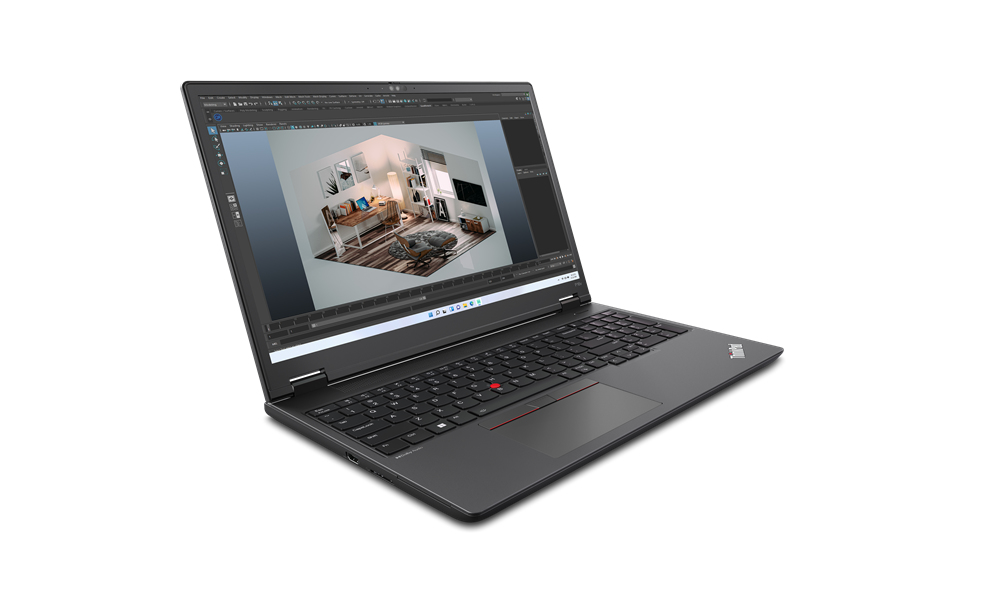

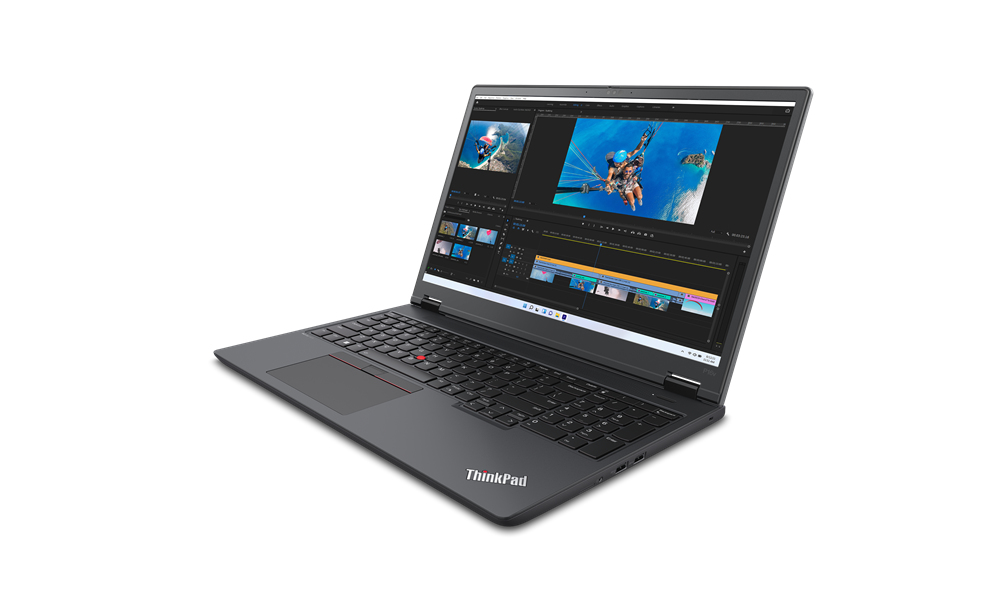

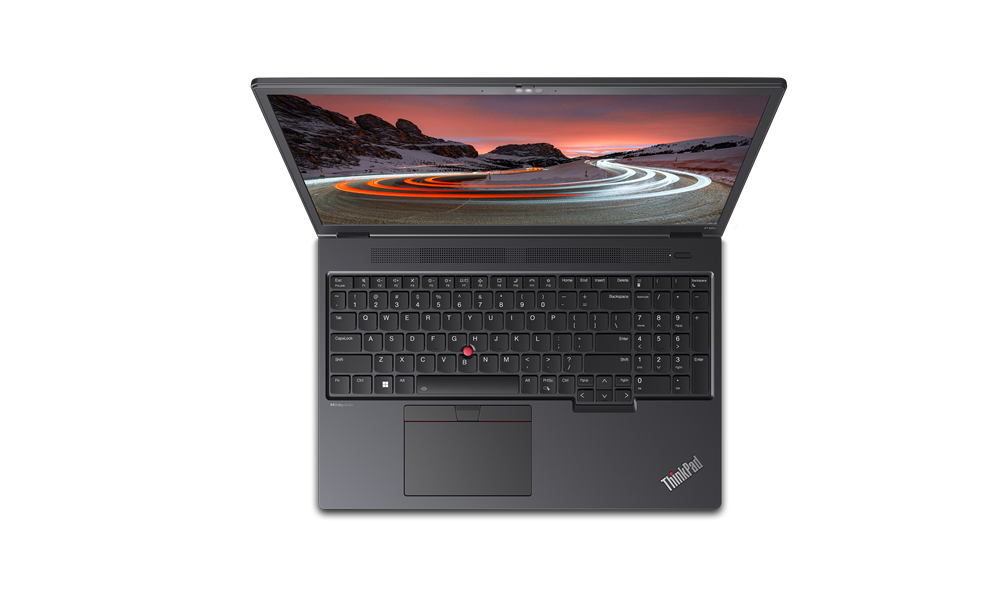

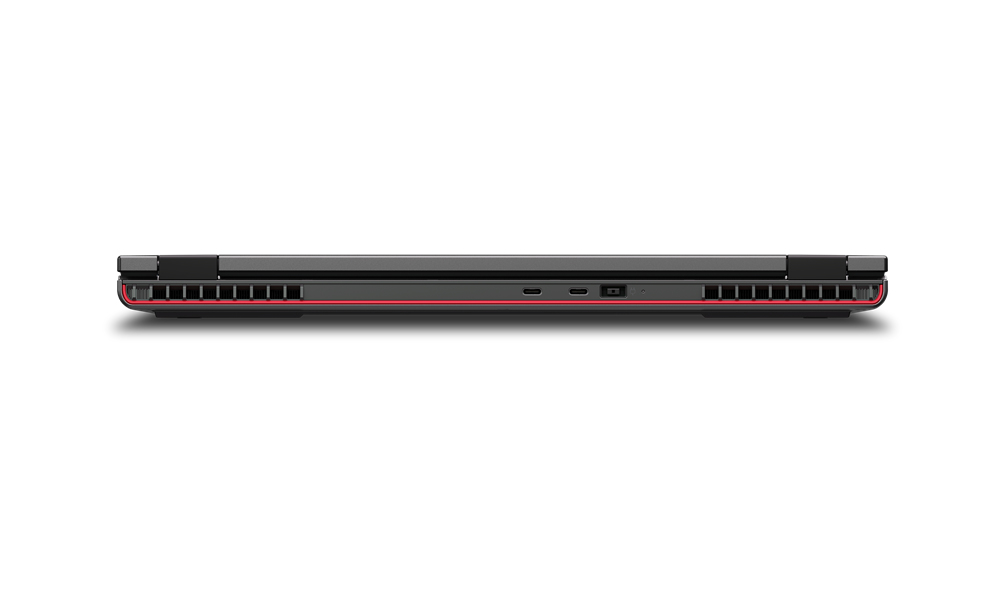

Lenovo ThinkPad P16v Gen 1 (AMD)

ThinkPad P16v Gen 1 (AMD)

Model ThinkPad P16v Gen 1 (AMD)Part no. 21FE0009MZEAN 197528107912

128 specifications Checked today

Display40.6 cm (16")
Resolution3840 x 2400 pixels
ProcessorAMD Ryzen™ 7 PRO
Memory64 GB
Storage1 TB
GraphicsNVIDIA RTX A1000

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 3840 x 2400 pixels
Processor: AMD Ryzen™ 7 PRO
Memory: 64 GB
Storage: 1 TB
Graphics: NVIDIA RTX A1000

Brand: Lenovo
Category: Laptop
Model: ThinkPad P16v Gen 1 (AMD)
Part numbers: 21FE0009MZ, 21FFS22U1M, 21FFS22V1M, 21FE000SSP, 21FFS0X000, 21FE0008IX +34 more
EAN / UPC: 197528107912, 197528105291, 198154846244, 198155548604 +56 more
Also known as: Lenovo ThinkPad P16v Gen 1 (AMD) AMD Ryzen™ 7 PRO 7840HS Laptop 40.6 cm (16") WQUXGA 64 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX A1000 Wi-Fi 6E (802.11ax) Windows 11 P

Specifications

128 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Thunder black
Form factor	Clamshell
Housing material	Polycarbonate (PC), Acrylonitrile butadiene styrene (ABS)

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	3840 x 2400 pixels
Touchscreen	No
HD type	WQUXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	800 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3
Contrast ratio (typical)	1500:1
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	DisplayHDR 400, Dolby Vision

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7 PRO
Processor generation	AMD Ryzen PRO 7000 Series
Processor model	7840HS
Processor cores	8
Processor threads	16
Processor boost frequency	5.1 GHz
Processor frequency	3.8 GHz
Processor cache	16 MB
Processor cache type	L3

Memory

Specification	Value
Internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 32 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Memory channels	Dual-channel
Non-ECC	Yes

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD memory type	TLC
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA RTX A1000
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6
On-board graphics card family	AMD Radeon
On-board graphics card model	AMD Radeon 780M

Audio

Specification	Value
Audio chip	Realtek ALC3287
Audio system	Dolby Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	5 MP
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	Yes
Mobile network generation	4G
4G standard	LTE
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Qualcomm
WLAN controller model	Qualcomm NFA725A
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3
WWAN	Installed
WWAN controller	Fibocom L860-GL-16

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB4 Gen 3x2 ports quantity	2
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Motherboard chipset	AMD SoC

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Keyboard backlit	Yes
Numeric keypad	Yes
Spill-resistant keyboard	Yes

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	90 Wh
Fast charging	Yes

Power

Specification	Value
AC adapter power	170 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	No
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	Power on, Supervisor, SSD

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	MIL-STD-810H

Sustainability

Specification	Value
Sustainability certificates	TCO

Weight & dimensions

Specification	Value
Weight	2.2 kg
Width	365 mm
Depth	262 mm
Height	24.7 mm
