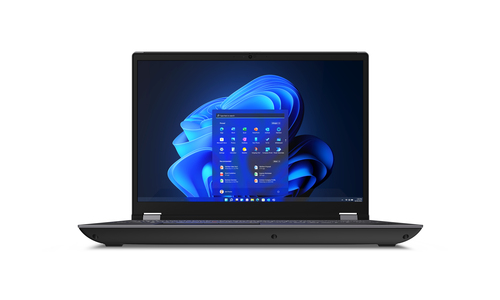

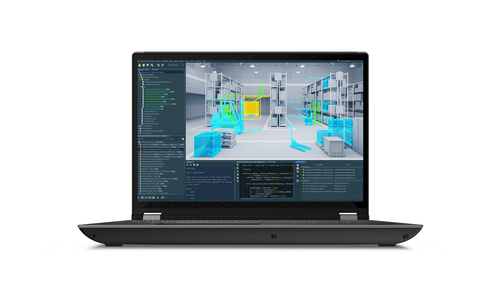

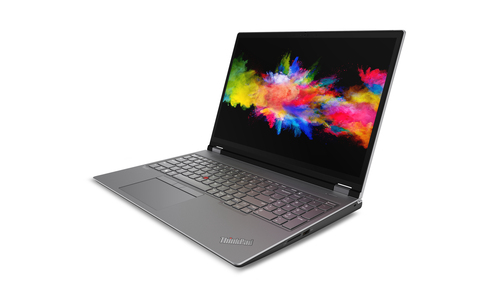

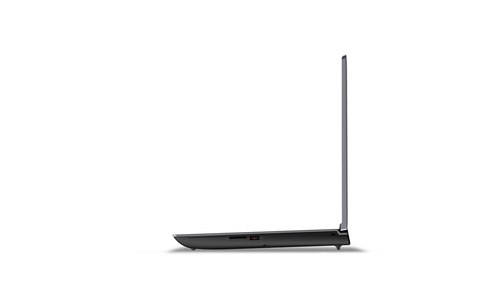

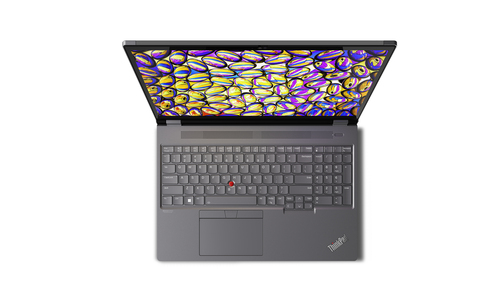

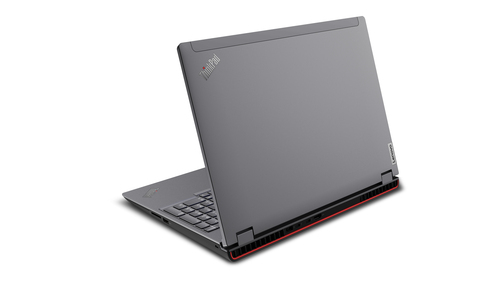

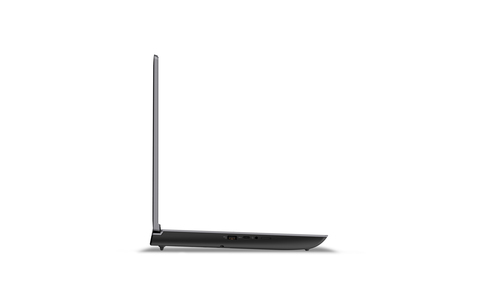

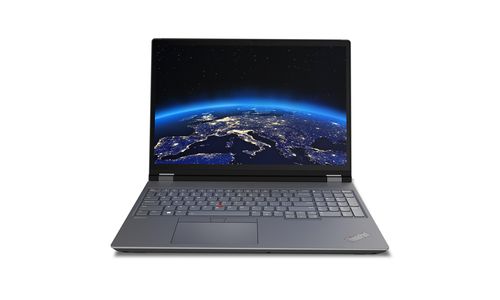

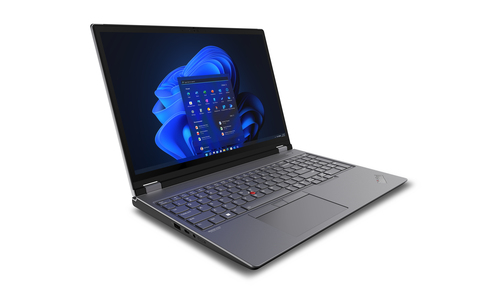

Lenovo ThinkPad P16 Gen 1

ThinkPad P16 Gen 1

Model ThinkPad P16 Gen 1Part no. 21D6009CUSEAN 196801262102

135 specifications Checked today

Display40.6 cm (16")
Resolution1920 x 1200 pixels
ProcessorIntel® Core™ i5
Memory16 GB
Storage512 GB
GraphicsNVIDIA RTX A1000

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 1920 x 1200 pixels
Processor: Intel® Core™ i5
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA RTX A1000

Brand: Lenovo
Category: Laptop
Model: ThinkPad P16 Gen 1
Part numbers: 21D6009CUS, 21D6000XGE, 21D70000BR, 21D70001BR, 21D70002BR, 21D6005CUS +34 more
EAN / UPC: 196801262102, 196800504265, 196800492579, 196800492531 +56 more
Also known as: Lenovo ThinkPad P16 Gen 1 Intel® Core™ i5 i5-12600HX Mobile workstation 40.6 cm (16") WUXGA 16 GB DDR5-SDRAM 512 GB SSD NVIDIA RTX A1000 Wi-Fi 6E (802.11ax) Win

Specifications

135 specifications in 21 groups

Design

Specification	Value
Product type	Mobile workstation
Product colour	Black, Grey
Colour name	Storm grey (top), villi black (bottom)
Form factor	Clamshell
Housing material	Aluminium, Polyphenylene sulfide (PPS)

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	300 cd/m²
Colour gamut	100%
Low Blue Light technology	Yes
RGB colour space	sRGB
Contrast ratio (typical)	1200:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	12th gen Intel® Core™ i5
Processor model	i5-12600HX
Processor cores	12
Processor threads	16
Processor boost frequency	4.6 GHz
Performance cores	4
Efficient cores	8
Performance-core Max Turbo Frequency	4.6 GHz
Efficient-core Max Turbo Frequency	3.3 GHz
Processor cache	18 MB
Processor cache type	Smart Cache
Maximum turbo power	157 W
Processor base power	55 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	4x SO-DIMM
Maximum internal memory	128 GB
Memory channels	Dual-channel
Non-ECC	Yes

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
M.2 SSD size	2280 (22 x 80 mm)
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA RTX A1000
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics

Audio

Specification	Value
Audio chip	Realtek ALC3306
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.1
Near Field Communication (NFC)	No
WWAN	Upgradable

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Motherboard chipset	Intel WM690

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Keyboard backlit	Yes
Numeric keypad	Yes
Spill-resistant keyboard	Yes
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	German
Recovery operating system	Windows 10 Pro

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	94 Wh
Fast charging	Yes

Power

Specification	Value
AC adapter power	170 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	Power on, SSD, Supervisor

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	EPEAT Gold ENERGY STAR 8.0 TCO Certified 9.0 RoHS MIL-STD-810H TÜV ISV

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, TCO, EPEAT Gold

Weight & dimensions

Specification	Value
Weight	2.95 kg
Width	364 mm
Depth	266 mm
Height	30.2 mm

Packaging content

Specification	Value
AC adapter included	Yes
