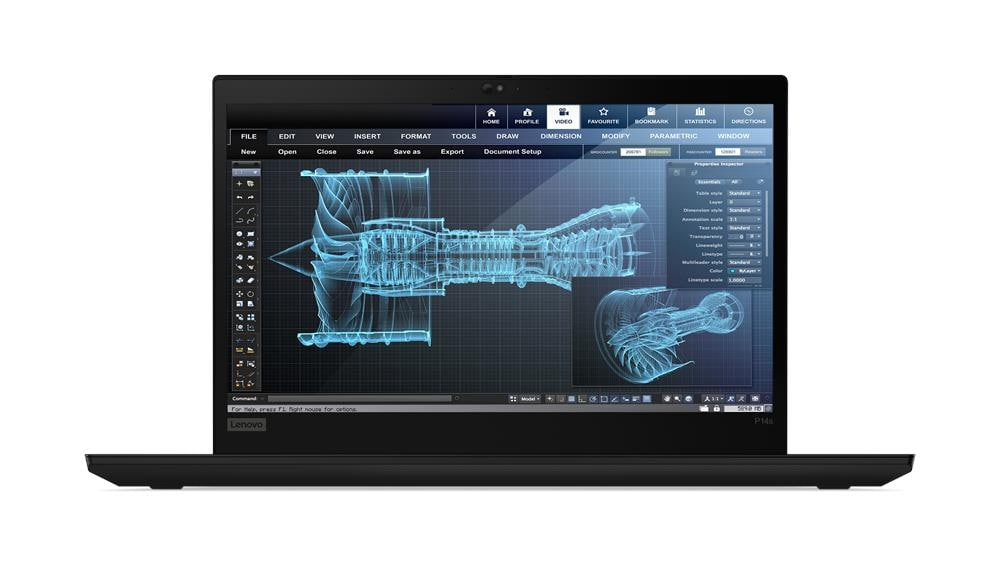

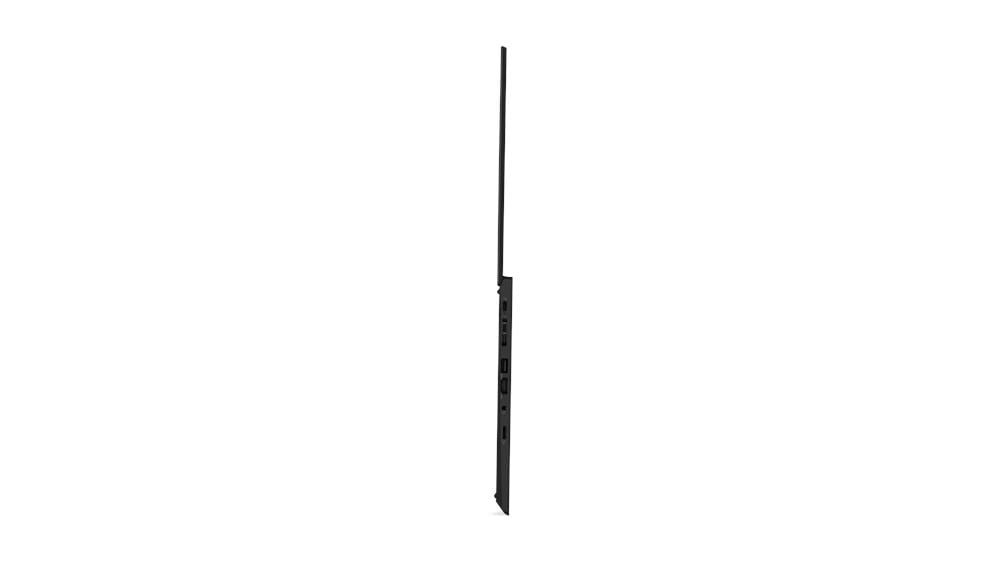

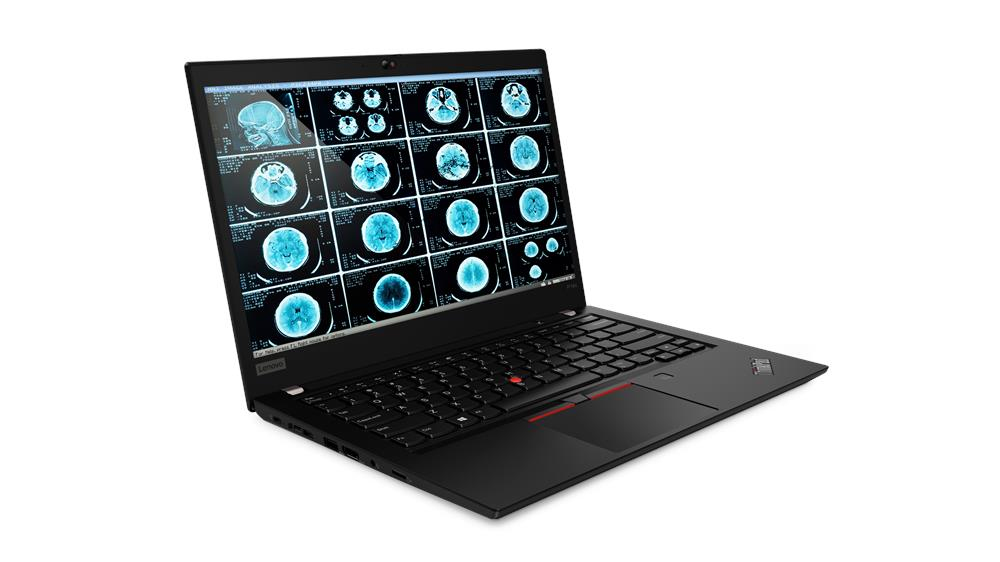

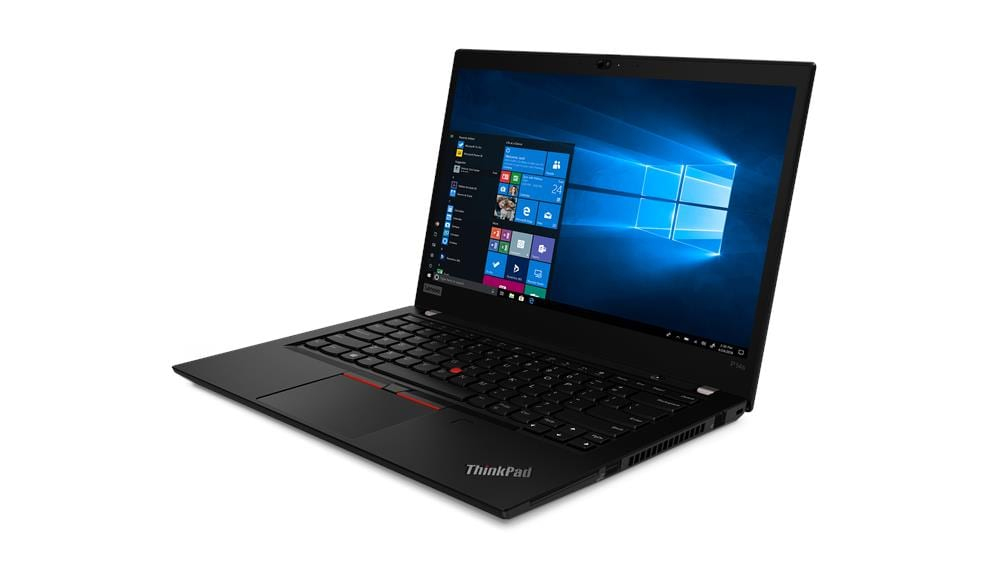

Lenovo ThinkPad P14s Gen 2 (Intel)

ThinkPad P14s Gen 2 (Intel)

Model ThinkPad P14s Gen 2 (Intel)Part no. 20VX002BUSEAN 195713084321

99 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory16 GB
Storage512 GB
GraphicsNVIDIA Quadro T500

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA Quadro T500

Brand: Lenovo
Category: Laptop
Model: ThinkPad P14s Gen 2 (Intel)
Part numbers: 20VX002BUS, 20VY002BBR, 20VY002CBR, 20VY002DBR, 20VY002EBR, 20VX002LUS +34 more
EAN / UPC: 195713084321, 196119321768, 196119321782, 196119321775 +56 more
Also known as: Lenovo ThinkPad P14s Gen 2 (Intel) Intel® Core™ i5 i5-1145G7 Mobile workstation 35.6 cm (14") Full HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA Quadro T500 Wi-Fi 6 (80

Specifications

99 specifications in 19 groups

Design

Specification	Value
Product type	Mobile workstation
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	300 cd/m²
Colour gamut	45%
RGB colour space	NTSC

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor model	i5-1145G7
Processor cores	4
Processor threads	8
Processor boost frequency	4.4 GHz
Processor frequency	2.6 GHz

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	On-board + SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory slots	1x SO-DIMM
Maximum internal memory	40 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA Quadro T500
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR6

Audio

Specification	Value
Audio chip	Realtek ALC3287
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6 AX201
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1
Near Field Communication (NFC)	No
WWAN	Not installed

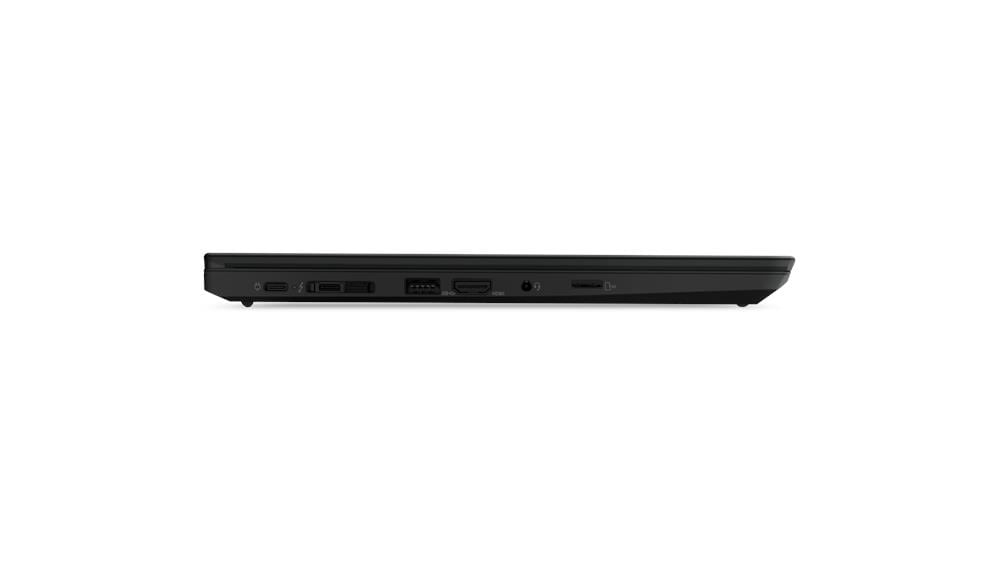

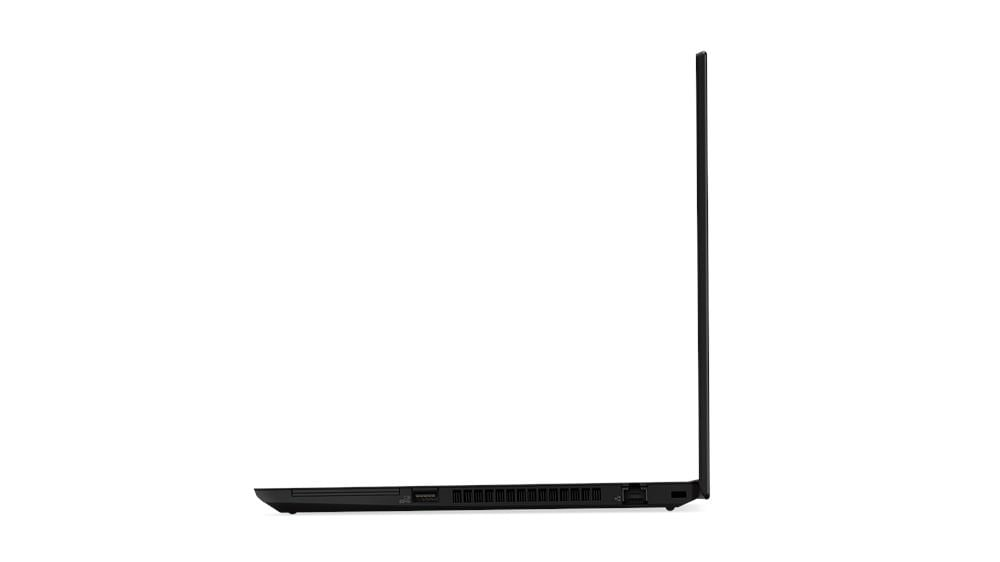

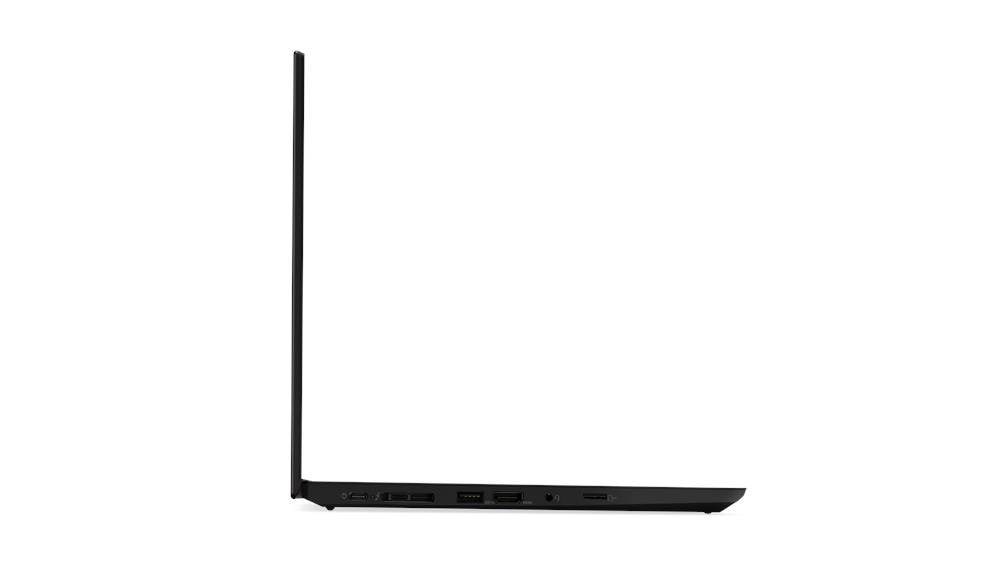

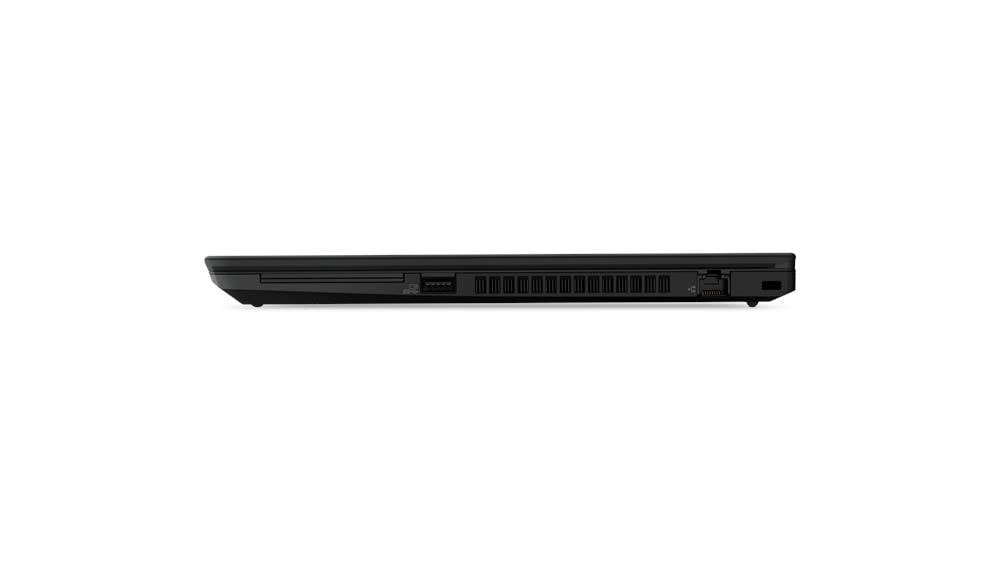

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes

Performance

Specification	Value
Motherboard chipset	Intel SoC

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Keyboard backlit	Yes
Numeric keypad	No
Keyboard language	Portuguese

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Battery

Specification	Value
Battery capacity	50 Wh
Battery life (max)	9.7 h

Power

Specification	Value
AC adapter power	65 W
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	No
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Certificates

Specification	Value
Certification	ENERGY STAR,TCO,EPEAT Gold,RoHS

Weight & dimensions

Specification	Value
Weight	1.47 kg
Width	329 mm
Depth	227 mm
Height	17.9 mm

Packaging content

Specification	Value
AC adapter included	Yes
