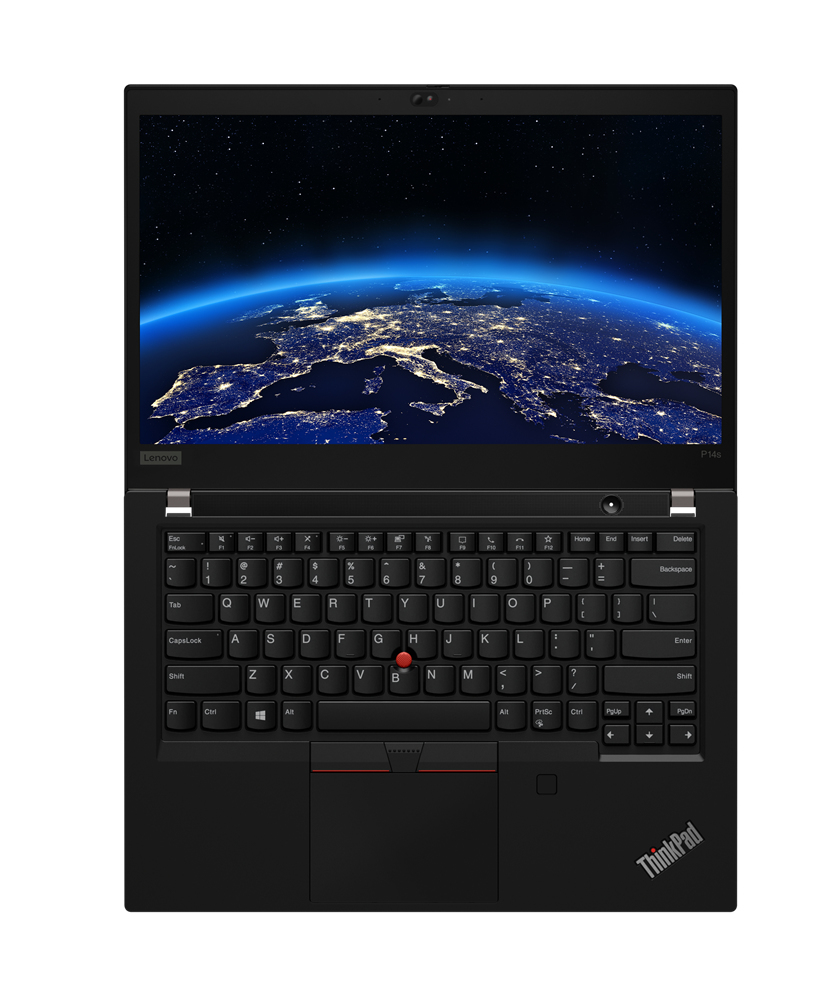

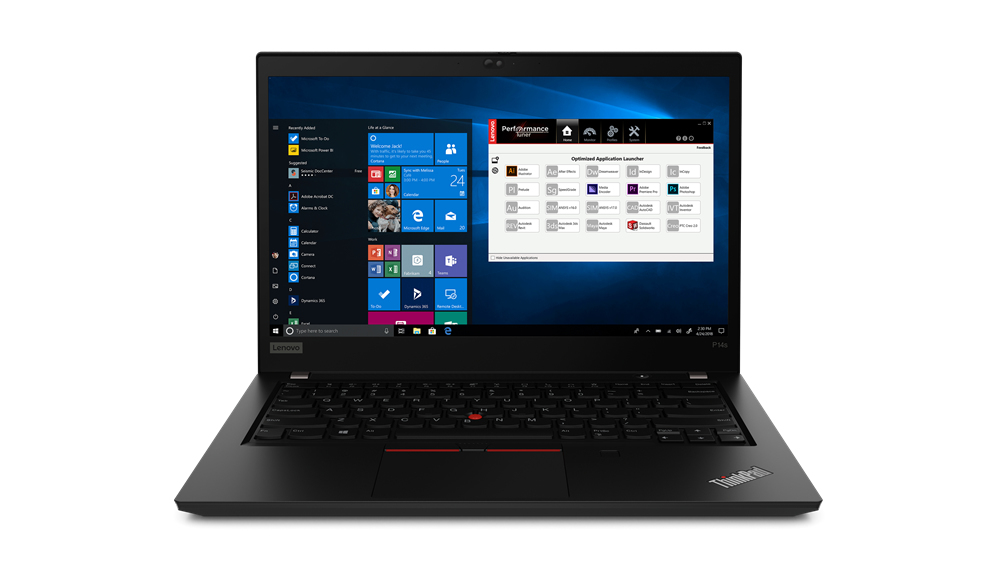

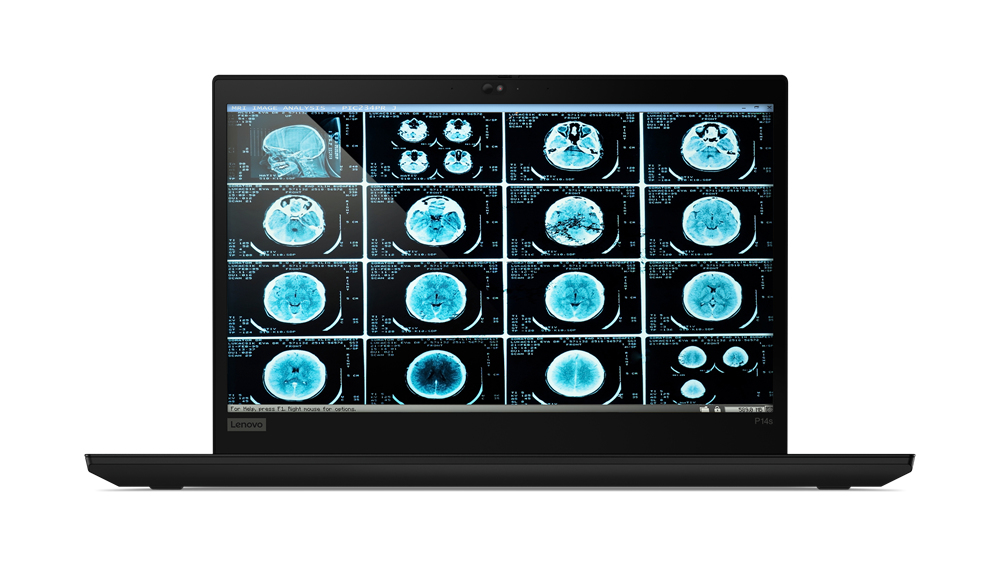

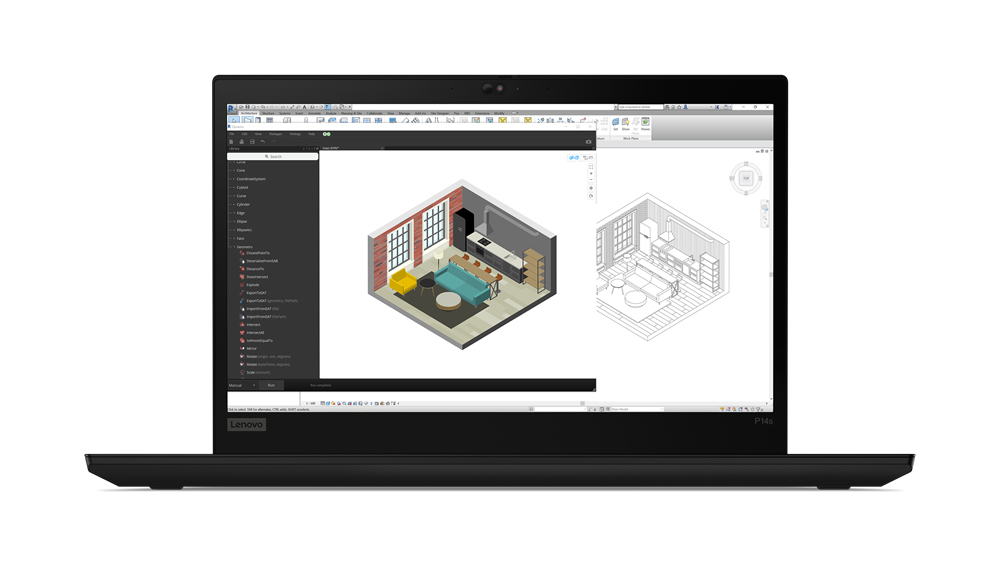

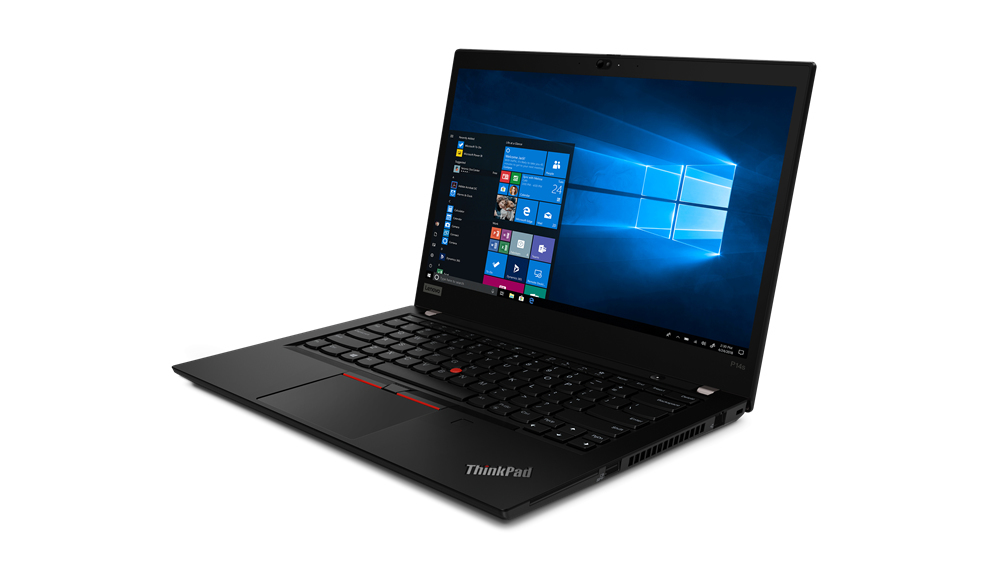

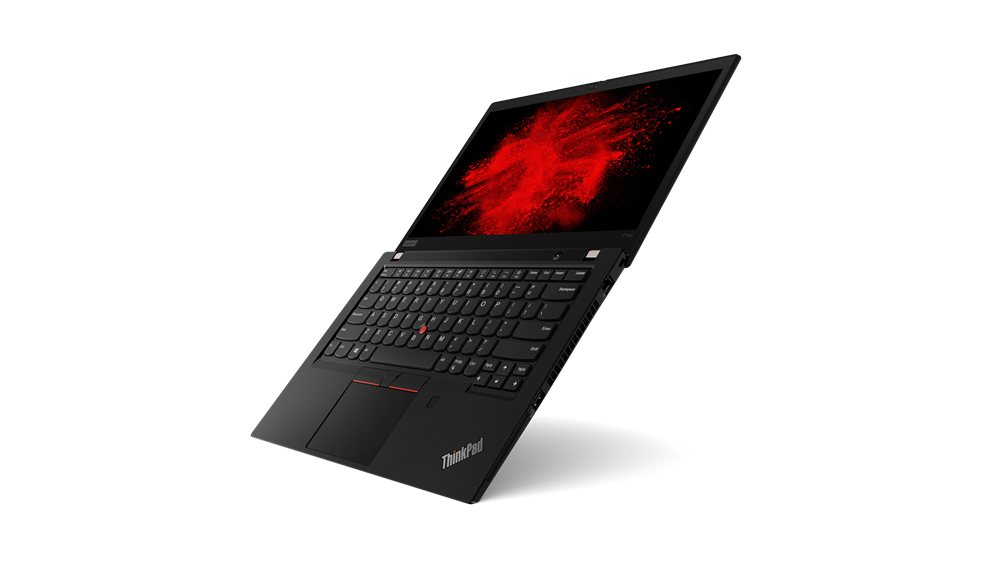

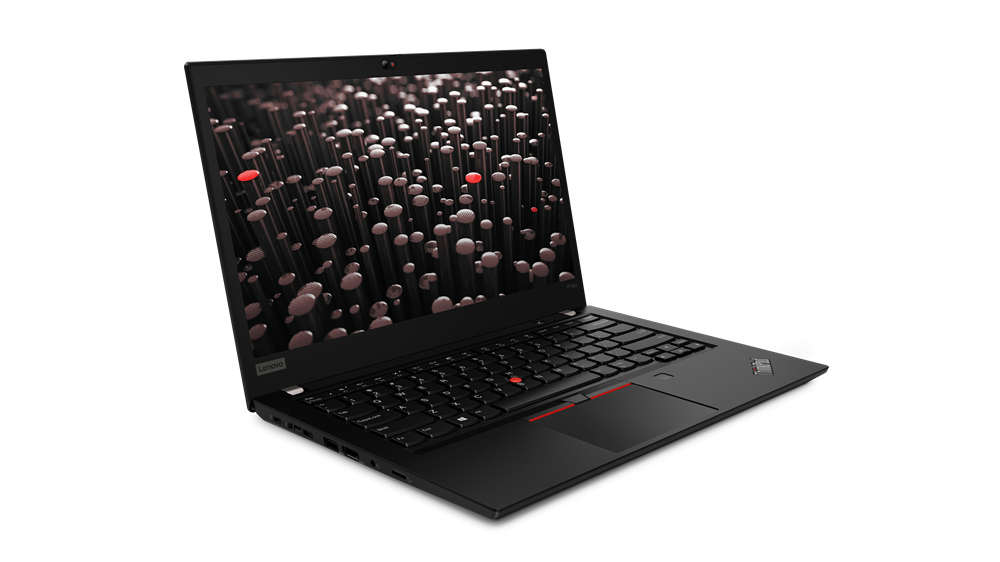

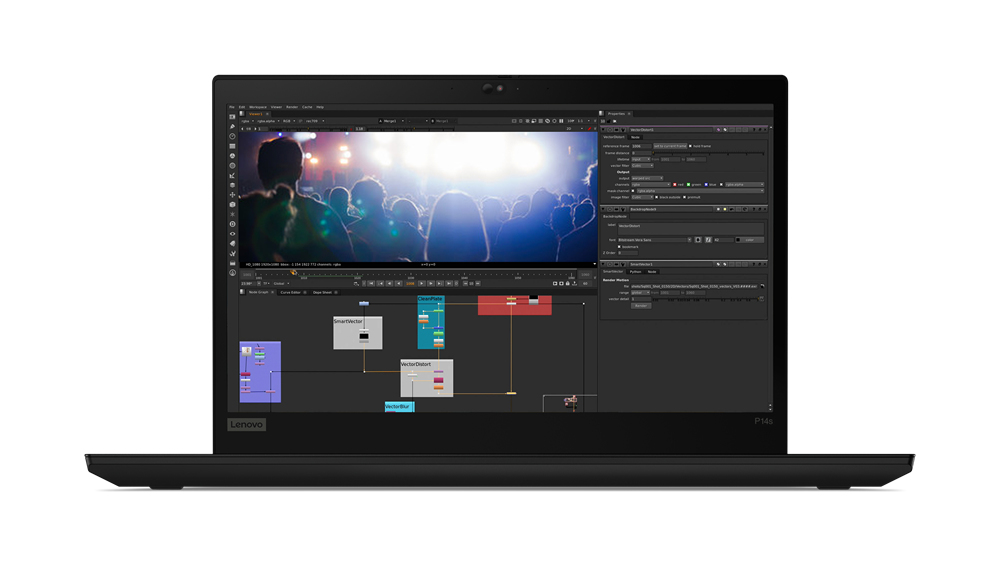

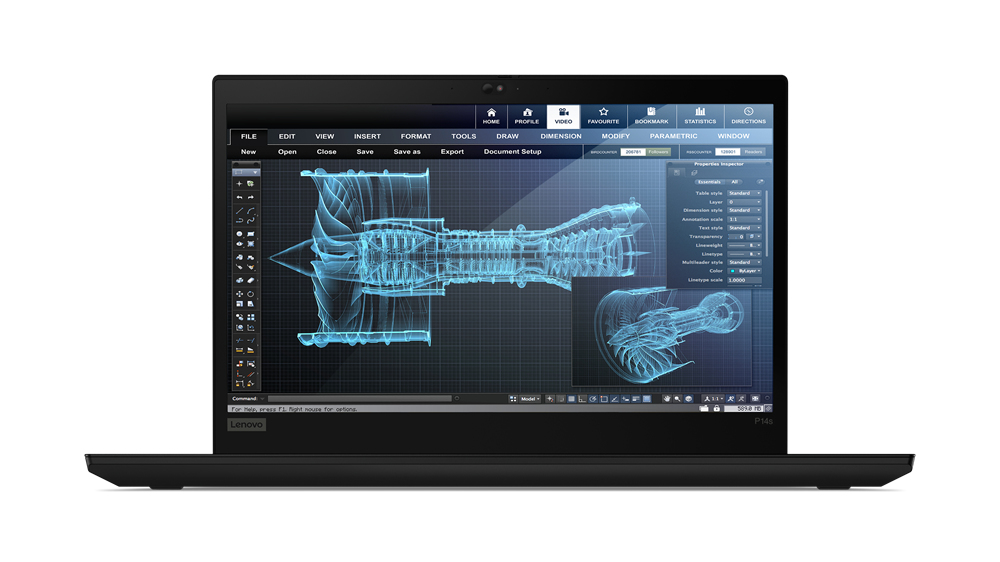

Lenovo ThinkPad P14s Gen 1 (AMD)

ThinkPad P14s Gen 1 (AMD)

Model ThinkPad P14s Gen 1 (AMD)Part no. 20Y1000ESPEAN 195348562348

90 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1080 pixels
ProcessorAMD Ryzen™ 7 PRO
Memory16 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1080 pixels
Processor: AMD Ryzen™ 7 PRO
Memory: 16 GB
Storage: 256 GB
Graphics: Not available

Brand: Lenovo
Category: Laptop
Model: ThinkPad P14s Gen 1 (AMD)
Part numbers: 20Y1000ESP, 20Y1000QFR, 20Y1000AGE, 20Y1000QGE, 20Y1000MGE, 20Y10002GE +34 more
EAN / UPC: 195348562348, 195348559799, 195348562249, 195348558778 +46 more
Also known as: Lenovo ThinkPad P14s Gen 1 (AMD) AMD Ryzen™ 7 PRO 4750U Mobile workstation 35.6 cm (14") Full HD 16 GB DDR4-SDRAM 256 GB SSD Wi-Fi 6 (802.11ax) Windows 10 Pro B

Specifications

90 specifications in 18 groups

Design

Specification	Value
Product type	Mobile workstation
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7 PRO
Processor generation	AMD Ryzen PRO 4000 Series
Processor model	4750U
Processor cores	8
Processor boost frequency	4.1 GHz
Processor frequency	1.7 GHz
Processor cache	8 MB

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	On-board + SO-DIMM
Memory slots	1x SO-DIMM

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
NVMe	Yes
SSD interface	NVMe, PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	AMD
On-board graphics card model	AMD Radeon Graphics

Audio

Specification	Value
Audio chip	Realtek ALC3287
Audio system	Dolby Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller model	Intel Wi-Fi 6 AX200
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
Combo headphone/mic port	Yes
Docking connector	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Repairability index	7.7

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Keyboard backlit	Yes
Numeric keypad	No
Spill-resistant keyboard	Yes

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	50 Wh
Fast charging	Yes

Power

Specification	Value
AC adapter power	65 W
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	HDD, Power on, Supervisor

Certificates

Specification	Value
Certification	MIL-STD-810G

Weight & dimensions

Specification	Value
Weight	1.46 kg
Width	329 mm
Depth	227 mm
Height	17.9 mm
