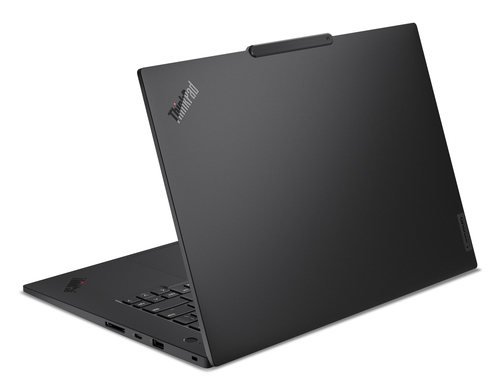

Lenovo ThinkPad P1 Gen 8

ThinkPad P1 Gen 8

Model ThinkPad P1 Gen 8Part no. 21Q8001CUSEAN 199272427223

145 specifications Checked today

Display40.6 cm (16")
Resolution1920 x 1200 pixels
ProcessorIntel Core Ultra 9
Memory64 GB
Storage2 TB
GraphicsNVIDIA RTX PRO 2000 Blackwell

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 1920 x 1200 pixels
Processor: Intel Core Ultra 9
Memory: 64 GB
Storage: 2 TB
Graphics: NVIDIA RTX PRO 2000 Blackwell

Brand: Lenovo
Category: Laptop
Model: ThinkPad P1 Gen 8
Part numbers: 21Q8001CUS, 21Q8000CSP, 21Q8000FMX, 21Q80008MX, 21Q80018US, 21Q8001HUS +34 more
EAN / UPC: 199272427223, 199272084211, 199272079873, 199272084907 +56 more
Also known as: Lenovo ThinkPad P1 Gen 8 Intel Core Ultra 9 285H Mobile workstation 40.6 cm (16") WUXGA 64 GB LPDDR5x-SDRAM 2 TB SSD NVIDIA RTX PRO 2000 Blackwell Wi-Fi 7 (802.

Specifications

145 specifications in 22 groups

Design

Specification	Value
Product type	Mobile workstation
Product colour	Black
Form factor	Clamshell
Housing material	Aluminium
Certified refurbished	No

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	500 cd/m²
Colour gamut	100%
RGB colour space	sRGB
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1200:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 9
Processor generation	Intel Core Ultra (Series 2)
Processor model	285H
Processor cores	16
Processor threads	16
Processor boost frequency	5.4 GHz
Performance cores	6
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	5.4 GHz
Efficient-core Max Turbo Frequency	4.5 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Performance-core base frequency	2.9 GHz
Efficient-core base frequency	2.7 GHz
Low Power Efficient-core Base Frequency	1000 MHz
Processor cache	24 MB
Maximum turbo power	115 W
Processor base power	45 W

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	99 TOPs
NPU performance up to	13 TOPs
GPU performance up to	77 TOPs

Memory

Specification	Value
Internal memory	64 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	7467 MHz
Memory form factor	LPCAMM2
Maximum internal memory	64 GB
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	2 TB
Storage media	SSD
Total SSDs capacity	2 TB
Number of SSDs installed	1
SSD capacity	2 TB
NVMe	Yes
SSD interface	PCI Express 5.0
M.2 SSD size	2280 (22 x 80 mm)
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA RTX PRO 2000 Blackwell
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
On-board graphics card model	Intel Arc 140T

Audio

Specification	Value
Audio chip	Cirrus Logic CS42L43
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	5 MP
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 7 BE201
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.4
Near Field Communication (NFC)	No
WWAN	Not installed

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Thunderbolt 5 ports quantity	2
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Motherboard chipset	Intel SoC

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Keyboard backlit	Yes
Numeric keypad	No
Spill-resistant keyboard	Yes
Keyboard language	Spanish
Copilot key	Yes

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system language	Mexican Spanish, Spanish, English
Bundled software	Intel Connectivity Performance Suite + Lenovo AI Now

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	90 Wh
Fast charging	Yes

Power

Specification	Value
AC adapter power	140 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	No
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	Power on, SSD, Supervisor

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	MIL-STD-810H military test passed Eyesafe Certified 2.0 Intel Evo Platform TÜV Rheinland Low Blue Light

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Gold, TCO

Weight & dimensions

Specification	Value
Weight	1.84 kg
Width	354.3 mm
Depth	241 mm
Height (front)	9.9 mm
Height (rear)	1.58 cm

Packaging content

Specification	Value
AC adapter included	Yes
