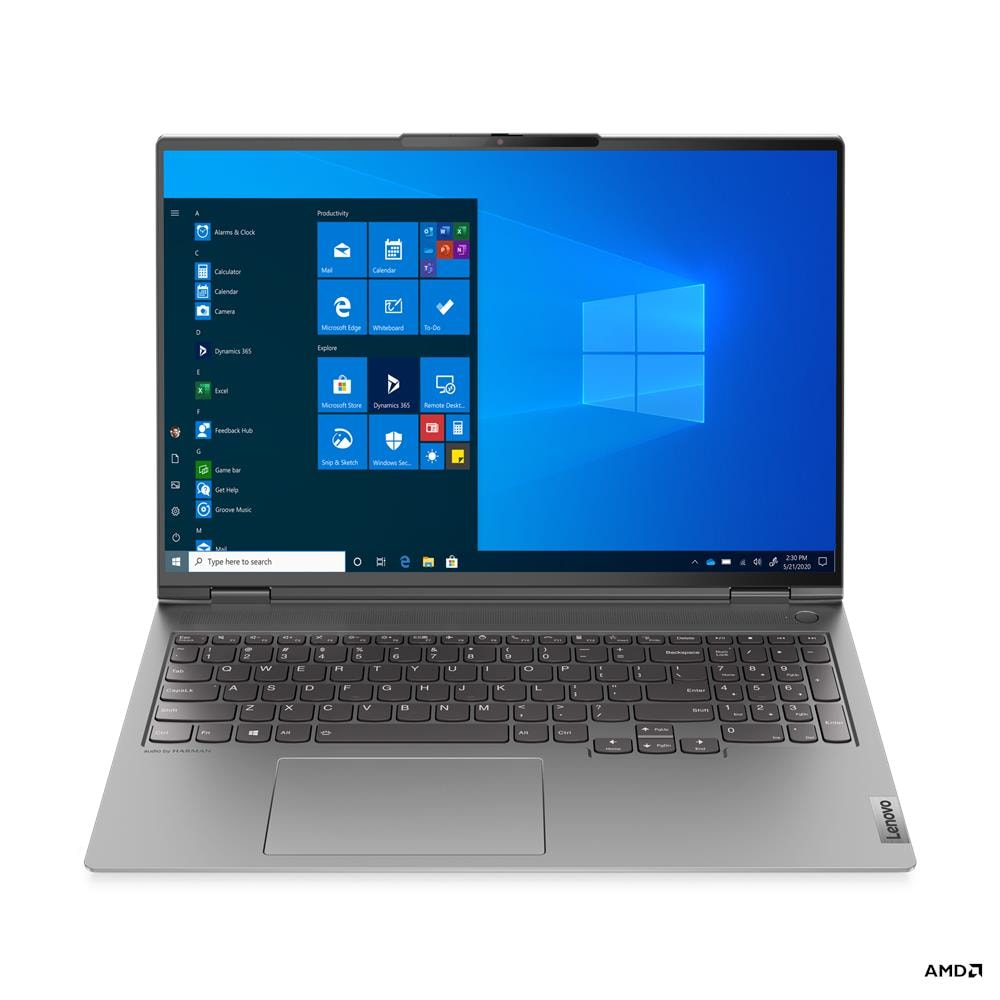

Lenovo ThinkBook 16p G2 ACH

ThinkBook 16p G2 ACH

Model ThinkBook 16p G2 ACHPart no. 20YM0009RUEAN 196118966366

97 specifications Checked today

Display40.6 cm (16")
Resolution2560 x 1600 pixels
ProcessorAMD Ryzen™ 9
Memory32 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 3060

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2560 x 1600 pixels
Processor: AMD Ryzen™ 9
Memory: 32 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 3060

Brand: Lenovo
Category: Laptop
Model: ThinkBook 16p G2 ACH
Part numbers: 20YM0009RU, 20YM005AAU, 20YM0009GE, 20YM000BGE, 20YM0009FR, 20YM000ARU +34 more
EAN / UPC: 196118966366, 196802366953, 195713588195, 195713587075 +56 more
Also known as: Lenovo ThinkBook 16p G2 ACH AMD Ryzen™ 9 5900HX Laptop 40.6 cm (16") WQXGA 32 GB DDR4-SDRAM 1 TB SSD NVIDIA GeForce RTX 3060 Wi-Fi 6 (802.11ax) Windows 11 Pro G

Specifications

97 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Colour name	Mineral Grey
Form factor	Clamshell
Display back cover material	Aluminium
Housing material	Aluminium

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	400 cd/m²
Colour gamut	100%
RGB colour space	sRGB
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Dolby Vision

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 9
Processor model	5900HX
Processor cores	8
Processor threads	16
Processor boost frequency	4.6 GHz
Processor frequency	3.3 GHz

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	On-board + SO-DIMM
Memory layout (slots x size)	1 x 16 GB
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 3.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 3060
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6

Audio

Specification	Value
Audio chip	Realtek ALC3306
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.1
WWAN	Not installed

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes

Performance

Specification	Value
Motherboard chipset	AMD SoC

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	English
Trial software	Office

Battery

Specification	Value
Battery capacity	71 Wh

Power

Specification	Value
AC adapter power	230 W
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Certificates

Specification	Value
Certification	ENERGY STAR,RoHS

Weight & dimensions

Specification	Value
Weight	1.99 kg
Width	356 mm
Depth	252 mm
Height (front)	1.63 cm
Height (rear)	1.99 cm

Packaging content

Specification	Value
AC adapter included	Yes
