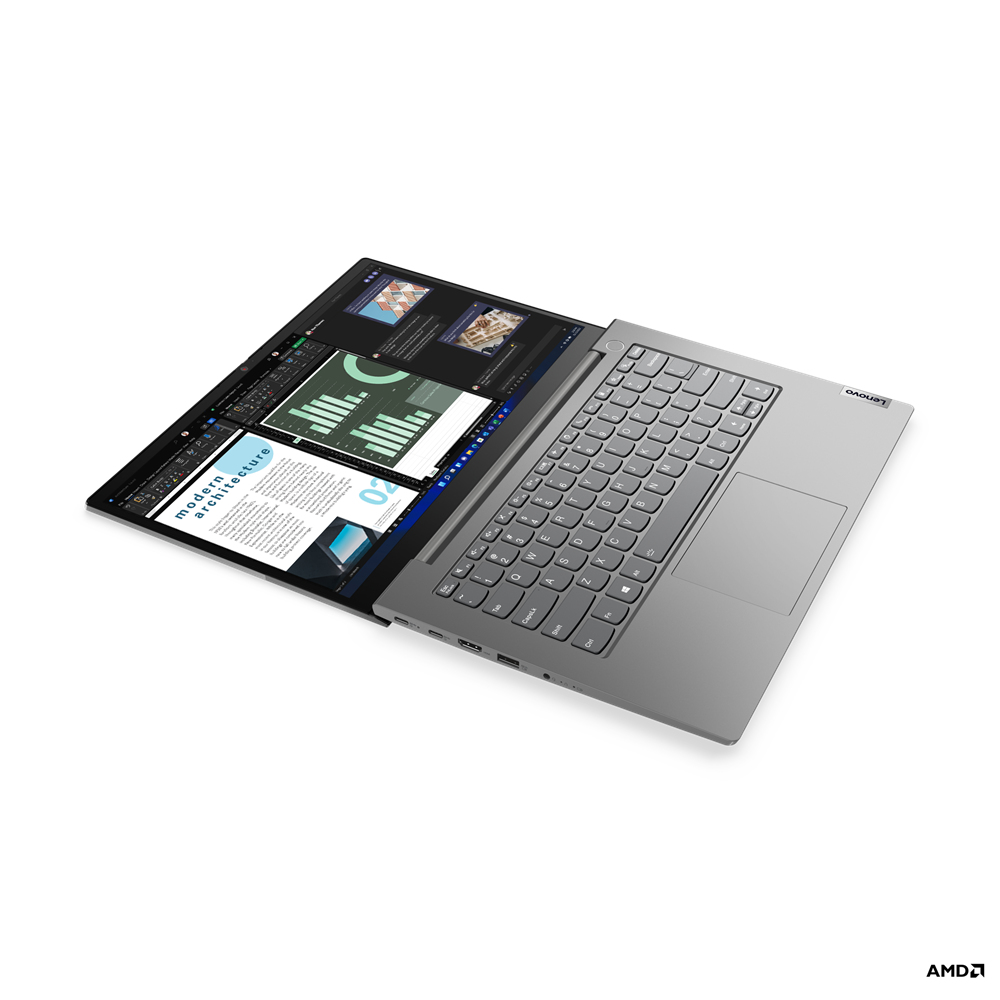

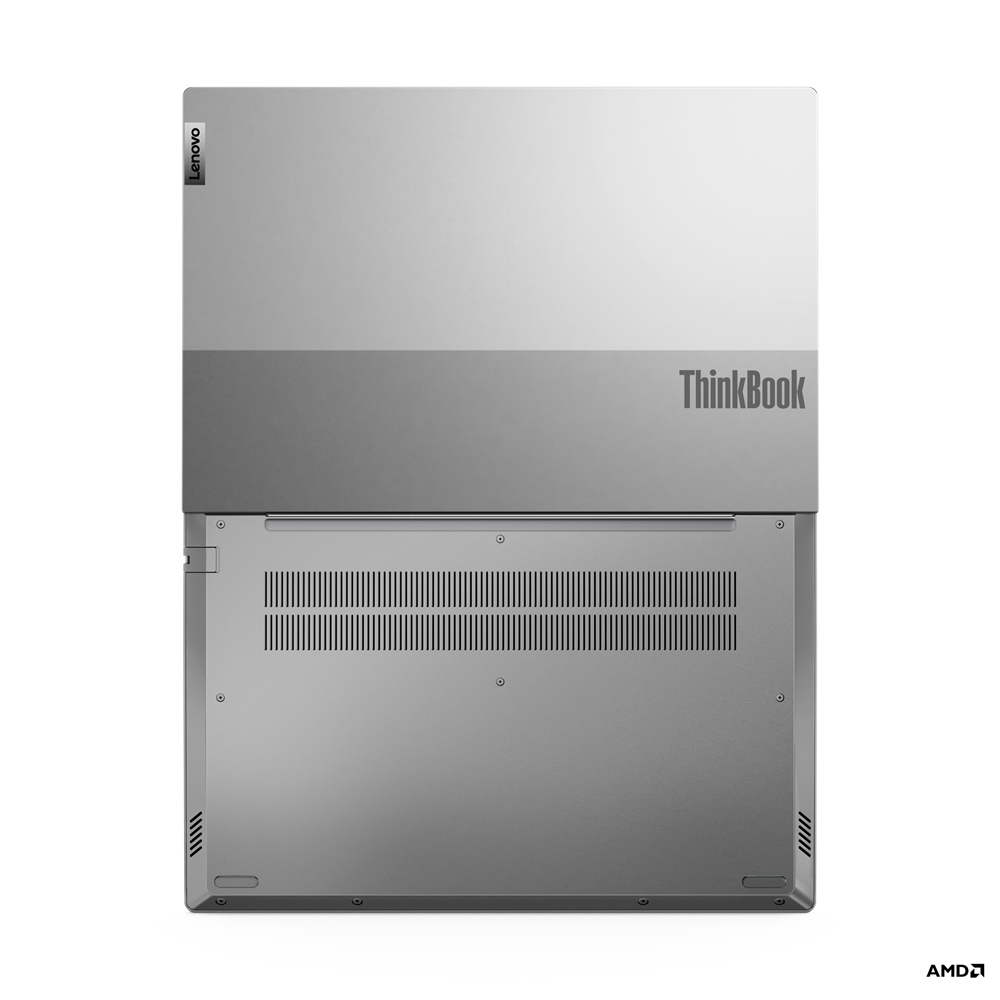

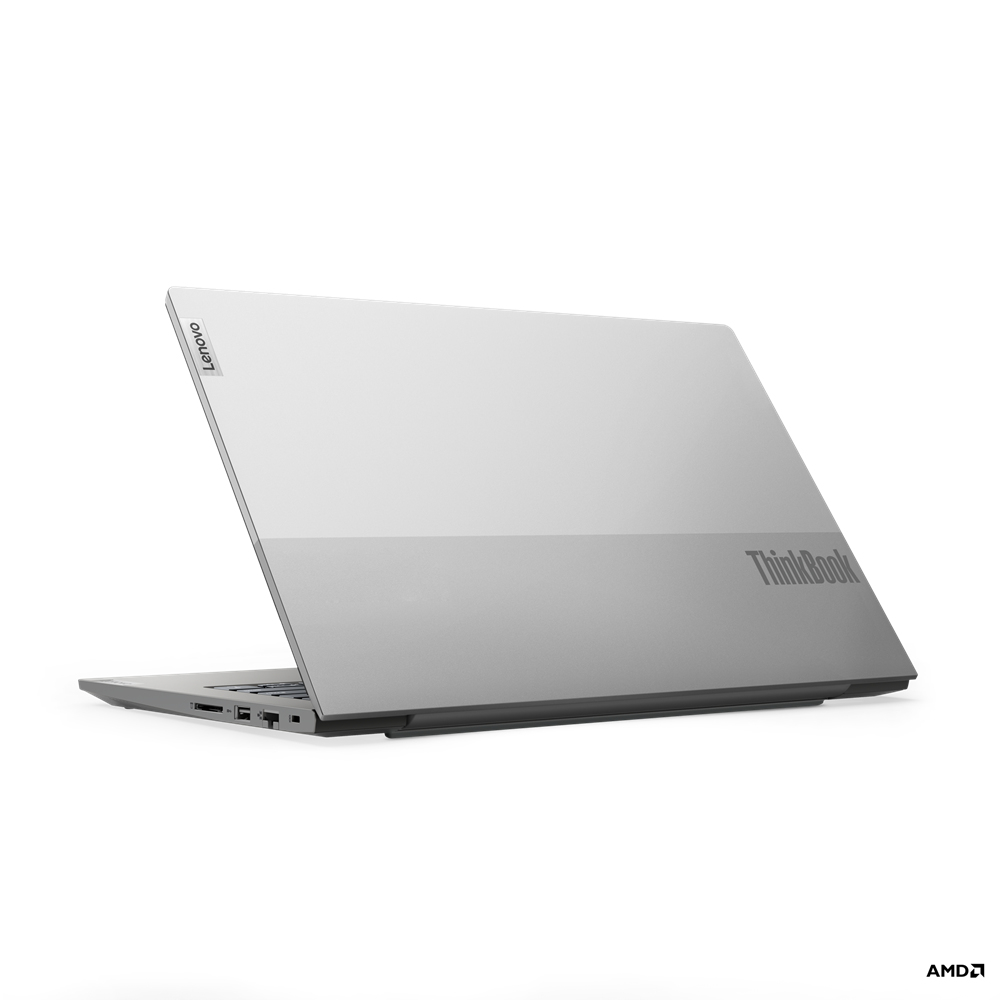

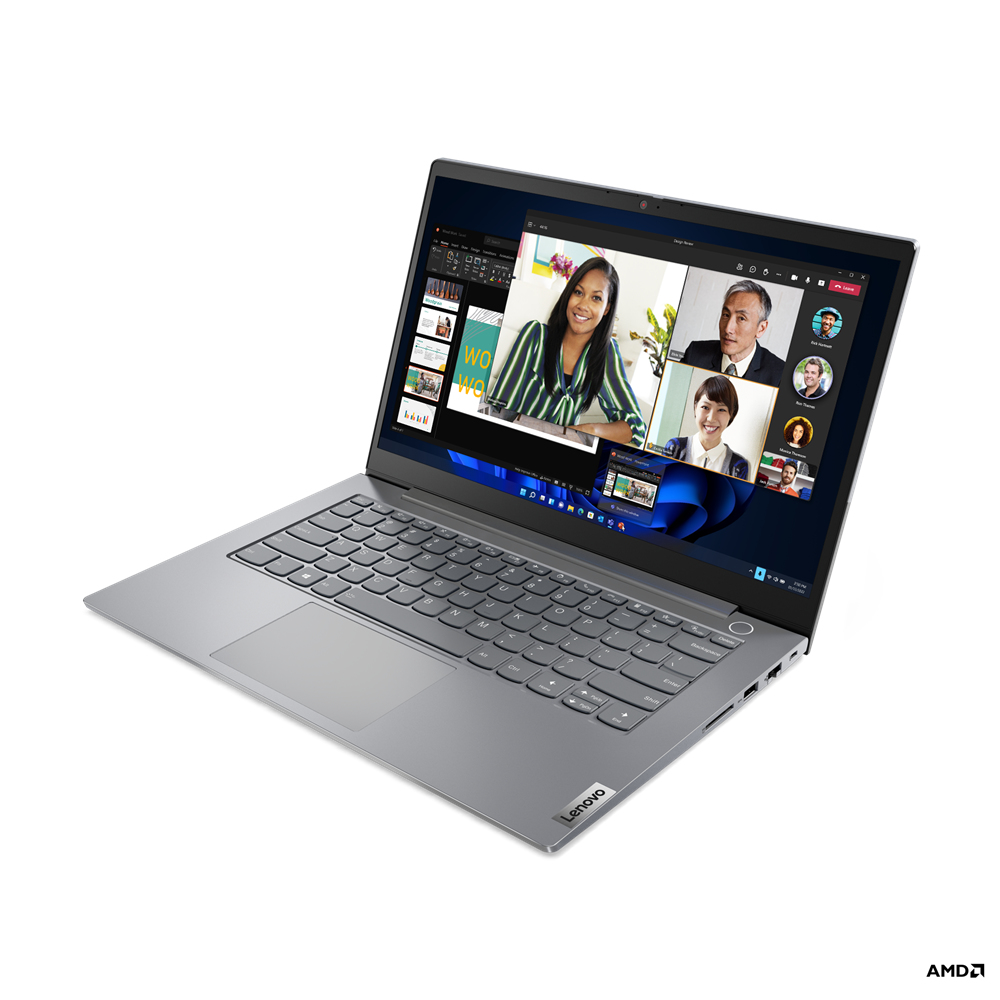

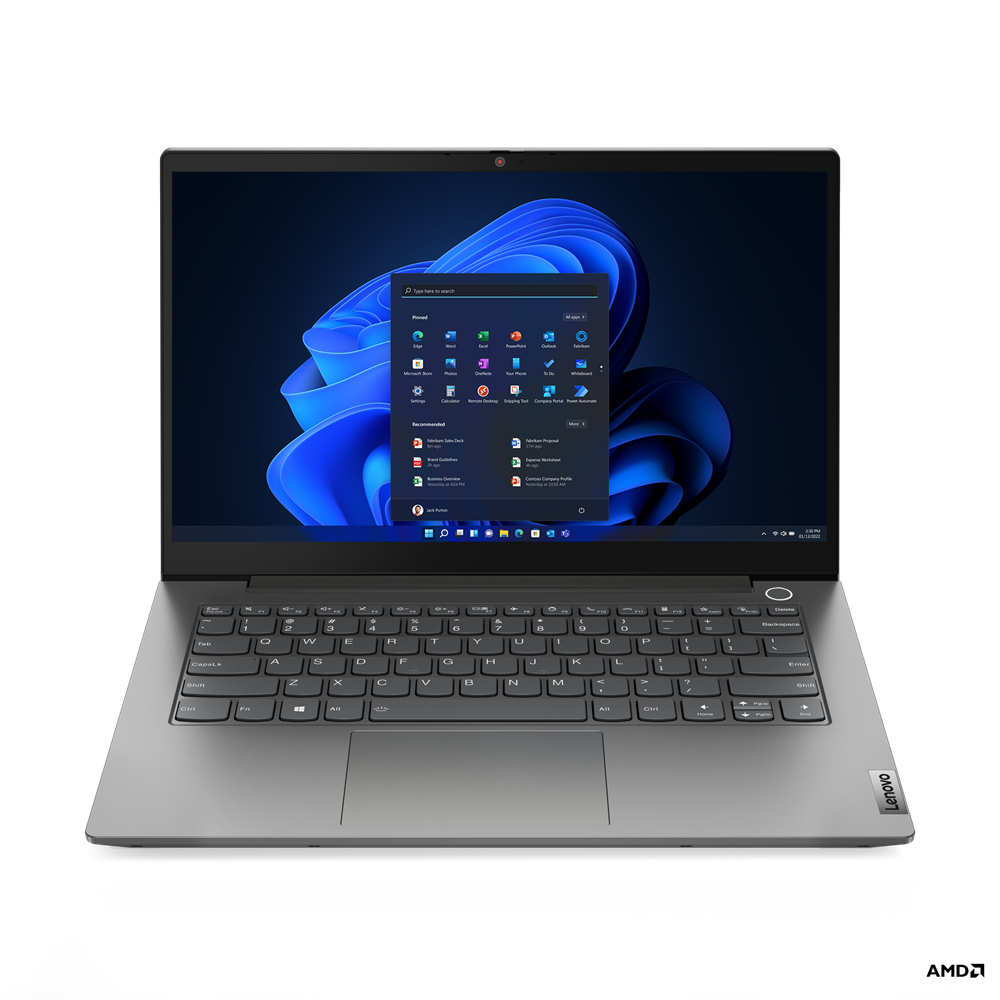

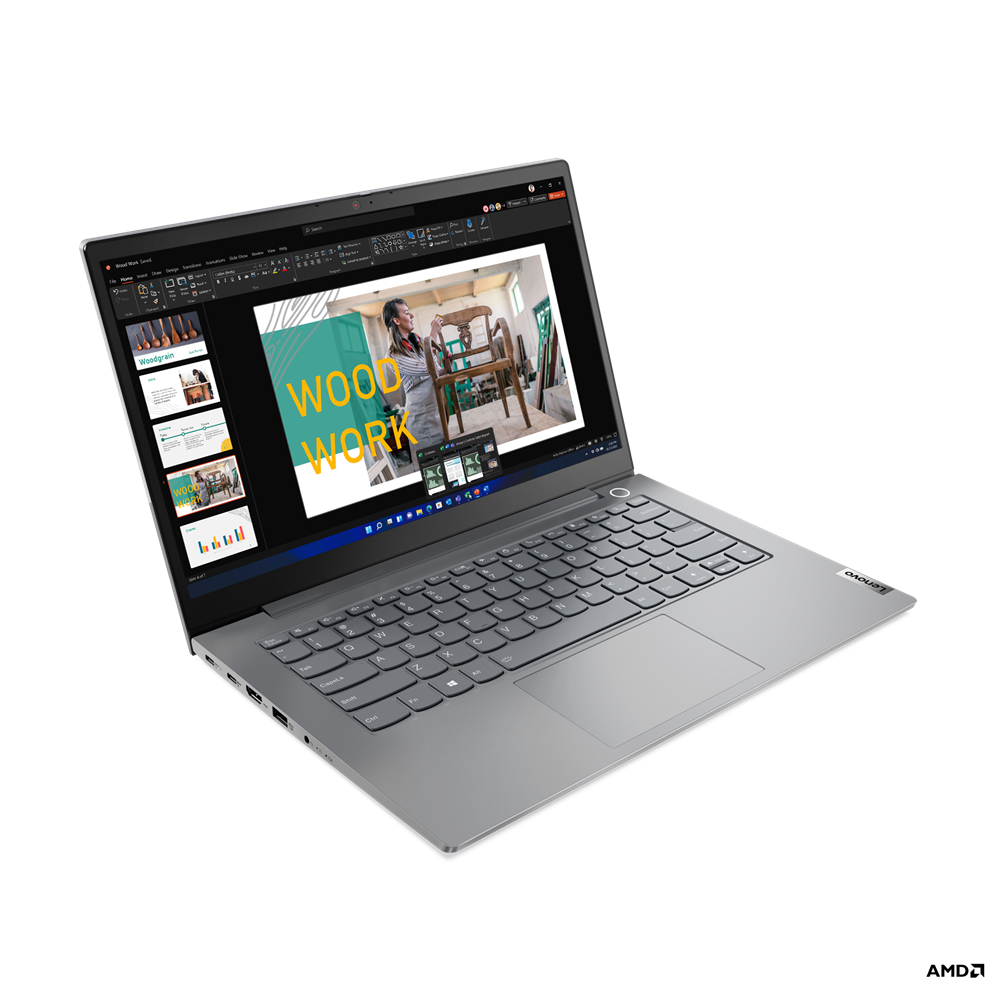

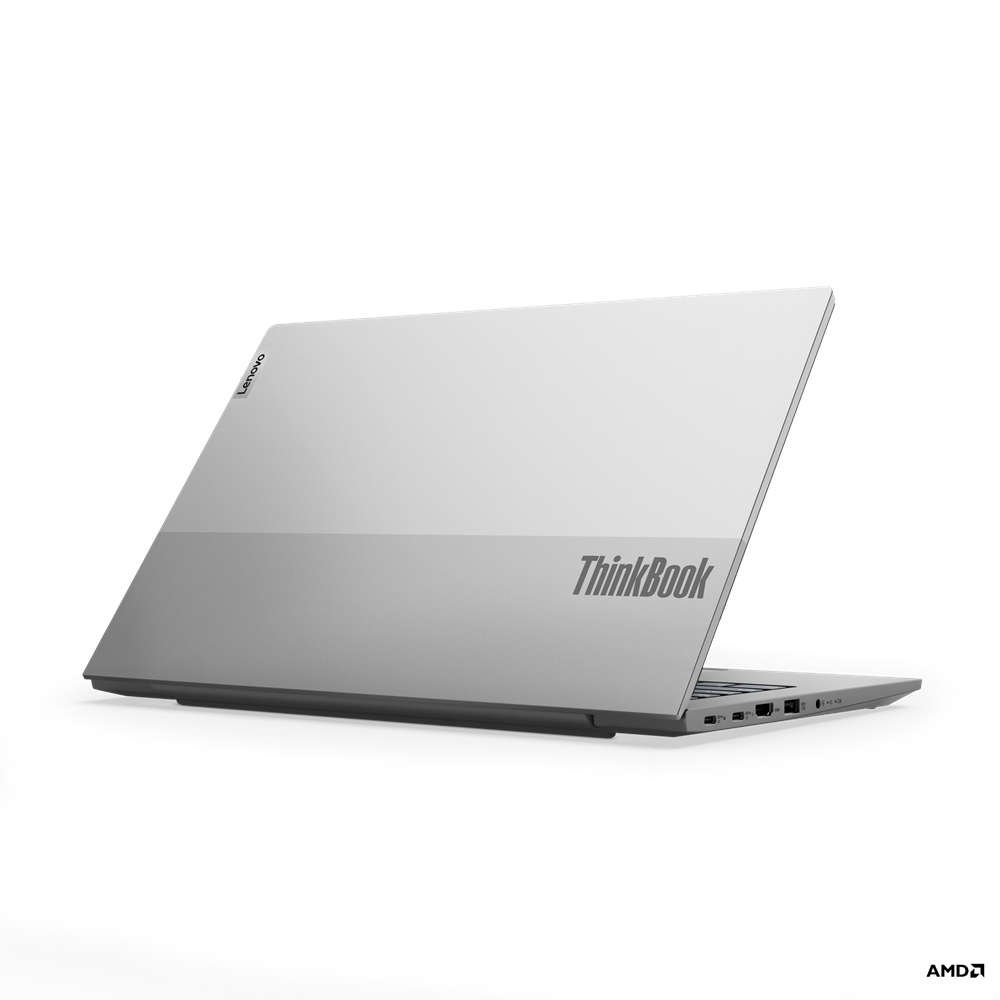

Lenovo ThinkBook 14 G5 ABP

ThinkBook 14 G5 ABP

Model ThinkBook 14 G5 ABPPart no. 21JE0015JP

111 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1080 pixels
ProcessorAMD Ryzen™ 3
Memory8 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1080 pixels
Processor: AMD Ryzen™ 3
Memory: 8 GB
Storage: 256 GB
Graphics: Not available

Brand: Lenovo
Category: Laptop
Model: ThinkBook 14 G5 ABP
Part numbers: 21JE0015JP, 21JE000YJP, 21JE0010JP, 21JE0011JP, 21JE0012JP, 21JE0013JP +5 more
Also known as: Lenovo ThinkBook 14 G5 ABP AMD Ryzen™ 3 7330U Laptop 35.6 cm (14") Full HD 8 GB DDR4-SDRAM 256 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Grey Japanese

Specifications

111 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Colour name	Mineral grey
Form factor	Clamshell
Housing material	Aluminium

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	300 cd/m²
Colour gamut	45%
RGB colour space	NTSC
Contrast ratio (typical)	700:1

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 3
Processor generation	AMD Ryzen 7000 Series
Processor model	7330U
Processor cores	4
Processor boost frequency	4.3 GHz
Processor frequency	2.3 GHz
Processor cache	8 MB

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	On-board + SO-DIMM
Memory slots	1x SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	AMD Radeon

Audio

Specification	Value
Audio chip	Realtek ALC3287
Audio system	Dolby Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1

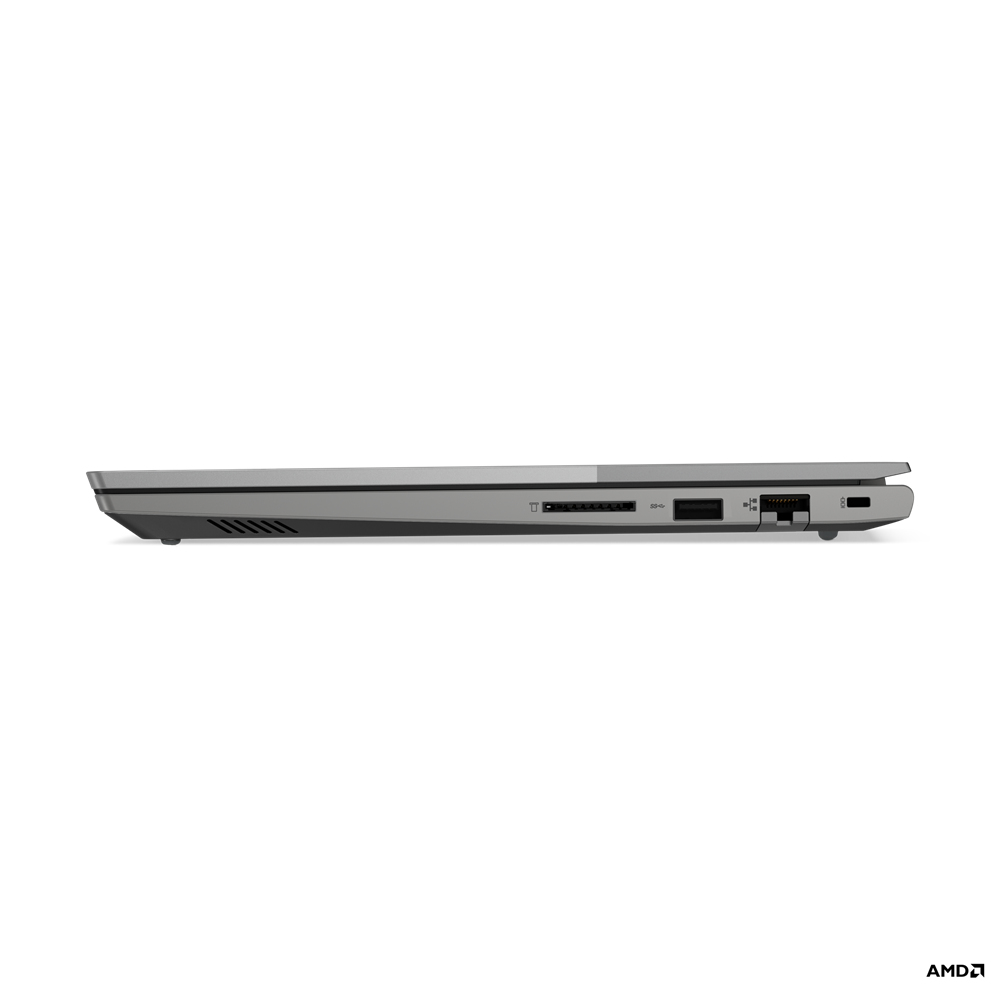

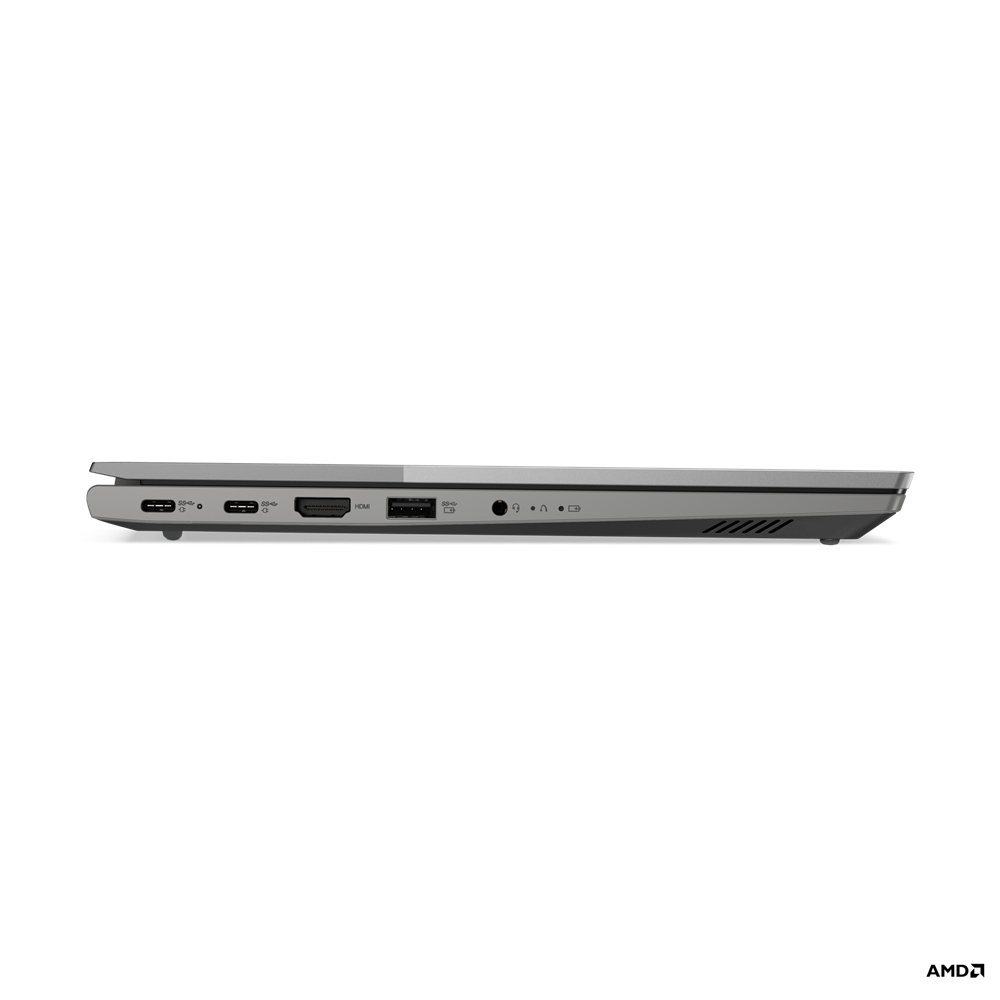

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Motherboard chipset	AMD SoC

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Spill-resistant keyboard	Yes
Keyboard language	Japanese

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system language	Japanese

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	45 Wh
Battery life (max)	9.5 h
Continuous video playback time (max)	12.8 h
Fast charging	Yes

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	HDD, Power on, Supervisor

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	ErP Lot 6 ErP Lot 26 MIL-STD-810H

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Gold

Weight & dimensions

Specification	Value
Weight	1.4 kg
Width	323 mm
Depth	218 mm
Height	17.9 mm
