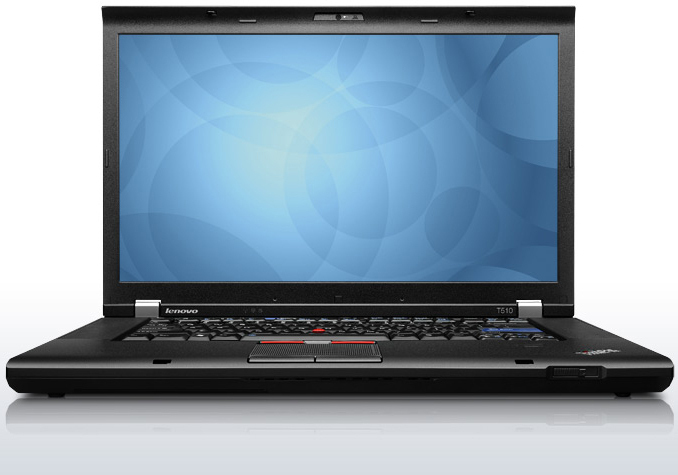

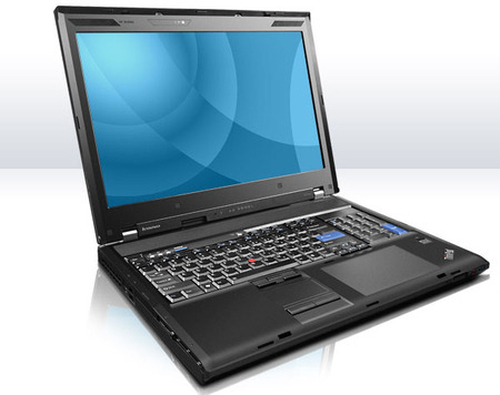

Lenovo ThinkPad T510 Intel® Core™ i7 i7-620M

39.6 cm (15.6") HD+ 4 GB 320 GB NVIDIA® Quadro® NVS 3100M Windows 7 Professional

Model T510Part no. NTI5DUKEAN 885976786680

146 specifications Checked 3 days ago

Display39.6 cm (15.6")
Resolution1600 x 900 pixels
ProcessorIntel® Core™ i7
Memory4 GB
Storage320 GB
GraphicsNVIDIA® Quadro® NVS 3100M

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1600 x 900 pixels
Processor: Intel® Core™ i7
Memory: 4 GB
Storage: 320 GB
Graphics: NVIDIA® Quadro® NVS 3100M

Brand: Lenovo
Category: Laptop
Model: T510
Part numbers: NTI5DUK, NTH2TU1, NTH3AU1, NTH3AUK, NTH4WUK, NTH4XU1 +34 more
EAN / UPC: 885976786680, 885976786529, 885976786604, 885600481363 +19 more
Also known as: Lenovo ThinkPad T510 Intel® Core™ i7 i7-620M 39.6 cm (15.6") HD+ 4 GB 320 GB NVIDIA® Quadro® NVS 3100M Windows 7 Professional

Specifications

146 specifications in 17 groups

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1600 x 900 pixels
HD type	HD+
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7
Processor model	i7-620M
Processor cores	2
Processor threads	4
Processor boost frequency	3.33 GHz
Processor frequency	2.66 GHz
System bus rate	2.5 GT/s
Processor cache	4 MB
Processor cache type	Smart Cache
L3 cache	4 MB
L2 cache	3 MB
Processor front side bus	1066 MHz
Processor socket	BGA 1288
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-600 Mobile Series
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Stepping	C2
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	20
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Memory clock speed	1066 MHz
Memory layout (slots x size)	2 x 2 GB
Memory slots	2x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	320 GB
HDD capacity	320 GB
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® Quadro® NVS 3100M
Graphics card family	NVIDIA
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	500 MHz
On-board graphics card dynamic frequency (max)	766 MHz
Maximum graphics card memory	0.5 GB
Maximum resolution	1600 x 900 pixels

Audio

Specification	Value
Audio system	CX20585-10Z
Number of built-in speakers	1
Speaker power	2 W
Audio included	Mute Button, Speakers (integrated)

Network

Specification	Value
Mobile network connection	Yes
Mobile network generation	3G
Wi-Fi	Yes
Networking features	Gigabit Ethernet
Wireless technology	WWAN; LAN; PAN
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	2.1+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
Modem (RJ-11) ports	1
TV-out	No

Keyboard

Specification	Value

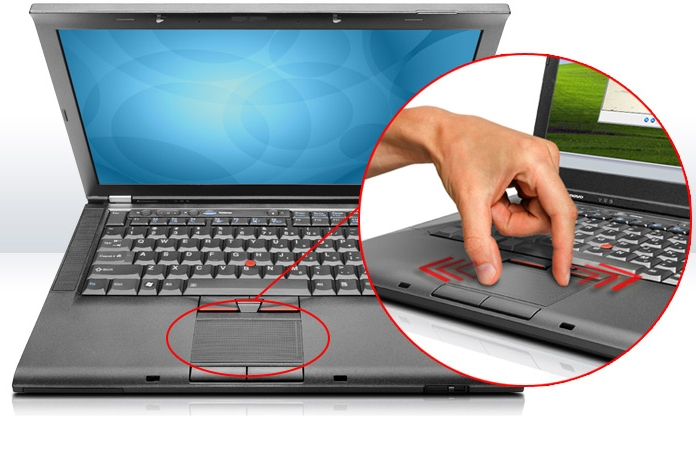

Pointing device	ThinkPad UltraNav
Keyboard type	7-row with Trackpoint

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit
Processor ARK ID	43560
Processor code	SLBPE
Processor package size	rPGA 37.5x 37.5, BGA 34x28
Supported instruction sets	SSE4.1/4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	9

Power

Specification	Value
AC adapter power	90 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	IBM

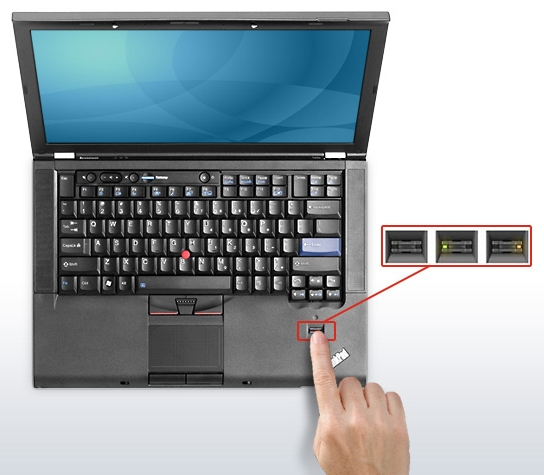

Fingerprint reader	Yes
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	2.67 kg
Width	372.8 mm
Depth	245.1 mm
Height	38.5 mm

Hard drive

Specification	Value
Storage drive type	320GB SATA/ 7200

Other features

Specification	Value
Security features	Client Security Solution, Hard disk drive password, Power-on password, Security lock slot, Supervisor password Fingerprint Reader
Infrared data port	No
Battery type	9 Cell Lithium-Ion
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	V.92
Intel segment tagging	Home office, Small Business
Manageability features	Client Security Solution, ThinkVantage Access Connections, ThinkVantage Active Protection System, ThinkVantage Rescue and Recovery
Drive bays	Ultrabay Enhanced
Supplied AC adapter type	Integrated Serial ATA
