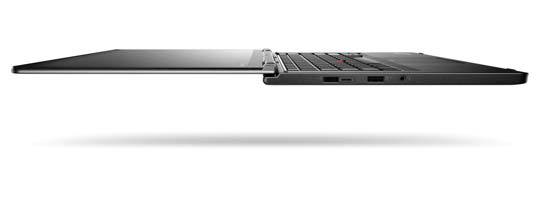

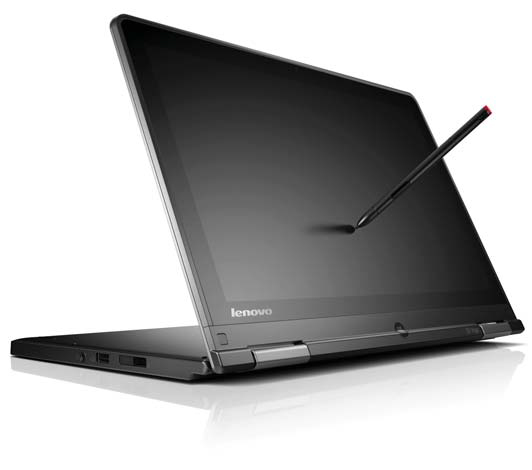

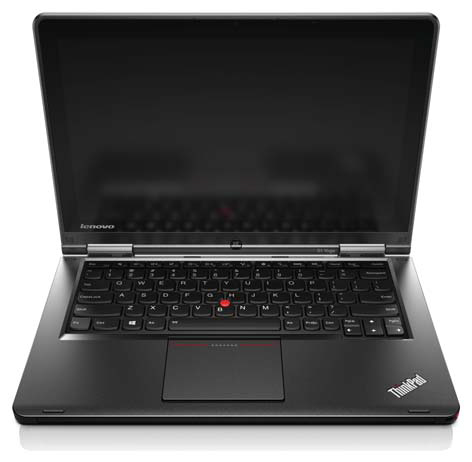

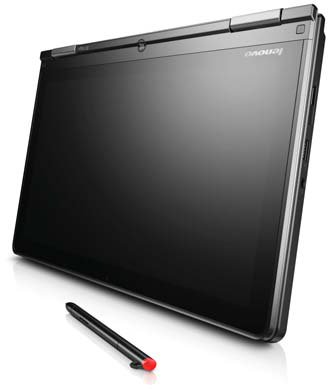

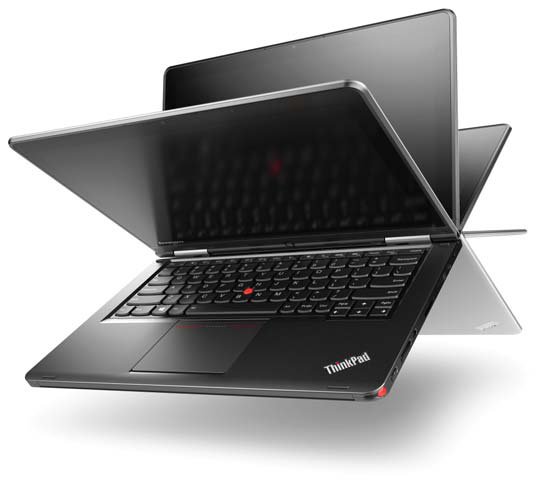

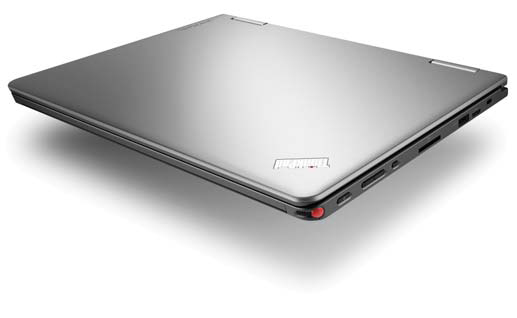

Lenovo S1 Yoga

Model S1 YogaPart no. 20DLA010CDEAN 8884405783858

178 specifications Checked 2 days ago

Display31.8 cm (12.5")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage180 GB
GraphicsNot available

See all specifications

Overview

Display: 31.8 cm (12.5")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 180 GB
Graphics: Not available

Brand: Lenovo
Category: Laptop
Model: S1 Yoga
Part numbers: 20DLA010CD, 20C0004LUS, 20C0004TUS, 20C0004JUS, 20C00044US, 20C0A020LS
EAN / UPC: 8884405783858, 888440589930, 8884405899306, 888440584225 +4 more
Also known as: Lenovo ThinkPad Yoga S1 Intel® Core™ i7 i7-4600U Laptop 31.8 cm (12.5") Touchscreen Full HD 8 GB DDR3-SDRAM 180 GB Windows 8.1 Pro Black

Specifications

178 specifications in 23 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Convertible (Folder)
Housing material	Aluminium, Magnesium

Display

Specification	Value
Display diagonal	31.8 cm (12.5")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
Touchscreen type	Capacitive
HD type	Full HD
Touch technology	Multi-touch
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	400 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	4th gen Intel® Core™ i7
Processor model	i7-4600U
Processor cores	2
Processor threads	4
Processor boost frequency	3.3 GHz
Processor frequency	2.1 GHz
System bus rate	5 GT/s
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	BGA 1168
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-4600 Mobile series
Processor codename	Haswell
Bus type	DMI2
FSB Parity	No
Stepping	D0
Thermal Design Power (TDP)	15 W
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	4x1, 2x4
PCI Express slots version	2.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1600 MHz
Memory form factor	On-board
Maximum internal memory	8 GB
Maximum internal memory (64-bit)	8 GB

Storage

Specification	Value
Total storage capacity	180 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4400
Maximum on-board graphics card memory	1.74 GB
On-board graphics card base frequency	200 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	11.2/12
On-board graphics card OpenGL version	4.3
On-board graphics card ID	0xA16
Maximum resolution	1920 x 1200 pixels

Audio

Specification	Value
Audio system	Dolby Home Theater
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Mini HDMI ports quantity	1
S/PDIF out port	No
Combo headphone/mic port	Yes
Docking connector	No
ExpressCard slot	No
Number of SATA III connectors	4
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Ambient light sensor	Yes

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Keyboard backlit	Yes
Numeric keypad	No
Island-style keyboard	Yes
Spill-resistant keyboard	Yes
Keyboard number of keys	83
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 8.1 Pro
Operating system architecture	64-bit
Trial software	Norton Internet Security, Microsoft Office
Bundled software	Lenovo Support, Lenovo Companion, Lenovo Cloud Storage, Password Manager, ThinkVantage System Update, Skype

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel ME Firmware Version	9.5
Intel Rapid Storage Technology	Yes
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Connect Technology	Yes
Intel Smart Connect Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Active Management Technology (Intel® AMT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Rapid Start Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	76616
Processor code	SR1EA
Processor package size	40 x 24 x 1.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	8
Battery capacity	47 Wh
Battery life (max)	7 h

Power

Specification	Value
AC adapter power	45 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	HDD, Power on, Supervisor

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.57 kg
Width	316 mm
Depth	221 mm
Height	18.8 mm

Packaging content

Specification	Value
AC adapter included	Yes
Power cord included	Yes

Other features

Specification	Value
3D	No
