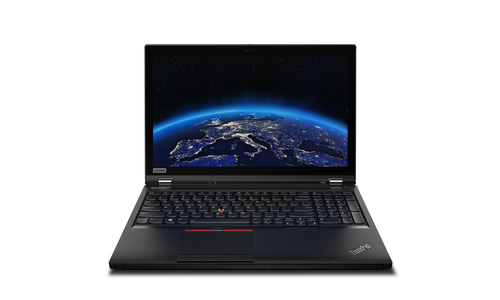

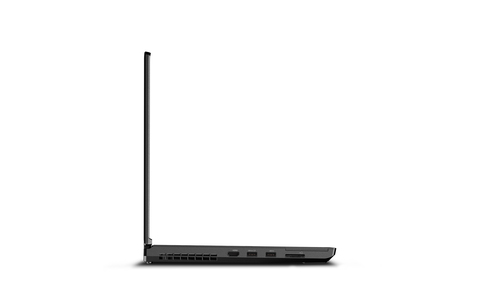

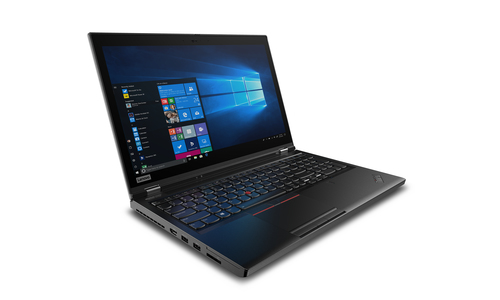

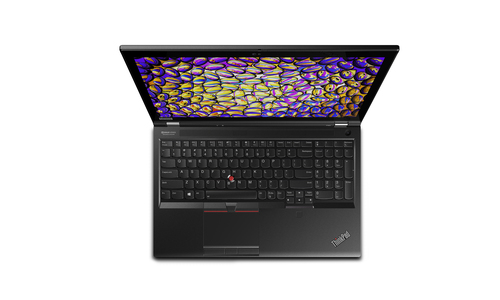

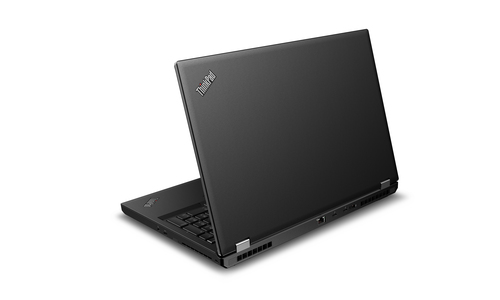

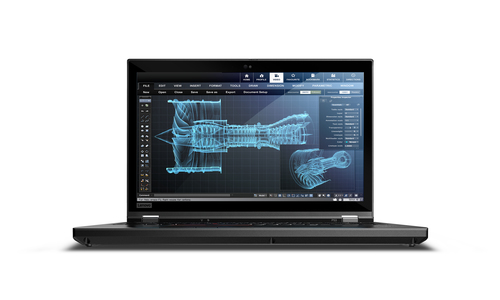

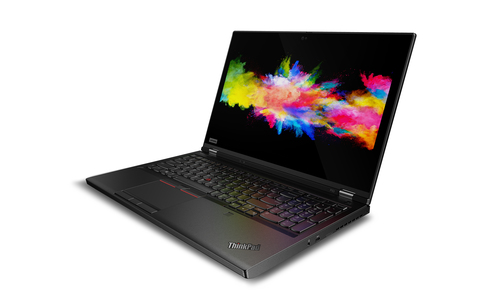

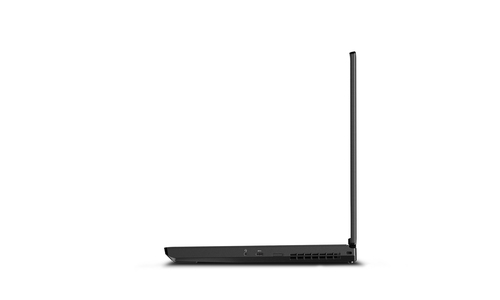

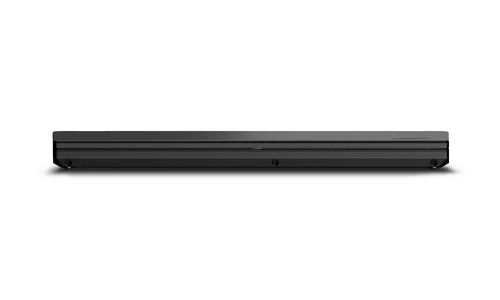

Lenovo P53 + ThinkVision P27u
Lenovo

P53 + ThinkVision P27u

Model P53 + ThinkVision P27uPart no. 20QN002MGE+61CBGAT1EU

160 specifications Checked today
  • Display39.6 cm (15.6")
  • Resolution3840 x 2160 pixels
  • ProcessorIntel® Core™ i7
  • Memory16 GB
  • Storage512 GB
  • GraphicsNVIDIA Quadro T2000
See all specifications

Overview

Display
39.6 cm (15.6")
Resolution
3840 x 2160 pixels
Processor
Intel® Core™ i7
Memory
16 GB
Storage
512 GB
Graphics
NVIDIA Quadro T2000
Brand
Lenovo
Category
Laptop
Model
P53 + ThinkVision P27u
Part number
20QN002MGE+61CBGAT1EU
Also known as
Lenovo ThinkPad P53 + ThinkVision P27u Intel® Core™ i7 i7-9850H Mobile workstation 39.6 cm (15.6") 4K Ultra HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA Quadro T2000 W

Specifications

160 specifications in 19 groups

Design

Product typeMobile workstation
Product colourBlack
Form factorClamshell
Housing materialAluminium, Glass Fibre Reinforced Plastic (GFRP), Magnesium

Display

Display diagonal39.6 cm (15.6")
Display resolution3840 x 2160 pixels
TouchscreenNo
HD type4K Ultra HD
Panel typeIPS
LED backlightYes
Native aspect ratio16:9
Display brightness500 cd/m²
Contrast ratio (typical)1200:1

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i7
Processor generation9th gen Intel® Core™ i7
Processor modeli7-9850H
Processor cores6
Processor threads12
Processor boost frequency4.6 GHz
Processor frequency2.6 GHz
System bus rate8 GT/s
Processor cache12 MB
Processor socketBGA 1440
Processor lithography14 nm
Processor operating modes64-bit
Processor codenameCoffee Lake
Thermal Design Power (TDP)45 W
Configurable TDP-down35 W
Tjunction100 °C
Maximum number of PCI Express lanes16
PCI Express configurations1x16, 2x8, 1x8+2x4
PCI Express slots version3.0

Memory

Internal memory16 GB
Internal memory typeDDR4-SDRAM
Memory clock speed2666 MHz
Memory form factorSO-DIMM
Memory layout (slots x size)2 x 8 GB
Memory slots4x SO-DIMM
Maximum internal memory128 GB

Storage

Total storage capacity512 GB
Storage mediaSSD
Total SSDs capacity512 GB
Number of SSDs installed1
SSD capacity512 GB
NVMeYes
SSD interfaceNVMe, PCI Express
SSD form factorM.2
Optical drive typeNo
Card reader integratedYes
Compatible memory cardsMMC, SD, SDHC, SDXC

Graphics

On-board graphics cardYes
Discrete graphics cardYes
Discrete graphics card modelNVIDIA Quadro T2000
Discrete graphics card memory4 GB
Discrete graphics memory typeGDDR5
On-board graphics card familyIntel® UHD Graphics
On-board graphics card modelIntel® UHD Graphics 630
Maximum on-board graphics card memory64 GB
On-board graphics card base frequency350 MHz
On-board graphics card dynamic frequency (max)1150 MHz
On-board graphics card DirectX version12.0
On-board graphics card OpenGL version4.5
On-board graphics card ID0x3E9B

Audio

Audio chipSynaptic CX11880
Number of built-in speakers2
Speaker power2 W
Built-in microphoneYes
Number of microphones2

Camera

Front cameraYes
Front camera HD typeHD
Front camera resolution1280 x 720 pixels
Infrared (IR) cameraYes
Privacy cameraYes
Privacy typePrivacy shutter

Network

Mobile network connectionYes
Mobile network generation4G
4G standardLTE-A
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standardsWi-Fi 6 (802.11ax)
Antenna type2x2
WLAN controller modelIntel Wi-Fi 6 AX200
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothYes
Bluetooth version5.0
WWANInstalled

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.0
DisplayPorts quantity0
VGA (D-Sub) ports quantity0
Combo headphone/mic portYes
USB Type-C DisplayPort Alternate ModeYes
USB Sleep-and-ChargeYes
USB Sleep-and-Charge ports1

Keyboard

Pointing deviceThinkPad UltraNav
Keyboard backlitYes
Numeric keypadYes
Spill-resistant keyboardYes
Full-size keyboardYes

Software

Operating system installedWindows 10 Pro
Operating system architecture64-bit

Processor special features

CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Flex Memory AccessYes
Intel Software Guard Extensions (Intel SGX)Yes
Intel Stable Image Platform Program (SIPP)Yes
Intel TSX-NIYes
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® My WiFi Technology (Intel® MWT)Yes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Turbo Boost Technology2.0
Processor ARK ID191047
Processor package size42 x 28 mm
Supported instruction setsSSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring TechnologiesYes

Battery

Battery technologyLithium-Ion (Li-Ion)
Battery capacity90 Wh
Battery life (max)8 h
Fast chargingYes

Power

AC adapter power170 W
AC adapter frequency50 - 60 Hz
AC adapter input voltage100 - 240 V
DC-in jackYes
USB Power Delivery (USB PD)Yes

Security

Cable lock slotYes
Fingerprint readerYes
Smart card readerYes
Trusted Platform Module (TPM)Yes
Password protectionYes
Password protection typeHDD, Power on, Supervisor

Certificates

Compliance certificatesRoHS
CertificationMIL-STD-810G

Sustainability

Sustainability certificatesEPEAT Silver, ENERGY STAR

Weight & dimensions

Weight2.5 kg
Width377.4 mm
Depth252.3 mm
Height (front)2.45 cm
Height (rear)2.94 cm
