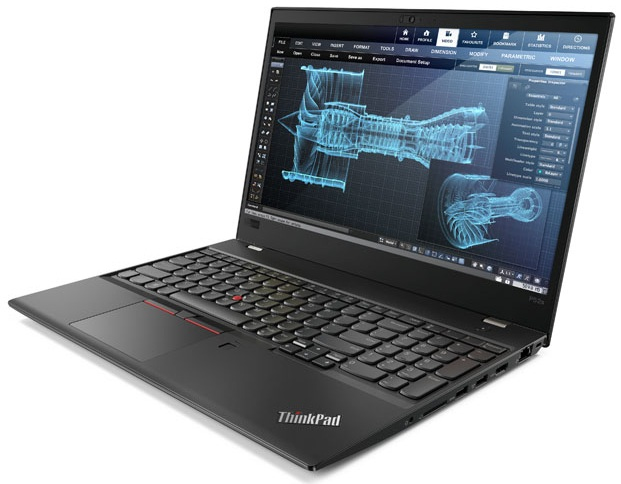

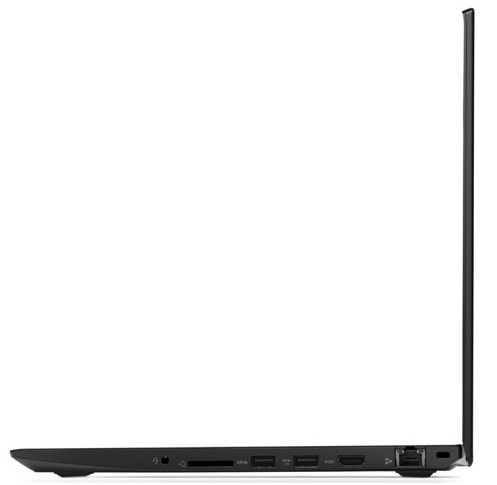

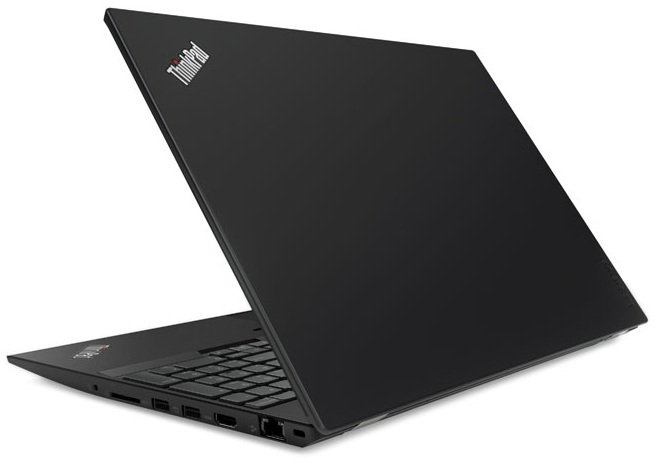

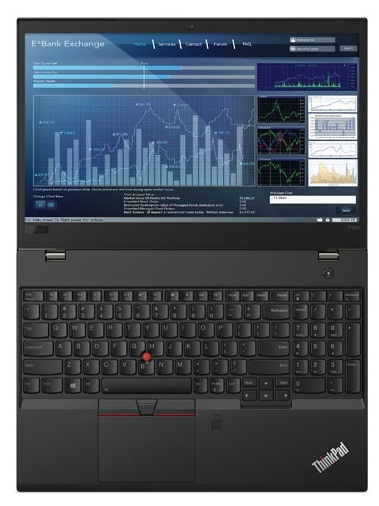

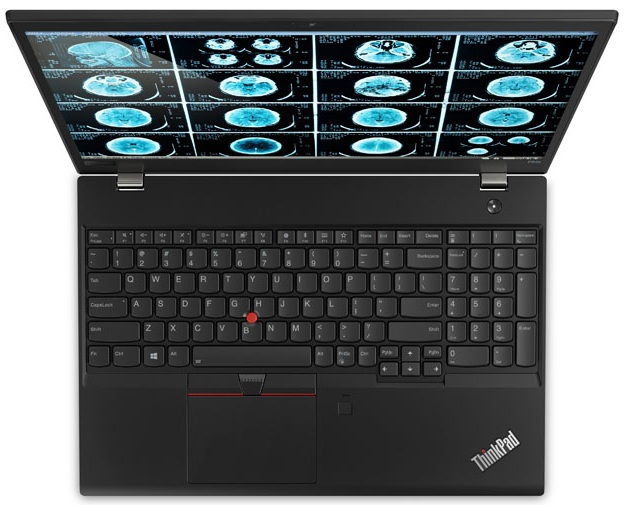

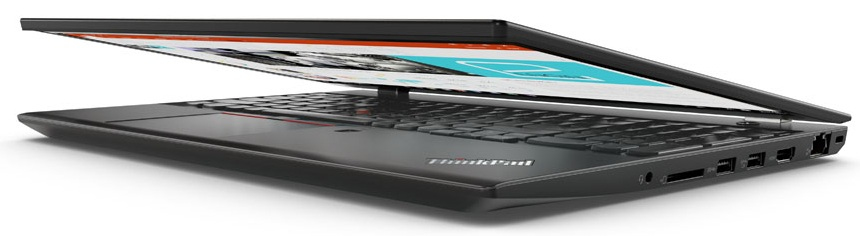

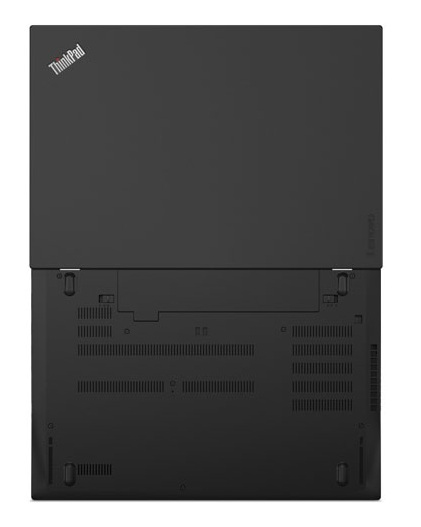

Lenovo ThinkPad P52s Intel® Core™ i7 i7-8550U Mobile workstation

Lenovo ThinkPad P52s Intel® Core™ i7 i7-8550U Mobile workstation

39.6 cm (15.6") 4K Ultra HD 16 GB DDR4-SDRAM 1 TB SSD NVIDIA® Quadro® P500 Wi-Fi 5 (802.11ac) B

Model P52sPart no. 20LBS03J00EAN 192651700245

166 specifications Checked 2 days ago
  • Display39.6 cm (15.6")
  • Resolution3840 x 2160 pixels
  • ProcessorIntel® Core™ i7
  • Memory16 GB
  • Storage1 TB
  • GraphicsNVIDIA® Quadro® P500
See all specifications

Overview

Display
39.6 cm (15.6")
Resolution
3840 x 2160 pixels
Processor
Intel® Core™ i7
Memory
16 GB
Storage
1 TB
Graphics
NVIDIA® Quadro® P500
Brand
Lenovo
Category
Laptop
Model
P52s
Part numbers
20LBS03J00, 20LBS09400, 20LBS09500, 20LCS0W70Q, 20LBS05N00, 20LBS03800 +34 more
EAN / UPC
192651700245, 192563928539, 192563542803, 192563542681 +8 more
Also known as
Lenovo ThinkPad P52s Intel® Core™ i7 i7-8550U Mobile workstation 39.6 cm (15.6") 4K Ultra HD 16 GB DDR4-SDRAM 1 TB SSD NVIDIA® Quadro® P500 Wi-Fi 5 (802.11ac) B

Specifications

166 specifications in 21 groups

Design

Product typeMobile workstation
Product colourBlack
Colour nameBlack
Form factorClamshell
Housing materialGlass fibre

Display

Display diagonal39.6 cm (15.6")
Display resolution3840 x 2160 pixels
TouchscreenNo
HD type4K Ultra HD
Panel typeIPS
LED backlightYes
Native aspect ratio16:9
Display surfaceMatt
Display brightness300 cd/m²
Contrast ratio (typical)1000:1

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i7
Processor generation8th gen Intel® Core™ i7
Processor modeli7-8550U
Processor cores4
Processor threads8
Processor boost frequency4 GHz
Processor frequency1.8 GHz
System bus rate4 GT/s
Processor cache8 MB
Processor cache typeSmart Cache
Processor socketBGA 1356
Processor lithography14 nm
Processor operating modes64-bit
Processor codenameKaby Lake R
Bus typeOPI
SteppingY0
Thermal Design Power (TDP)15 W
Configurable TDP-up frequency2 GHz
Configurable TDP-up25 W
Configurable TDP-down10 W
Configurable TDP-down frequency0.8 GHz
Tjunction100 °C
Maximum number of PCI Express lanes12
PCI Express configurations1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version3.0
ECC supported by processorNo

Memory

Internal memory16 GB
Internal memory typeDDR4-SDRAM
Memory clock speed2400 MHz
Memory form factorSO-DIMM
Memory slots2x SO-DIMM
Maximum internal memory32 GB
Maximum internal memory (64-bit)32 GB

Storage

Total storage capacity1 TB
Storage mediaSSD
Number of SSDs installed1
SSD capacity1 TB
Optical drive typeNo
Card reader integratedYes
Compatible memory cardsMMC, SD, SDHC, SDXC

Graphics

On-board graphics cardYes
Discrete graphics cardYes
Discrete graphics card modelNVIDIA® Quadro® P500
Discrete graphics card memory2 GB
Discrete graphics memory typeGDDR5
On-board graphics card familyIntel® UHD Graphics
On-board graphics card modelIntel® UHD Graphics 620
Maximum on-board graphics card memory32 GB
On-board graphics card base frequency300 MHz
On-board graphics card dynamic frequency (max)1150 MHz
On-board graphics card DirectX version12.0
On-board graphics card OpenGL version4.4
On-board graphics card ID0x5917
Number of discrete graphics cards installed1

Audio

Audio chipRealtek ALC3287
Audio systemDolby Audio Premium
Number of built-in speakers2
Speaker power2 W
Built-in microphoneYes

Camera

Front cameraYes
Front camera HD typeHD
Front camera resolution1280 x 720 pixels
Front camera signal format720p

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Antenna type2x2
Wi-Fi data rate (max)867 Mbit/s
WLAN controller modelIntel Dual Band Wireless-AC 8265
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothYes
Bluetooth version4.1

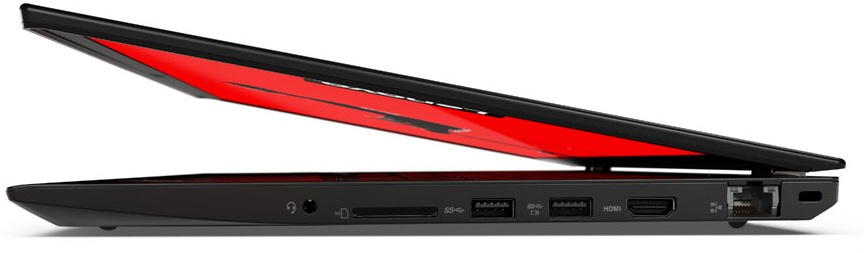

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version1.4b
DisplayPorts quantity0
Thunderbolt 3 ports quantity1
Headphone outputs1
Combo headphone/mic portYes
Microphone inNo
USB Sleep-and-ChargeYes
USB Sleep-and-Charge ports1

Performance

Motherboard chipsetIntel SoC

Keyboard

Pointing deviceThinkPad UltraNav
Numeric keypadYes
Spill-resistant keyboardYes
Windows keysYes

Software

Operating system installedNo

Processor special features

CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Enhanced Halt StateYes
Intel Flex Memory AccessYes
Intel Identity Protection Technology version1.00
Intel Secure Key Technology version1.00
Intel Smart Response Technology version1.00
Intel Software Guard Extensions (Intel SGX)Yes
Intel TSX-NINo
Intel TSX-NI version0.00
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® My WiFi Technology (Intel® MWT)Yes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Smart Response TechnologyYes
Intel® Turbo Boost Technology2.0
Processor ARK ID122589
Processor package size42 x 24 mm
Supported instruction setsAVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring TechnologiesYes
Conflict-Free processorYes

Battery

Battery technologyLithium-Ion (Li-Ion)

Power

AC adapter power65 W
AC adapter frequency50 - 60 Hz
AC adapter input voltage100 - 240 V
DC-in jackYes

Security

Cable lock slotYes
Trusted Platform Module (TPM)Yes
Password protectionYes
Password protection typeHDD, Power on, Supervisor

Certificates

Compliance certificatesRoHS
CertificationMIL-STD-810G

Sustainability

Sustainability certificatesEPEAT Gold, ENERGY STAR

Weight & dimensions

Weight1.99 kg
Width365.8 mm
Depth252.8 mm
Height (front)2 cm
Height (rear)2.02 cm

Packaging content

AC adapter includedYes
ManualYes
Power cord includedYes
