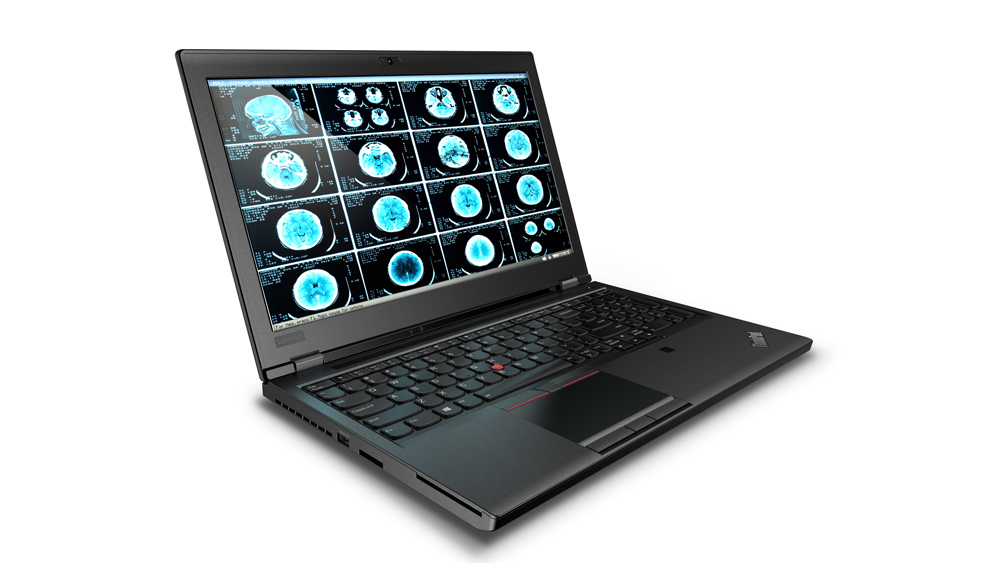

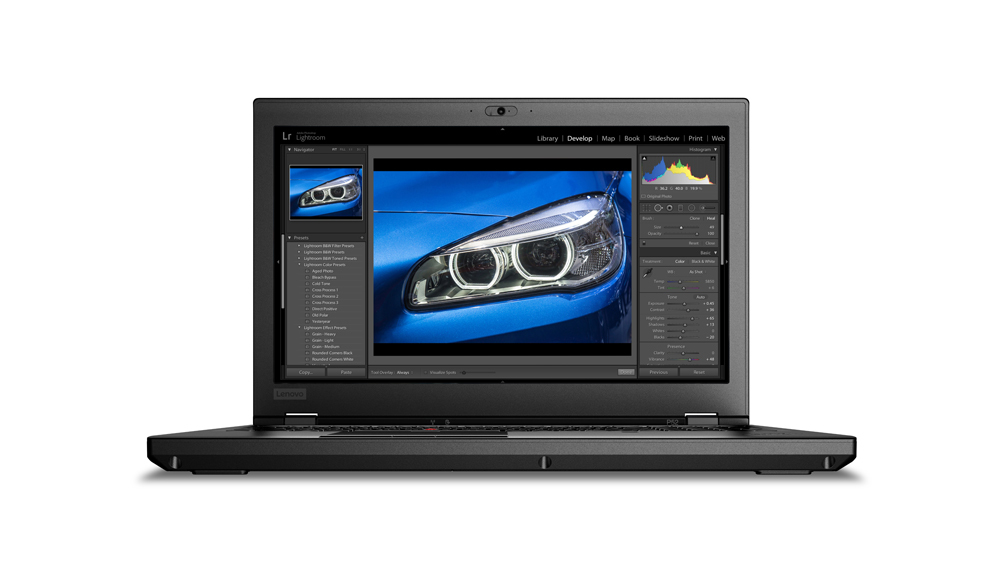

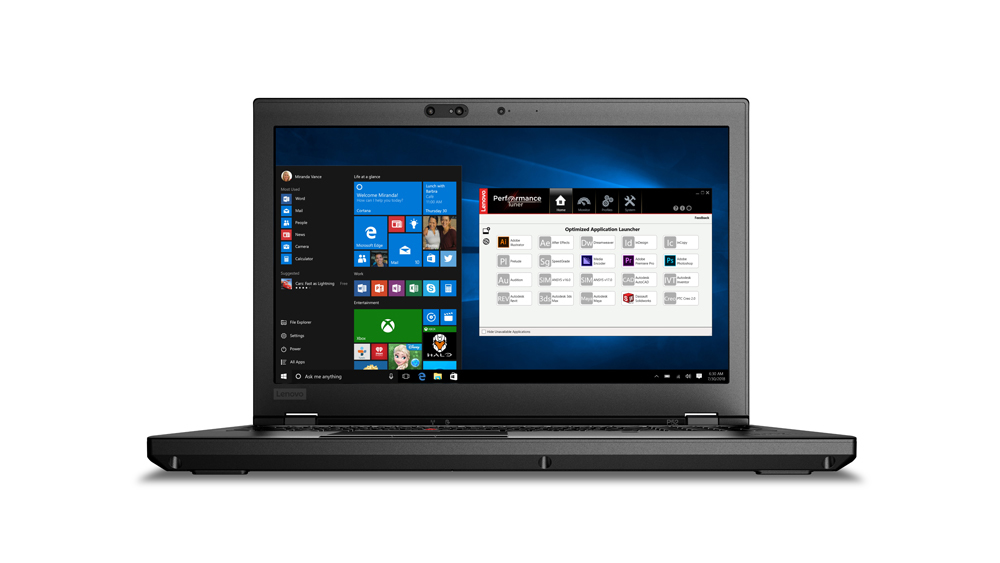

ThinkPad P52 Intel® Xeon® E-2176M Mobile workstation
39.6 cm (15.6") 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 5 (802.11ac) Black
Model P52Part no. 20MAS25R00EAN 5707271848014
151 specifications Checked today
- Display39.6 cm (15.6")
- ProcessorIntel® Xeon®
- Memory16 GB
- Storage512 GB
- Battery90 Wh
- SpeedWi-Fi 5 (802.11ac)
Overview
- Display
- 39.6 cm (15.6")
- Processor
- Intel® Xeon®
- Memory
- 16 GB
- Storage
- 512 GB
- Battery
- 90 Wh
- Speed
- Wi-Fi 5 (802.11ac)
- Brand
- Lenovo
- Category
- Laptop
- Model
- P52
- Part numbers
- 20MAS25R00, 20MAS2AP06, 20MAS27K00, 20MAS2E600, 20MAS16U00, 20MAS2LX00 +34 more
- EAN / UPC
- 5707271848014, 193268362857, 193268465084, 193124611761 +7 more
- Also known as
- Lenovo ThinkPad P52 Intel® Xeon® E-2176M Mobile workstation 39.6 cm (15.6") 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 5 (802.11ac) Black
Specifications
151 specifications in 22 groups
Design
| Specification | Value |
|---|---|
| Product type | Mobile workstation |
| Product colour | Black |
| Form factor | Clamshell |
| Housing material | Aluminium, Magnesium |
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Dual-screen | No |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | E-2176M |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4.4 GHz |
| Processor frequency | 2.7 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Bus type | DMI |
| Stepping | U0 |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Configurable TDP-down frequency | 2.2 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| PCI Express slots version | 3.0 |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory form factor | SO-DIMM |
| Memory slots | 4x SO-DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics P630 |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3286 |
| Audio system | Dolby Audio Premium |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera HD type | HD |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
Optical drive
| Specification | Value |
|---|---|
| LightScribe | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Dual Band Wireless-AC 9260 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Microphone in | No |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® CM246 |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Spill-resistant keyboard | Yes |
| Windows keys | Yes |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 134867 |
| Processor code | SR3YX |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 90 Wh |
Power
| Specification | Value |
|---|---|
| AC adapter power | 170 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD, Power on, Supervisor |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | MIL-STD-810G |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 377.4 mm |
| Depth | 252.3 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Power cord included | Yes |
| Warranty card | Yes |
Other features
| Specification | Value |
|---|---|
| 3D | No |
