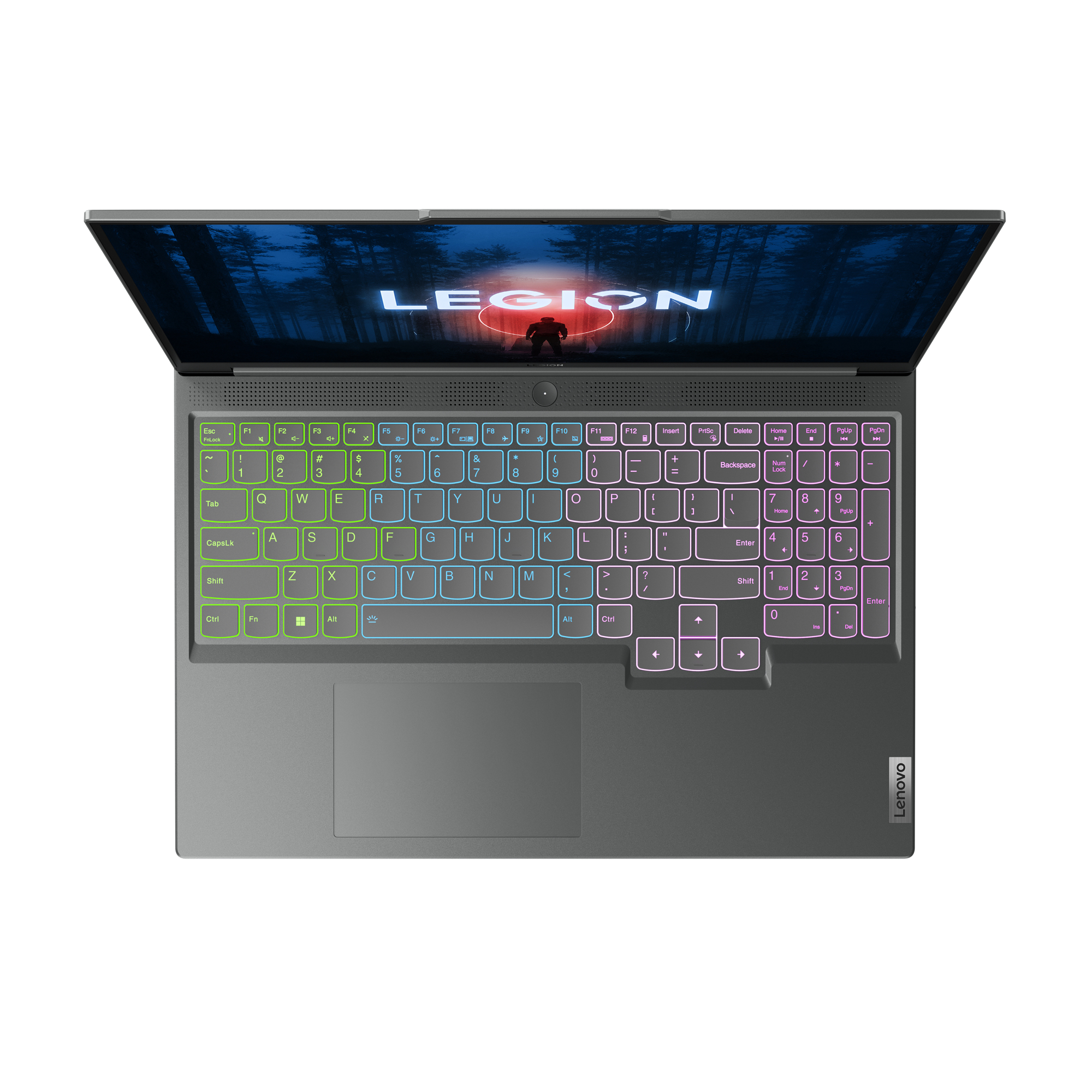

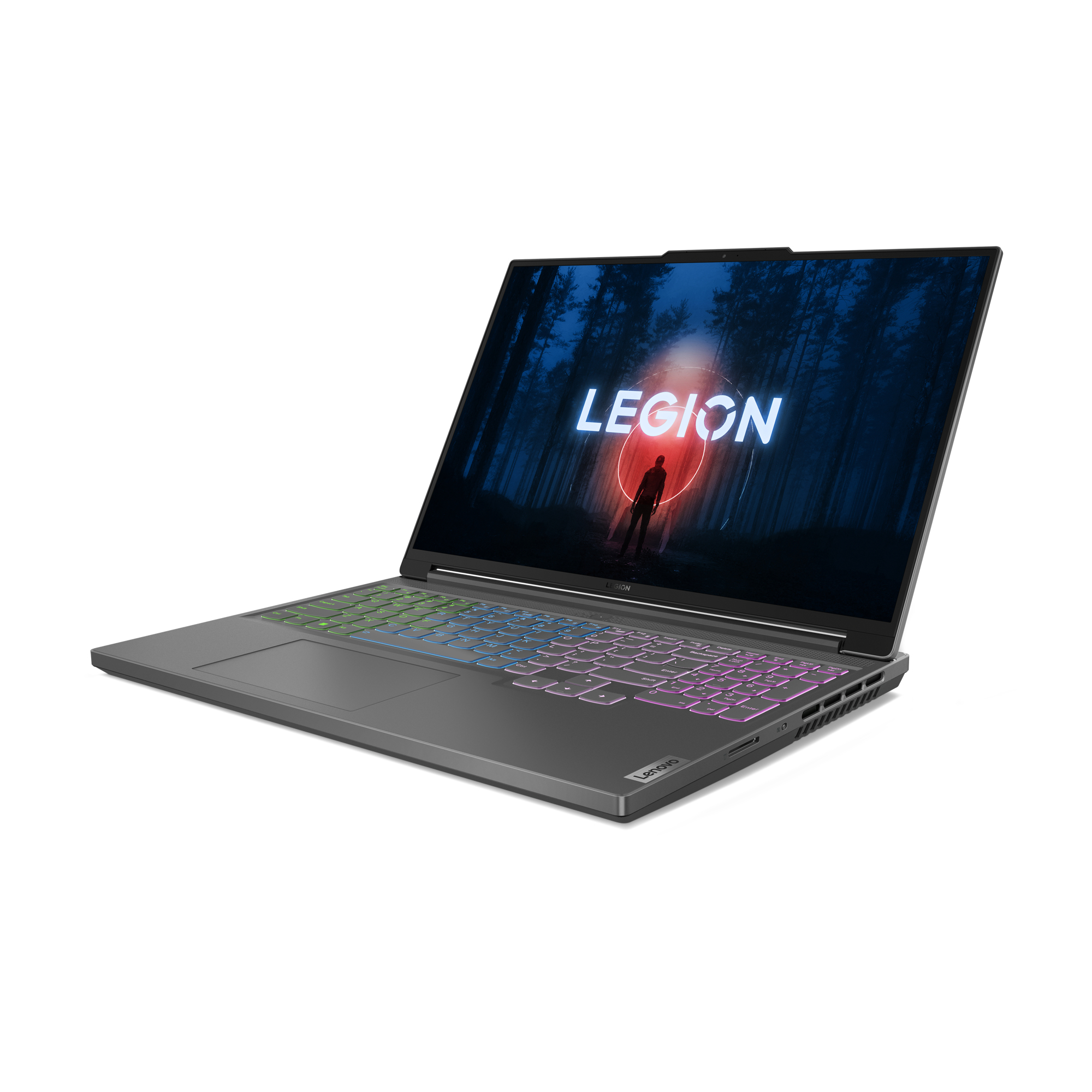

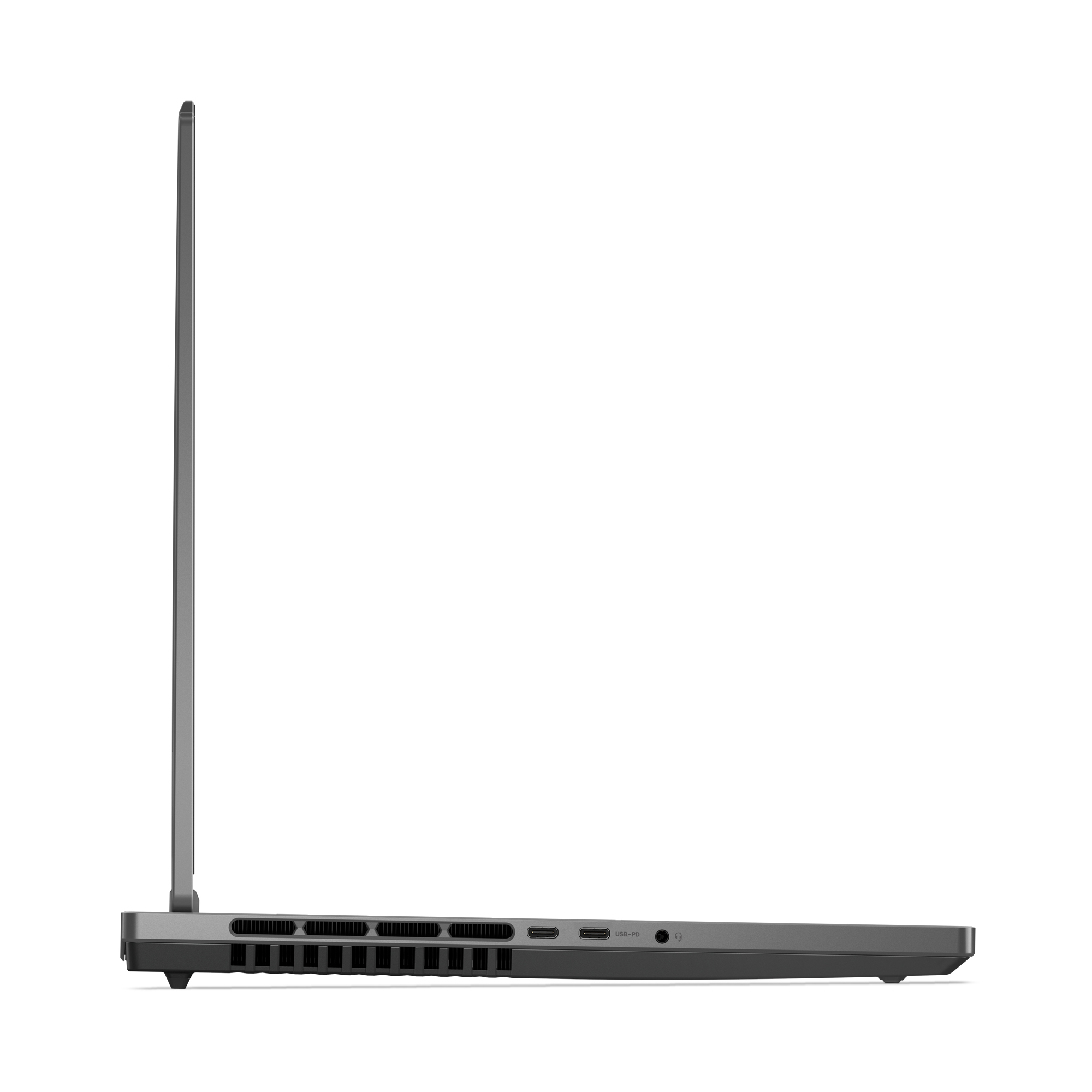

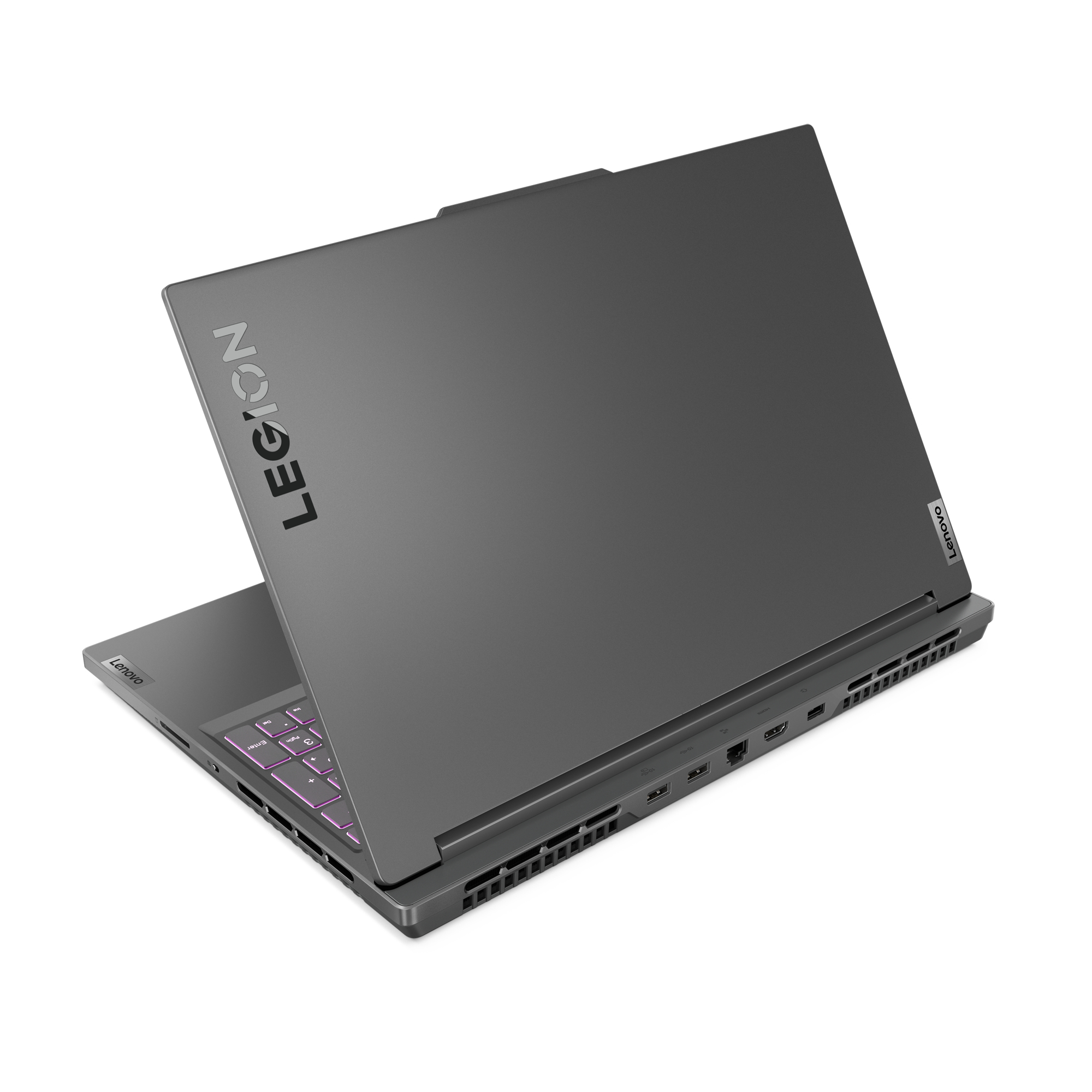

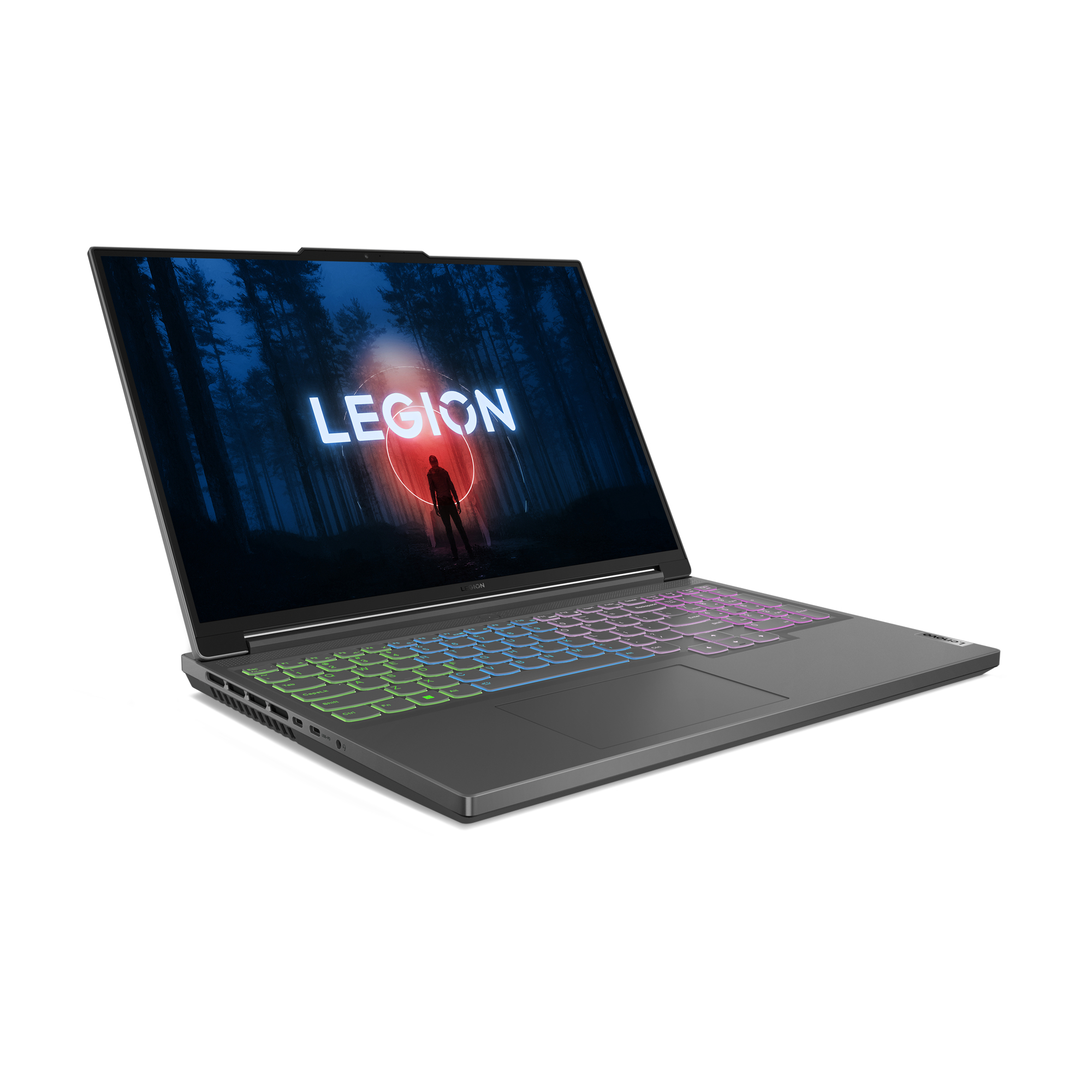

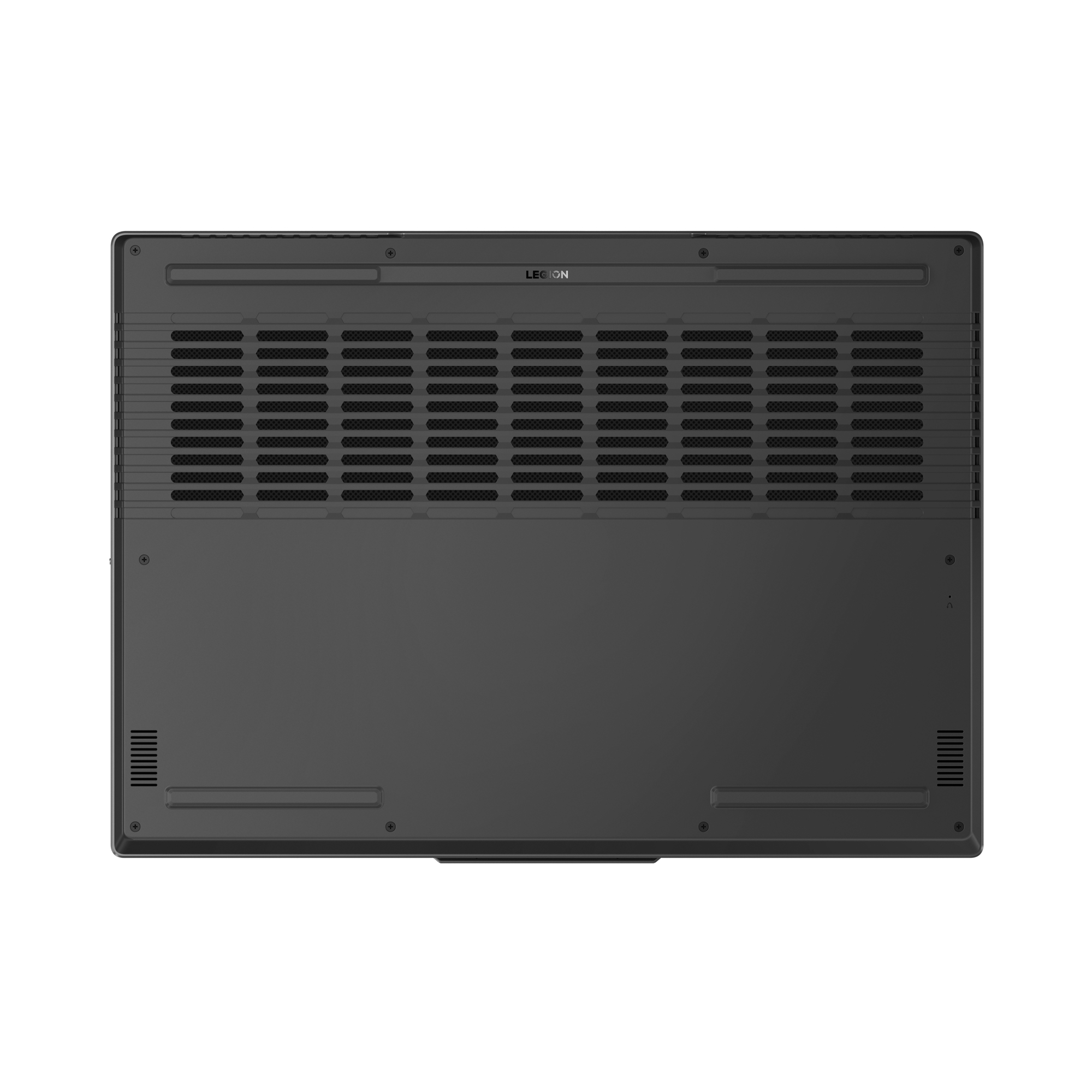

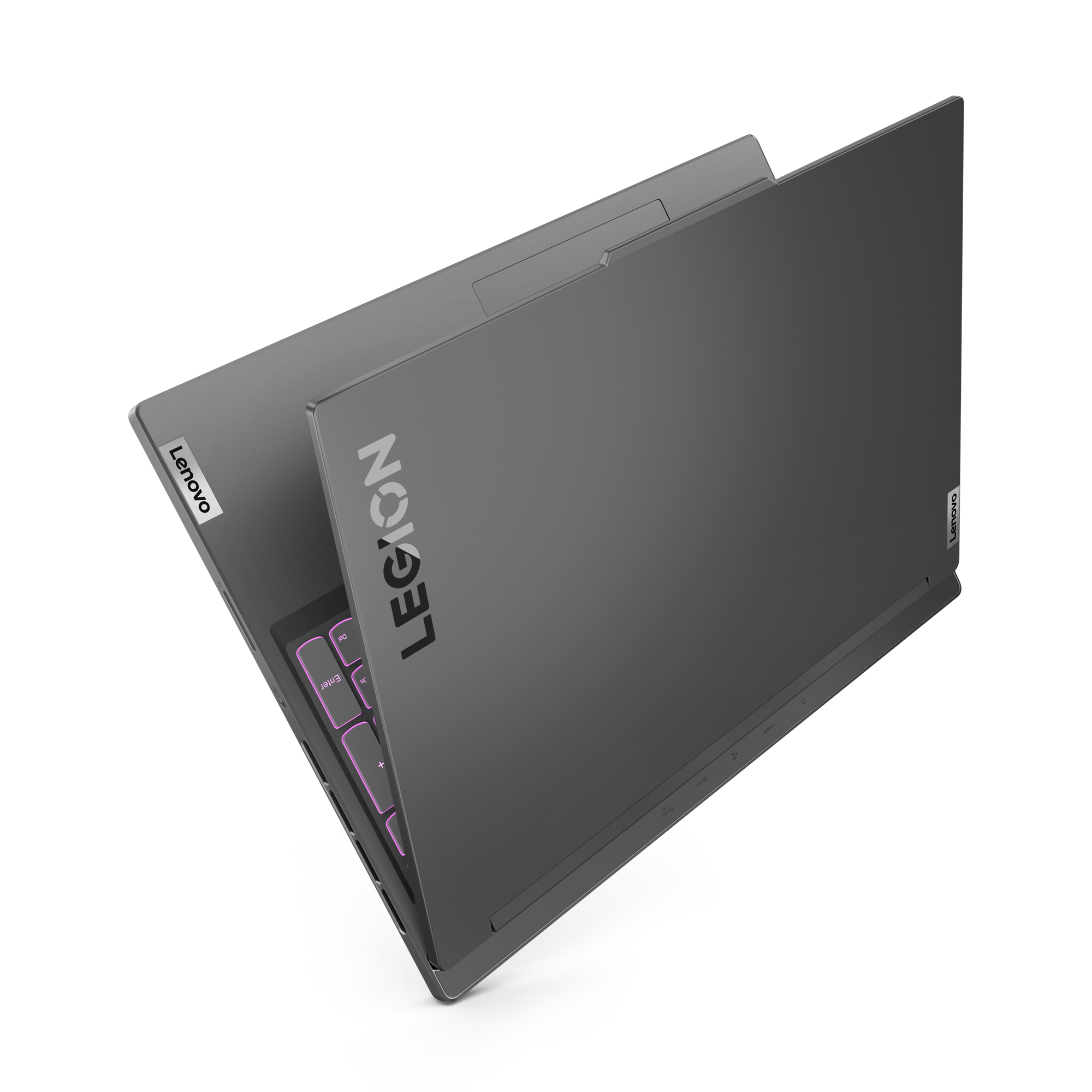

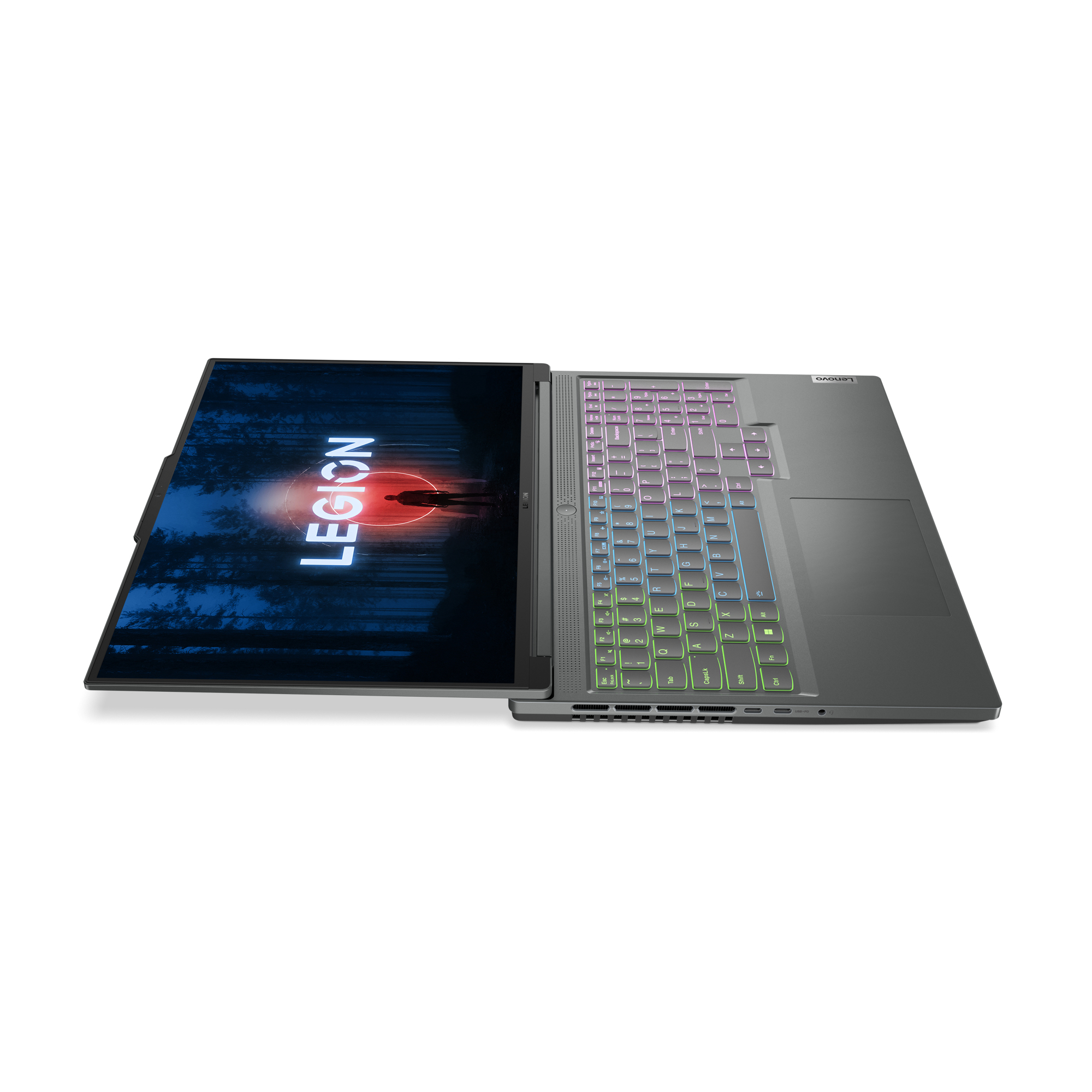

Lenovo Legion Slim 5 16APH8

Legion Slim 5 16APH8

Model Legion Slim 5 16APH8Part no. 82Y9007MUKEAN 197528320496

104 specifications Checked today

Display40.6 cm (16")
Resolution2560 x 1600 pixels
ProcessorAMD Ryzen™ 7
Memory16 GB
Storage512 GB
GraphicsNVIDIA GeForce RTX 4060

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2560 x 1600 pixels
Processor: AMD Ryzen™ 7
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA GeForce RTX 4060

Brand: Lenovo
Category: Laptop
Model: Legion Slim 5 16APH8
Part numbers: 82Y9007MUK, 82Y90006TA, 82Y90019SB, 82Y90042IN, 82Y9009JIN, 82Y9004AUK +34 more
EAN / UPC: 197528320496, 196803823660, 196804069685, 197529593226 +56 more
Also known as: Lenovo Legion Slim 5 16APH8 AMD Ryzen™ 7 7840HS Laptop 40.6 cm (16") WQXGA 16 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 4060 Wi-Fi 6E (802.11ax) Windows 11 Ho

Specifications

104 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Colour name	Storm Grey
Form factor	Clamshell
Display back cover material	Aluminium
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	500 cd/m²
Colour gamut	100%
RGB colour space	sRGB
Maximum refresh rate	240 Hz
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Dolby Vision, DisplayHDR 400

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7
Processor model	7840HS
Processor cores	8
Processor threads	16
Processor boost frequency	5.1 GHz
Processor frequency	3.8 GHz

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 4060
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6

Audio

Specification	Value
Audio chip	Realtek ALC3287
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3
WWAN	Not installed

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes

Performance

Specification	Value
Motherboard chipset	AMD SoC

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB
Keyboard backlit zone	4-zone RGB

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system language	English
Trial software	Office

Battery

Specification	Value
Battery capacity	80 Wh

Power

Specification	Value
AC adapter power	230 W
USB Type-C charging port	Yes
USB Type-C required charging power (max)	140 W
USB Type-C required charging power (min)	140 W
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	No
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Certificates

Specification	Value
Certification	RoHS

Weight & dimensions

Specification	Value
Weight	2.4 kg
Width	359.7 mm
Depth	260.3 mm
Height (front)	1.99 cm
Height (rear)	2.52 cm

Packaging content

Specification	Value
Mouse included	Yes
AC adapter included	Yes
