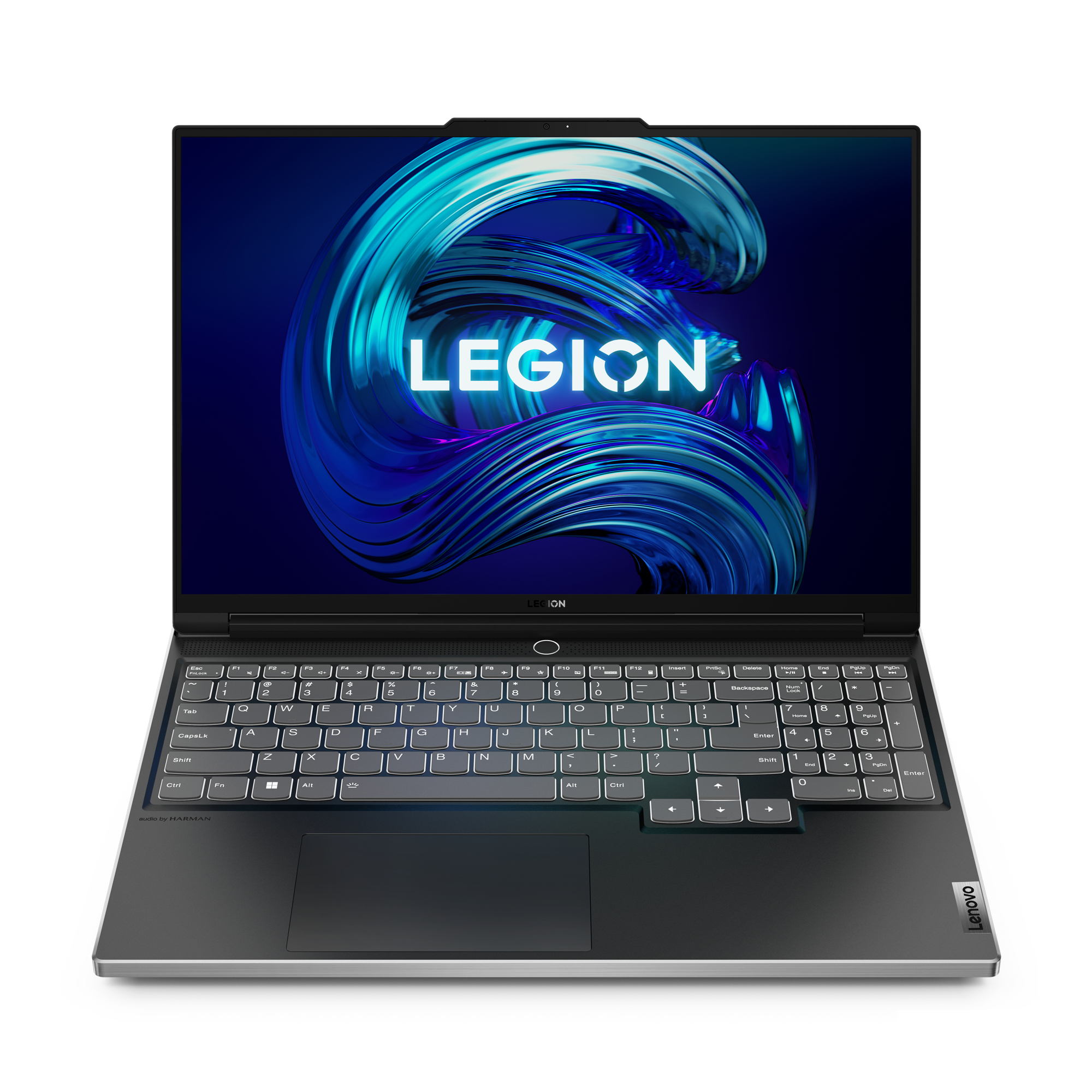

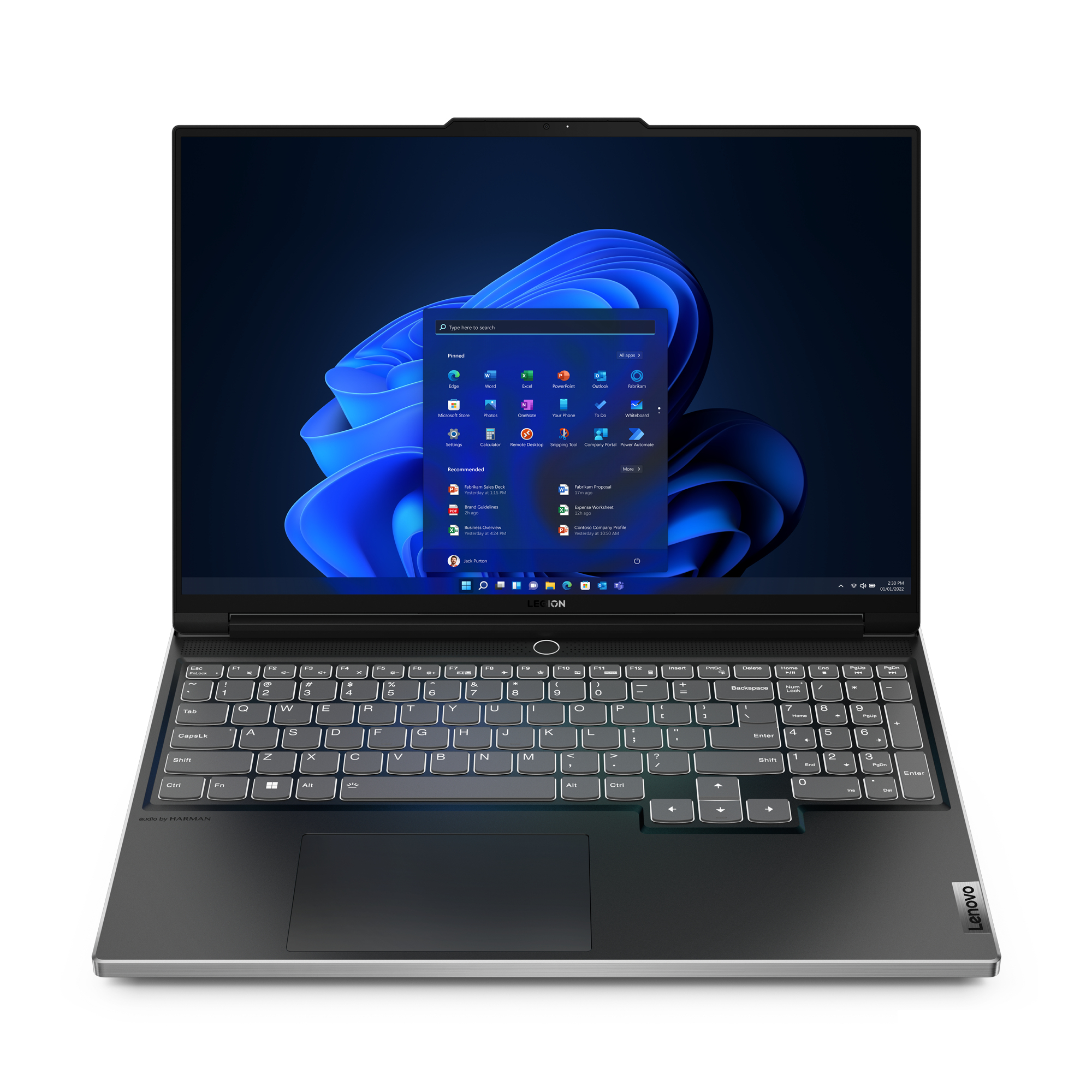

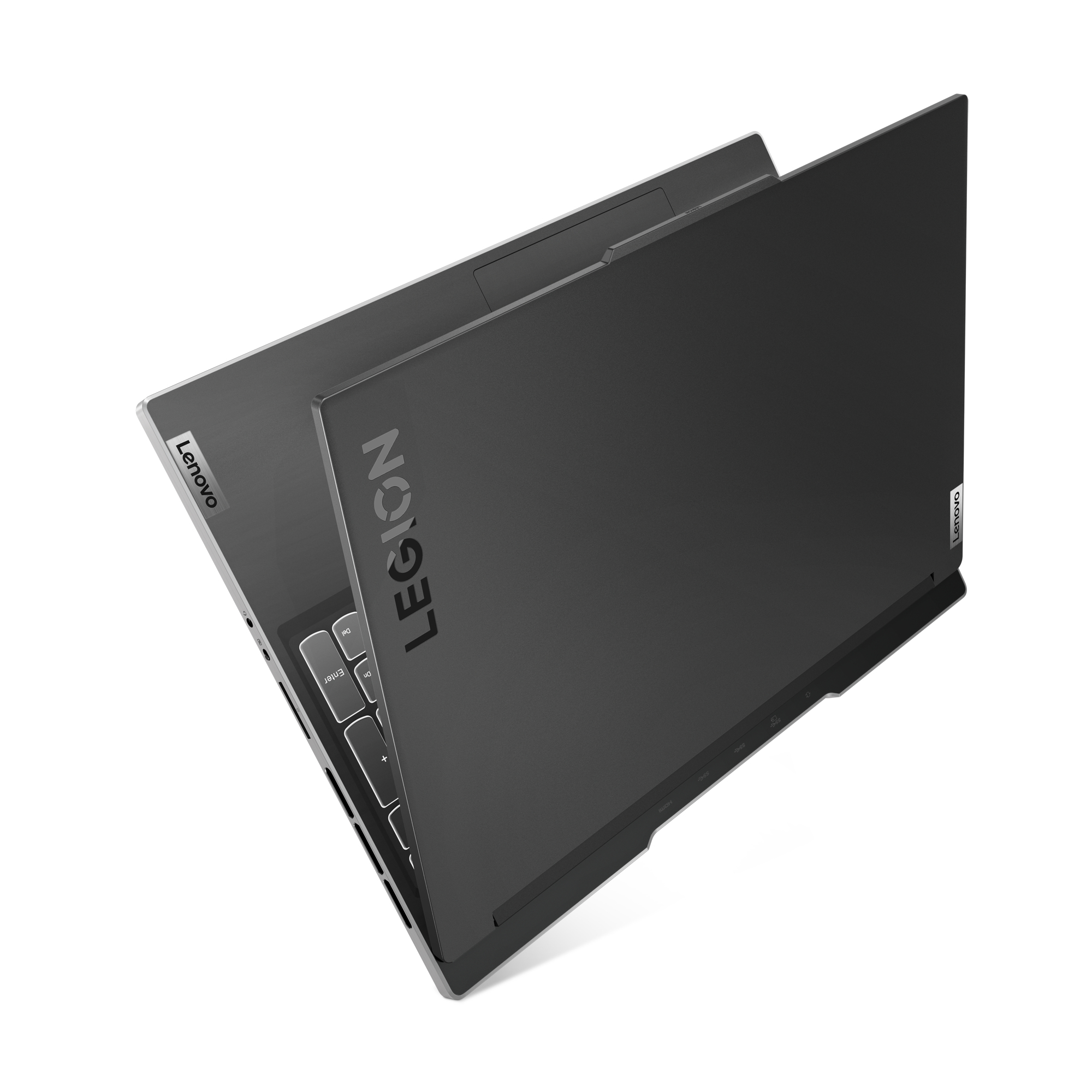

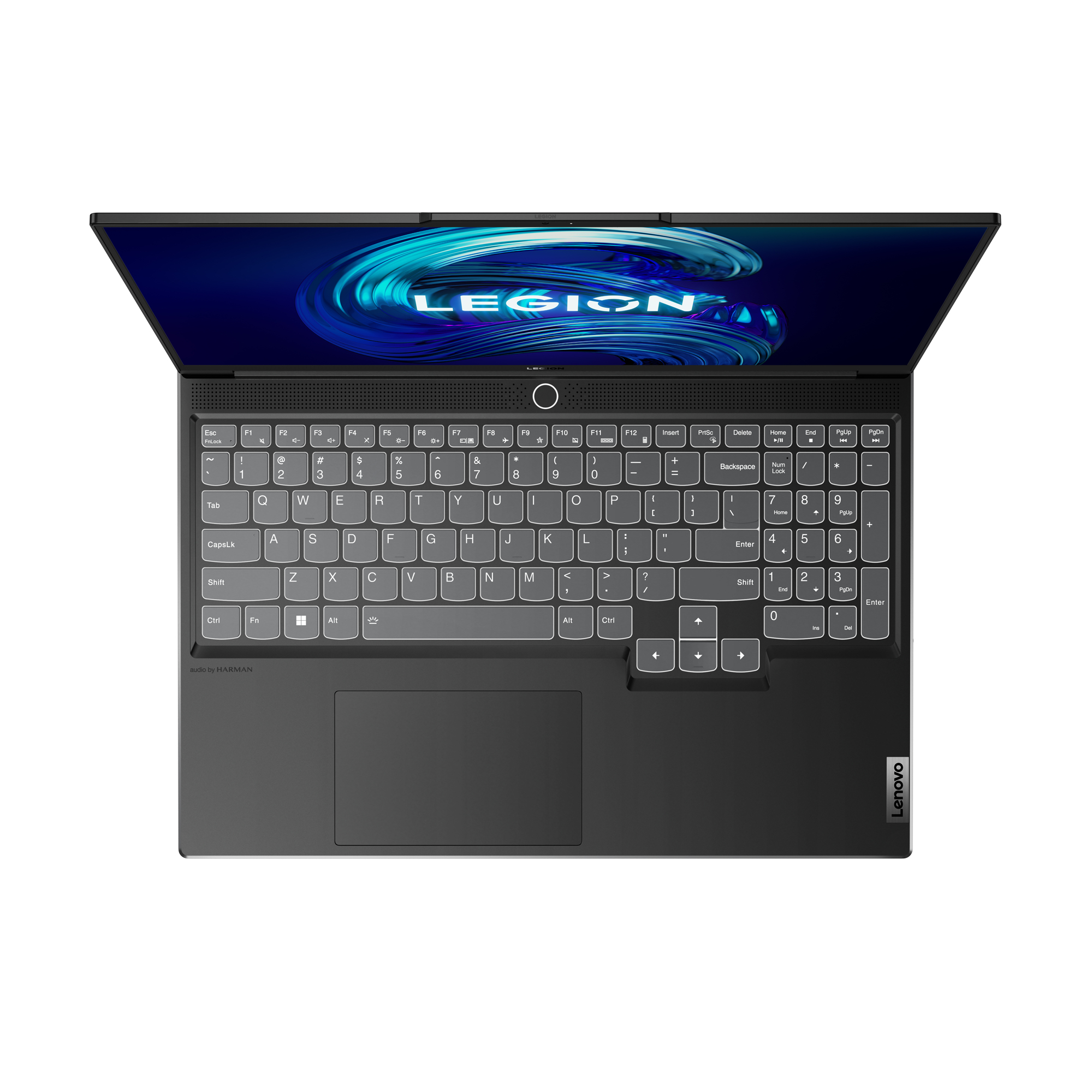

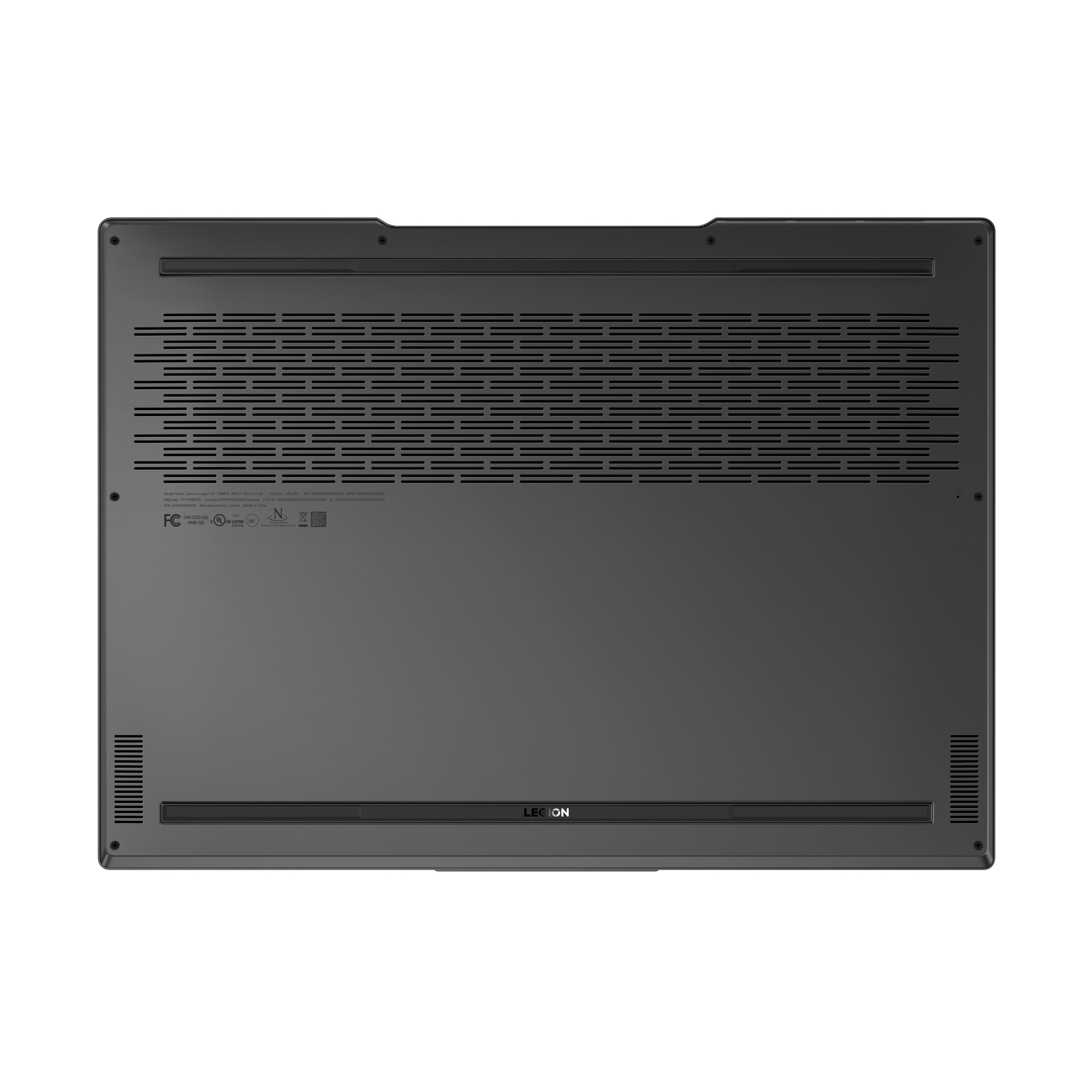

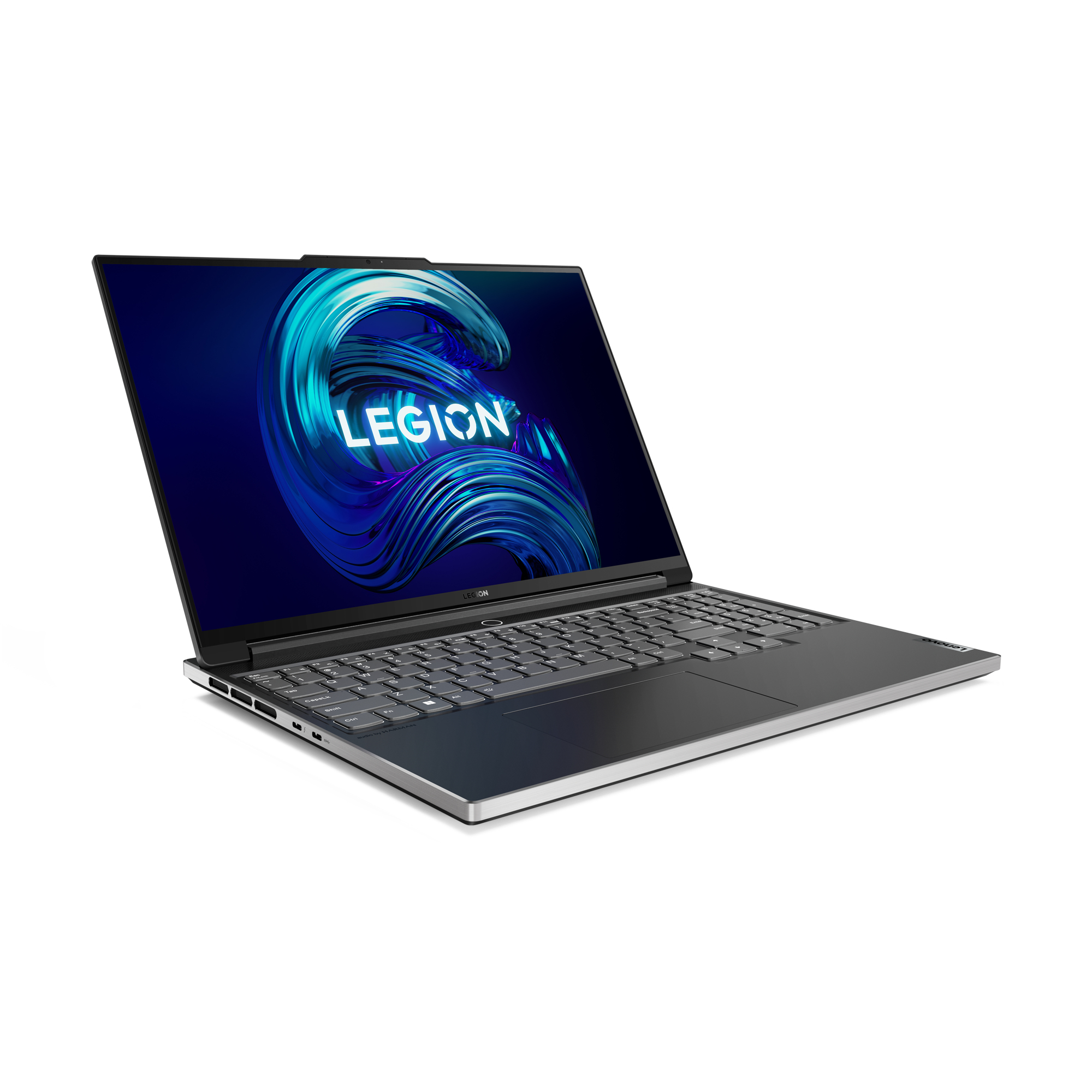

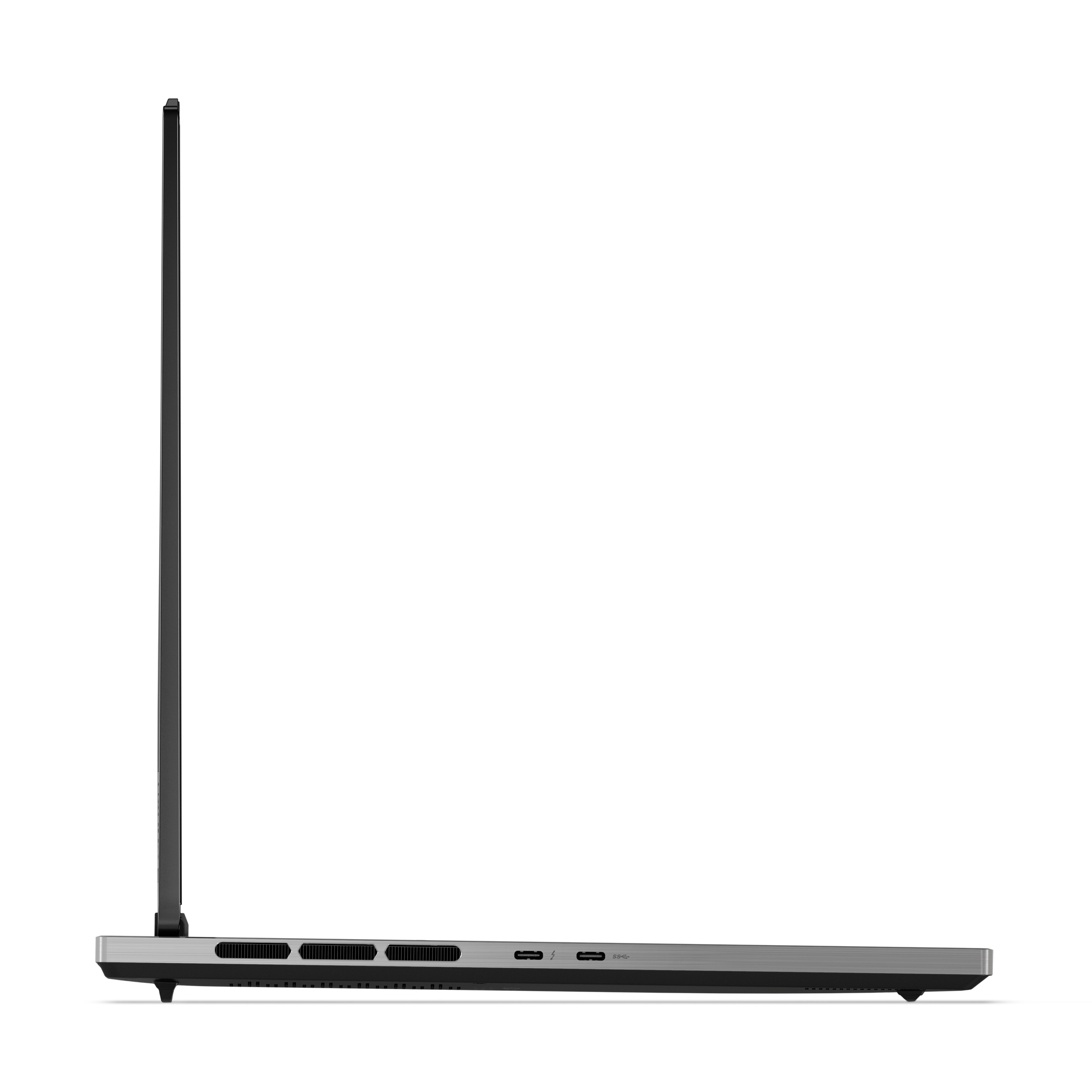

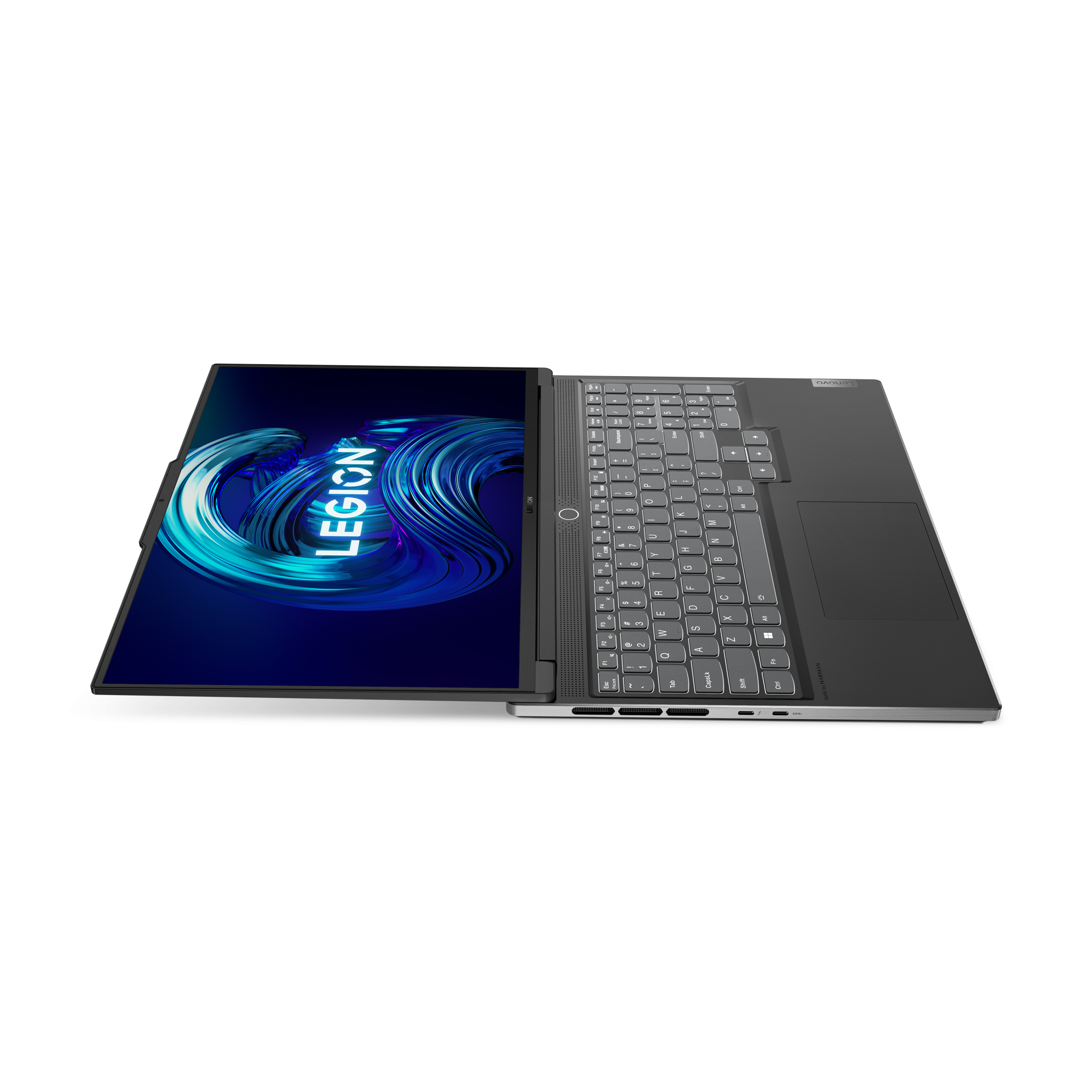

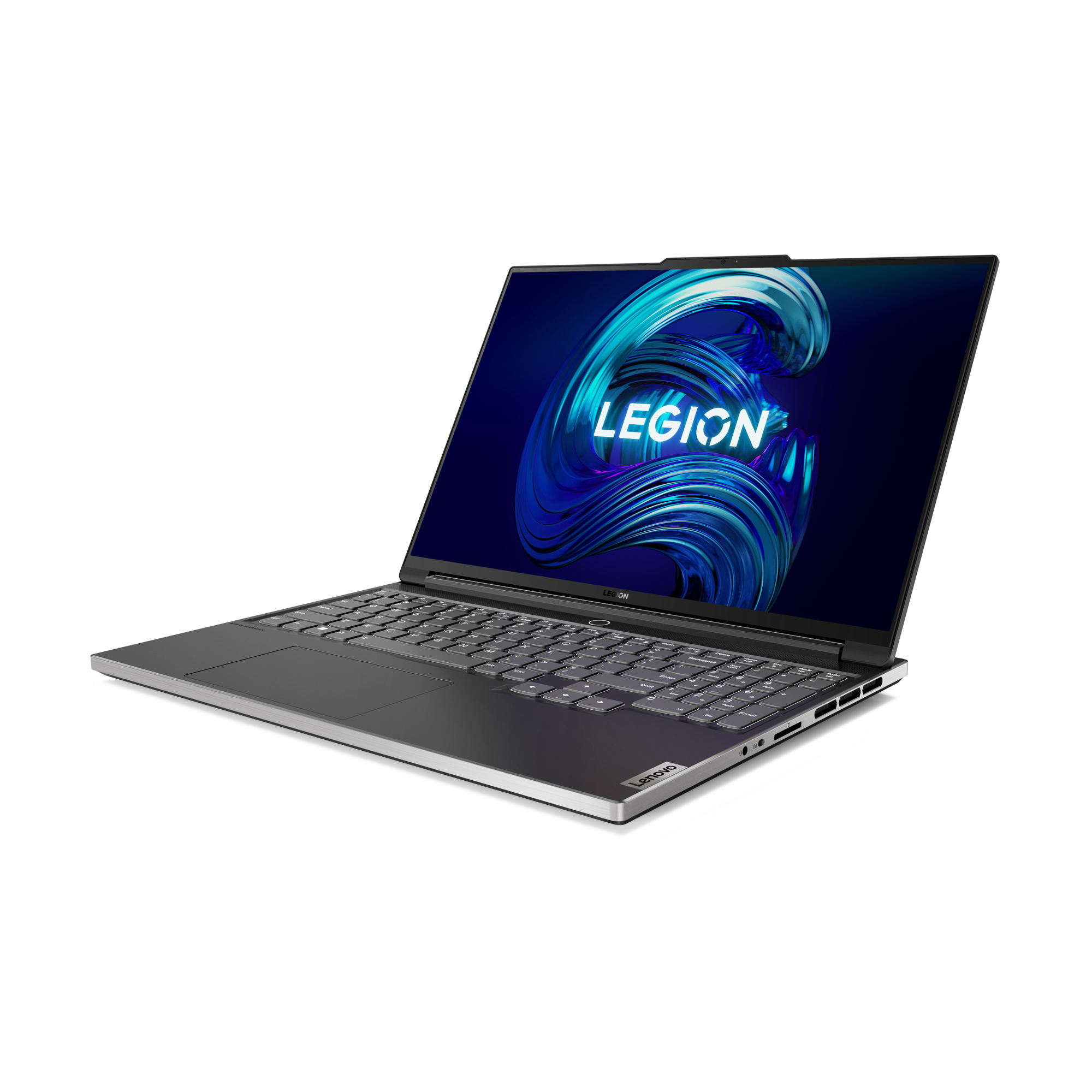

Lenovo Legion S7 16IAH7

Legion S7 16IAH7

Model Legion S7 16IAH7Part no. 82TF003YPBEAN 196800267245

124 specifications Checked today

Display40.6 cm (16")
Resolution2560 x 1600 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 3070

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2560 x 1600 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 3070

Brand: Lenovo
Category: Laptop
Model: Legion S7 16IAH7
Part numbers: 82TF003YPB, 82TF0010GE, 82TF0014SB, 82TF007CGJ, 82TF0011GE, 82TF0017UK +34 more
EAN / UPC: 196800267245, 196379700518, 196379733370, 196801915961 +47 more
Also known as: Lenovo Legion S7 16IAH7 Intel® Core™ i7 i7-12700H Laptop 40.6 cm (16") WQXGA 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 3070 Wi-Fi 6E (802.11ax) Windows 11 Ho

Specifications

124 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Colour name	Onyx Grey
Form factor	Clamshell
Housing material	Aluminium

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	500 cd/m²
Colour gamut	100%
RGB colour space	sRGB
Contrast ratio (typical)	1200:1
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Dolby Vision

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	12th gen Intel® Core™ i7
Processor model	i7-12700H
Processor cores	14
Processor boost frequency	4.7 GHz
Performance cores	6
Efficient cores	8
Performance-core Max Turbo Frequency	4.7 GHz
Efficient-core Max Turbo Frequency	3.5 GHz
Processor cache	24 MB
Processor cache type	Smart Cache
Maximum turbo power	115 W
Processor base power	45 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory form factor	On-board + SO-DIMM
Memory slots	1x SO-DIMM
Maximum internal memory	24 GB
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD memory type	TLC
NVMe	Yes
SSD interface	PCI Express 4.0
M.2 SSD size	2280 (22 x 80 mm)
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 3070
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card model	Intel Iris Xe Graphics
NVIDIA G-SYNC	Yes

Audio

Specification	Value
Audio chip	Realtek ALC3306
Audio system	Nahimic Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Killer
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.1
WWAN	Not installed

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Motherboard chipset	Intel SoC

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	99.99 Wh
Battery life (max)	8.6 h
Continuous video playback time (max)	11.3 h
Fast charging	Yes

Power

Specification	Value
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	HDD, Power on, Supervisor

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m

Certificates

Specification	Value
Certification	ErP Lot 3 RoHS compliant TÜV Rheinland® Low Blue Light (Hardware Solution)

Weight & dimensions

Specification	Value
Weight	2.23 kg
Width	357.7 mm
Depth	260 mm
Height	16.9 mm

Packaging content

Specification	Value
AC adapter included	Yes
