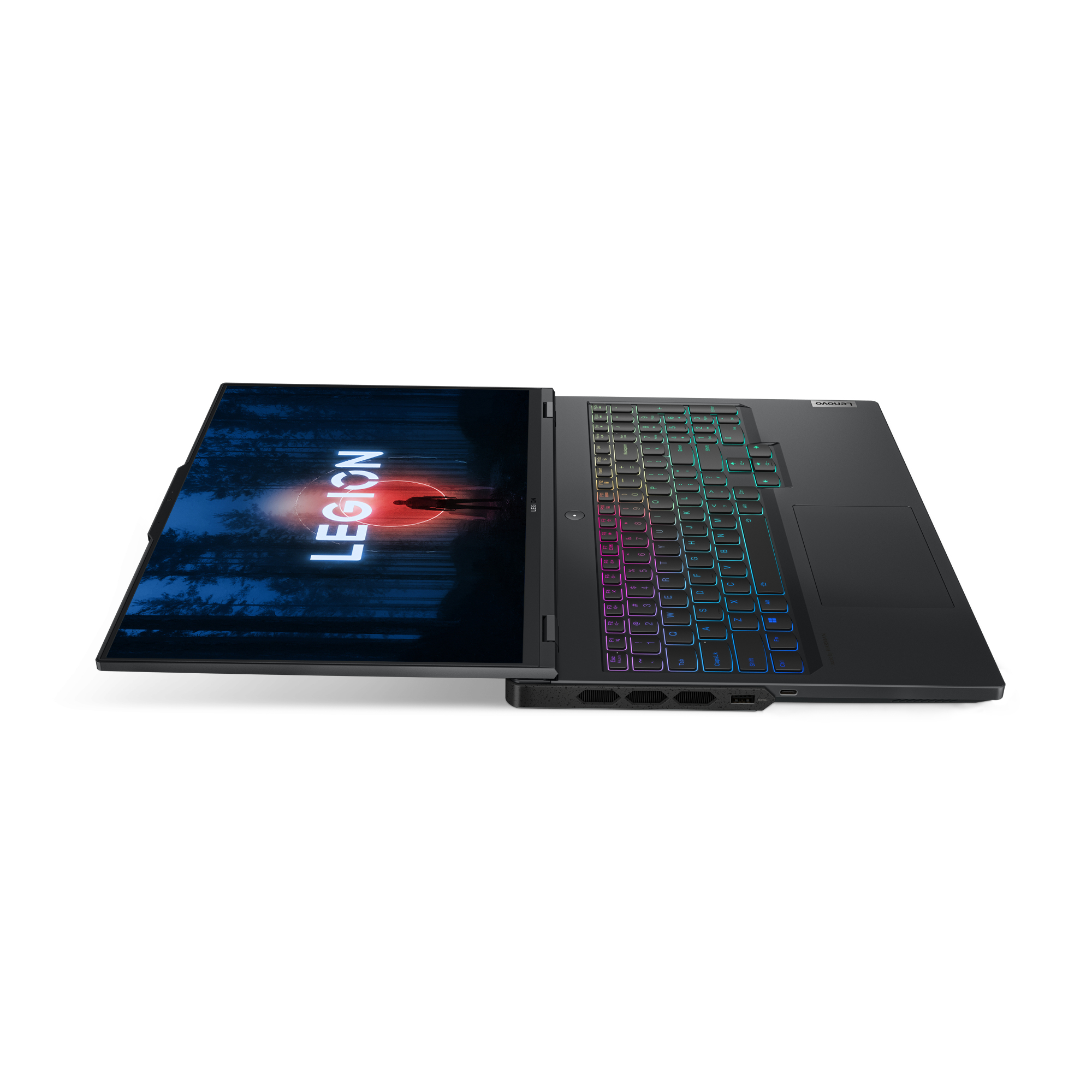

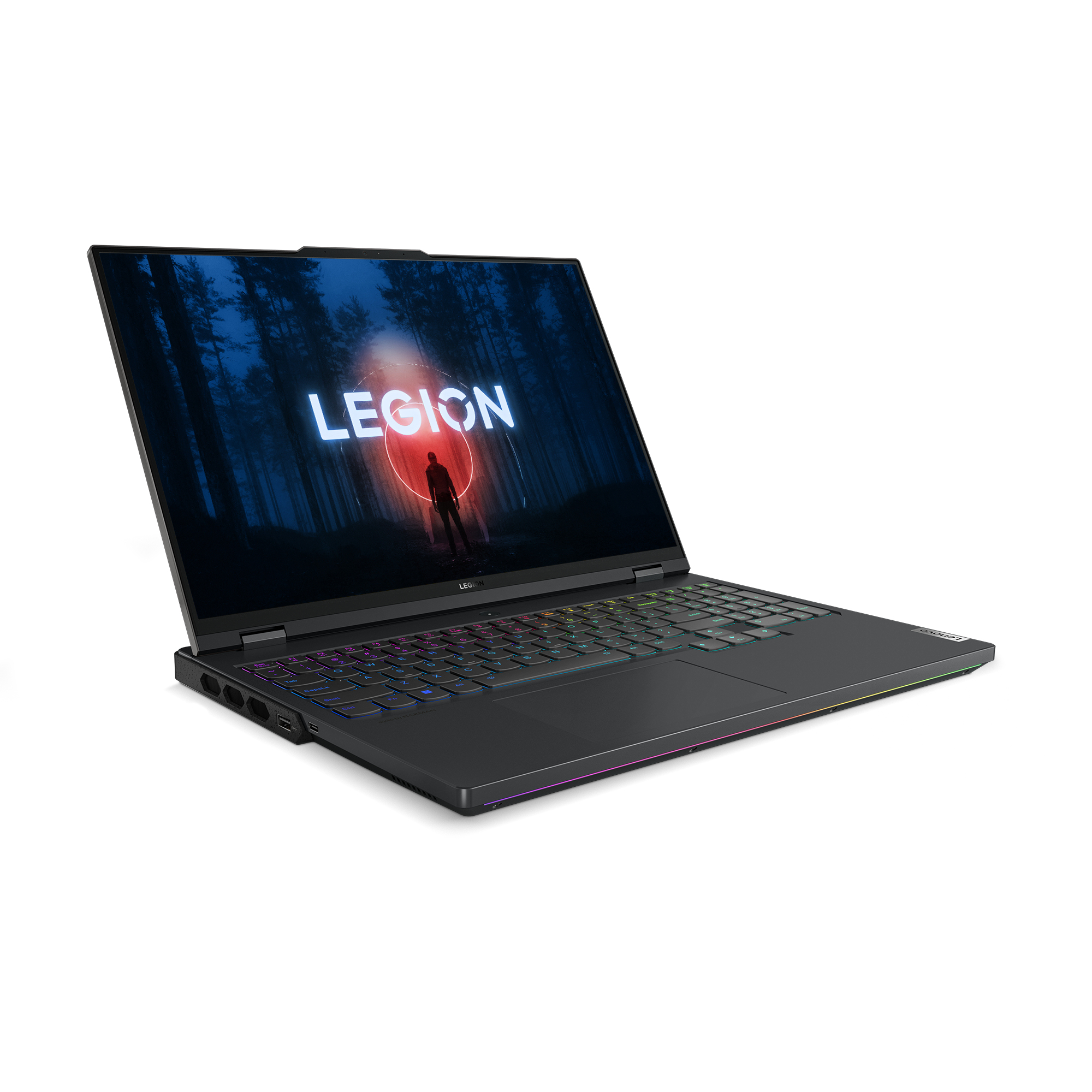

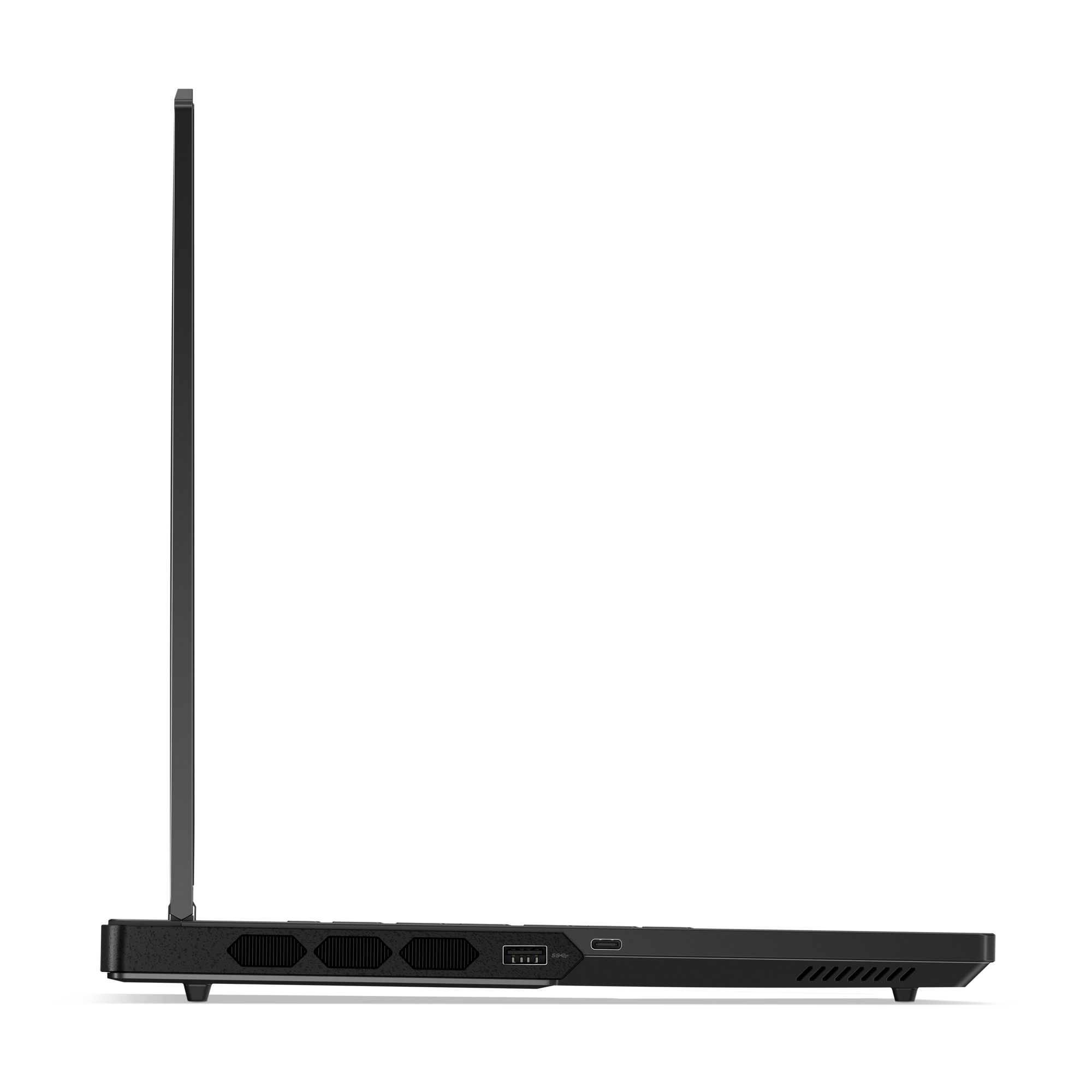

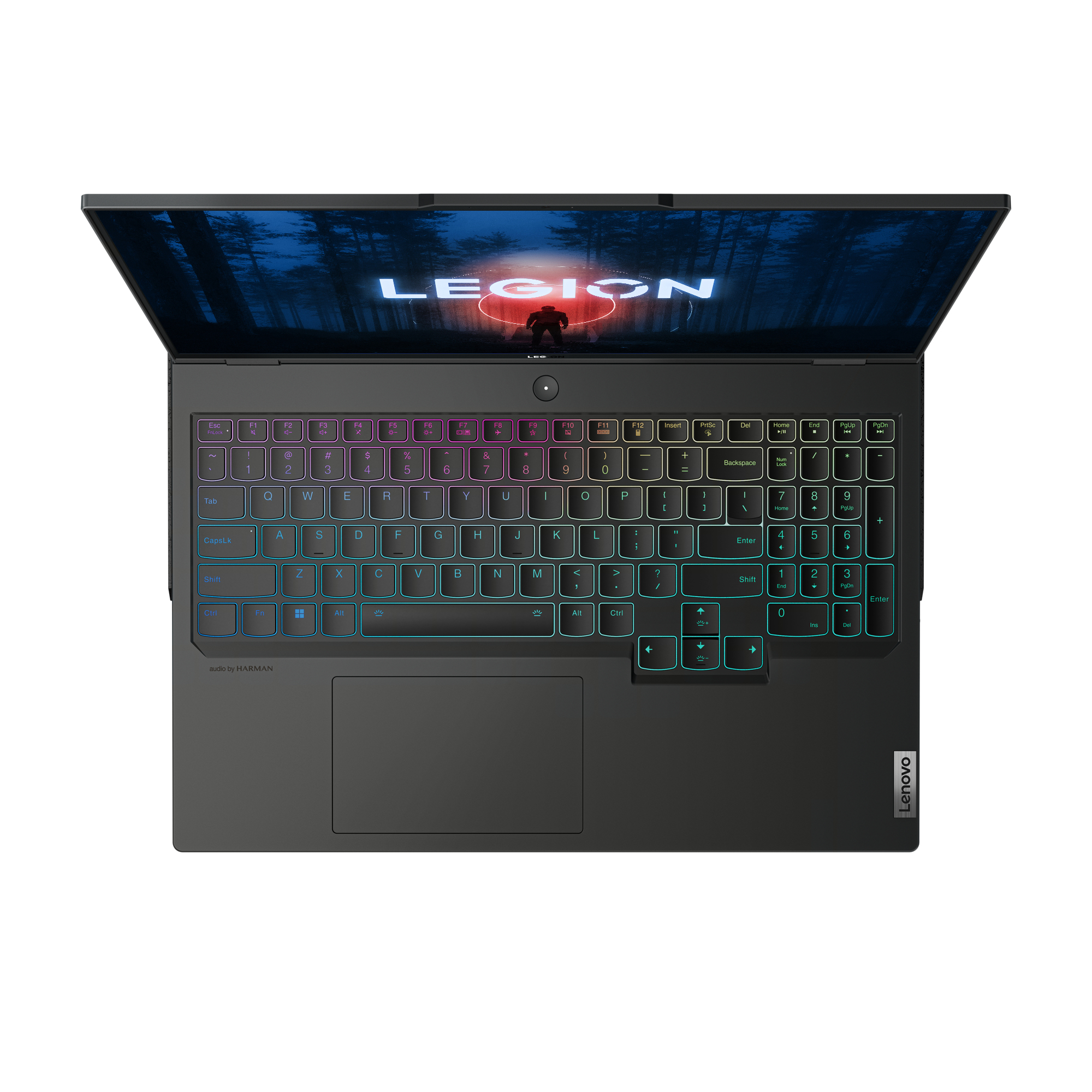

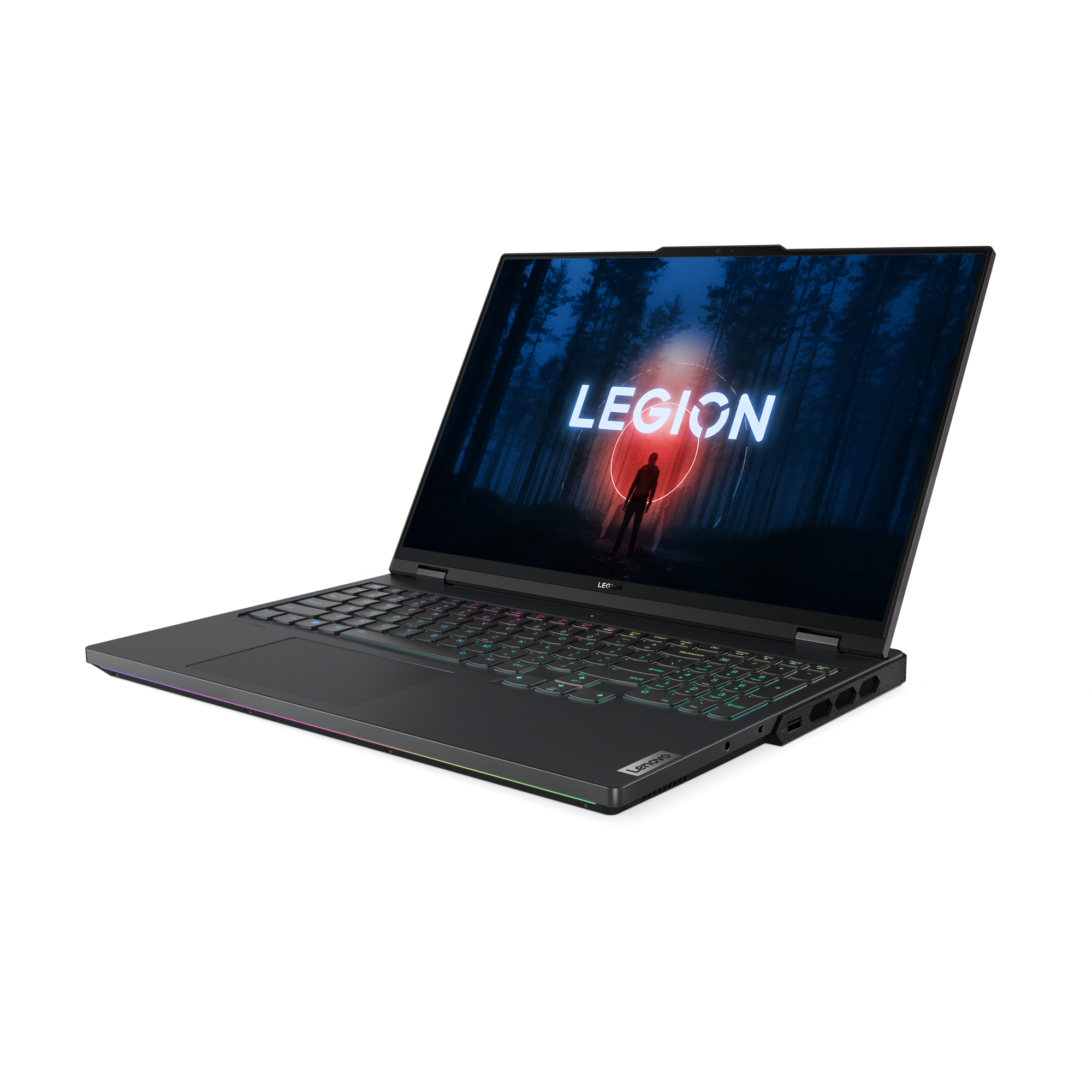

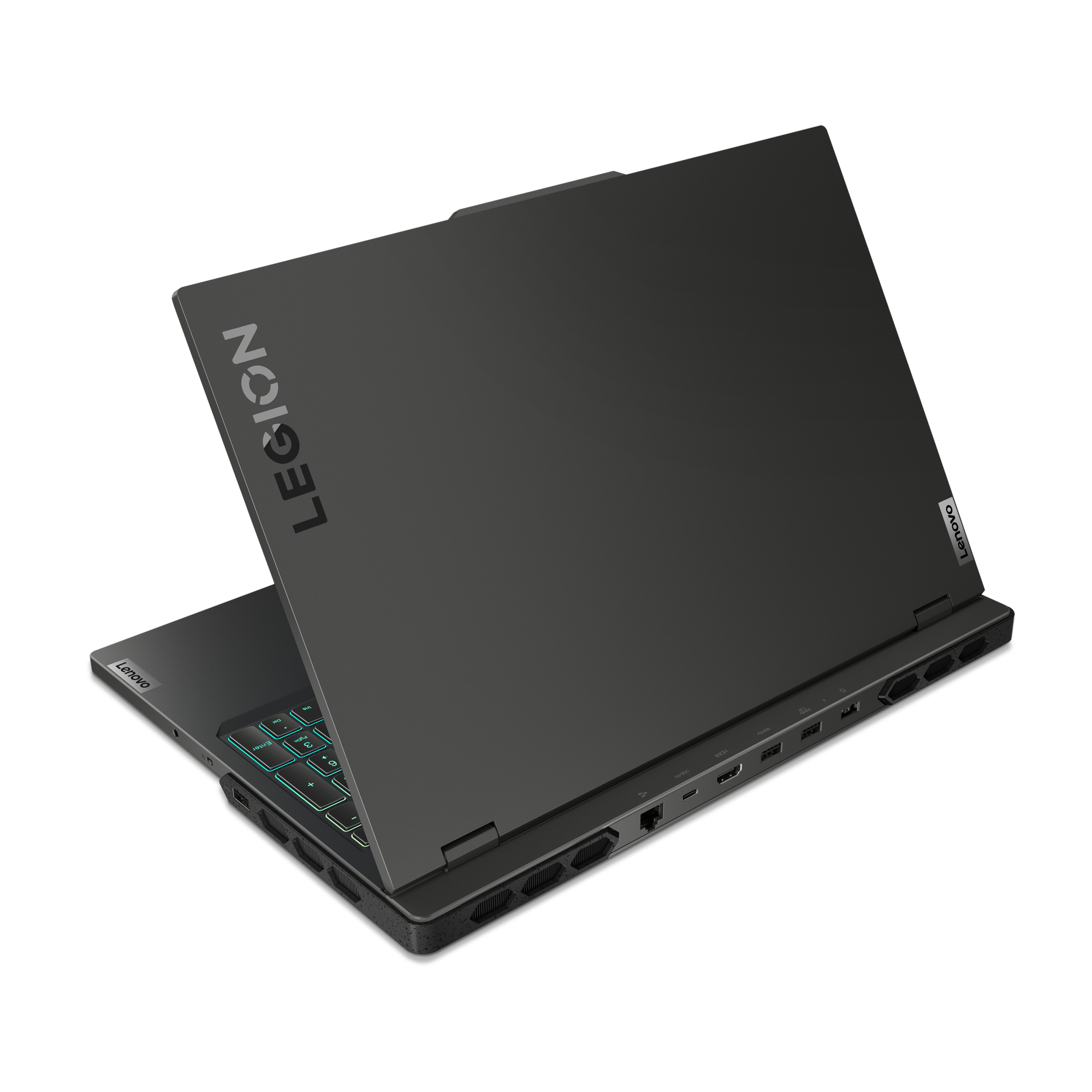

Lenovo Legion Pro 7 16ARX8H

Legion Pro 7 16ARX8H

Model Legion Pro 7 16ARX8HPart no. 82WS002KGEEAN 197532853621

115 specifications Checked today

Display40.6 cm (16")
Resolution2560 x 1600 pixels
ProcessorAMD Ryzen™ 9
Memory32 GB
Storage2 TB
GraphicsNVIDIA GeForce RTX 4080

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2560 x 1600 pixels
Processor: AMD Ryzen™ 9
Memory: 32 GB
Storage: 2 TB
Graphics: NVIDIA GeForce RTX 4080

Brand: Lenovo
Category: Laptop
Model: Legion Pro 7 16ARX8H
Part numbers: 82WS002KGE, 82WS0014FR, 82WS000PMH, 82WS000RMB, 82WS000NMH, 82WS000QMB +34 more
EAN / UPC: 197532853621, 197529467091, 197529029329, 197529029336 +44 more
Also known as: Lenovo Legion Pro 7 16ARX8H AMD Ryzen™ 9 7945HX Laptop 40.6 cm (16") WQXGA 32 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 4080 Wi-Fi 6E (802.11ax) Windows 11 Home

Specifications

115 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Colour name	Onyx Grey
Form factor	Clamshell
Housing material	Aluminium

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	500 cd/m²
Colour gamut	100%
RGB colour space	sRGB
Maximum refresh rate	240 Hz
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Dolby Vision, DisplayHDR 400

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 9
Processor generation	AMD Ryzen 7000 Series
Processor model	7945HX
Processor cores	16
Processor threads	32
Processor boost frequency	5.4 GHz
Processor frequency	2.5 GHz
Processor cache	64 MB
Processor cache type	L3
Processor base power	55 W

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5200 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	2 TB
Storage media	SSD
Total SSDs capacity	2 TB
Number of SSDs installed	2
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 4080
Discrete graphics card memory	12 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	AMD
On-board graphics card family	AMD Radeon
On-board graphics card model	AMD Radeon 610M

Audio

Specification	Value
Audio chip	Realtek ALC3306
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2
WWAN	Not installed

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes

Performance

Specification	Value
Motherboard chipset	AMD SoC

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB
Keyboard backlit zone	Per-key RGB
Keyboard language	French

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Operating system language	French
Trial software	Office

Battery

Specification	Value
Battery capacity	99.9 Wh

Power

Specification	Value
AC adapter power	330 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	No
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%

Certificates

Specification	Value
Certification	RoHS

Weight & dimensions

Specification	Value
Weight	2.8 kg
Width	363.4 mm
Depth	263.6 mm

Packaging content

Specification	Value
AC adapter included	Yes
Packaging content	4 Switchable Keycaps and Easy Tool
