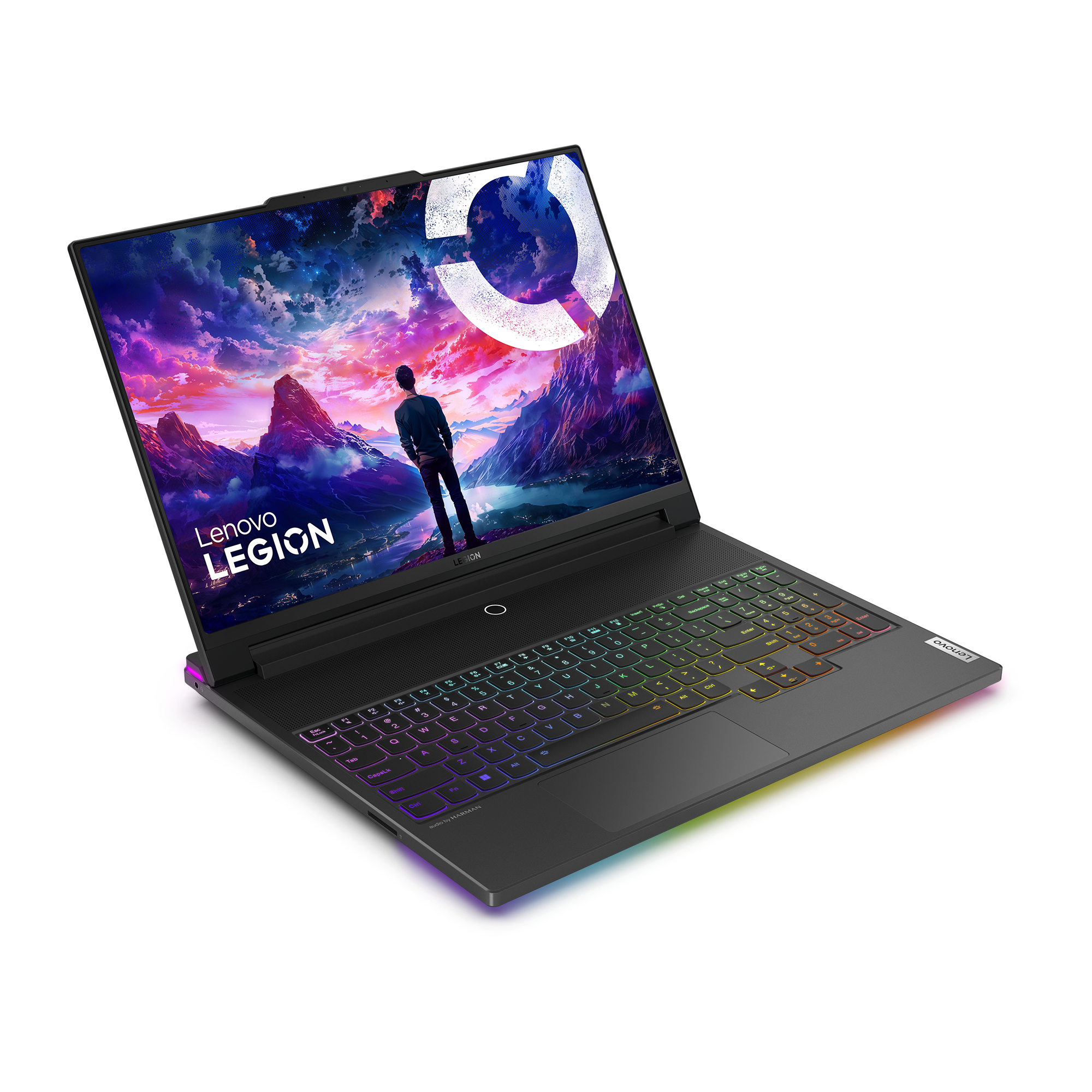

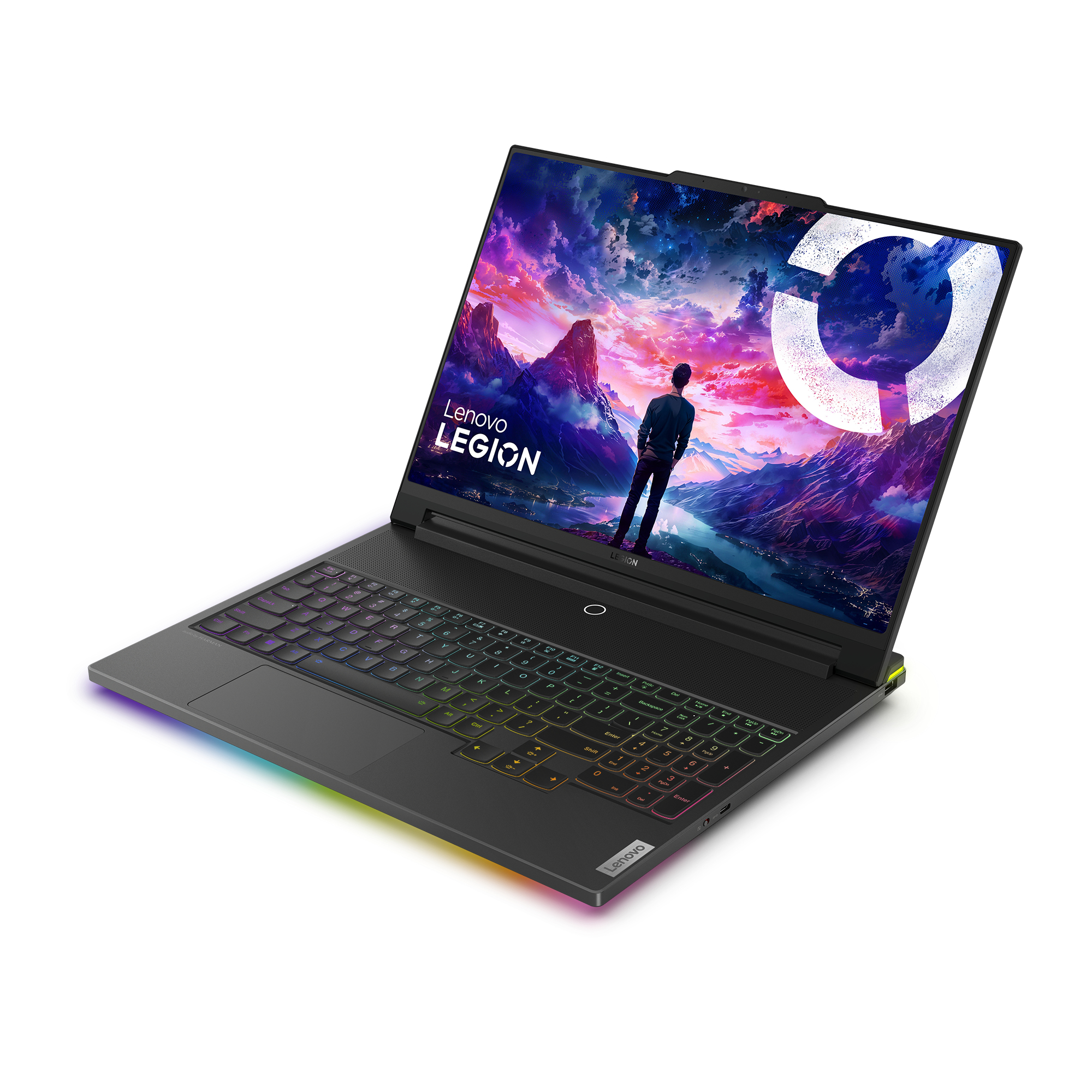

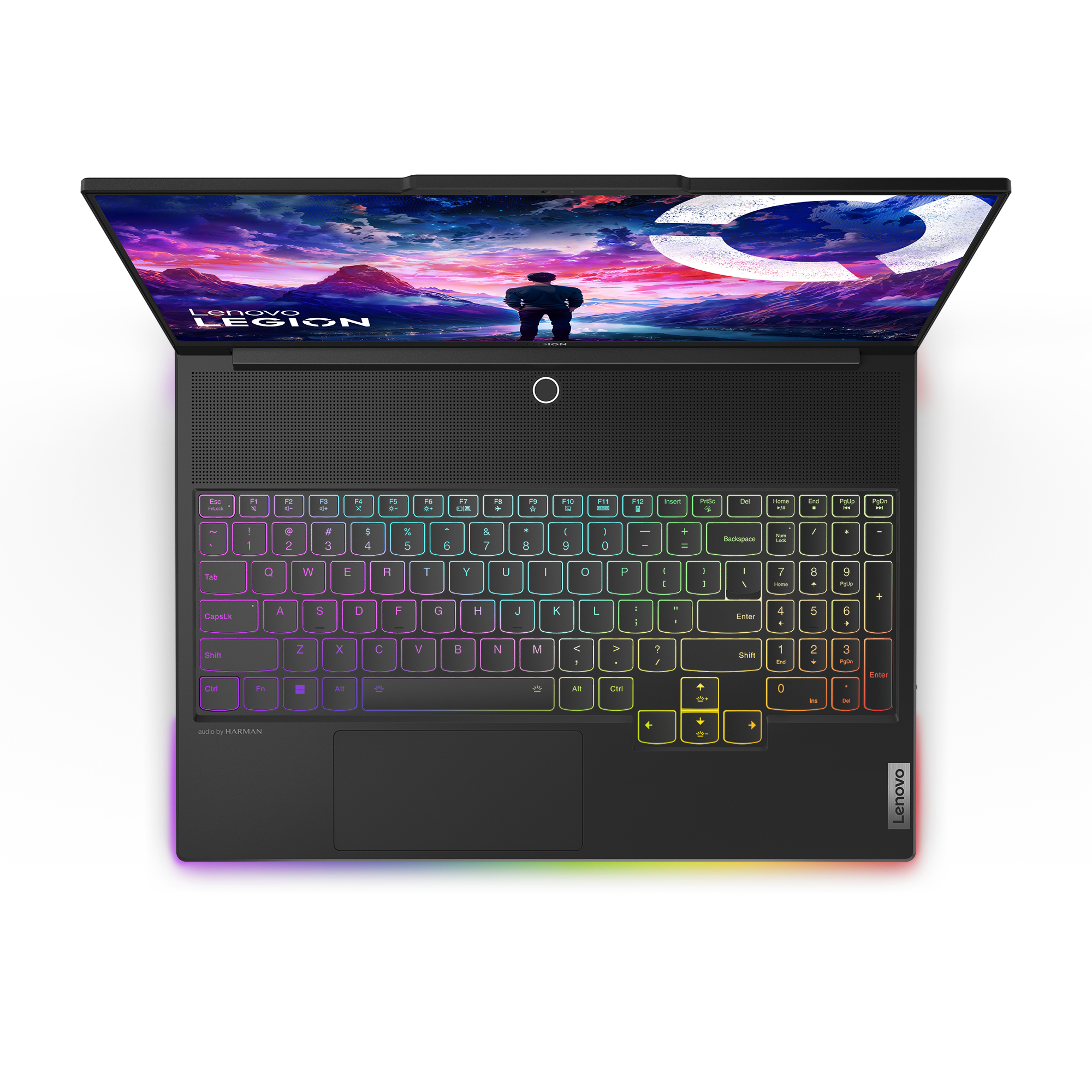

Lenovo Legion 9 16IRX8

Legion 9 16IRX8

Model Legion 9 16IRX8Part no. 83AG001MFREAN 197532076815

100 specifications Checked today

Display40.6 cm (16")
Resolution3200 x 2000 pixels
ProcessorIntel® Core™ i9
Memory64 GB
Storage2 TB
GraphicsNVIDIA GeForce RTX 4090

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 3200 x 2000 pixels
Processor: Intel® Core™ i9
Memory: 64 GB
Storage: 2 TB
Graphics: NVIDIA GeForce RTX 4090

Brand: Lenovo
Category: Laptop
Model: Legion 9 16IRX8
Part numbers: 83AG001MFR, 83AG0013TA, 83AG0015SB, 83AG000HMX, 83AG000QMZ, 83AG003HML +34 more
EAN / UPC: 197532076815, 197528926155, 197528935546, 197528659534 +41 more
Also known as: Lenovo Legion 9 16IRX8 Intel® Core™ i9 i9-13980HX Laptop 40.6 cm (16") 2K 64 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 4090 Wi-Fi 6E (802.11ax) Windows 11 Home

Specifications

100 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Carbon Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	3200 x 2000 pixels
Touchscreen	No
HD type	2K
Panel type	Mini LED
LED backlight	Yes
Native aspect ratio	15:9
Anti-glare screen	Yes
Display brightness	1200 cd/m²
Colour gamut	100%
RGB colour space	sRGB
Maximum refresh rate	165 Hz
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Dolby Vision

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i9
Processor model	i9-13980HX
Processor cores	24
Processor threads	32
Processor boost frequency	5.6 GHz
Processor frequency	2.2 GHz

Memory

Specification	Value
Internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 32 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	2 TB
Storage media	SSD
Total SSDs capacity	2 TB
Number of SSDs installed	2
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 4090
Discrete graphics card memory	16 GB
Discrete graphics memory type	GDDR6

Audio

Specification	Value
Audio chip	Realtek ALC3306
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	5.3
WWAN	Not installed

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes

Performance

Specification	Value
Motherboard chipset	Intel HM770

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB
Keyboard backlit zone	Per-key RGB

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system language	English
Trial software	Office

Battery

Specification	Value
Battery capacity	99.9 Wh

Power

Specification	Value
AC adapter power	330 W
USB Type-C charging port	Yes
USB Type-C required charging power (max)	140 W
USB Type-C required charging power (min)	140 W
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Certificates

Specification	Value
Certification	RoHS

Weight & dimensions

Specification	Value
Weight	2.56 kg
Width	357.7 mm
Depth	277.7 mm
Height	18.9 mm

Packaging content

Specification	Value
AC adapter included	Yes
