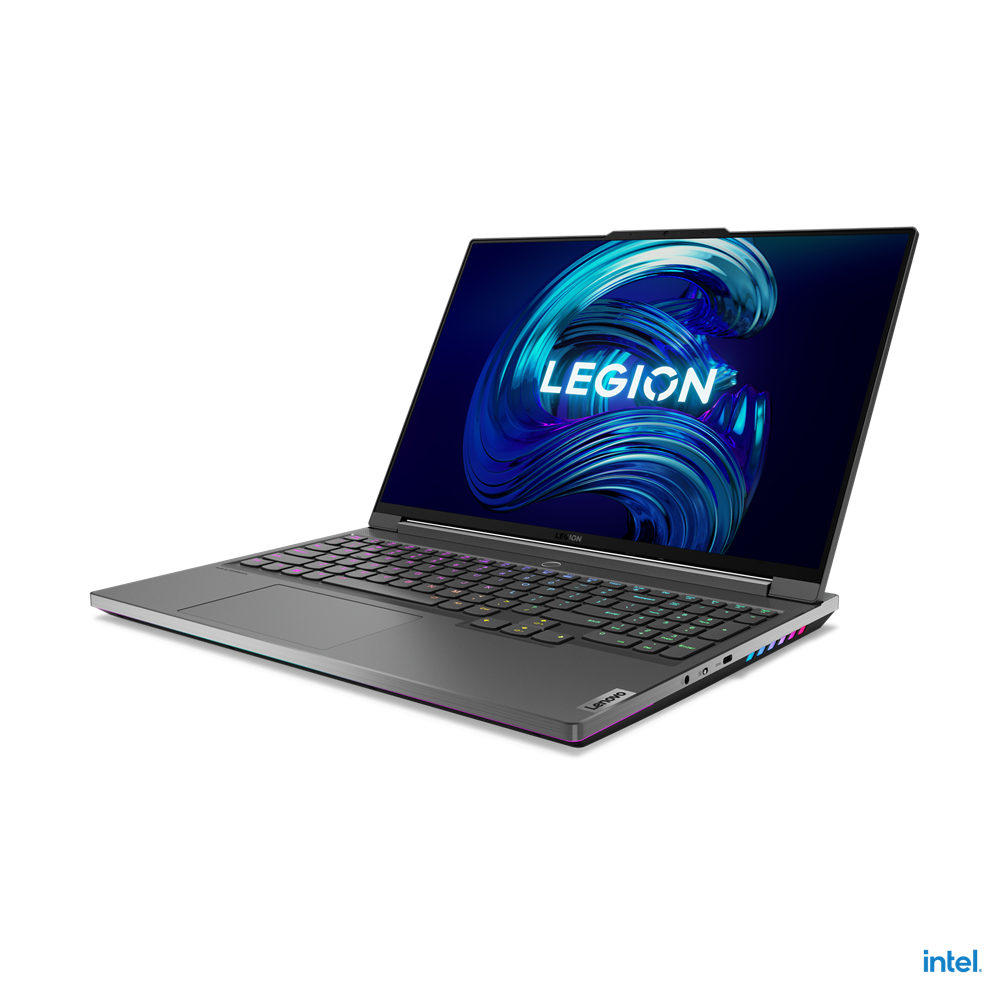

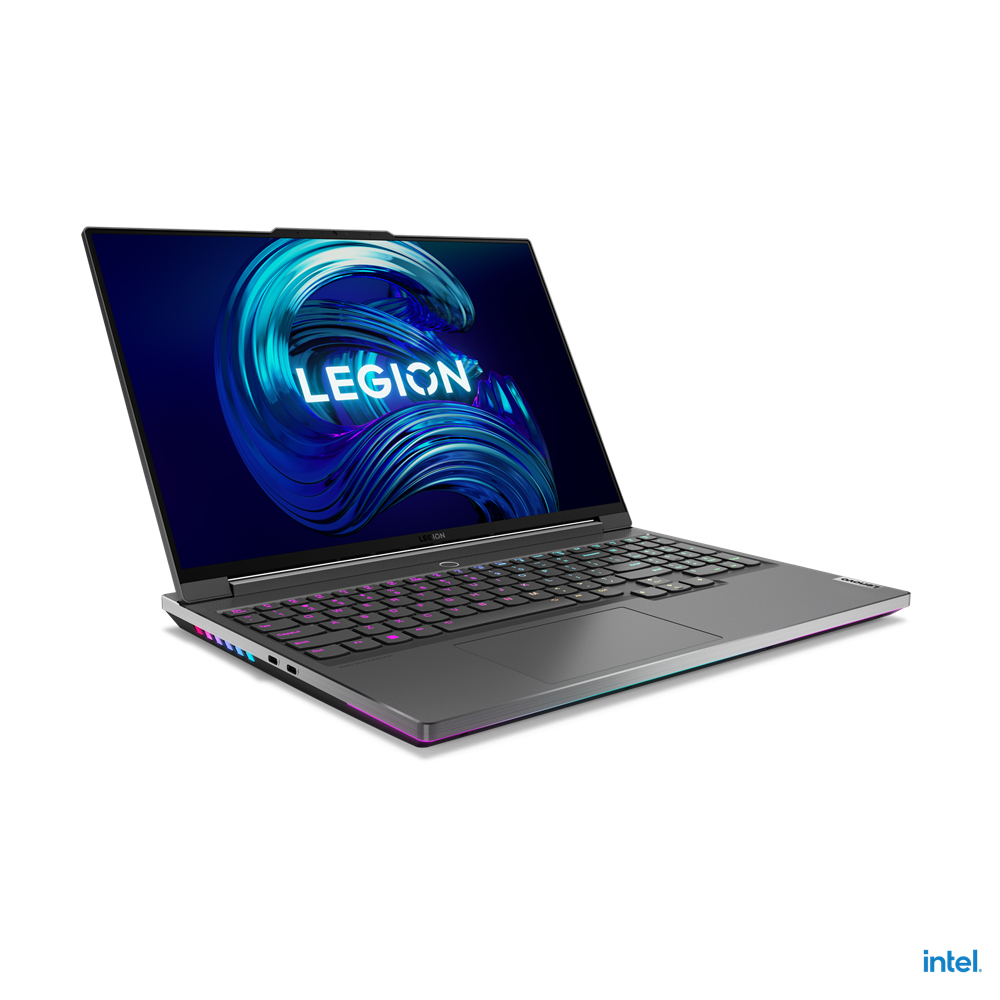

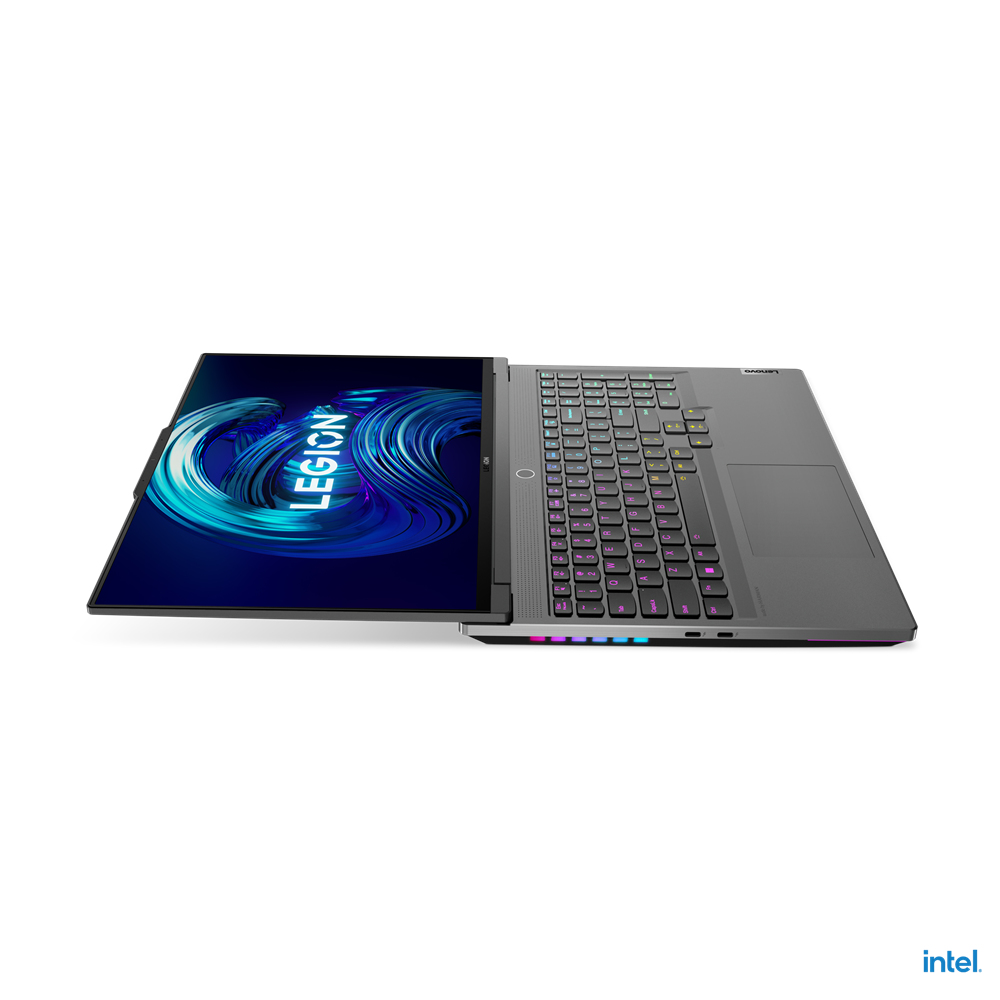

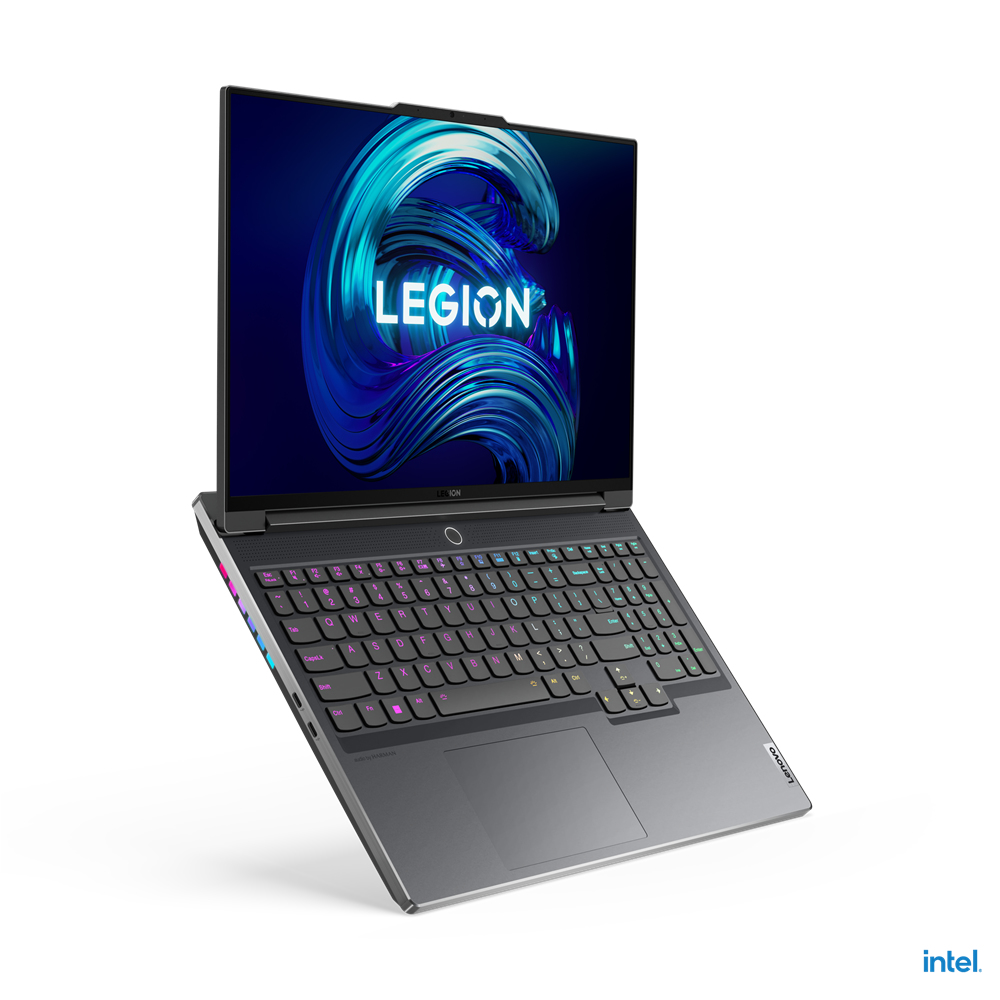

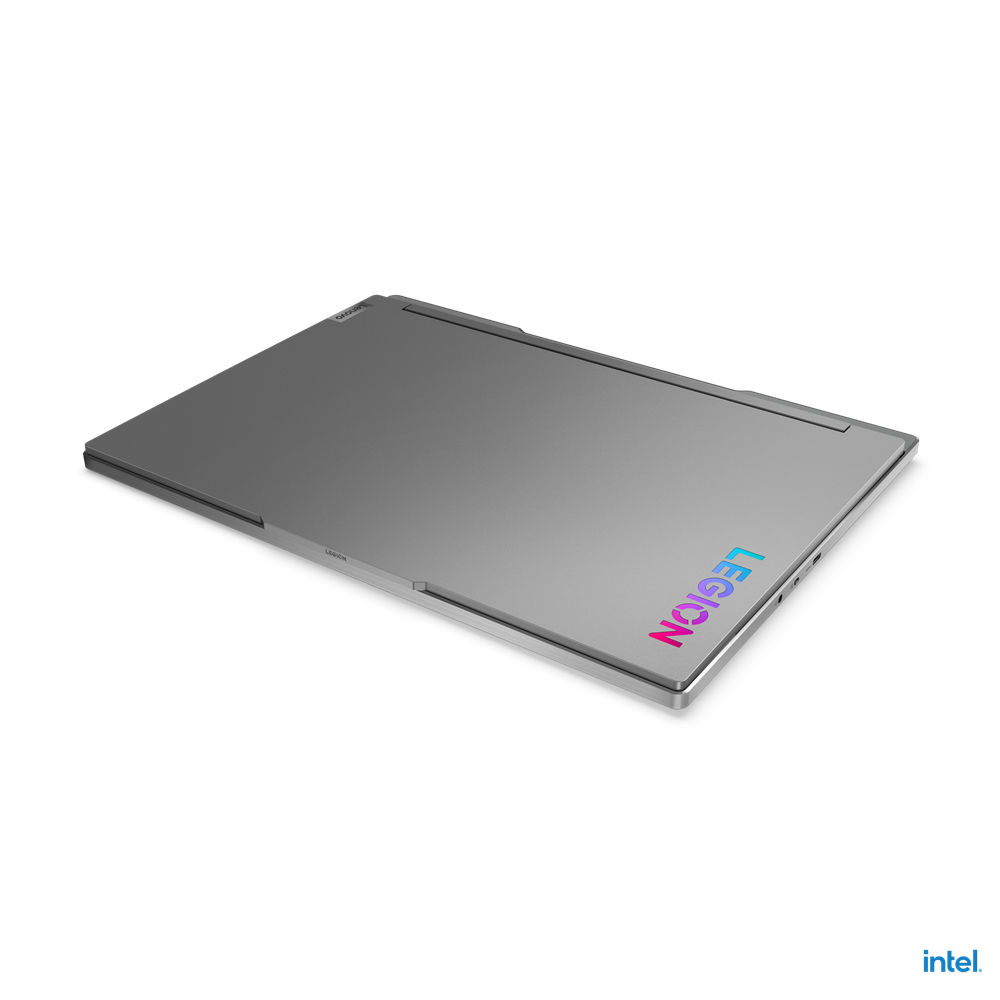

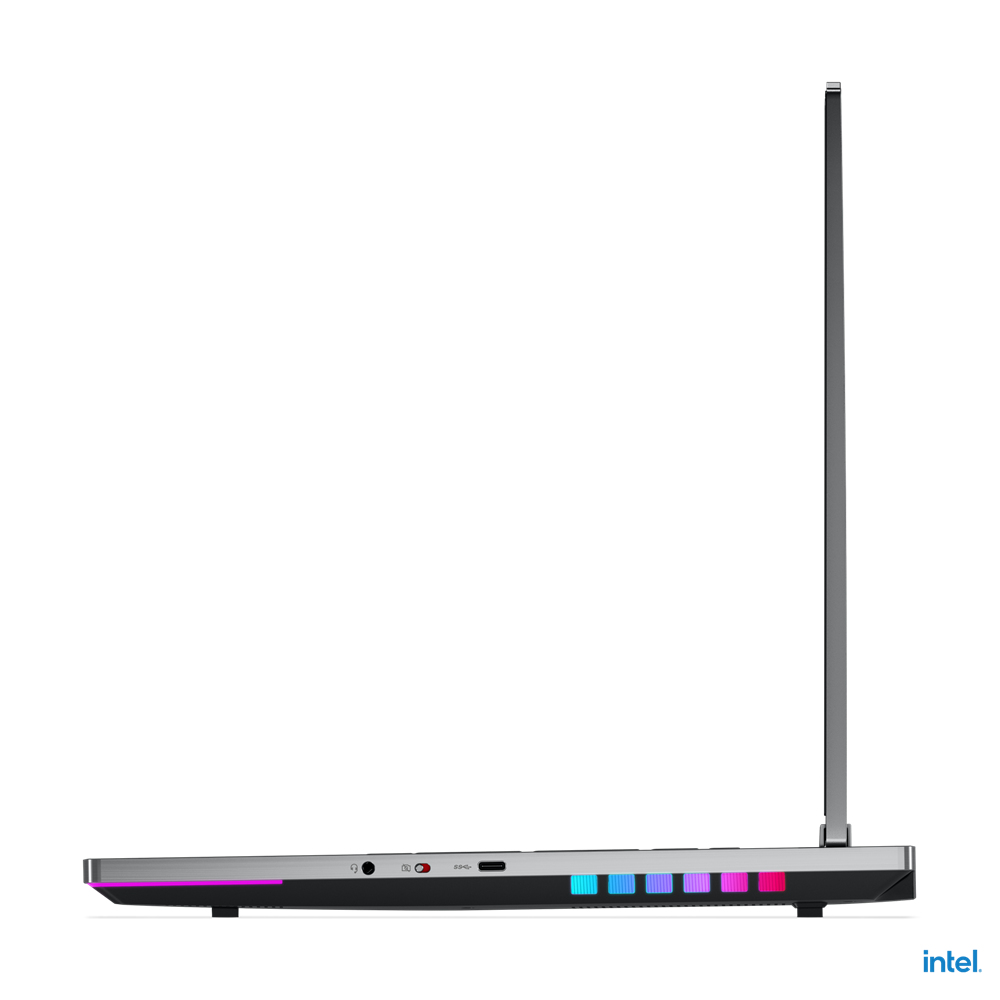

Lenovo Legion 7 16IAX7

Legion 7 16IAX7

Model Legion 7 16IAX7Part no. 82TD001DAXEAN 196380901720

123 specifications Checked today

Display40.6 cm (16")
Resolution2560 x 1600 pixels
ProcessorIntel® Core™ i7
Memory32 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 3070 Ti

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2560 x 1600 pixels
Processor: Intel® Core™ i7
Memory: 32 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 3070 Ti

Brand: Lenovo
Category: Laptop
Model: Legion 7 16IAX7
Part numbers: 82TD001DAX, 82TD0020MZ, 82TD0021MZ, 82TD000WUK, 82TD000XUK, 82TD002AMX +34 more
EAN / UPC: 196380901720, 196380673627, 196380673634, 196379961599 +56 more
Also known as: Lenovo Legion 7 16IAX7 Intel® Core™ i7 i7-12800HX Laptop 40.6 cm (16") WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 3070 Ti Wi-Fi 6E (802.11ax) Windows 11

Specifications

123 specifications in 21 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black, Grey
Colour name	Storm Grey
Form factor	Clamshell
Housing material	Aluminium
Market positioning	Gaming

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	500 cd/m²
Colour gamut	100%
RGB colour space	sRGB
Maximum refresh rate	165 Hz
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	DisplayHDR 400, Dolby Vision

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	12th gen Intel® Core™ i7
Processor model	i7-12800HX
Processor cores	16
Processor boost frequency	4.8 GHz
Processor frequency	1.5 GHz
Processor cache	25 MB
Processor cache type	Smart Cache
Bus type	DMI4
Configurable TDP-down	45 W

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory form factor	SO-DIMM
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 3070 Ti
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics

Audio

Specification	Value
Audio chip	Realtek ALC3306
Audio system	Nahimic Audio
Number of built-in speakers	2
Speakers manufacturer	Harman Kardon
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Killer Wi-Fi 6E 1675i
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000,2500 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1

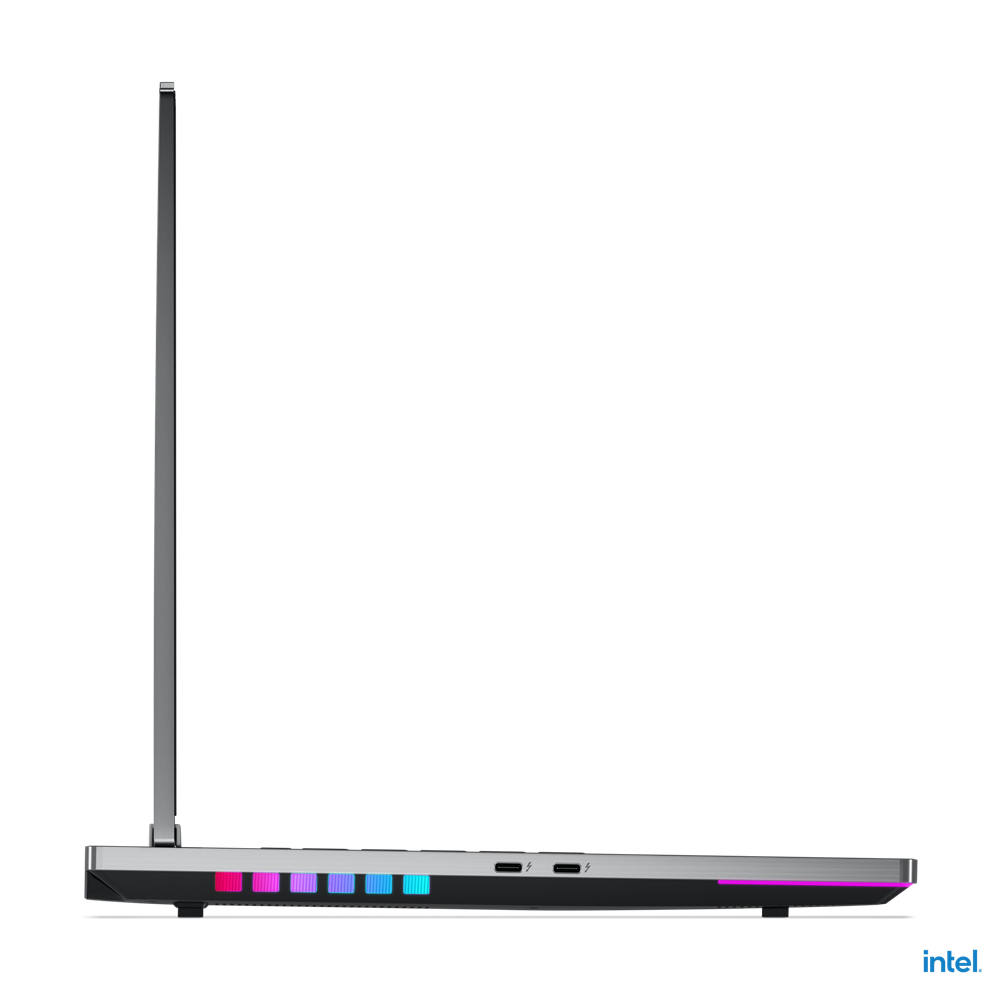

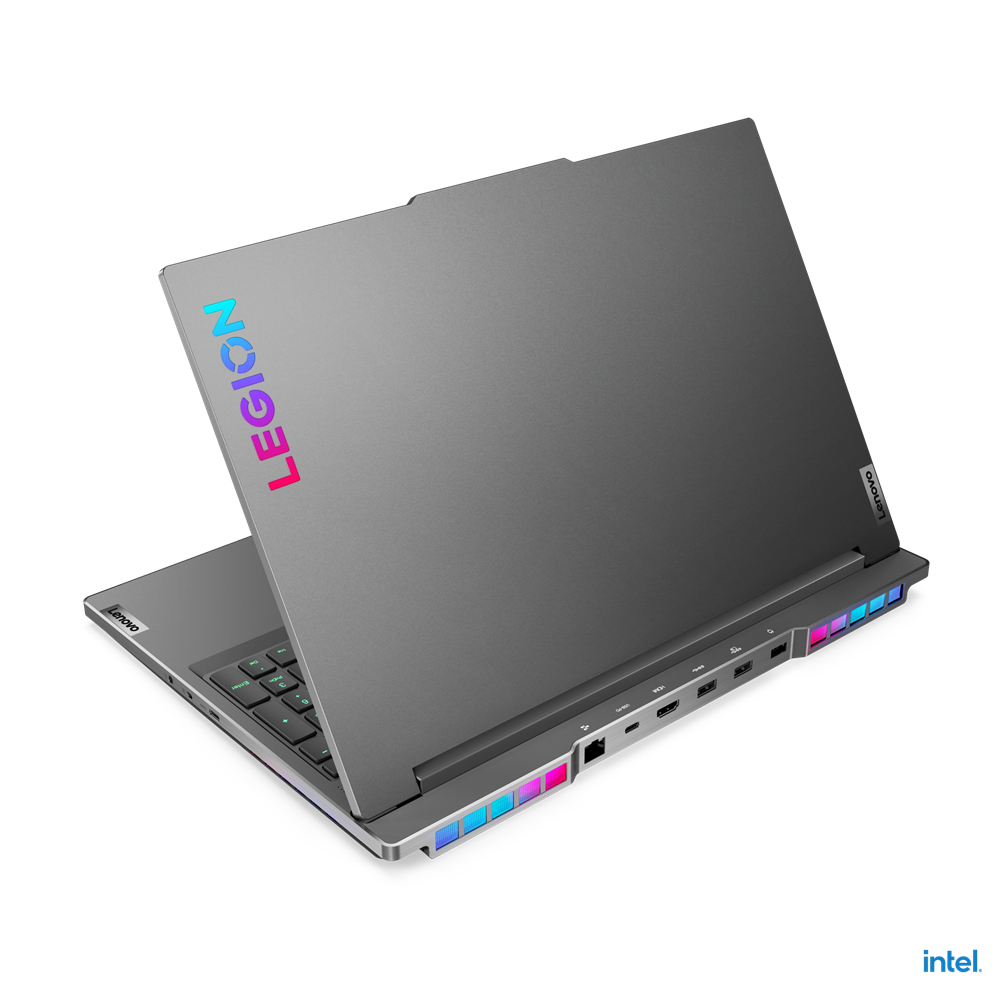

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes

Performance

Specification	Value
Motherboard chipset	Intel HM670

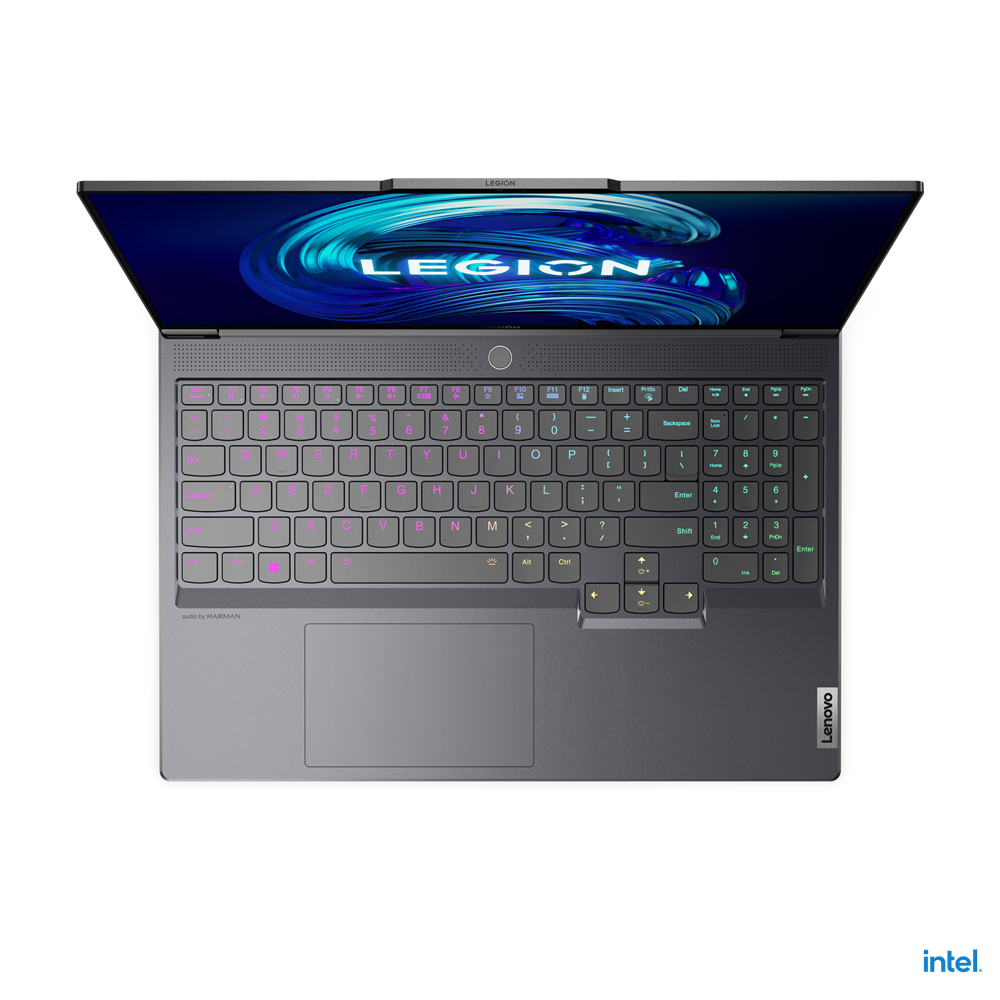

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard language	Swiss

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Operating system language	Dutch, English, French, Italian, Swedish

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Execute Disable Bit	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	99.99 Wh
Battery life (max)	9 h

Power

Specification	Value
AC adapter power	300 W
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	Power on, Supervisor, HDD

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	TÜV

Sustainability

Specification	Value
Sustainability certificates	ErP

Weight & dimensions

Specification	Value
Weight	2.53 kg
Width	358.1 mm
Depth	263.5 mm
Height	19.4 mm
