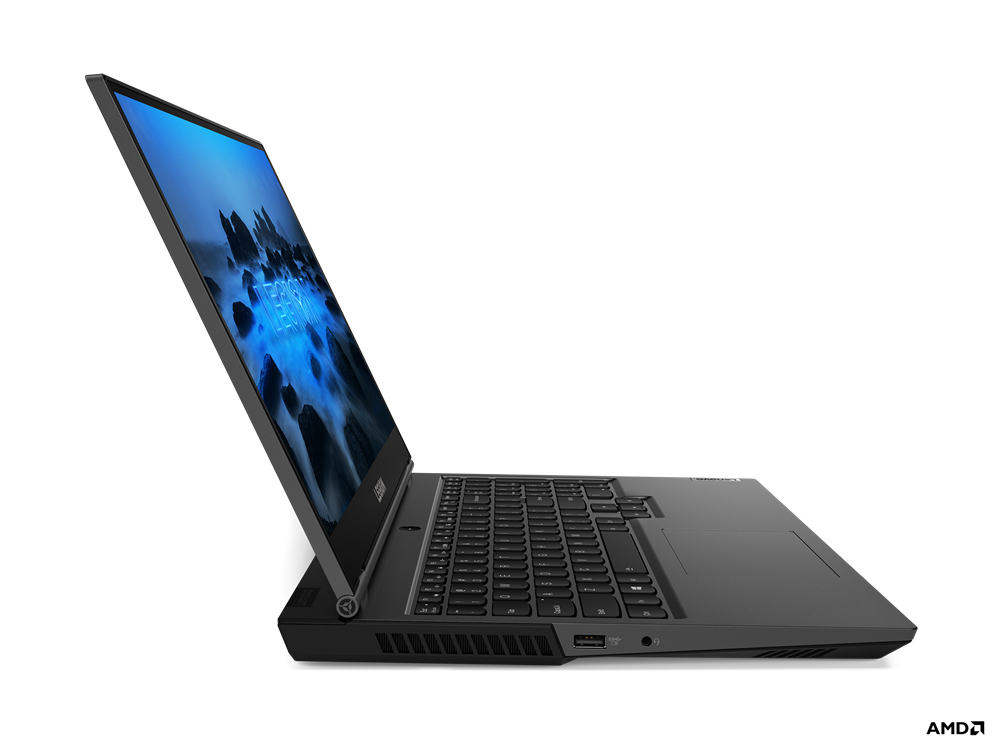

Lenovo Legion 5P 15ARH05H

Legion 5P 15ARH05H

Model Legion 5P 15ARH05HPart no. 82GU000JRKEAN 195348268400

91 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorAMD Ryzen™ 7
Memory8 GB
Storage256 GB
GraphicsNVIDIA® GeForce RTX™ 2060

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: AMD Ryzen™ 7
Memory: 8 GB
Storage: 256 GB
Graphics: NVIDIA® GeForce RTX™ 2060

Brand: Lenovo
Category: Laptop
Model: Legion 5P 15ARH05H
Part numbers: 82GU000JRK, 82GU0000UK, 82GU0005RK, 82GU000KRU, 82GU000HRU
EAN / UPC: 195348268400, 195042828825, 195235140833, 195348268417 +1 more
Also known as: Lenovo Legion 5P 15ARH05H AMD Ryzen™ 7 4800H Laptop 39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 256 GB SSD NVIDIA® GeForce RTX™ 2060 Wi-Fi 6 (802.11ax) Windows 10 H

Specifications

91 specifications in 17 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	300 cd/m²
Maximum refresh rate	144 Hz

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7
Processor generation	AMD Ryzen 4000 Series
Processor model	4800H
Processor cores	8
Processor boost frequency	4.2 GHz
Processor frequency	2.9 GHz
Processor cache	8 MB

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	SO-DIMM
Memory slots	2x SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
NVMe	Yes
SSD interface	NVMe, PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce RTX™ 2060
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	AMD
On-board graphics card model	AMD Radeon Graphics

Audio

Specification	Value
Audio chip	Realtek ALC3287
Number of built-in speakers	2
Speakers manufacturer	Harman Kardon
Speaker power	2 W
Built-in subwoofer	No
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	No

Network

Specification	Value
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

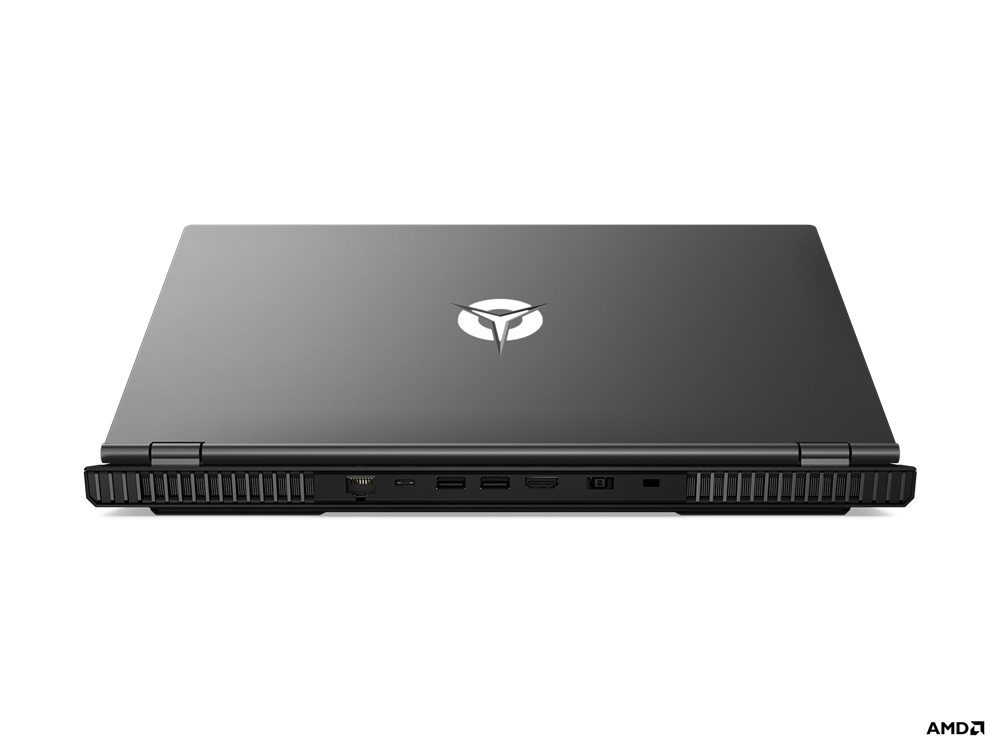

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

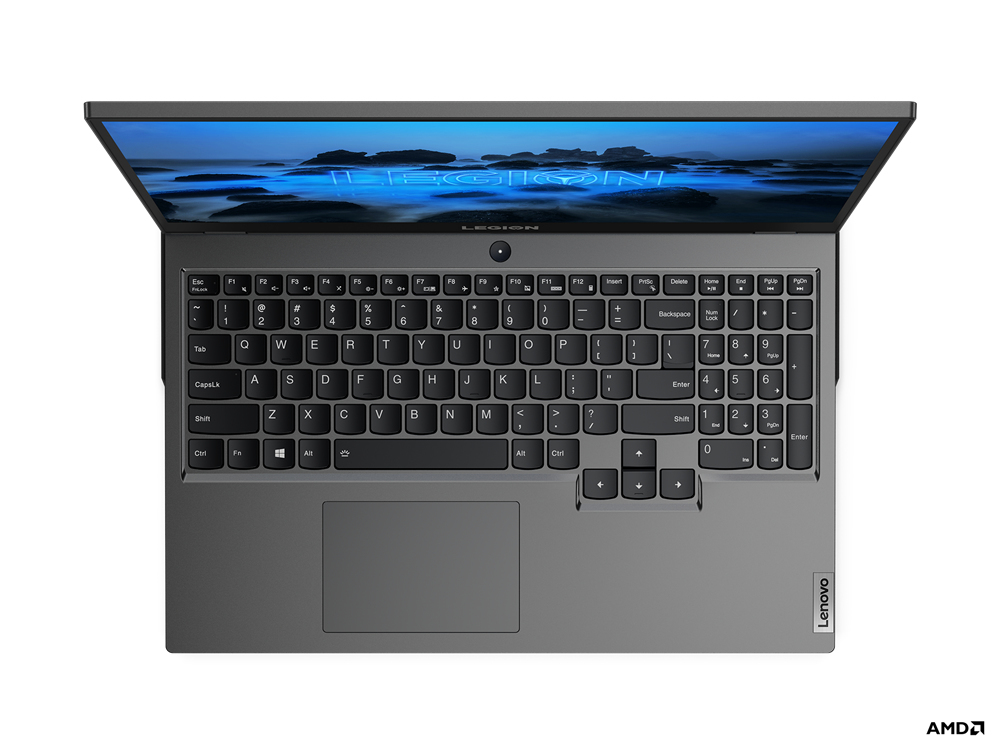

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	80 Wh
Battery life (max)	7.5 h

Power

Specification	Value
AC adapter power	230 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Fingerprint reader	No
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	HDD, Power on, Supervisor

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	ErP lot3

Weight & dimensions

Specification	Value
Weight	2.5 kg
Width	363.1 mm
Depth	259.6 mm
Height	23.6 mm
