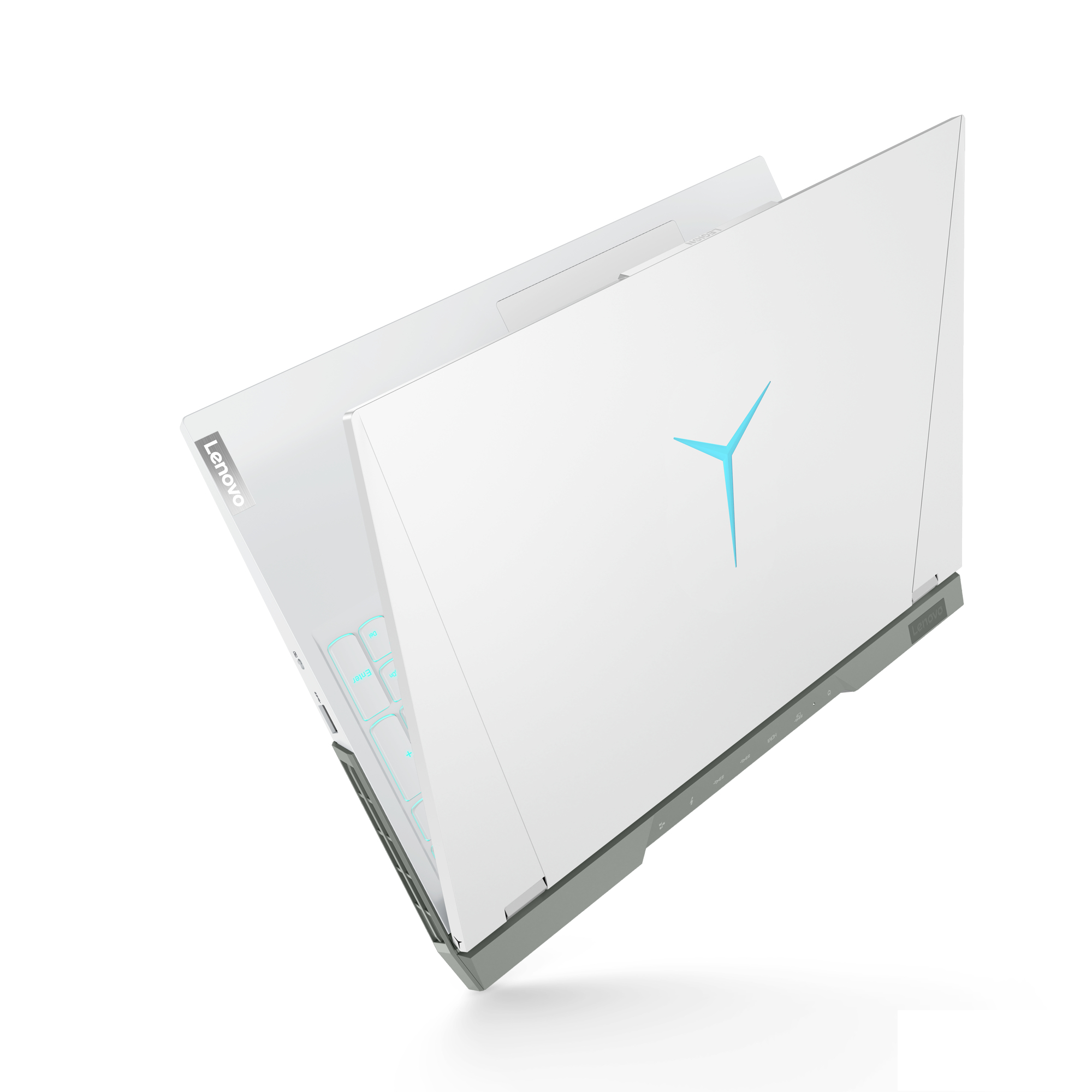

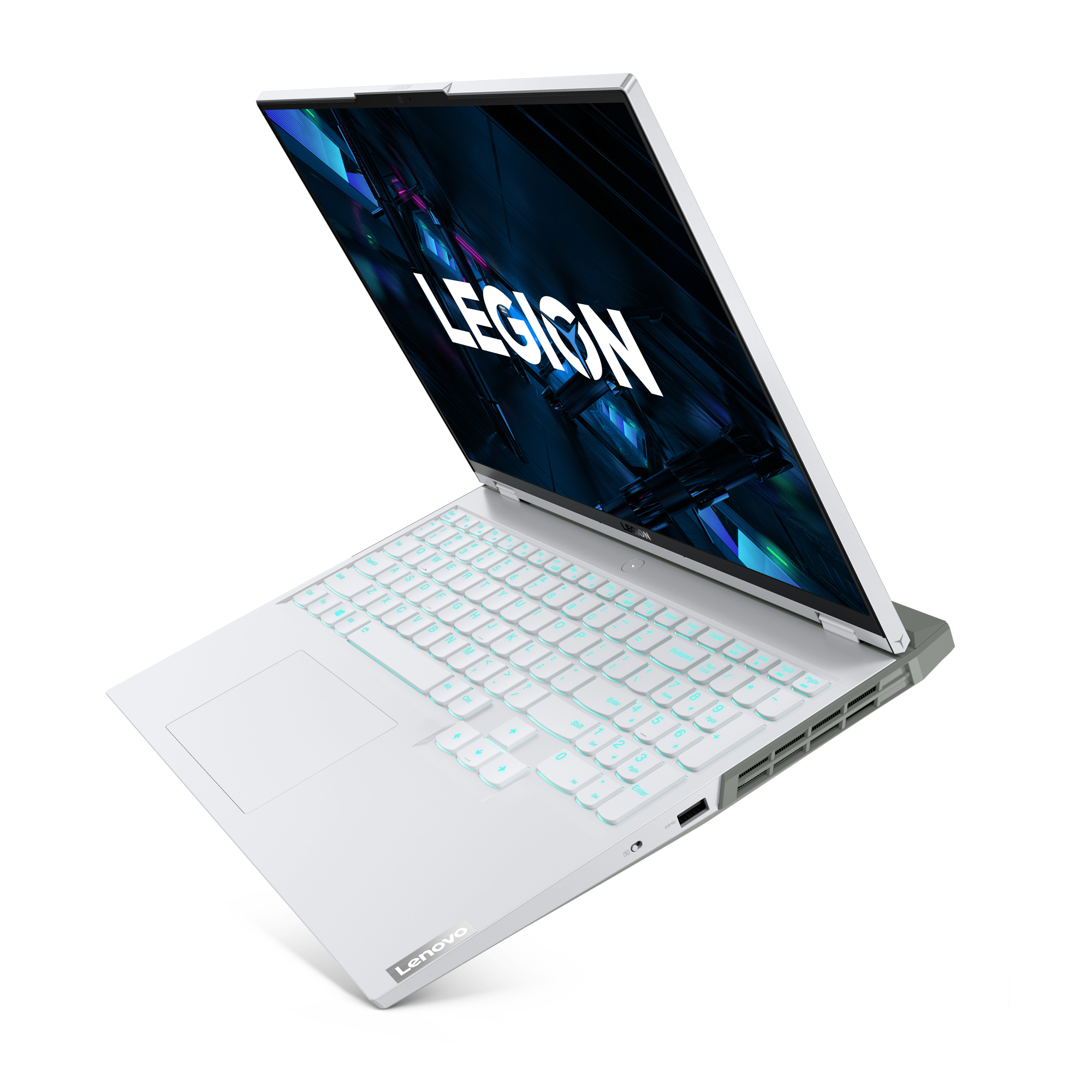

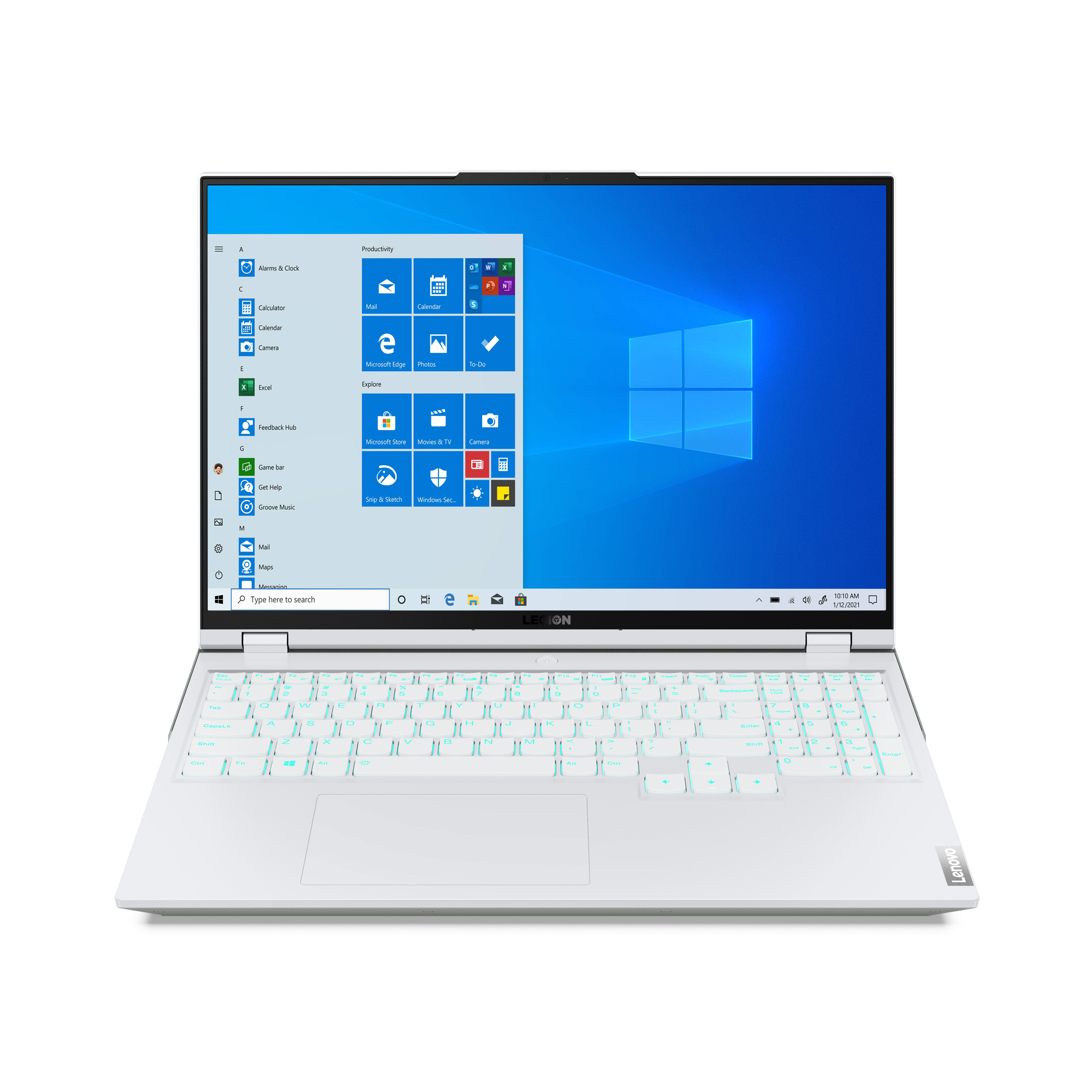

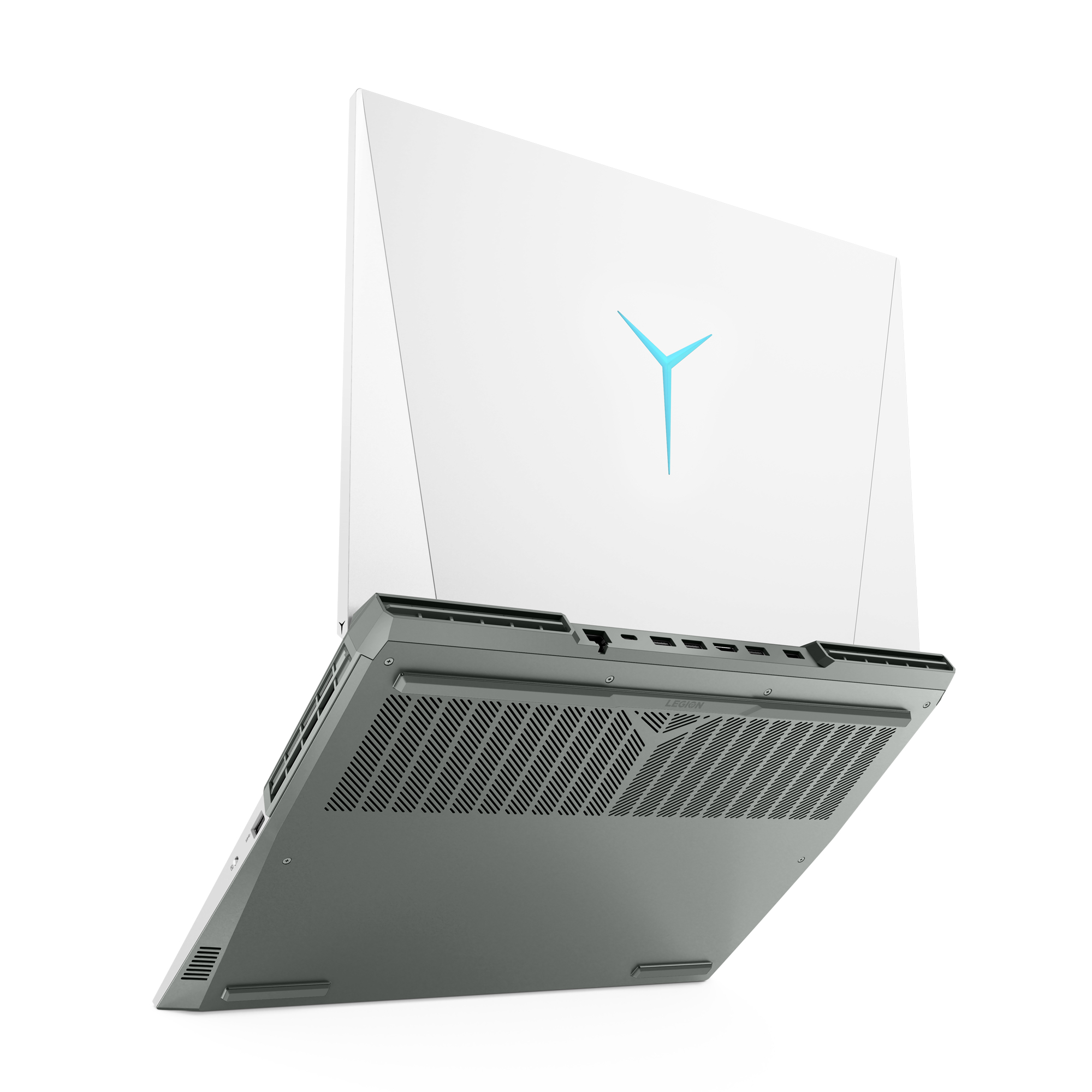

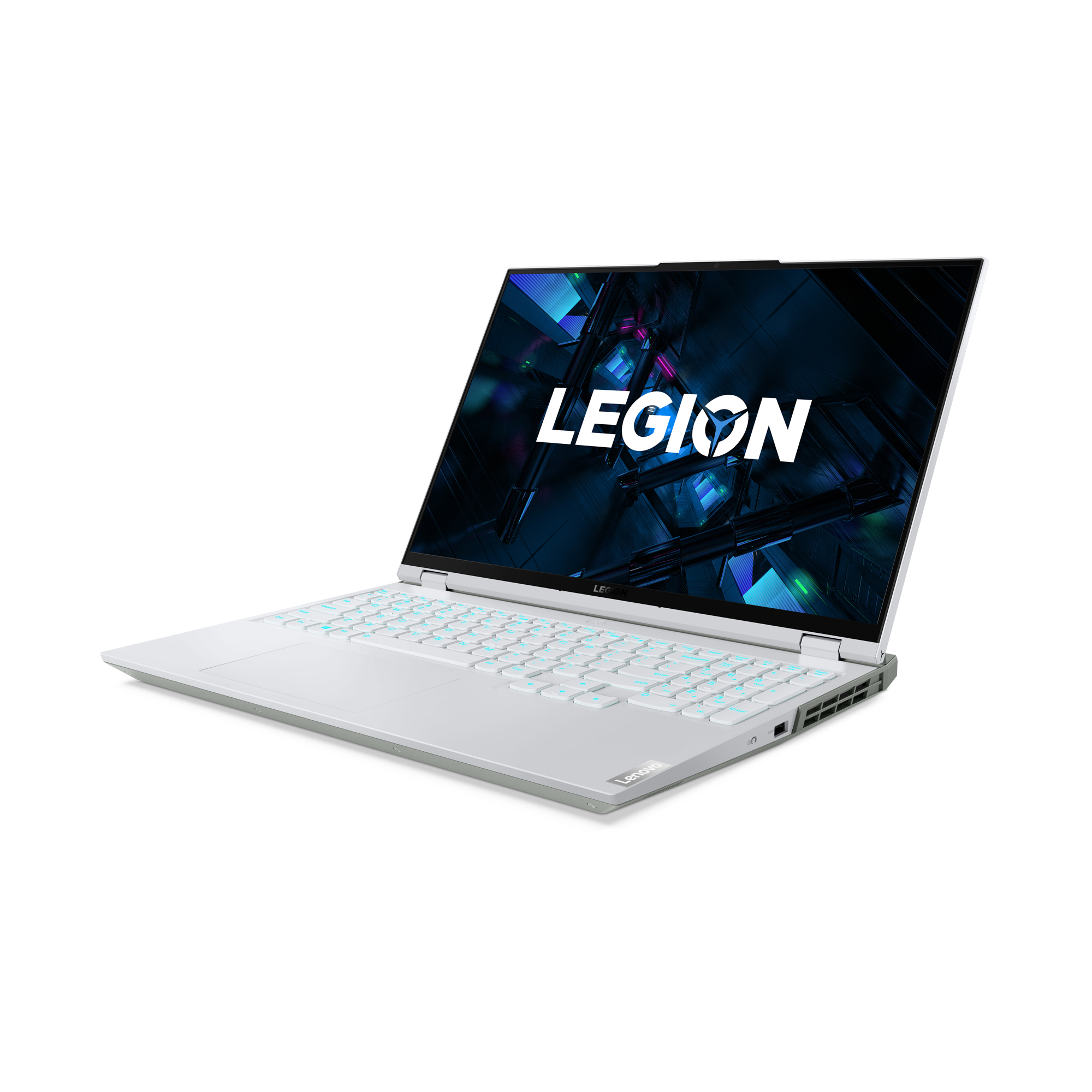

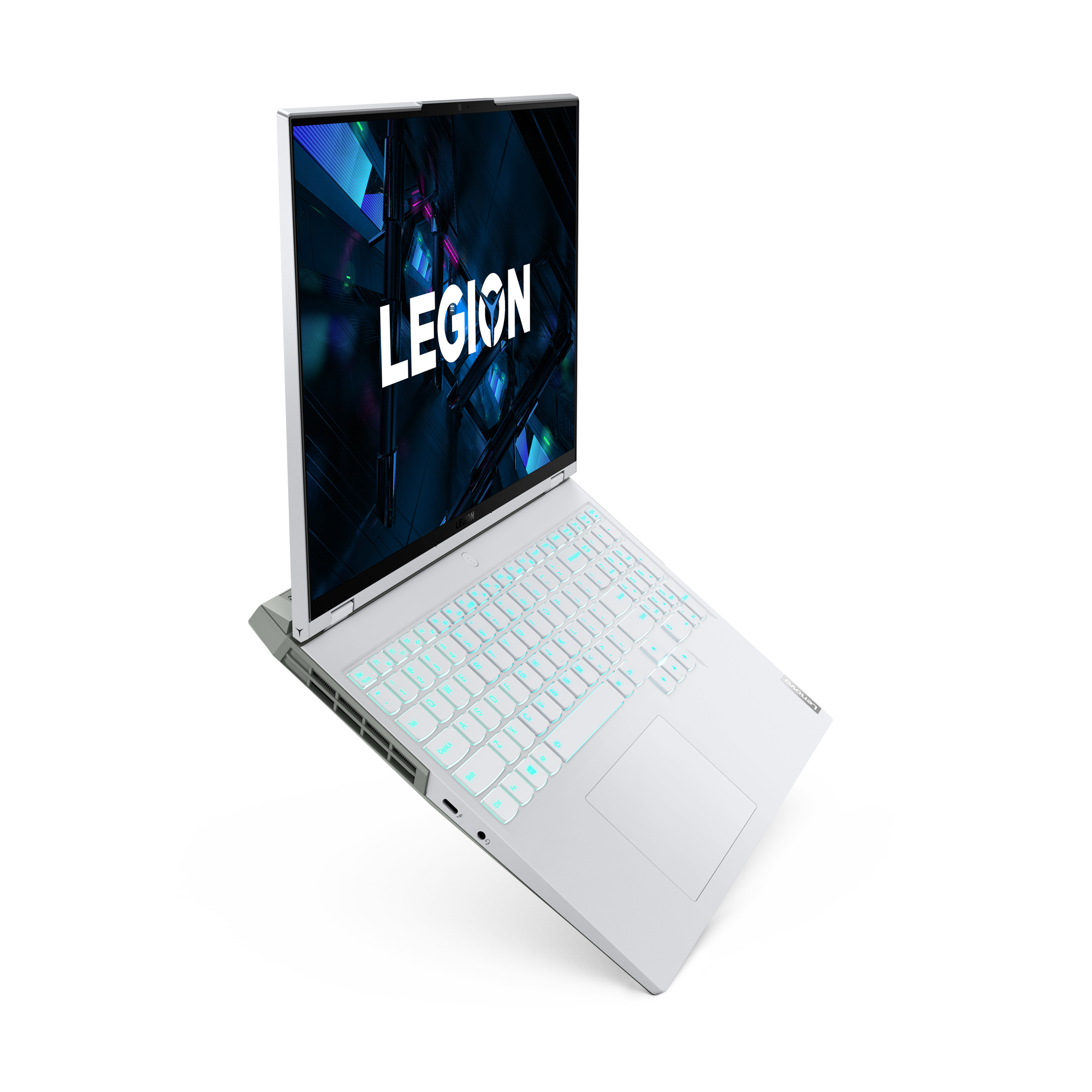

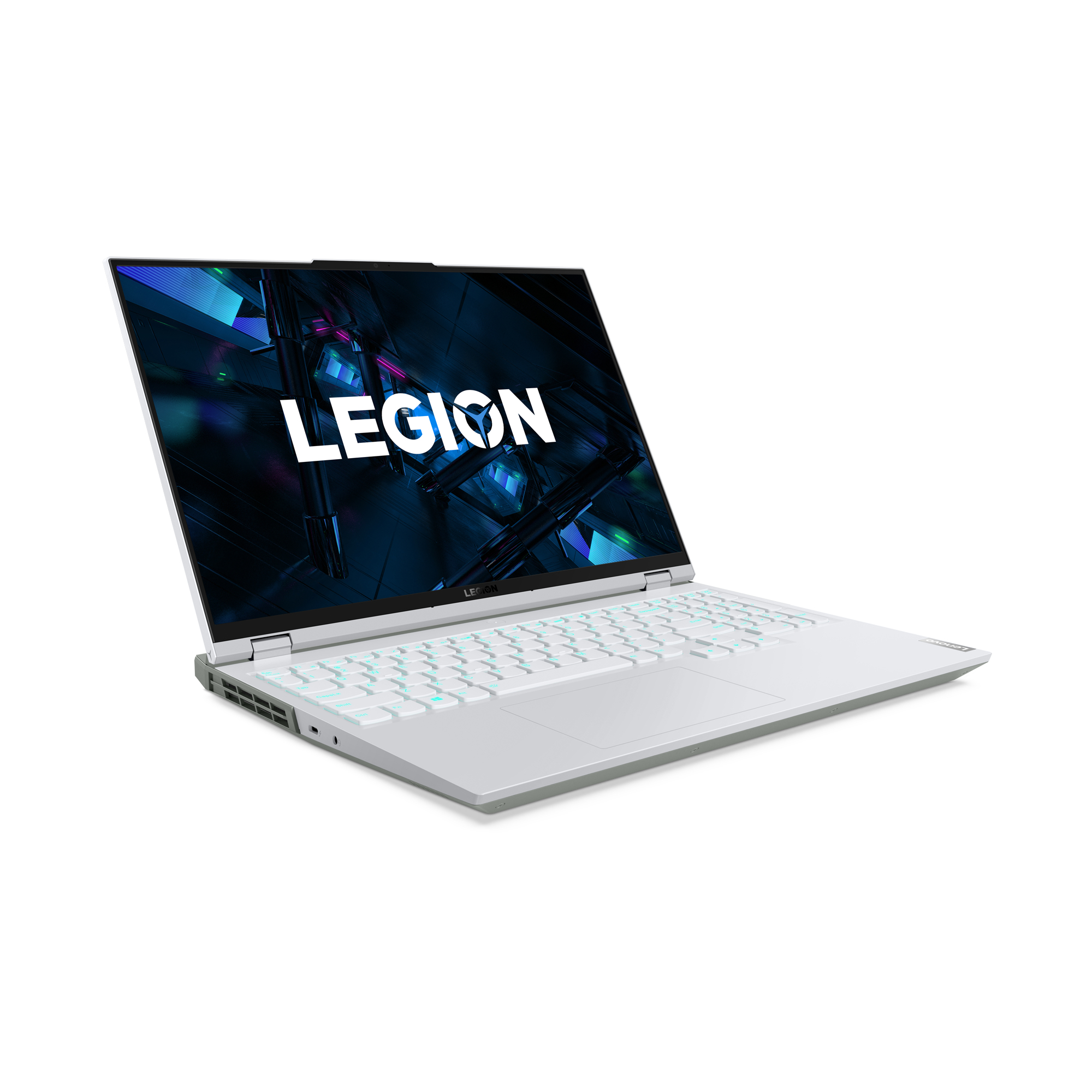

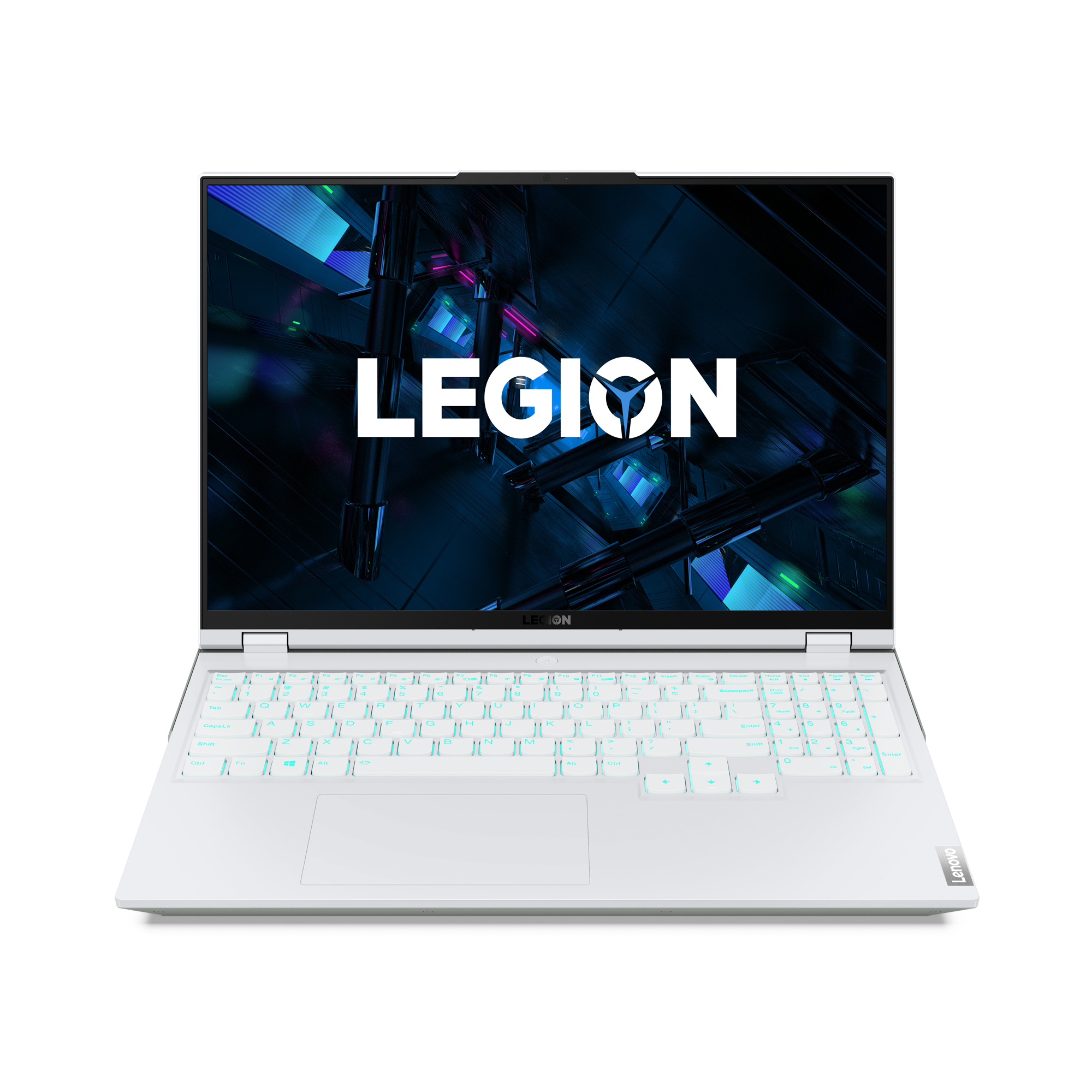

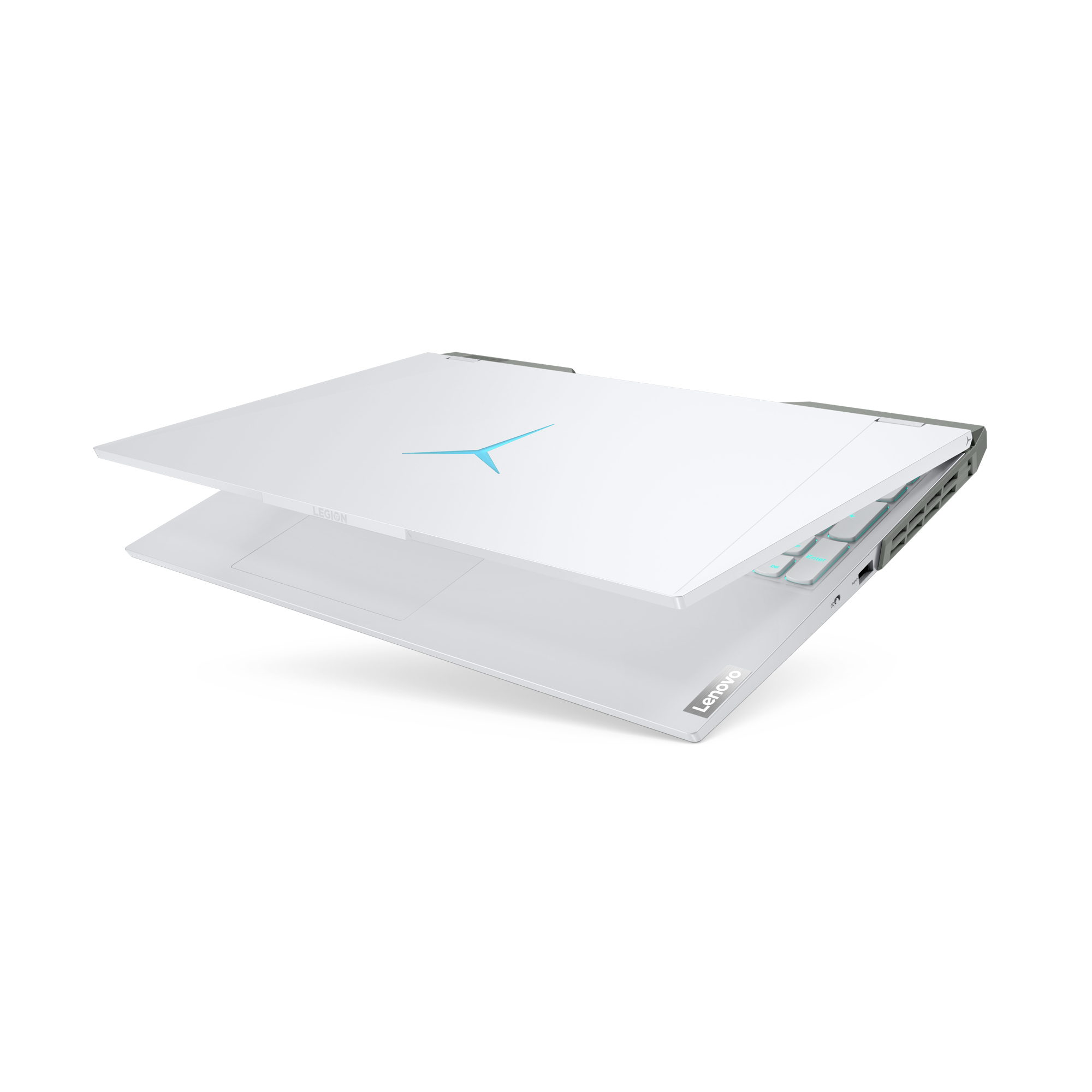

Lenovo Legion 5 Pro 16ITH6H

Legion 5 Pro 16ITH6H

Model Legion 5 Pro 16ITH6HPart no. 82JD00C0UKEAN 195890265346

96 specifications Checked today

Display40.6 cm (16")
Resolution2560 x 1600 pixels
ProcessorIntel® Core™ i7
Memory32 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 3070

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2560 x 1600 pixels
Processor: Intel® Core™ i7
Memory: 32 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 3070

Brand: Lenovo
Category: Laptop
Model: Legion 5 Pro 16ITH6H
Part numbers: 82JD00C0UK, 82JD005LIN, 82JD000XGE, 82JD0032GE, 82JD000CFR, 82JD00DSSP +34 more
EAN / UPC: 195890265346, 195891783320, 195890395326, 195890850801 +56 more
Also known as: Lenovo Legion 5 Pro 16ITH6H Intel® Core™ i7 i7-11800H Laptop 40.6 cm (16") WQXGA 32 GB DDR4-SDRAM 1 TB SSD NVIDIA GeForce RTX 3070 Wi-Fi 6 (802.11ax) Windows 11

Specifications

96 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Colour name	Stingray (Top), Dove Grey (Bottom)
Form factor	Clamshell
Display back cover material	Aluminium
Housing material	Aluminium

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	500 cd/m²
Colour gamut	100%
RGB colour space	sRGB
Maximum refresh rate	165 Hz
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Dolby Vision, DisplayHDR 400

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor model	i7-11800H
Processor cores	8
Processor threads	16
Processor boost frequency	4.6 GHz
Processor frequency	2.3 GHz

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 3070
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6

Audio

Specification	Value
Audio chip	Realtek ALC3306
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1
WWAN	Not installed

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes

Performance

Specification	Value
Motherboard chipset	Intel HM570

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	Blue

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system language	English
Bundled software	Office Home & Student 2021

Battery

Specification	Value
Battery capacity	80 Wh

Power

Specification	Value
AC adapter power	300 W
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	No
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Certificates

Specification	Value
Certification	RoHS

Weight & dimensions

Specification	Value
Weight	2.3 kg

Packaging content

Specification	Value
AC adapter included	Yes
