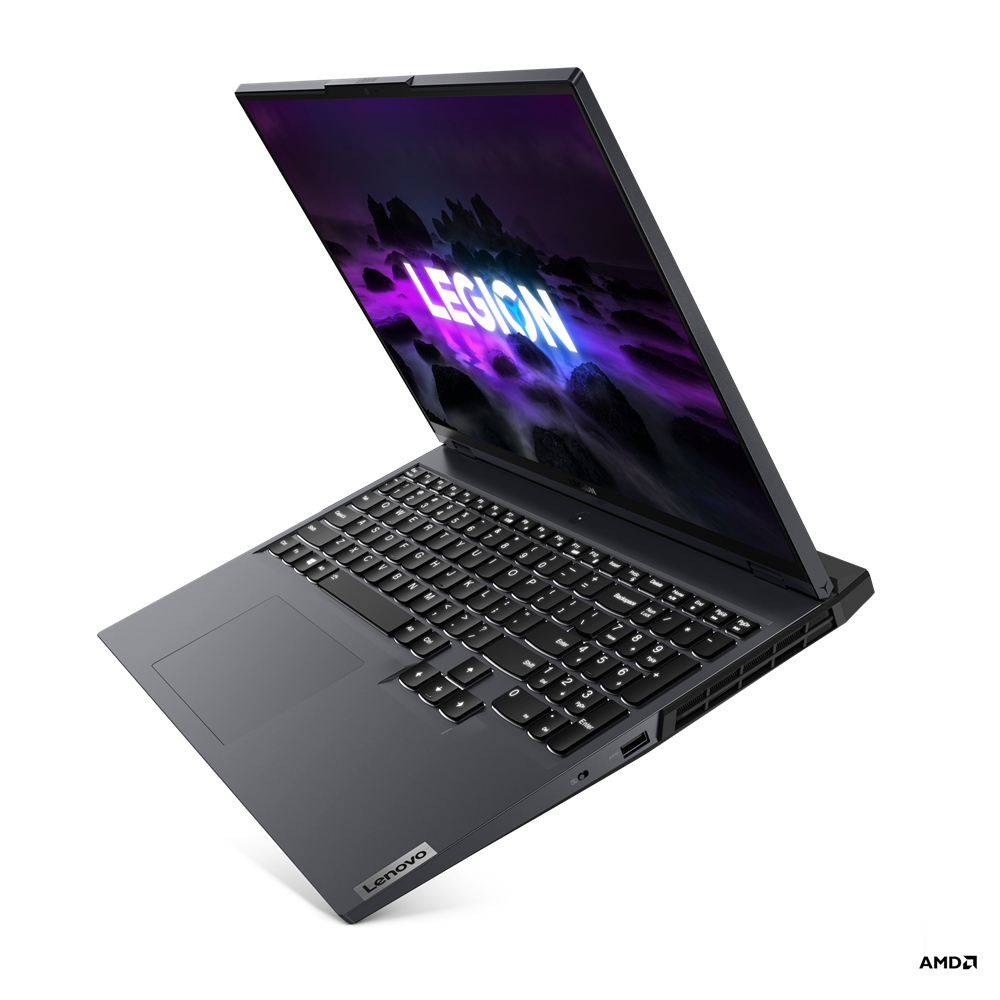

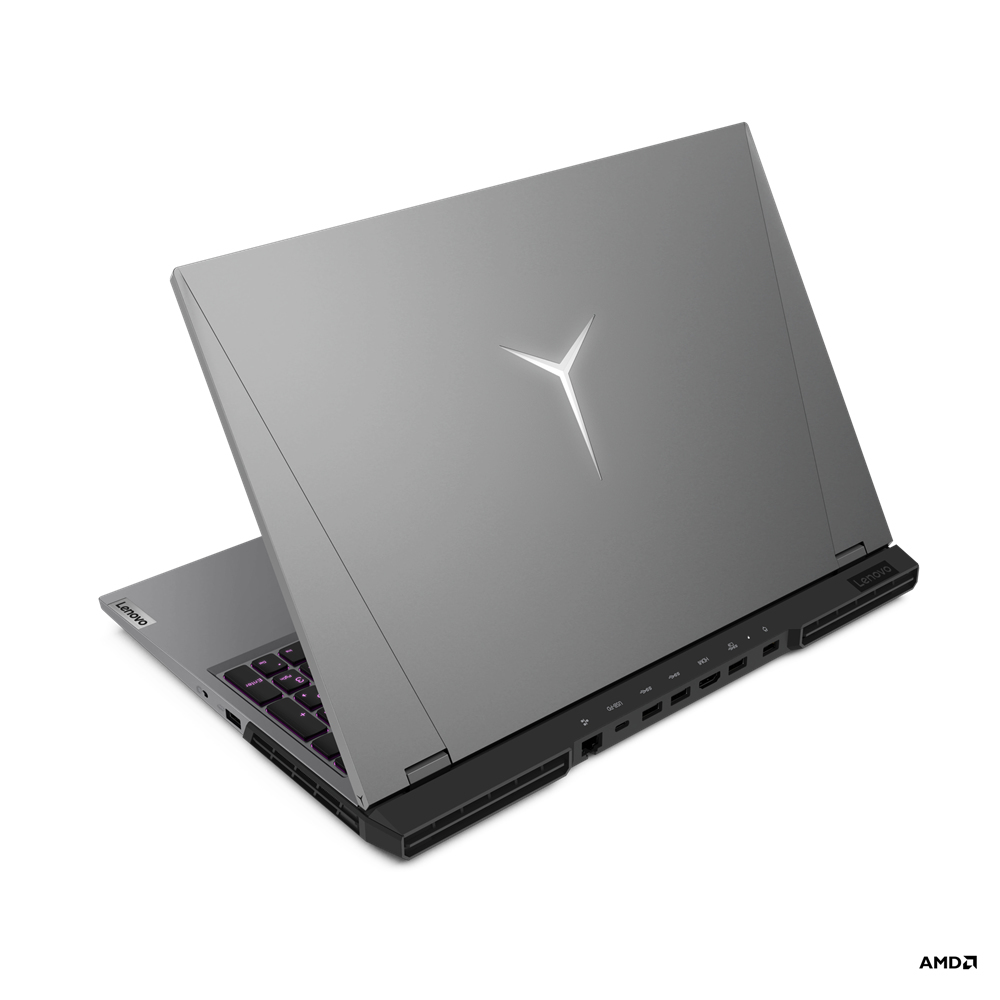

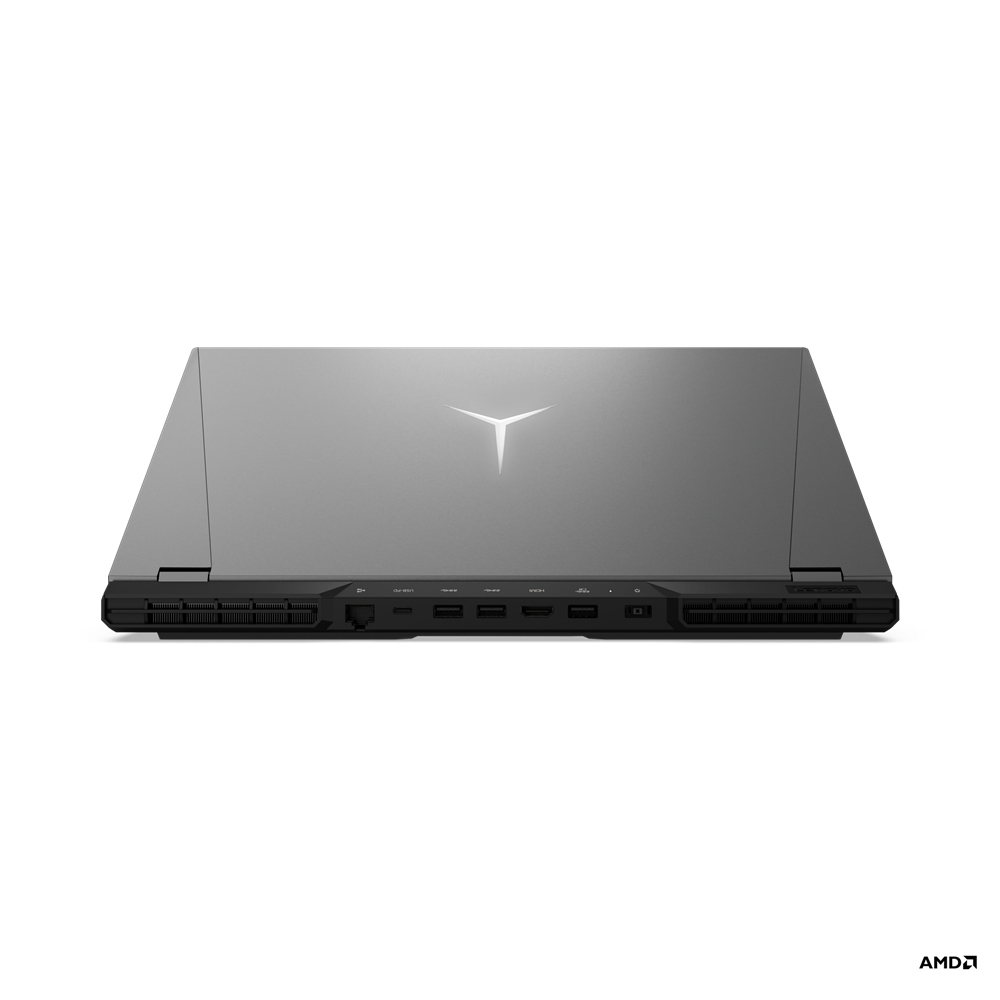

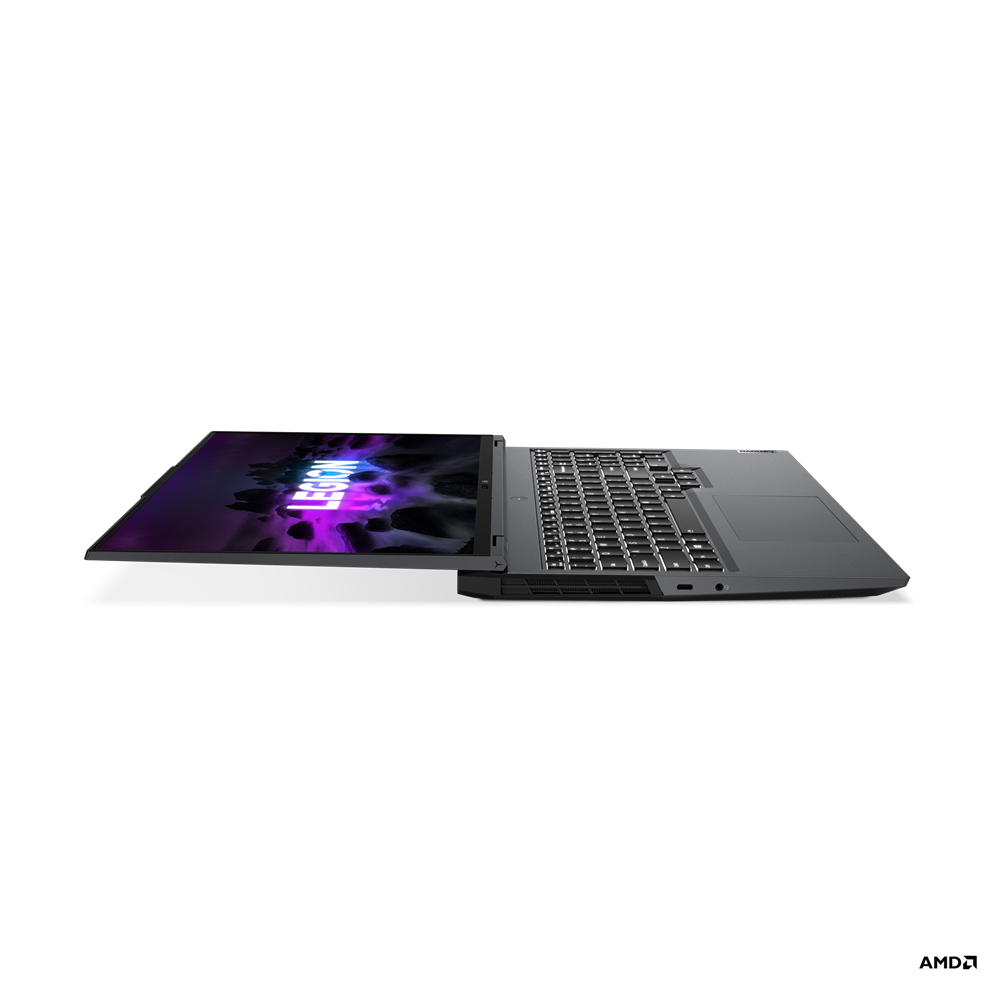

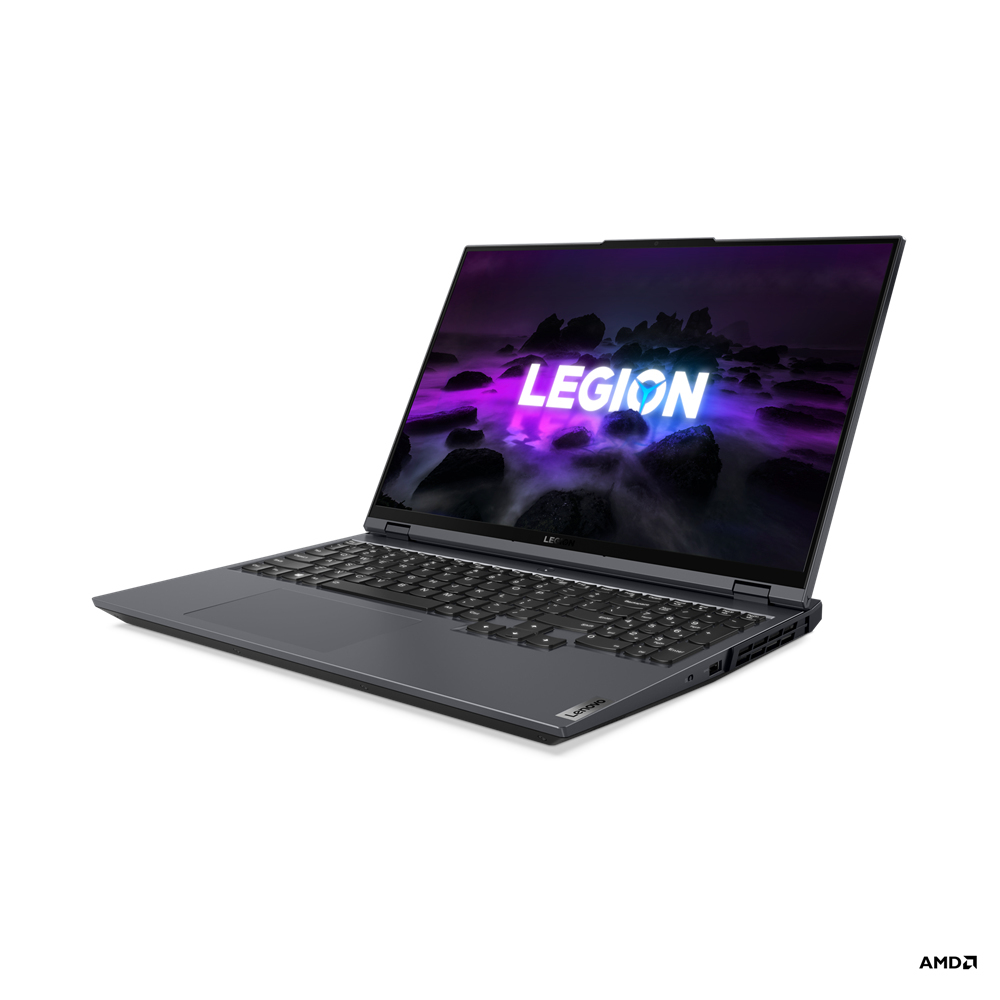

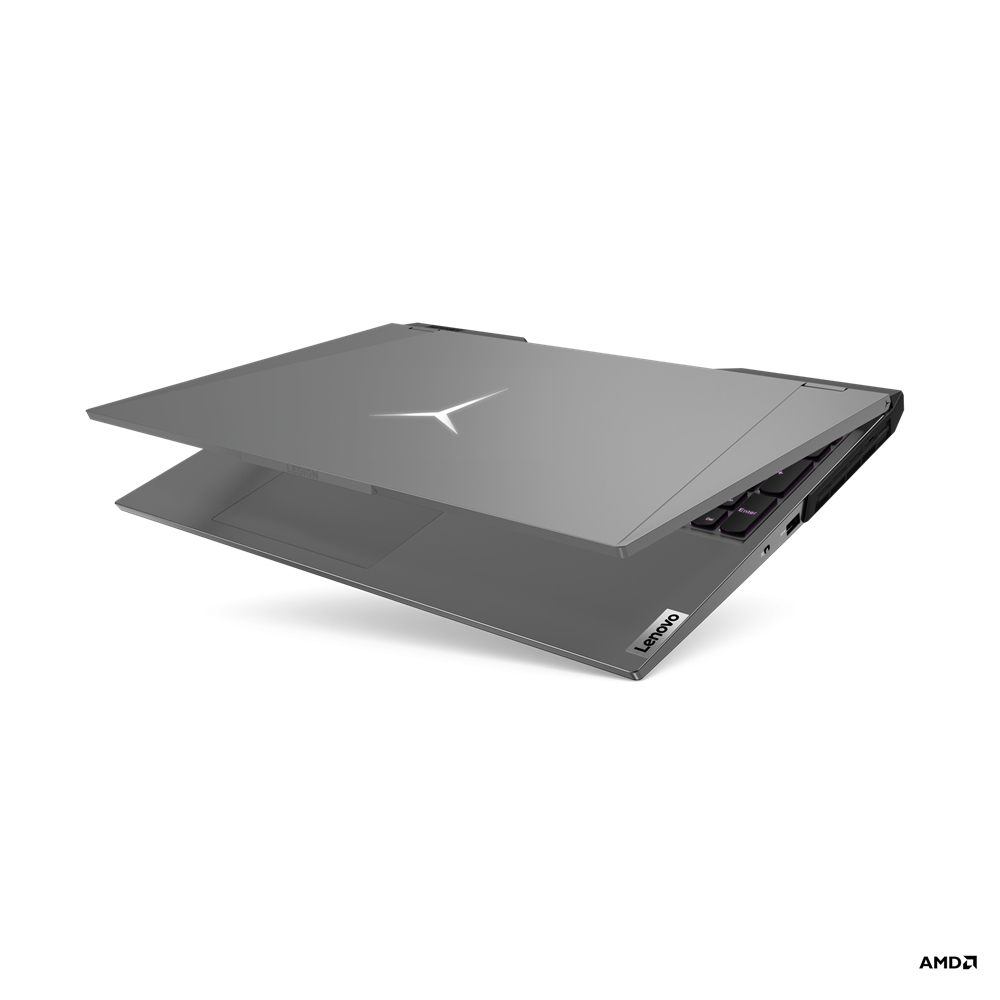

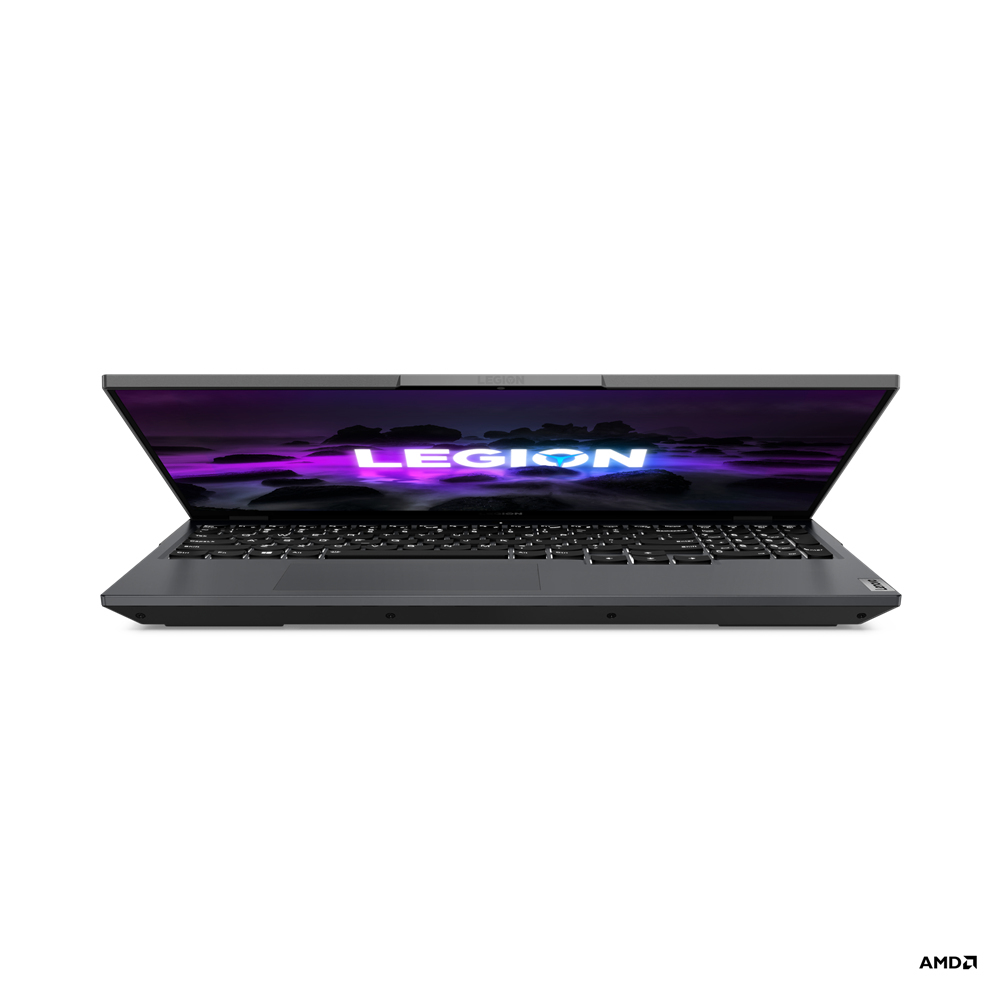

Lenovo Legion 5 Pro 16ACH6

Legion 5 Pro 16ACH6

Model Legion 5 Pro 16ACH6Part no. 82JS005ERMEAN 195891274842

103 specifications Checked today

Display40.6 cm (16")
Resolution2560 x 1600 pixels
ProcessorAMD Ryzen™ 5
Memory16 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 3050 Ti

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2560 x 1600 pixels
Processor: AMD Ryzen™ 5
Memory: 16 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 3050 Ti

Brand: Lenovo
Category: Laptop
Model: Legion 5 Pro 16ACH6
Part numbers: 82JS005ERM, 82JS0066YA, 82JS000KHV, 82JS000HHV, 82JS005JHV, 82JS000CGE +19 more
EAN / UPC: 195891274842, 195891395219, 195891395226, 195891395202 +17 more
Also known as: Lenovo Legion 5 Pro 16ACH6 AMD Ryzen™ 5 5600H Laptop 40.6 cm (16") WQXGA 16 GB DDR4-SDRAM 1 TB SSD NVIDIA GeForce RTX 3050 Ti Wi-Fi 6 (802.11ax) Windows 10 Pro

Specifications

103 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black, Grey
Form factor	Clamshell
Housing material	Aluminium

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Display brightness	500 cd/m²
Colour gamut	100%
RGB colour space	sRGB
Maximum refresh rate	165 Hz
Contrast ratio (typical)	1200:1
High Dynamic Range (HDR) technology	Dolby Vision, High Dynamic Range (HDR) 400

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 5
Processor generation	AMD Ryzen 5000 Series
Processor model	5600H
Processor cores	6
Processor boost frequency	4.2 GHz
Processor frequency	3.3 GHz
Processor cache	16 MB

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	SO-DIMM
Memory slots	2x SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	NVMe, PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 3050 Ti
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR6
On-board graphics card model	AMD Radeon Graphics

Audio

Specification	Value
Audio chip	Realtek ALC3306
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Operating system language	German

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	80 Wh
Fast charging	Yes

Power

Specification	Value
AC adapter power	230 W
DC-in jack	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	HDD, Power on, Supervisor

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%

Certificates

Specification	Value
Certification	ENERGY STAR® 8.0 ErP Lot 3 TUV Low Blue Light RoHS compliant

Weight & dimensions

Specification	Value
Weight	2.45 kg
Width	356 mm
Depth	264.4 mm
Height (front)	2.17 cm
Height (rear)	2.69 cm
