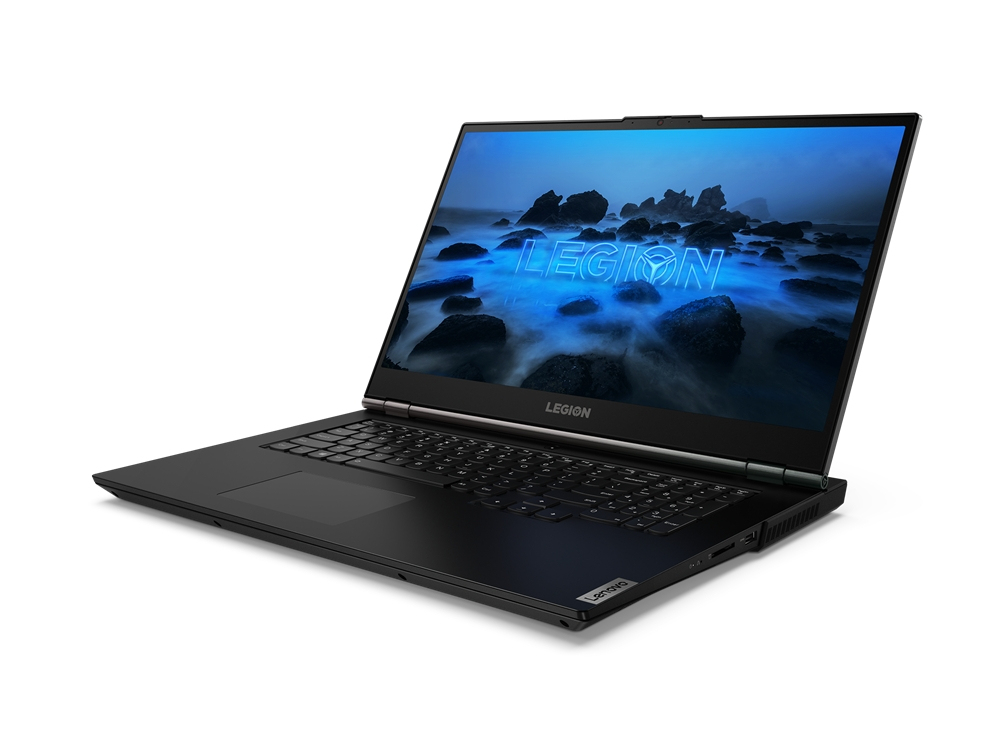

Lenovo Legion 5 17ARH05H

Legion 5 17ARH05H

Model Legion 5 17ARH05HPart no. 82GN0007GEEAN 195235900215

102 specifications Checked today

Display43.9 cm (17.3")
Resolution1920 x 1080 pixels
ProcessorAMD Ryzen™ 7
Memory16 GB
Storage512 GB
GraphicsNVIDIA® GeForce RTX™ 2060

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 1920 x 1080 pixels
Processor: AMD Ryzen™ 7
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA® GeForce RTX™ 2060

Brand: Lenovo
Category: Laptop
Model: Legion 5 17ARH05H
Part numbers: 82GN0007GE, 82GN0008GE, 82GN000RMX, 82GN0022GE, 82GN001LUK, 82GN001NUK +21 more
EAN / UPC: 195235900215, 195235900222, 195235900208, 195235900239 +21 more
Also known as: Lenovo Legion 5 17ARH05H AMD Ryzen™ 7 4800H Laptop 43.9 cm (17.3") Full HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA® GeForce RTX™ 2060 Wi-Fi 6 (802.11ax) Windows 10 H

Specifications

102 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Gaming
Original brand name	Lenovo

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	300 cd/m²
Colour gamut	72%
Display diagonal (metric)	43.9 cm
RGB colour space	NTSC
Maximum refresh rate	144 Hz

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7
Processor generation	AMD Ryzen 4000 Series
Processor model	4800H
Processor cores	8
Processor boost frequency	4.2 GHz
Processor frequency	2.9 GHz
Processor cache	8 MB
Processor cache type	L3

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	M.2, NVMe, PCI Express 3.0
Optical drive type	No
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA® GeForce RTX™ 2060
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6
On-board graphics card family	AMD Radeon
On-board graphics card model	AMD Radeon Graphics

Audio

Specification	Value
Audio chip	Realtek ALC3287
Number of built-in speakers	2
Speakers manufacturer	Harman Kardon
Speaker power	4 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Motherboard chipset	AMD SoC

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Operating system language	German
Trial software	Office

Battery

Specification	Value
Battery capacity	80 Wh
Battery life (max)	6.1 h

Power

Specification	Value
AC adapter power	230 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	No
Trusted Platform Module (TPM)	Yes

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	ErP

Weight & dimensions

Specification	Value
Weight	2.98 kg
Width	398.6 mm
Depth	290 mm
Height (front)	2.43 cm
Height (rear)	2.62 cm

Packaging content

Specification	Value
Cables included	AC
