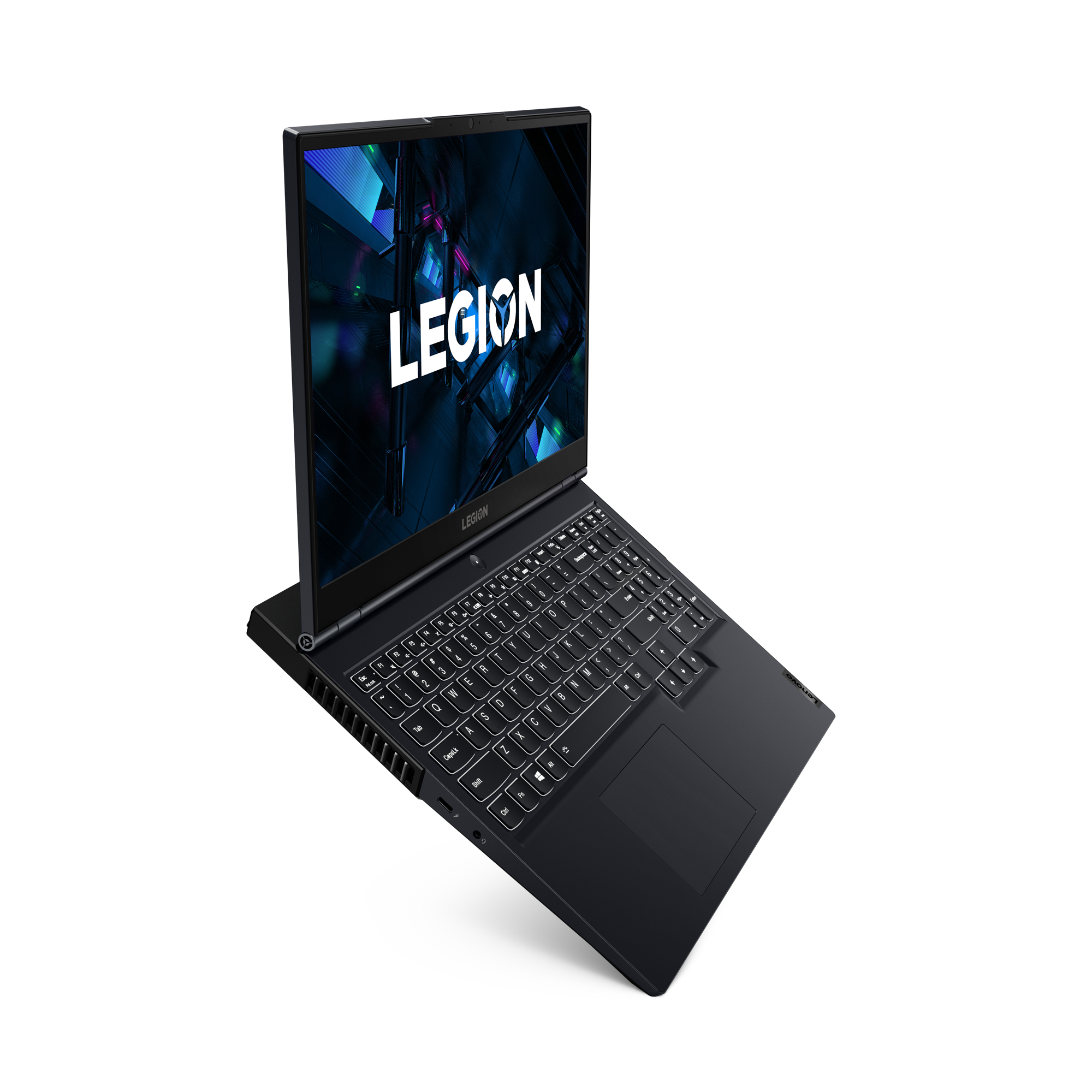

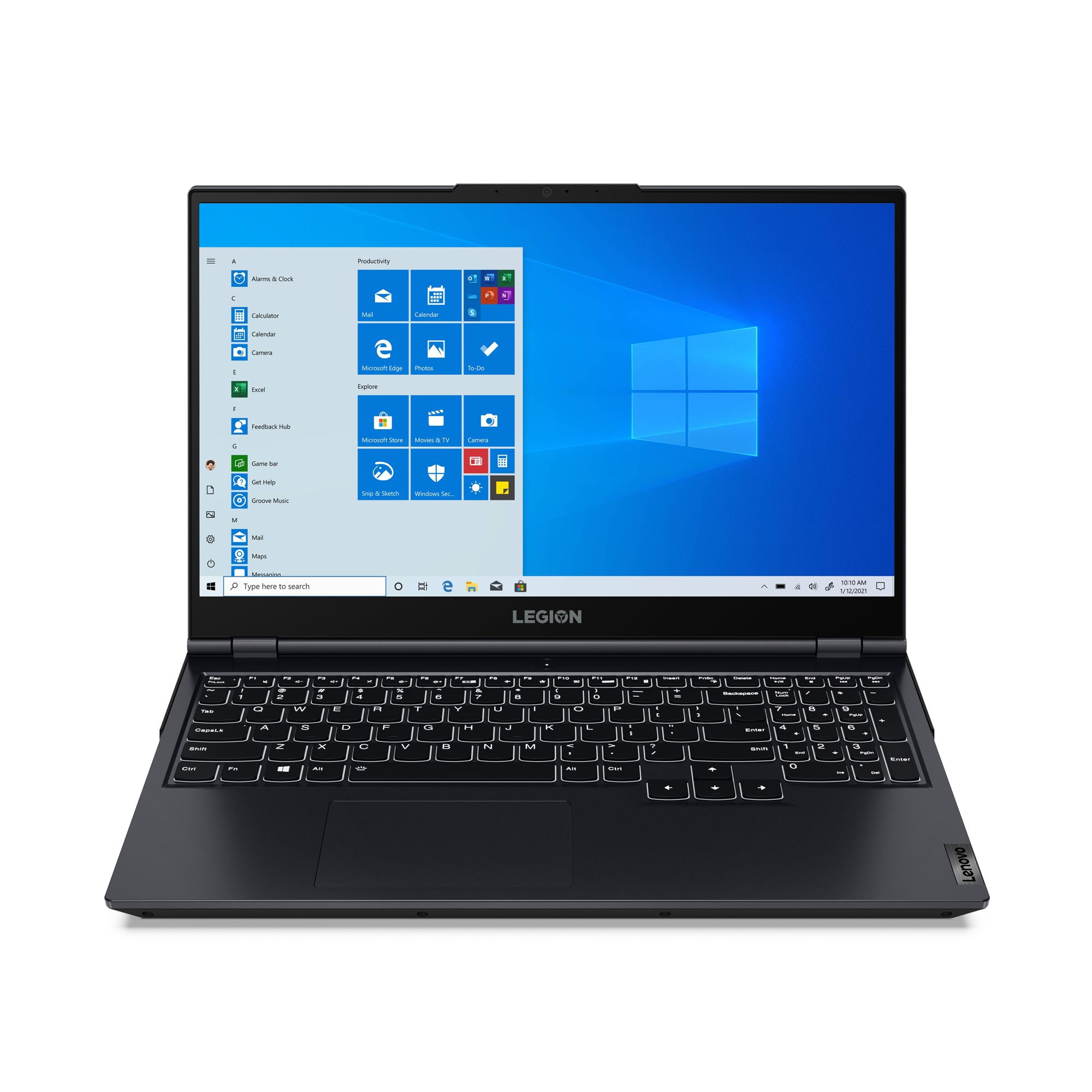

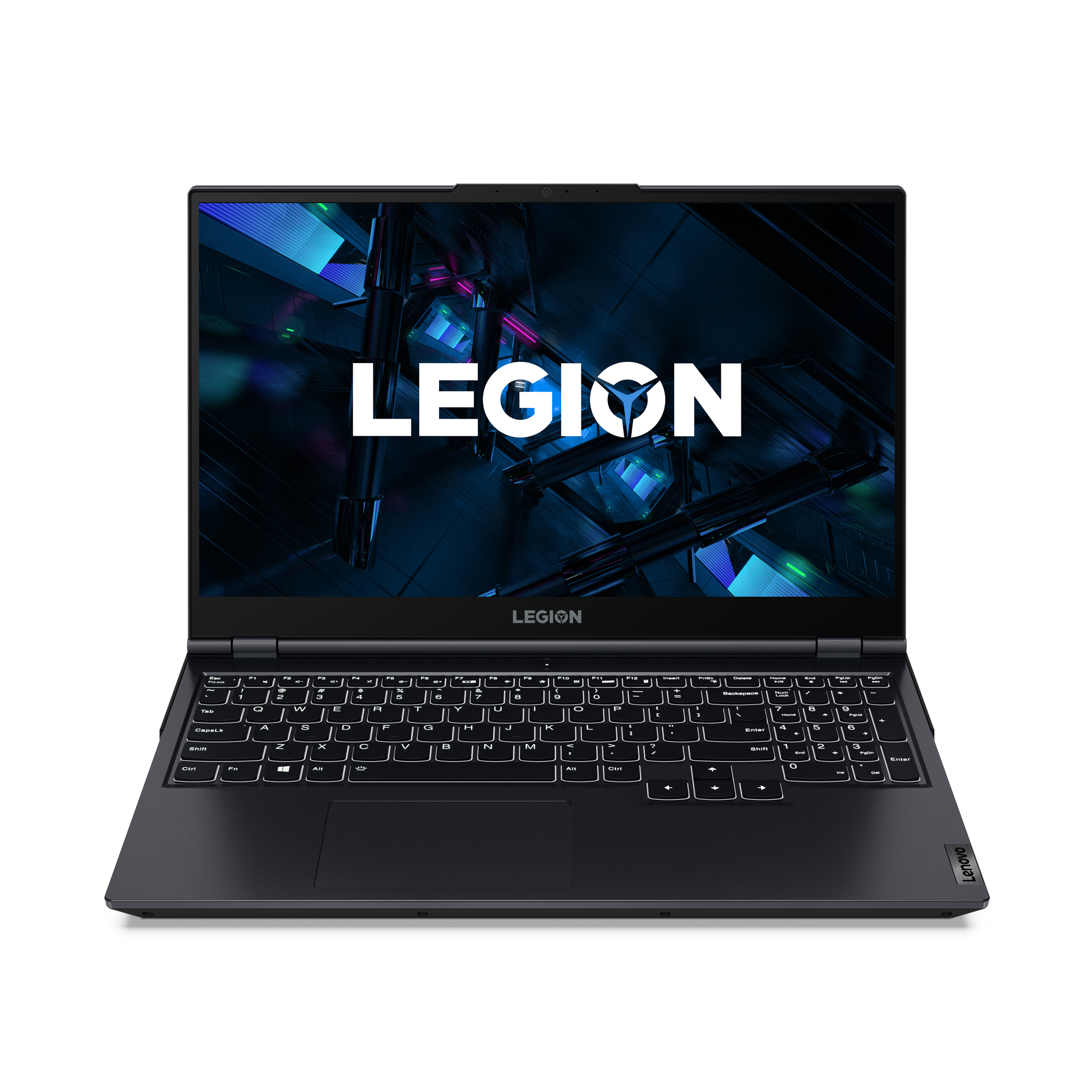

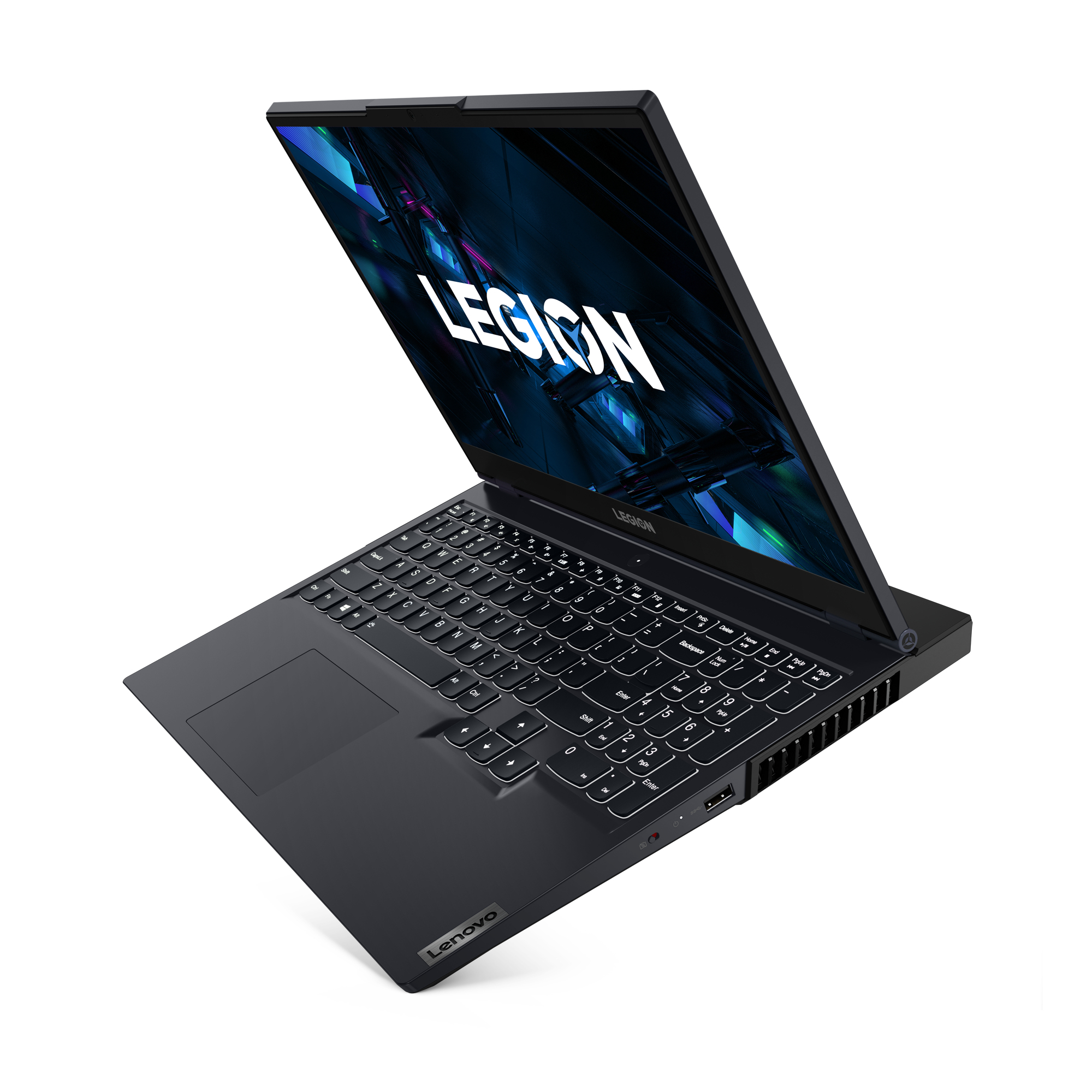

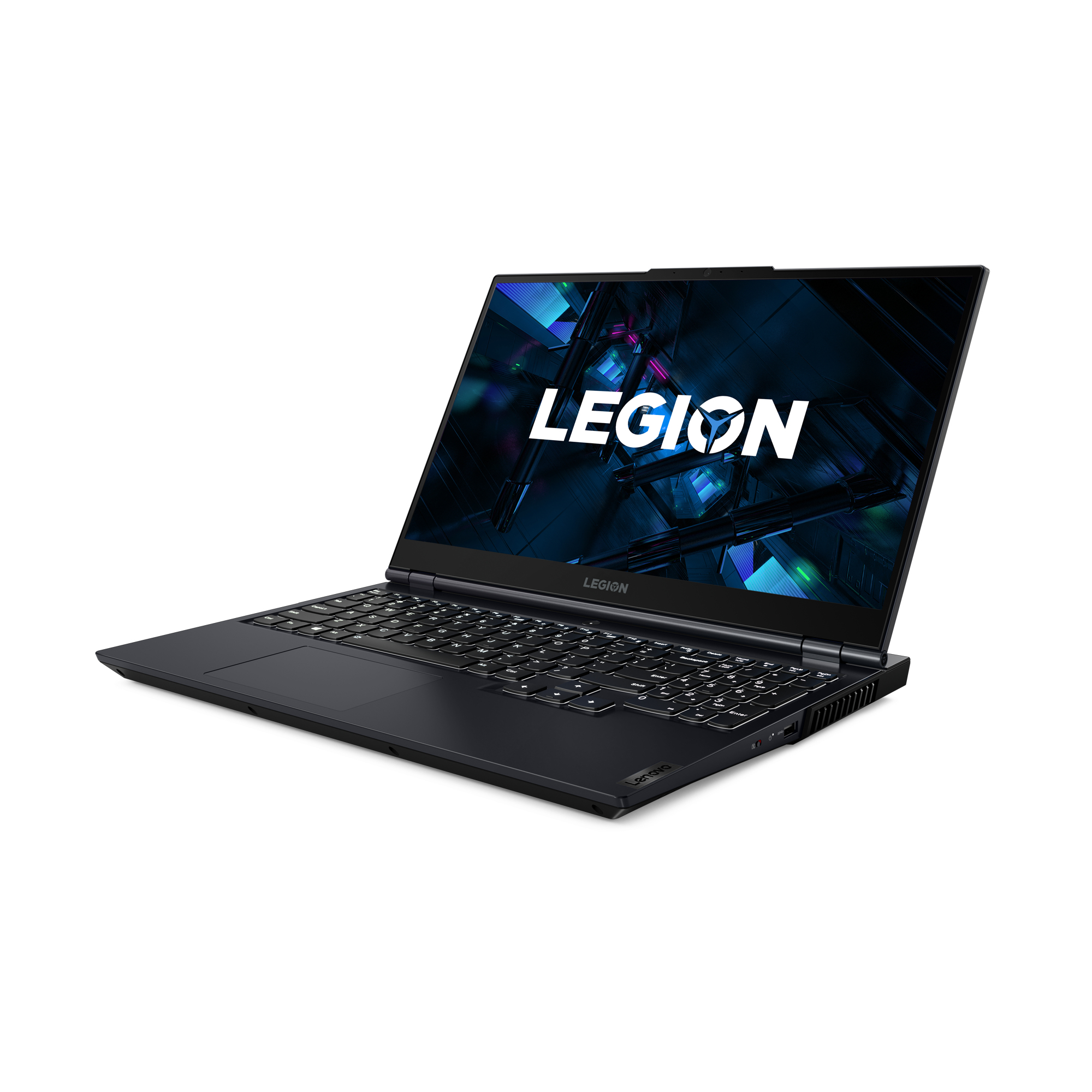

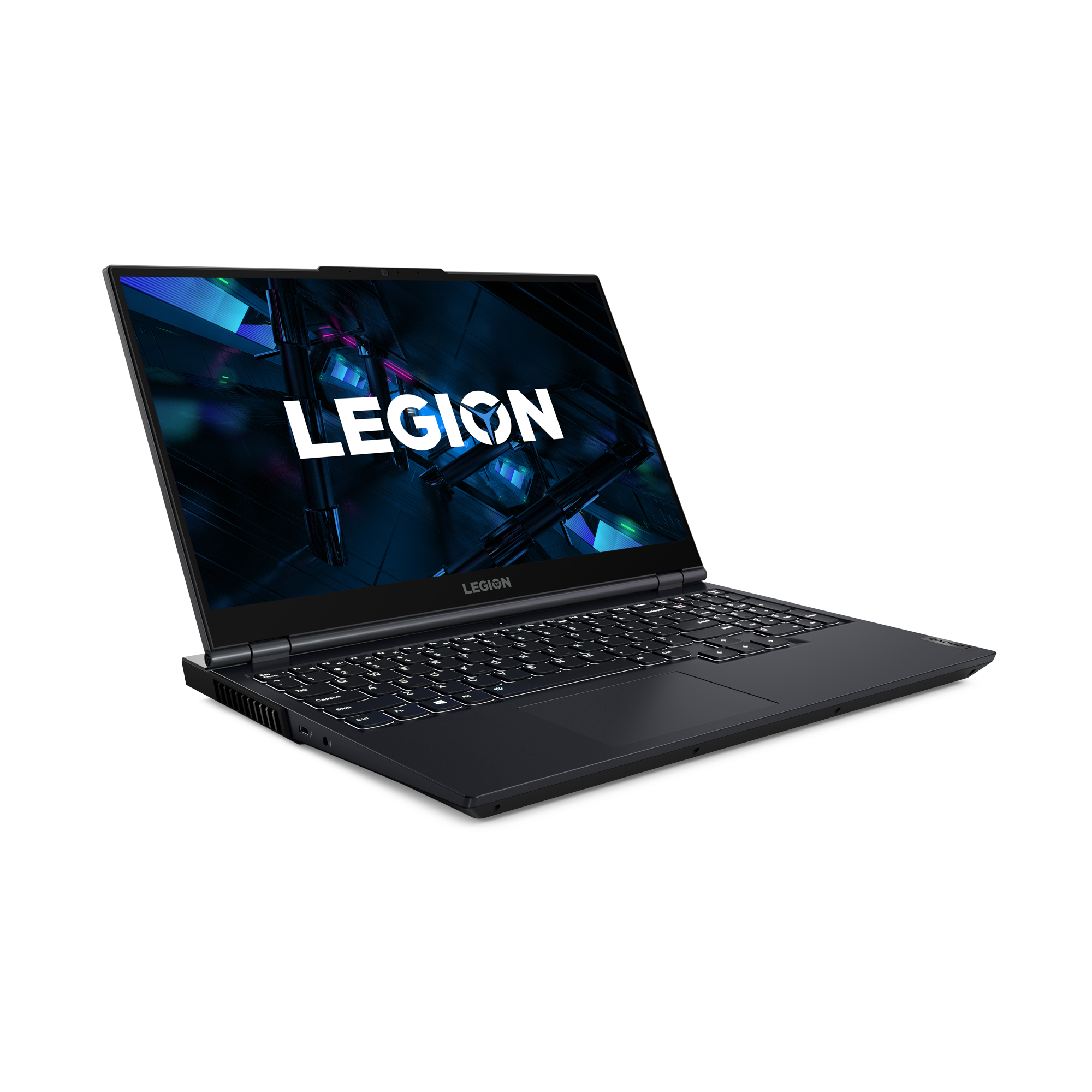

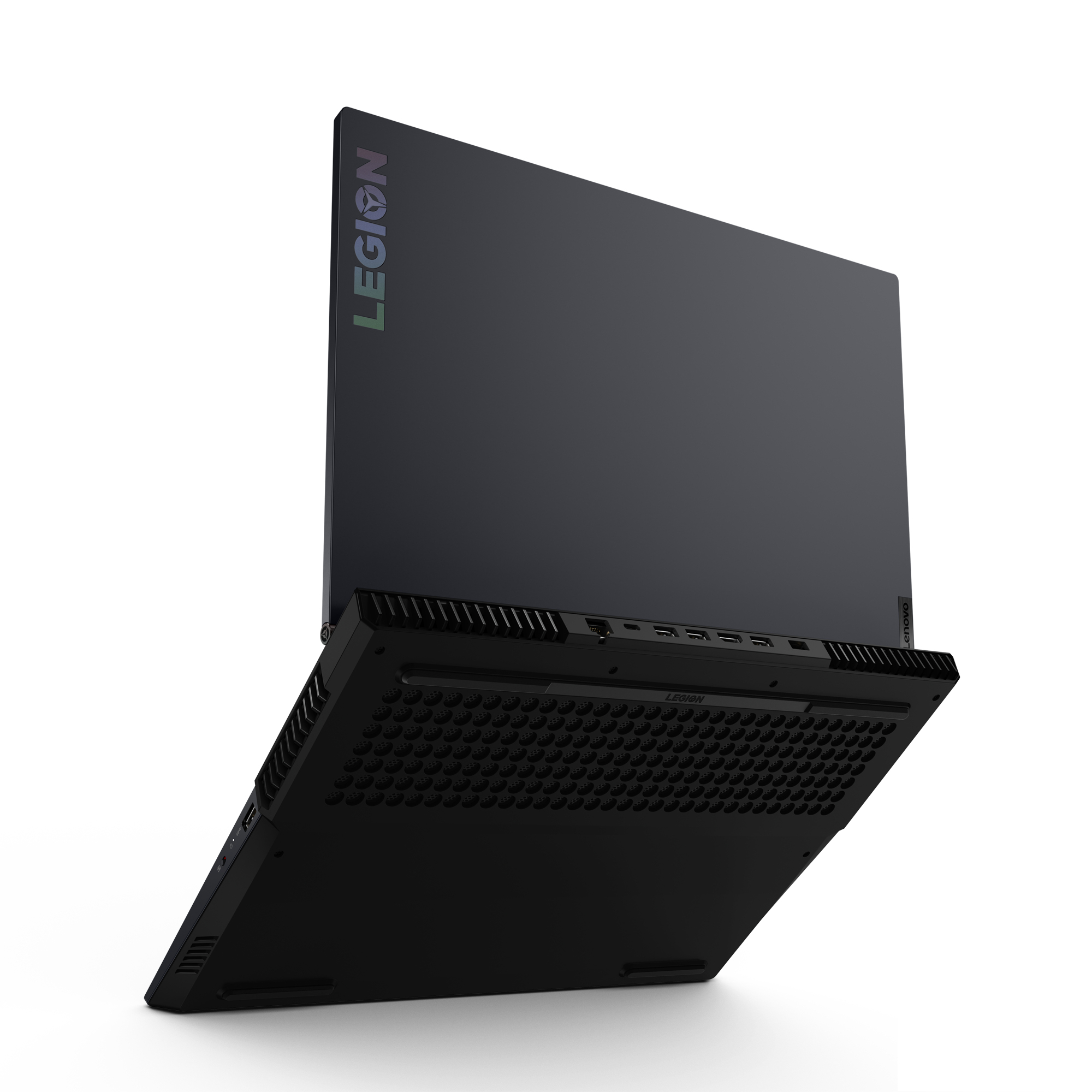

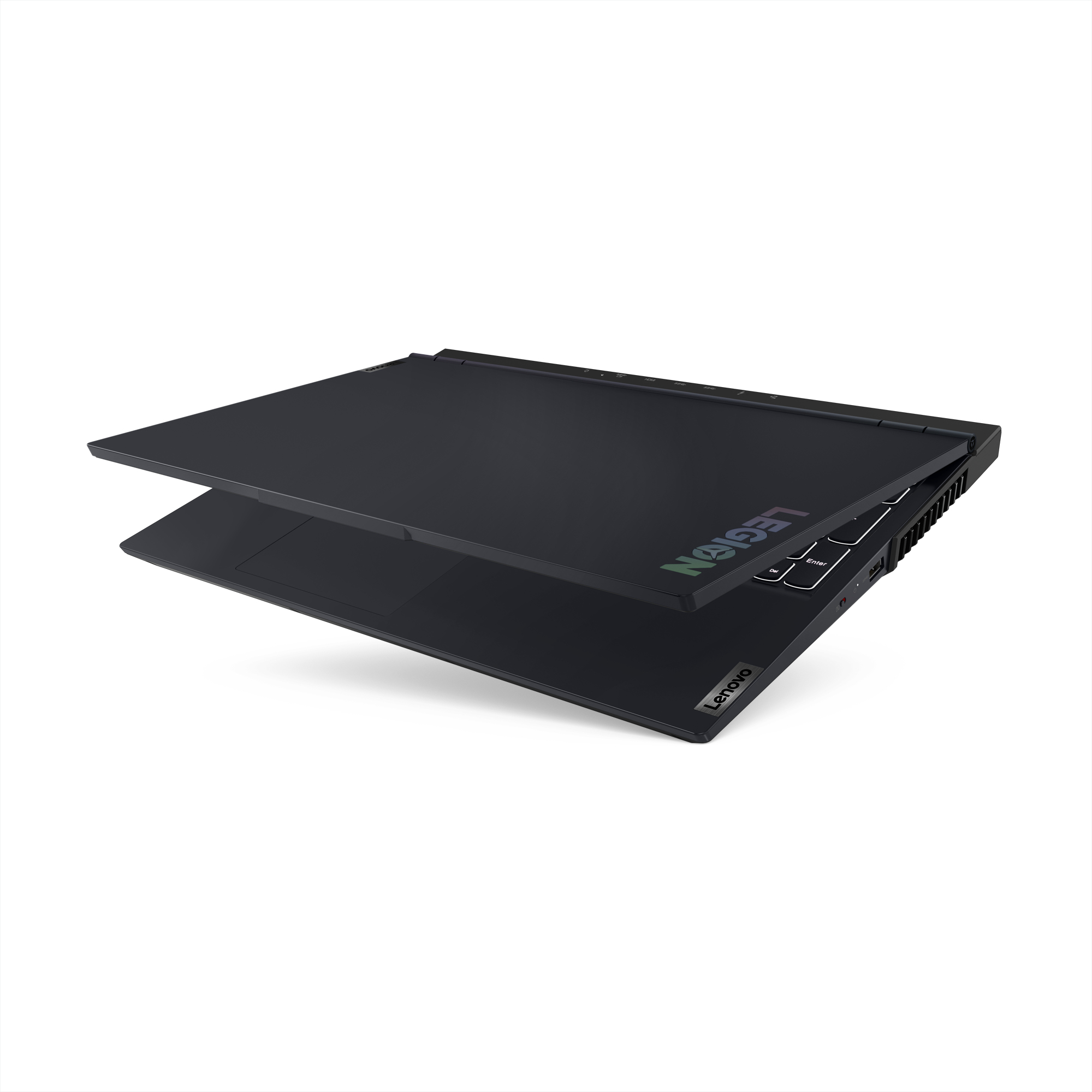

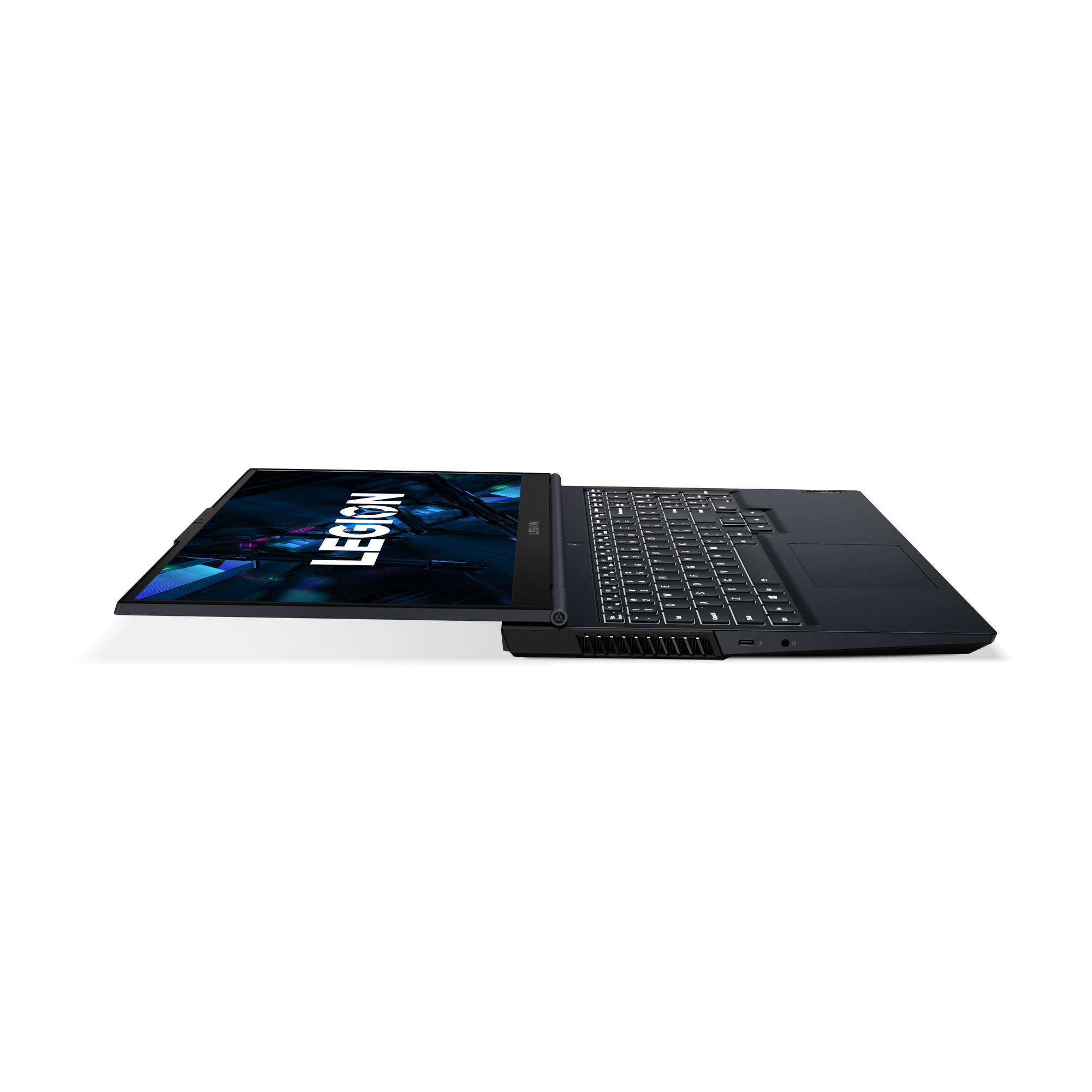

Lenovo Legion 5 15ITH6

Legion 5 15ITH6

Model Legion 5 15ITH6Part no. 82JK005GPBEAN 195713805506

97 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
GraphicsNVIDIA GeForce RTX 3050

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA GeForce RTX 3050

Brand: Lenovo
Category: Laptop
Model: Legion 5 15ITH6
Part numbers: 82JK005GPB, 82JK00BEIN, 82JK00LYIN, 82JK00M0CL, 82JK00MFCL, 82JK00F6UE +34 more
EAN / UPC: 195713805506, 196118472188, 196801562929, 196801820616 +56 more
Also known as: Lenovo Legion 5 15ITH6 Intel® Core™ i7 i7-11800H Laptop 39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA GeForce RTX 3050 Wi-Fi 6 (802.11ax) Windows 1

Specifications

97 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Phantom Blue (Top), Shadow Black (Bottom)
Form factor	Clamshell
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	250 cd/m²
Colour gamut	45%
RGB colour space	NTSC
Maximum refresh rate	120 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor model	i7-11800H
Processor cores	8
Processor threads	16
Processor boost frequency	4.6 GHz
Processor frequency	2.3 GHz

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 3050
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR6

Audio

Specification	Value
Audio chip	Realtek ALC3306
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1
WWAN	Not installed

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes

Performance

Specification	Value
Motherboard chipset	Intel HM570

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	White

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system language	English
Bundled software	Office Home & Student 2021

Battery

Specification	Value
Battery capacity	60 Wh

Power

Specification	Value
AC adapter power	230 W
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	No
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Certificates

Specification	Value
Certification	RoHS

Weight & dimensions

Specification	Value
Weight	2.4 kg
Width	362.6 mm
Depth	260.6 mm
Height (front)	2.25 cm
Height (rear)	2.58 cm

Packaging content

Specification	Value
AC adapter included	Yes
