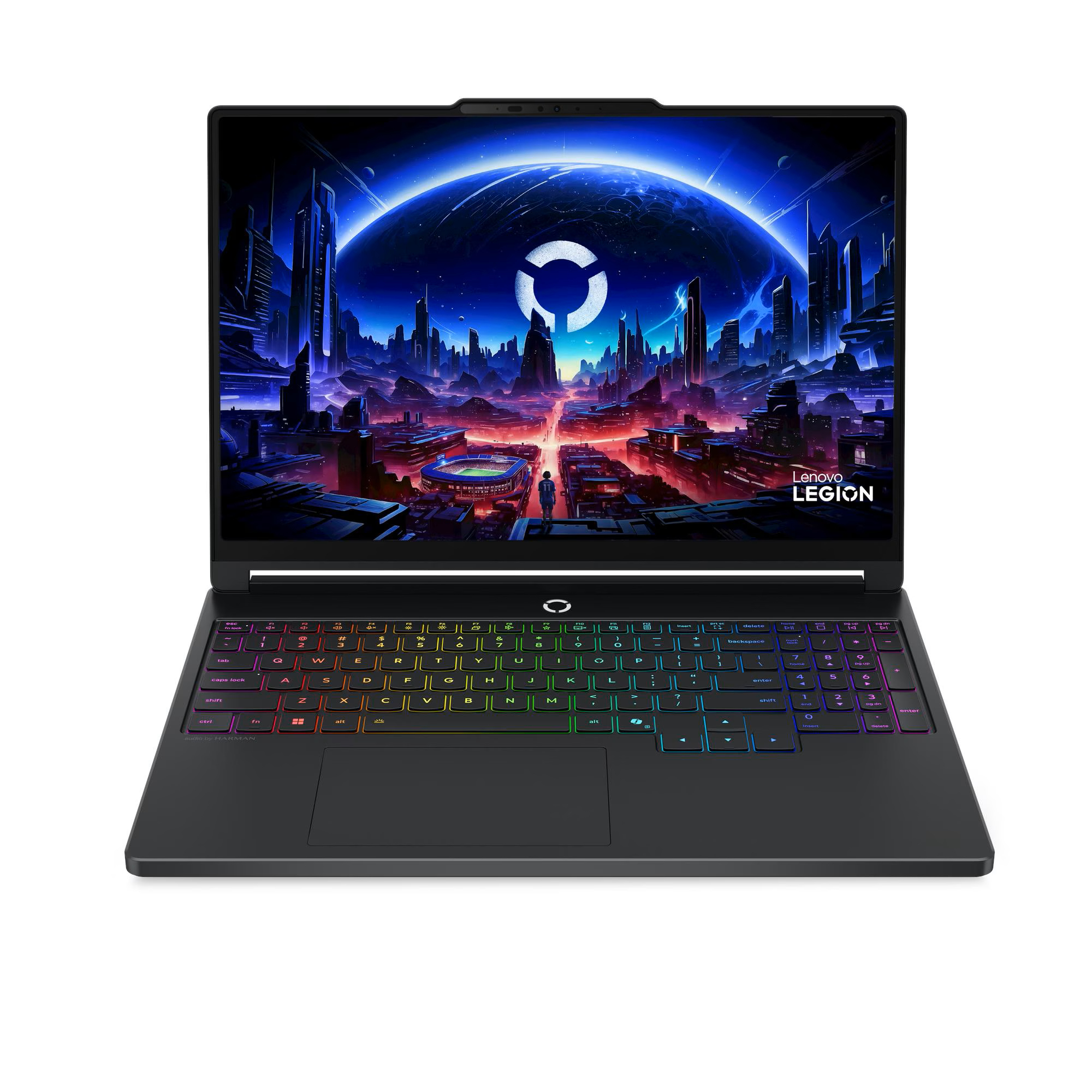

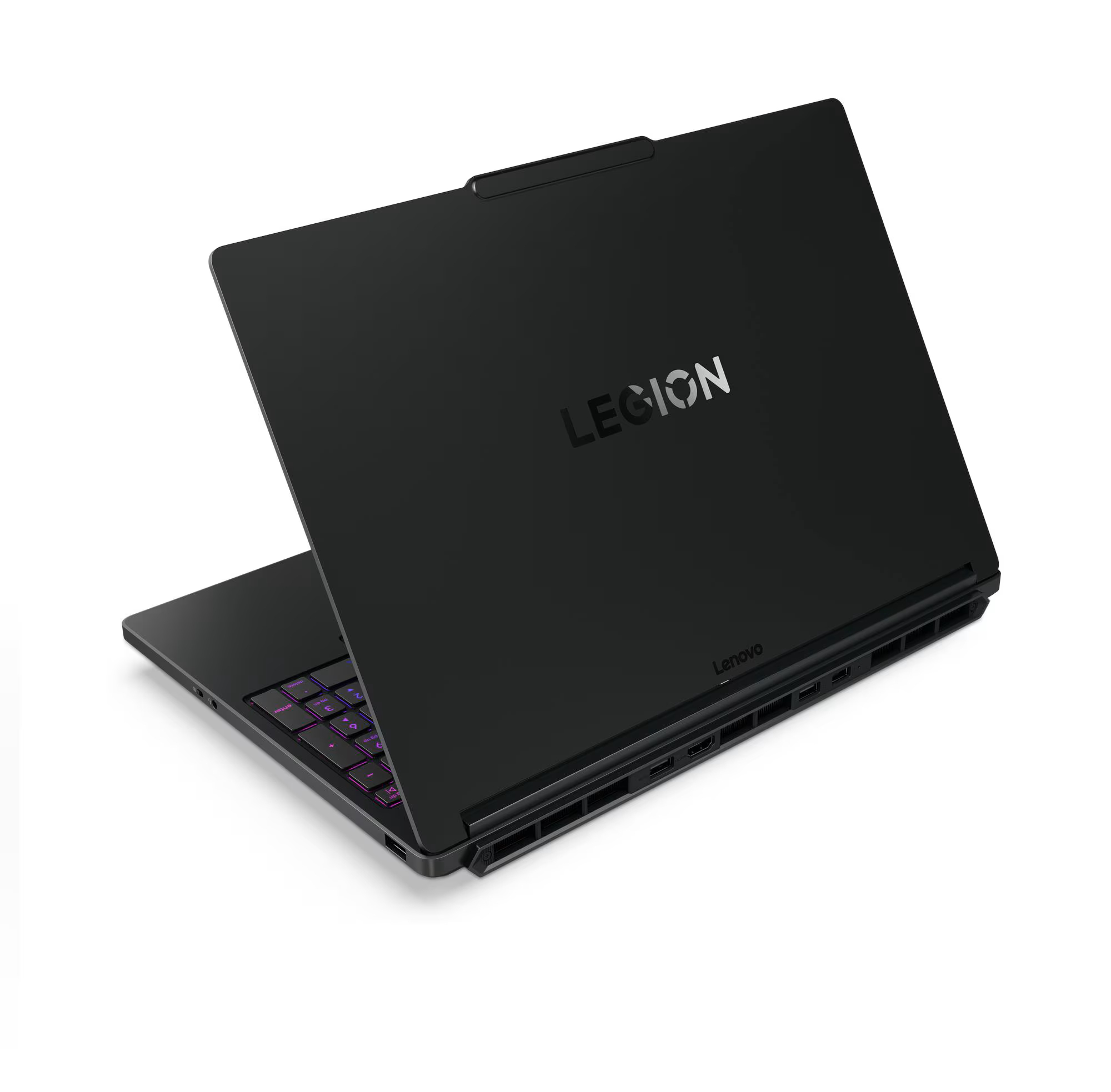

Lenovo Legion 5 15IPH11

Legion 5 15IPH11

Model Legion 5 15IPH11Part no. 83RW0020HVEAN 199274848613

142 specifications Checked today

Display38.9 cm (15.3")
Resolution2560 x 1600 pixels
ProcessorIntel Core Ultra 7
Memory32 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 5060

See all specifications

Overview

Display: 38.9 cm (15.3")
Resolution: 2560 x 1600 pixels
Processor: Intel Core Ultra 7
Memory: 32 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 5060

Brand: Lenovo
Category: Laptop
Model: Legion 5 15IPH11
Part numbers: 83RW0020HV, 83RW001WRM, 83RW001HHV, 83RW001JHV, 83RW0022HV, 83RW001KHV +4 more
EAN / UPC: 199274848613, 199274533748, 199274418434, 199274418441 +6 more
Also known as: Lenovo Legion 5 15IPH11 Intel Core Ultra 7 356H Laptop 38.9 cm (15.3") WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5060 Wi-Fi 7 (802.11be) Black English

Specifications

142 specifications in 21 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Eclipse Black
Form factor	Clamshell
Display back cover material	Aluminium
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Certified refurbished	No

Display

Specification	Value
Display diagonal	38.9 cm (15.3")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	OLED
LED backlight	Yes
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	1000 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	165 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel® Core™ Ultra (Series 3)
Processor model	356H
Processor cores	16
Processor threads	16
Processor boost frequency	4.7 GHz
Performance cores	4
Efficient cores	8
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	4.7 GHz
Efficient-core Max Turbo Frequency	3.7 GHz
Low Power Efficient-core Max Turbo Frequency	3.3 GHz
Performance-core base frequency	1.9 GHz
Efficient-core base frequency	1.5 GHz
Low Power Efficient-core Base Frequency	1500 MHz
Processor cache	18 MB
Maximum turbo power	80 W
Processor base power	25 W

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
NPU performance up to	50 TOPs
GPU performance up to	40 TOPs

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
M.2 SSD size	2242 (22 x 42 mm)
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 5060
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics

Audio

Specification	Value
Audio chip	Realtek ALC3287
Audio system	Nahimic Audio
Number of built-in speakers	2
Speakers manufacturer	Harman Kardon
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	5 MP
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.4
WWAN	Not installed

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Motherboard chipset	Intel SoC

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB
Keyboard backlit zone	1-zone RGB
Keyboard language	English

Software

Specification	Value
Operating system installed	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	80 Wh
Battery life (max)	13 h
Continuous video playback time (max)	13.5 h
Fast charging	Yes
Fast charging time (50%)	30 min

Power

Specification	Value
AC adapter power	245 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Type-C required charging power (max)	100 W
USB Type-C required charging power (min)	65 W
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	No
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	ErP Lot 6/26 TÜV Rheinland® Flicker Free TÜV Rheinland® High Gaming Performance TÜV Rheinland® Low Blue Light (Hardware Solution)

Weight & dimensions

Specification	Value
Weight	1.87 kg
Width	344 mm
Depth	244.5 mm
Height (front)	1.9 cm
Height (rear)	2 cm

Packaging content

Specification	Value
AC adapter included	Yes
