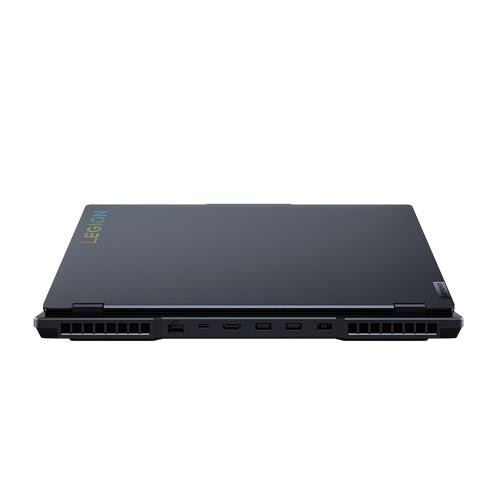

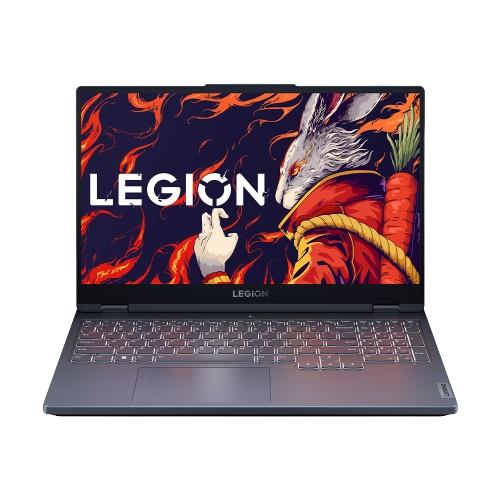

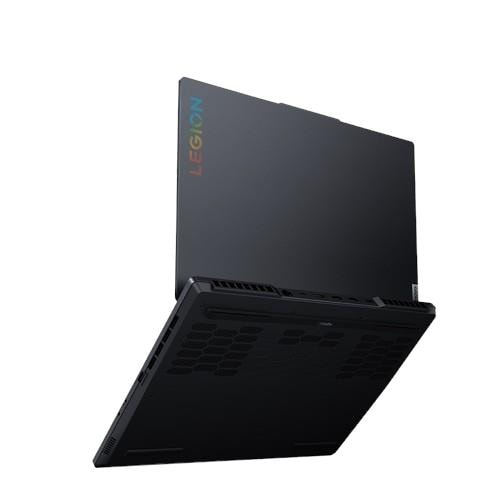

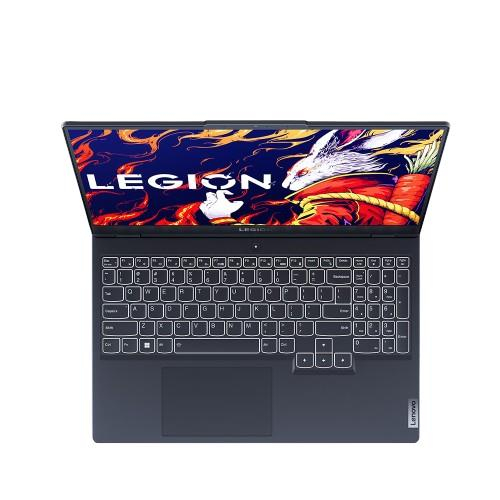

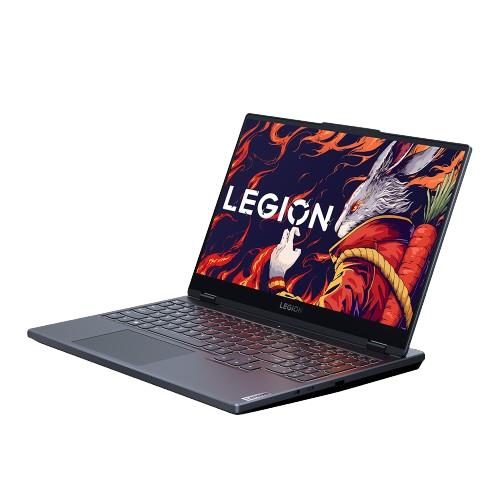

Legion 5 15APH9
Model Legion 5 15APH9Part no. 83EG0001USEAN 198153713431
129 specifications Checked today
- Display39.6 cm (15.6")
- Resolution1920 x 1080 pixels
- ProcessorAMD Ryzen™ 7
- Memory16 GB
- Storage512 GB
- GraphicsNVIDIA GeForce RTX 4060
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 1920 x 1080 pixels
- Processor
- AMD Ryzen™ 7
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- NVIDIA GeForce RTX 4060
- Brand
- Lenovo
- Category
- Laptop
- Model
- Legion 5 15APH9
- Part number
- 83EG0001US
- EAN / UPC
- 198153713431
- Also known as
- Lenovo Legion 5 15APH9 AMD Ryzen™ 7 7840HS Laptop 39.6 cm (15.6") Full HD 16 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 4060 Wi-Fi 6 (802.11ax) Windows 11 Home
Specifications
129 specifications in 21 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Grey |
| Colour name | Storm grey |
| Form factor | Clamshell |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
| Market positioning | Gaming |
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Display brightness | 300 cd/m² |
| Colour gamut | 100% |
| RGB colour space | sRGB |
| Maximum refresh rate | 144 Hz |
| Contrast ratio (typical) | 1000:1 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Processor generation | AMD Ryzen 7000 Series |
| Processor model | 7840HS |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 5.1 GHz |
| Processor frequency | 3.8 GHz |
| L3 cache | 16 MB |
| L2 cache | 8 MB |
| Maximum turbo power | 54 W |
| Processor base power | 35 W |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Neural processor unit (NPU) | AMD Ryzen AI |
| GPU performance up to | 10 TOPs |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5600 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 16 GB |
| Memory channels | Single-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| M.2 SSD size | 2242 (22 x 42 mm) |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 4060 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| On-board GPU manufacturer | AMD |
| On-board graphics card family | AMD Radeon |
| On-board graphics card model | AMD Radeon 780M |
| AMD FreeSync | Yes |
| NVIDIA G-SYNC | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3287 |
| Audio system | Nahimic Audio |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera HD type | HD |
| Front camera resolution | 1280 x 720 pixels |
| Privacy camera | Yes |
Network
| Specification | Value |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| WWAN | Not installed |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | AMD SoC |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Keyboard backlit colour | White |
| Keyboard language | US English |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Operating system language | English |
| Bundled software | Office Trial |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 60 Wh |
| Battery life (max) | 4.26 h |
| Continuous video playback time (max) | 8 h |
| Fast charging | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter power | 230 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Type-C charging port | Yes |
| USB Power Delivery (USB PD) | Yes |
Security
| Specification | Value |
|---|---|
| Fingerprint reader | No |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | BIOS, Power on |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Maximum shipping altitude | 3048 m |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.32 kg |
| Width | 358.8 mm |
| Depth | 261.4 mm |
| Height (front) | 2.05 cm |
| Height (rear) | 2.46 cm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
