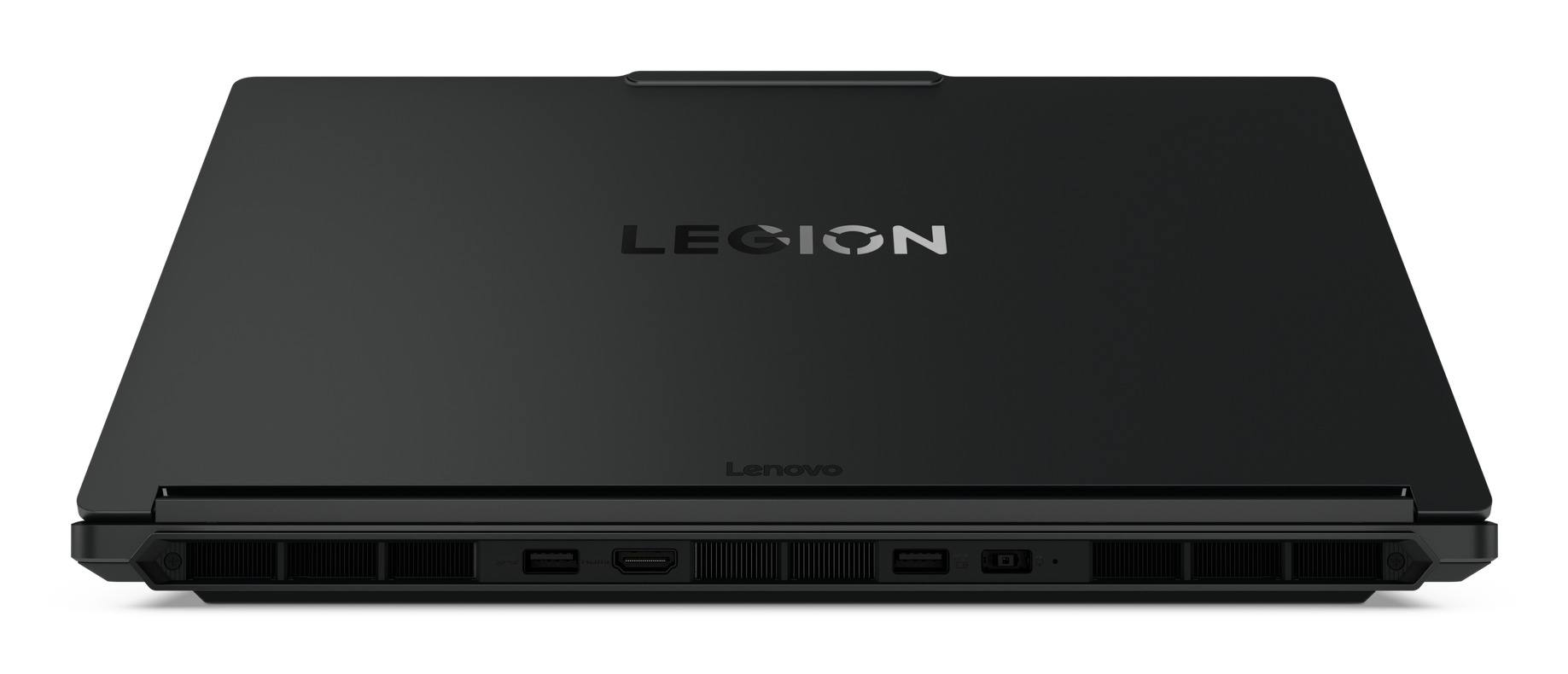

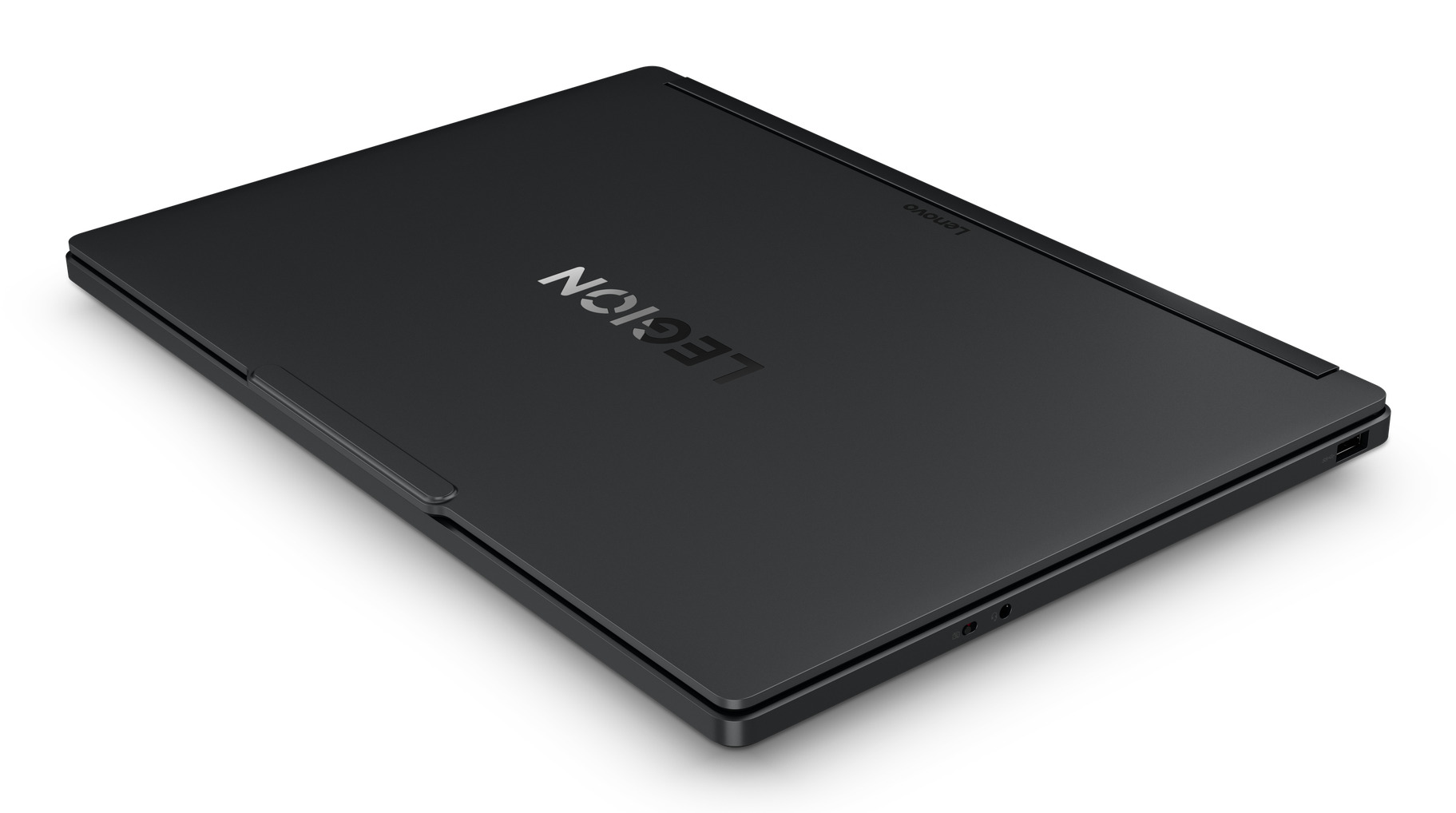

Lenovo Legion 5 15AHP11

Legion 5 15AHP11

Model Legion 5 15AHP11Part no. 83Q7004FSPEAN 199275567803

142 specifications Checked today

Display38.9 cm (15.3")
Resolution2560 x 1600 pixels
ProcessorAMD Ryzen™ 7
Memory16 GB
Storage512 GB
GraphicsNVIDIA GeForce RTX 5060

See all specifications

Overview

Display: 38.9 cm (15.3")
Resolution: 2560 x 1600 pixels
Processor: AMD Ryzen™ 7
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA GeForce RTX 5060

Brand: Lenovo
Category: Laptop
Model: Legion 5 15AHP11
Part numbers: 83Q7004FSP, 83Q70020HV, 83Q7001YHV, 83Q7000CMH, 83Q7003AMH, 83Q7002WFR +34 more
EAN / UPC: 199275567803, 199274418229, 199274418212, 199273637201 +56 more
Also known as: Lenovo Legion 5 15AHP11 AMD Ryzen™ 7 250 Laptop 38.9 cm (15.3") WQXGA 16 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 5060 Wi-Fi 7 (802.11be) Black Hungarian

Specifications

142 specifications in 22 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Eclipse black
Form factor	Clamshell
Display back cover material	Aluminium
Housing material	Aluminium, Polycarbonate (PC), ABS synthetics
Market positioning	Gaming
Certified refurbished	No

Display

Specification	Value
Display diagonal	38.9 cm (15.3")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	OLED
LED backlight	Yes
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	1000 cd/m²
Maximum display brightness (HDR)	1000 cd/m²
Standard Dynamic Range (SDR) brightness	500 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	165 Hz
Contrast ratio (typical)	1000000:1
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	DisplayHDR True Black 1000

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7
Processor generation	AMD Ryzen 200 Series
Processor model	250
Processor cores	8
Processor threads	16
Processor boost frequency	5.1 GHz
Processor frequency	3.3 GHz
Processor cache type	L2 & L3
L3 cache	16 MB
L2 cache	8 MB
Processor base power	28 W

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	AMD Ryzen AI
Total processor performance up to	38 TOPs
NPU performance up to	16 TOPs

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD memory type	TLC
NVMe	Yes
SSD interface	PCI Express 4.0
M.2 SSD size	2242 (22 x 42 mm)
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 5060
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	AMD
On-board graphics card family	AMD Radeon
On-board graphics card model	AMD Radeon 780M
NVIDIA G-SYNC	Yes

Audio

Specification	Value
Audio chip	Realtek ALC3287
Audio system	Nahimic Audio
Number of built-in speakers	2
Speakers manufacturer	Harman Kardon
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.4
WWAN	Not installed

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB4 Gen 2x2 ports quantity	2
USB4 Gen 3x2 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Motherboard chipset	AMD SoC

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB
Keyboard backlit zone	1-zone RGB
Keyboard language	Hungarian
Copilot key	Yes

Software

Specification	Value
Operating system installed	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	80 Wh
Battery life (max)	10.2 h
Continuous video playback time (max)	12.1 h
Fast charging	Yes
Fast charging time (50%)	30 min

Power

Specification	Value
AC adapter power	245 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Type-C required charging power (max)	100 W
USB Type-C required charging power (min)	65 W
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	No
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, Power on, Supervisor

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	ErP Lot 6/26 TÜV Rheinland Flicker Free TÜV Rheinland High Gaming Performance TÜV Rheinland Low Blue Light (Hardware Solution)

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, Green Globe Gold Member

Weight & dimensions

Specification	Value
Weight	1.87 kg
Width	344 mm
Depth	244.5 mm
Height (front)	1.9 cm
Height (rear)	2 cm

Packaging content

Specification	Value
AC adapter included	Yes
