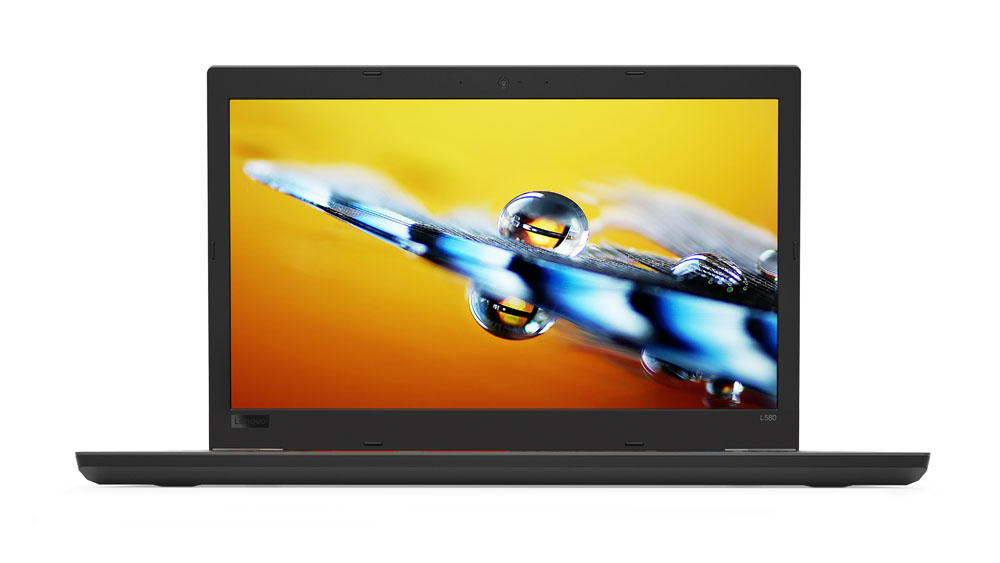

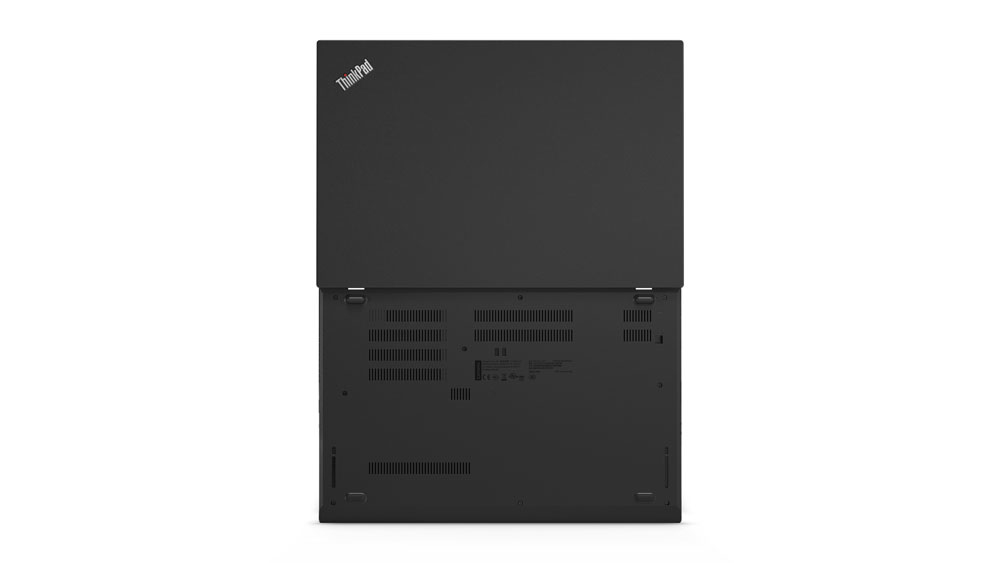

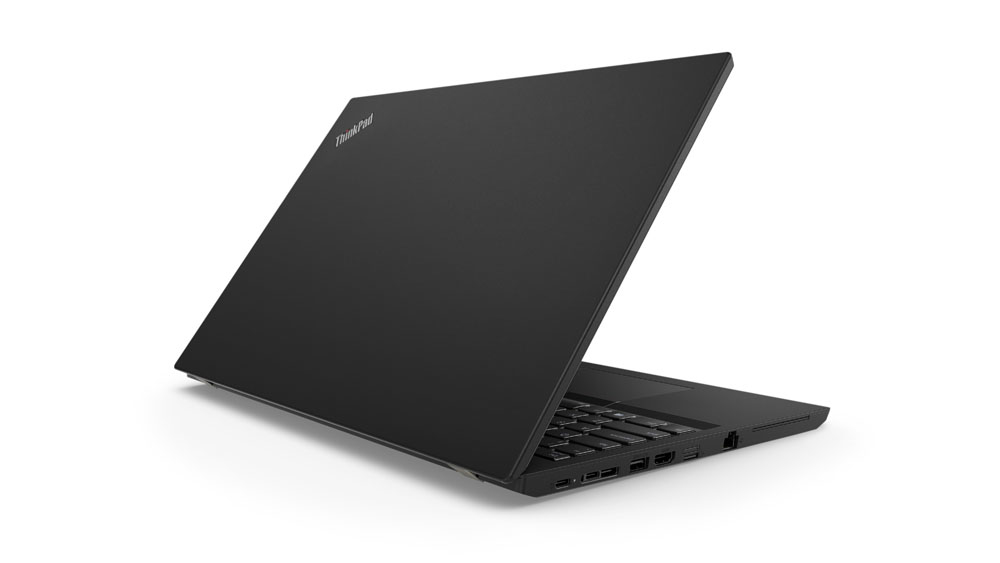

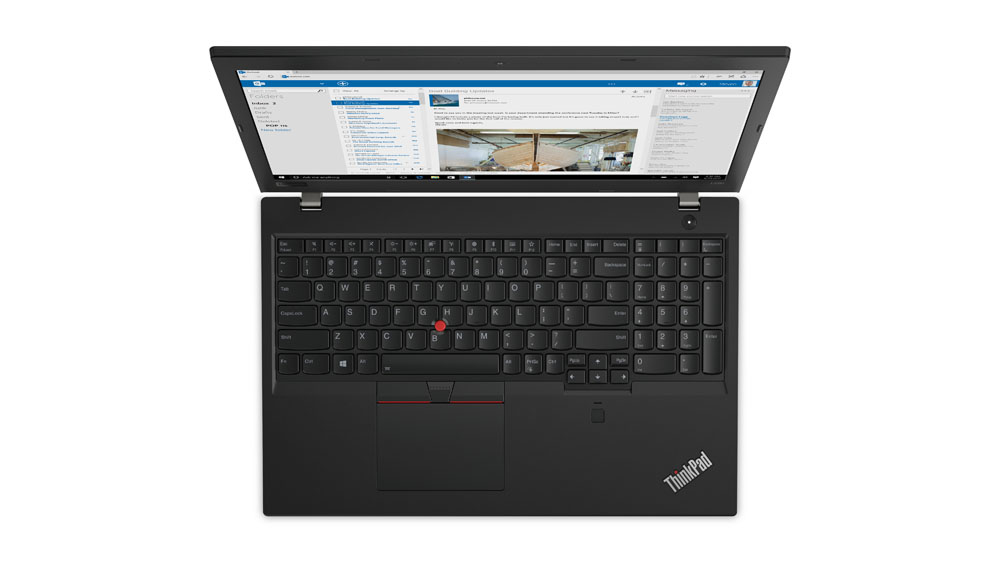

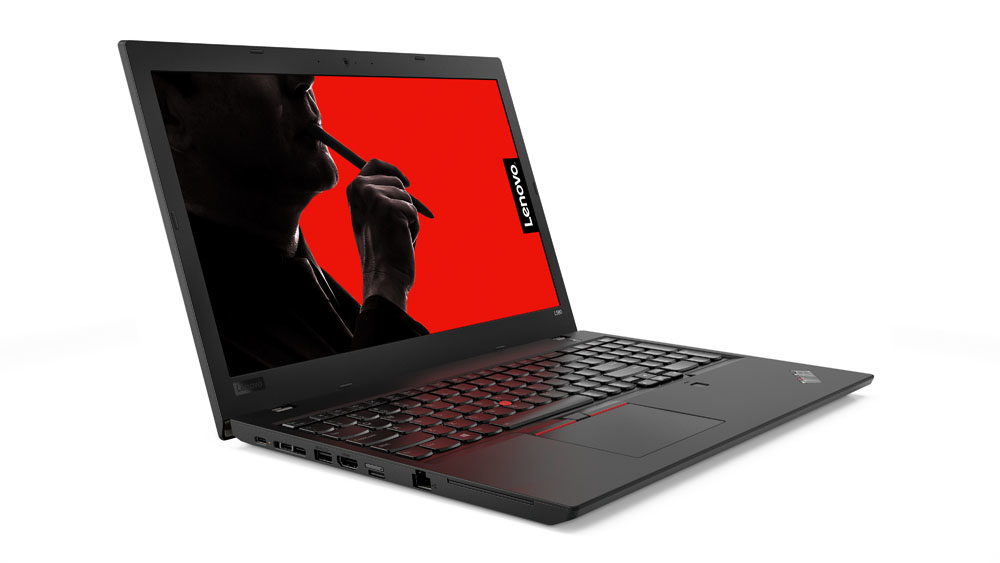

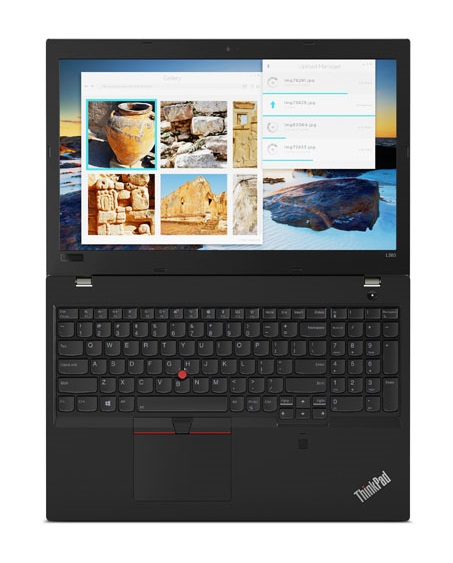

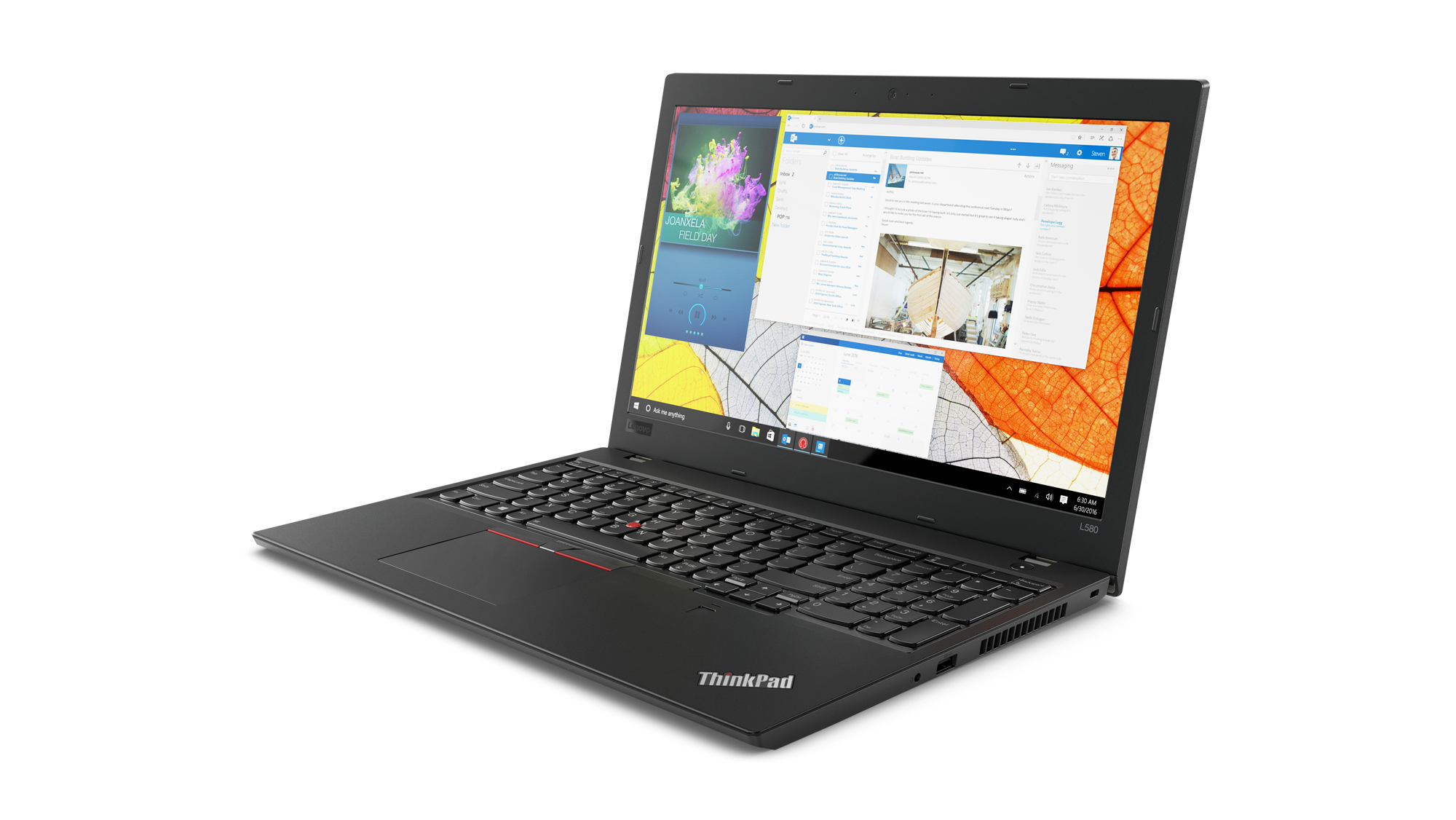

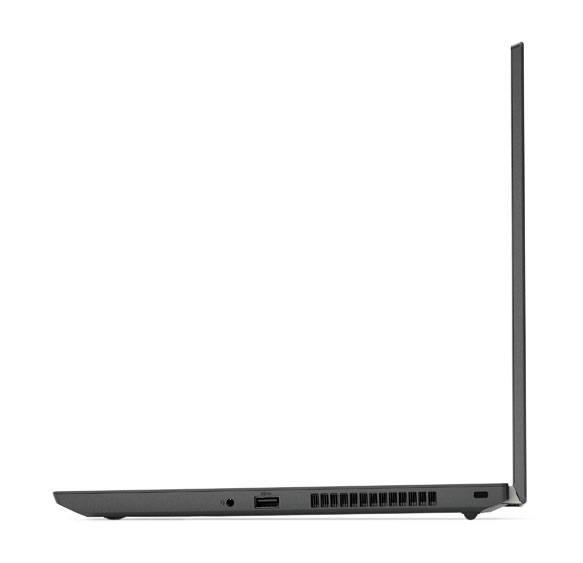

Lenovo ThinkPad L580 Intel® Core™ i5 i5-8250U Laptop

39.6 cm (15.6") HD 8 GB DDR4-SDRAM 256 GB SSD Wi-Fi 5 (802.11ac) Windows 10 Pro Black

Model L580Part no. 20LXS14000EAN 4580551089281

174 specifications Checked 2 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 256 GB
Graphics: Not available

Brand: Lenovo
Category: Laptop
Model: L580
Part numbers: 20LXS14000, 20LXS02A00, 20LXS2GB00, 20LXS0RA00, 20LXS3PN00, 20LXS3AD00 +34 more
EAN / UPC: 4580551089281, 4580551044402, 4580551091598, 192563101765 +10 more
Also known as: Lenovo ThinkPad L580 Intel® Core™ i5 i5-8250U Laptop 39.6 cm (15.6") HD 8 GB DDR4-SDRAM 256 GB SSD Wi-Fi 5 (802.11ac) Windows 10 Pro Black

Specifications

174 specifications in 23 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Housing material	Acrylonitrile butadiene styrene (ABS)
Market positioning	Business

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Touchscreen	No
HD type	HD
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt
Display brightness	220 cd/m²
Dual-screen	No
Contrast ratio (typical)	500:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	8th gen Intel® Core™ i5
Processor model	i5-8250U
Processor cores	4
Processor threads	8
Processor boost frequency	3.4 GHz
Processor frequency	1.6 GHz
System bus rate	4 GT/s
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	BGA 1356
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Kaby Lake R
Bus type	OPI
Stepping	Y0
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	1.8 GHz
Configurable TDP-up	25 W
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB
Maximum internal memory (64-bit)	32 GB

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	256 GB
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 620
Maximum on-board graphics card memory	32 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	0x5917

Audio

Specification	Value
Audio chip	Realtek ALC3287
Audio system	Dolby Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in subwoofer	No
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Front camera signal format	720p
Auto focus	No

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.1

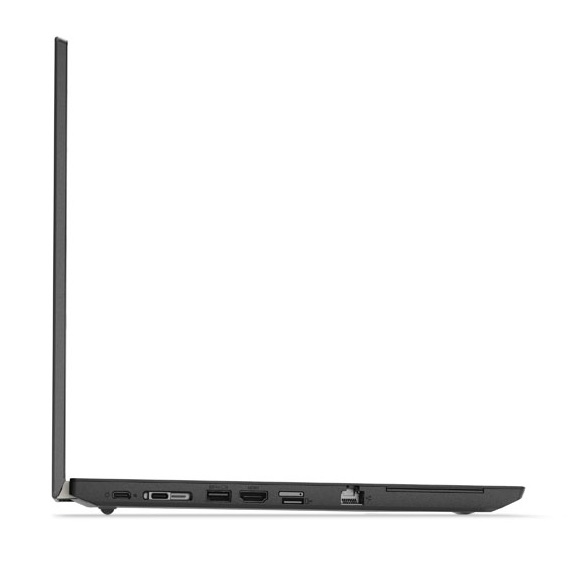

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	1.4b
DisplayPorts quantity	0
Thunderbolt 3 ports quantity	0
Headphone outputs	1
Combo headphone/mic port	Yes
Microphone in	No
Docking connector	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Motherboard chipset	Intel SoC

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Keyboard backlit	No
Numeric keypad	Yes
Spill-resistant keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	124967
Processor code	SR3LA
Processor package size	42 x 24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	45 Wh
Battery life (max)	12 h
Fast charging	Yes

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V

Security

Specification	Value
Cable lock slot	Yes
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	HDD, Power on, Supervisor

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	MIL-STD-810G

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2 kg
Width	376.5 mm
Depth	254.5 mm
Height	22.9 mm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Warranty card	Yes

Other features

Specification	Value
3D	No
