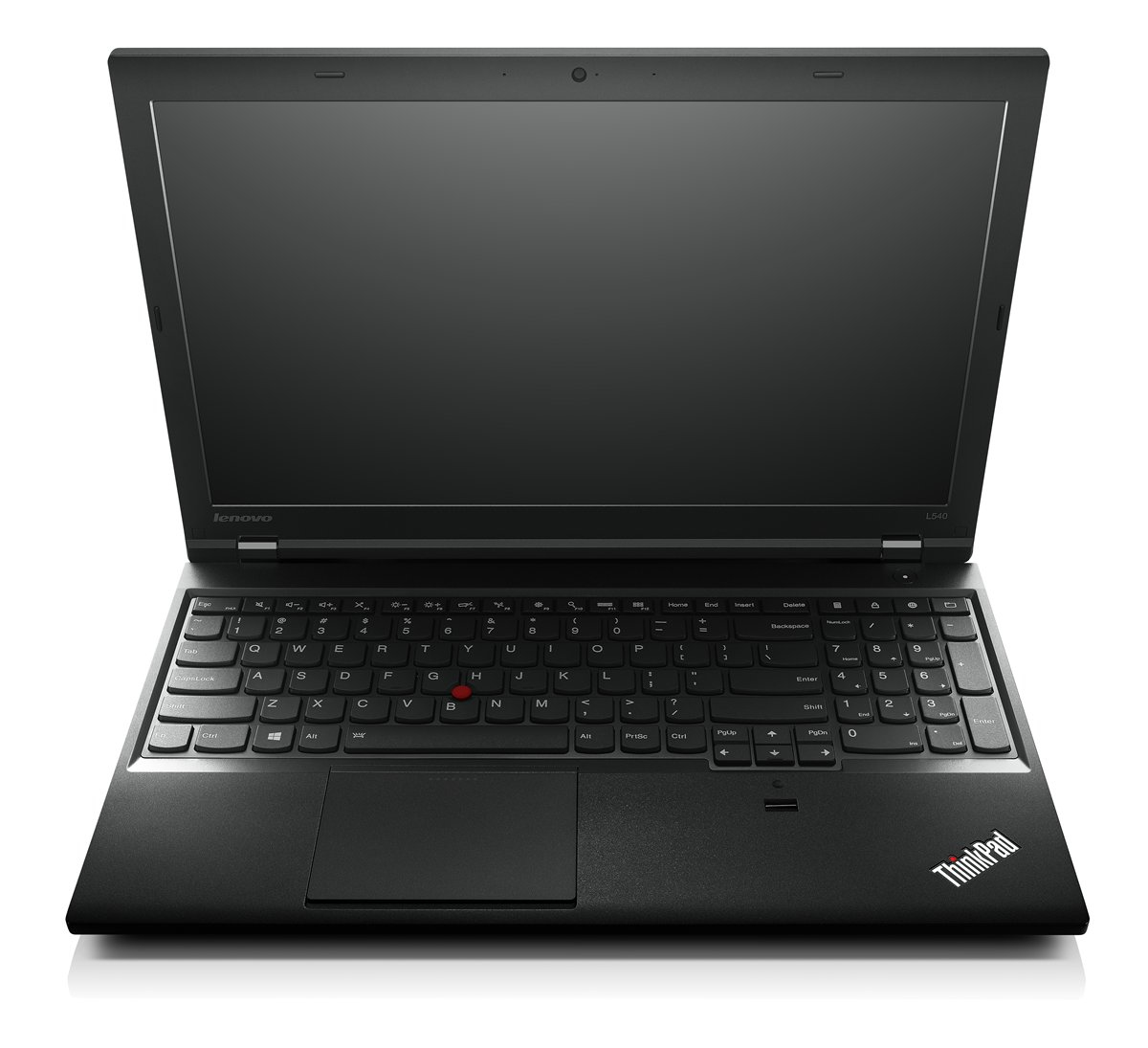

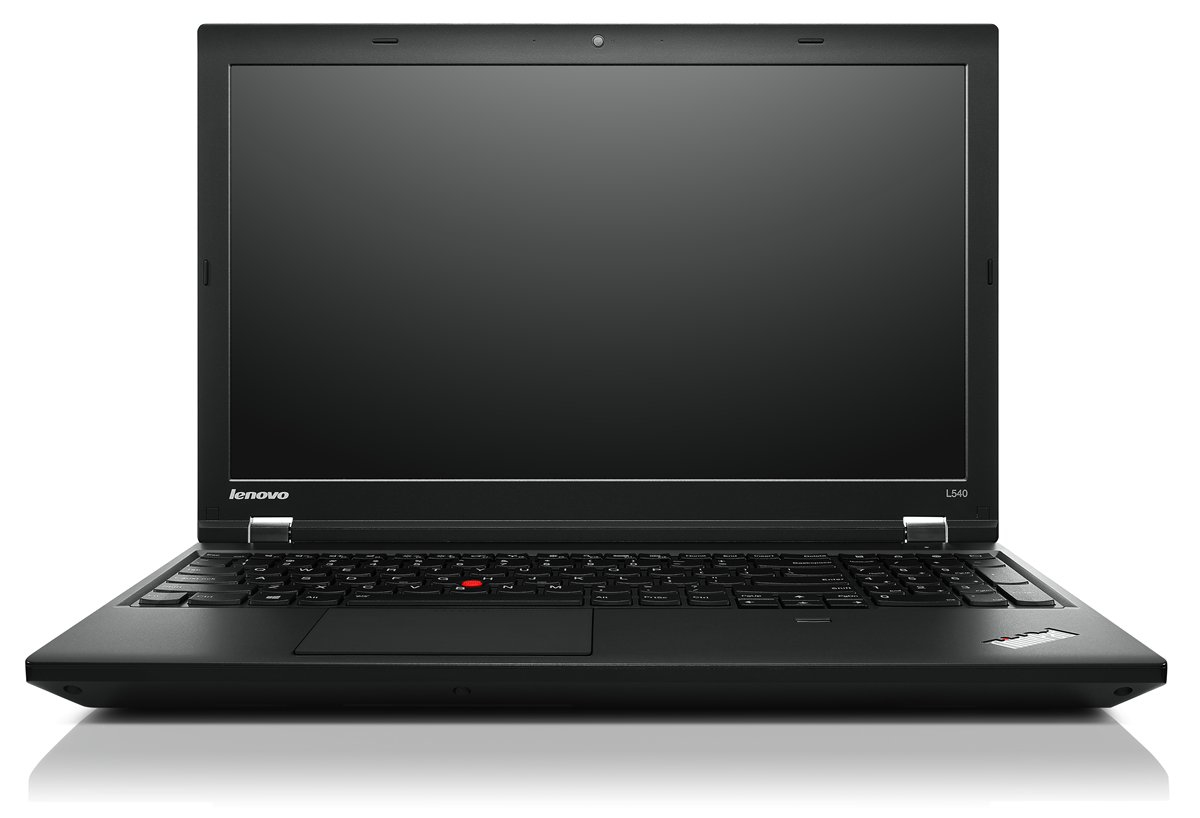

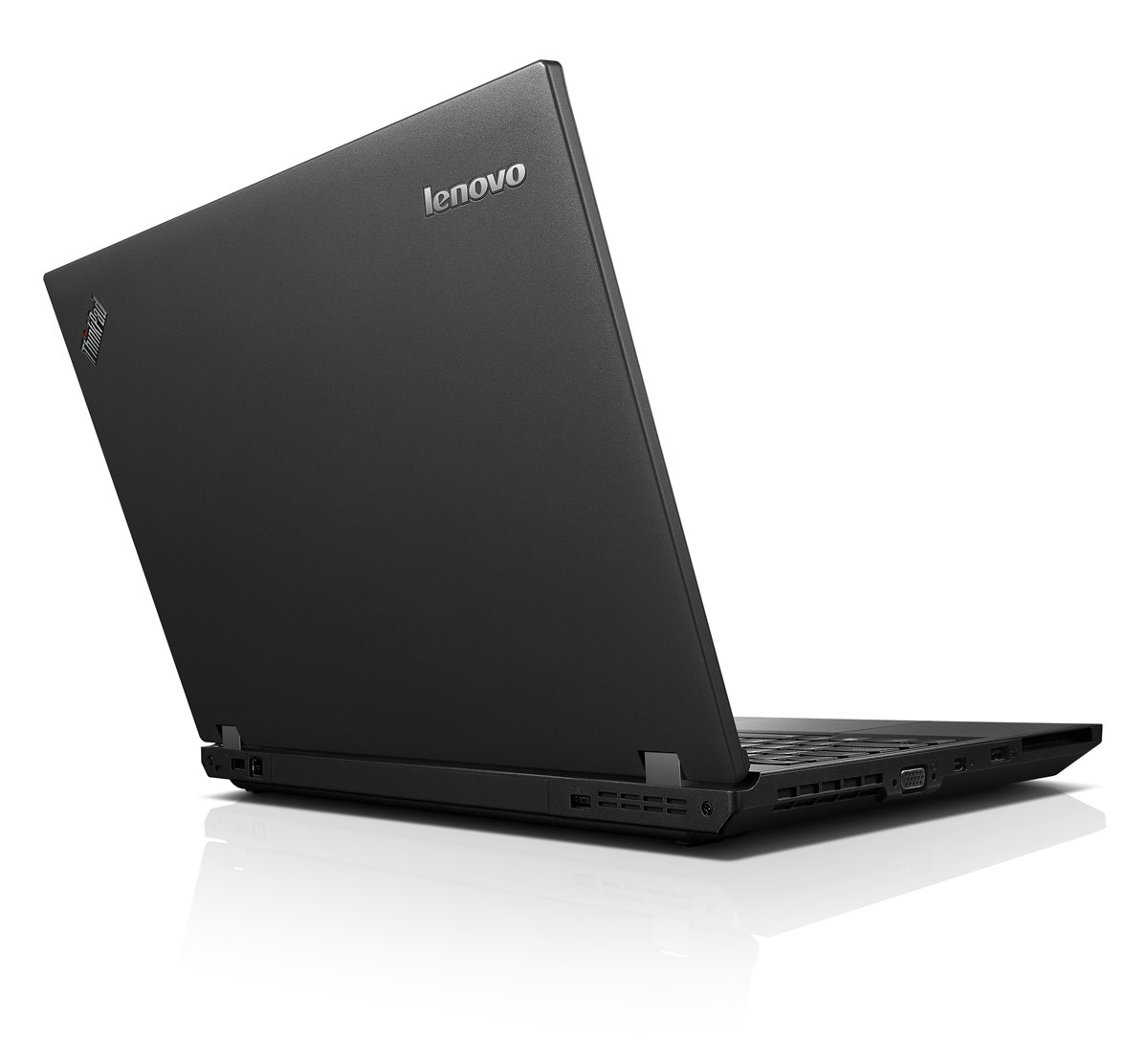

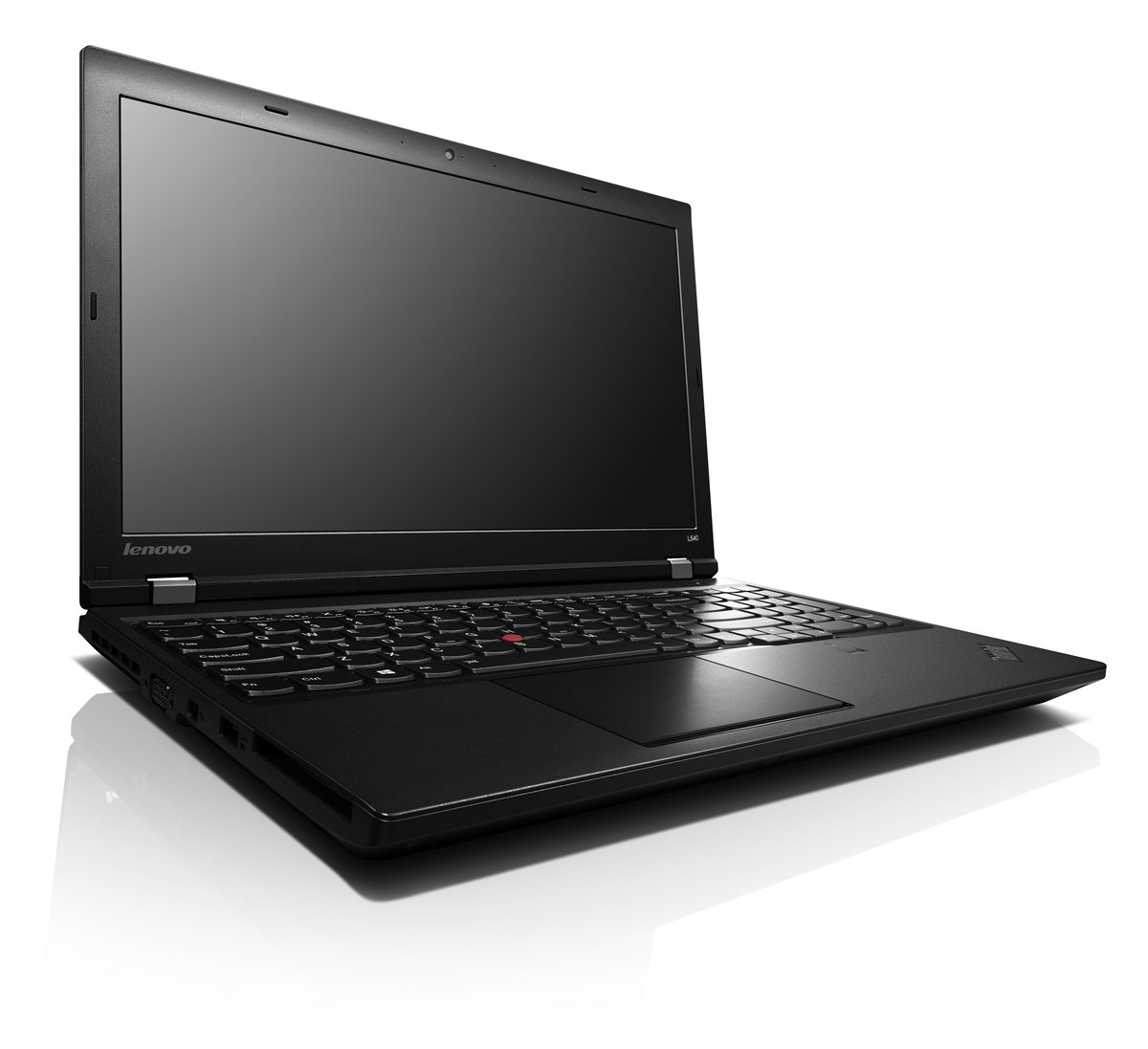

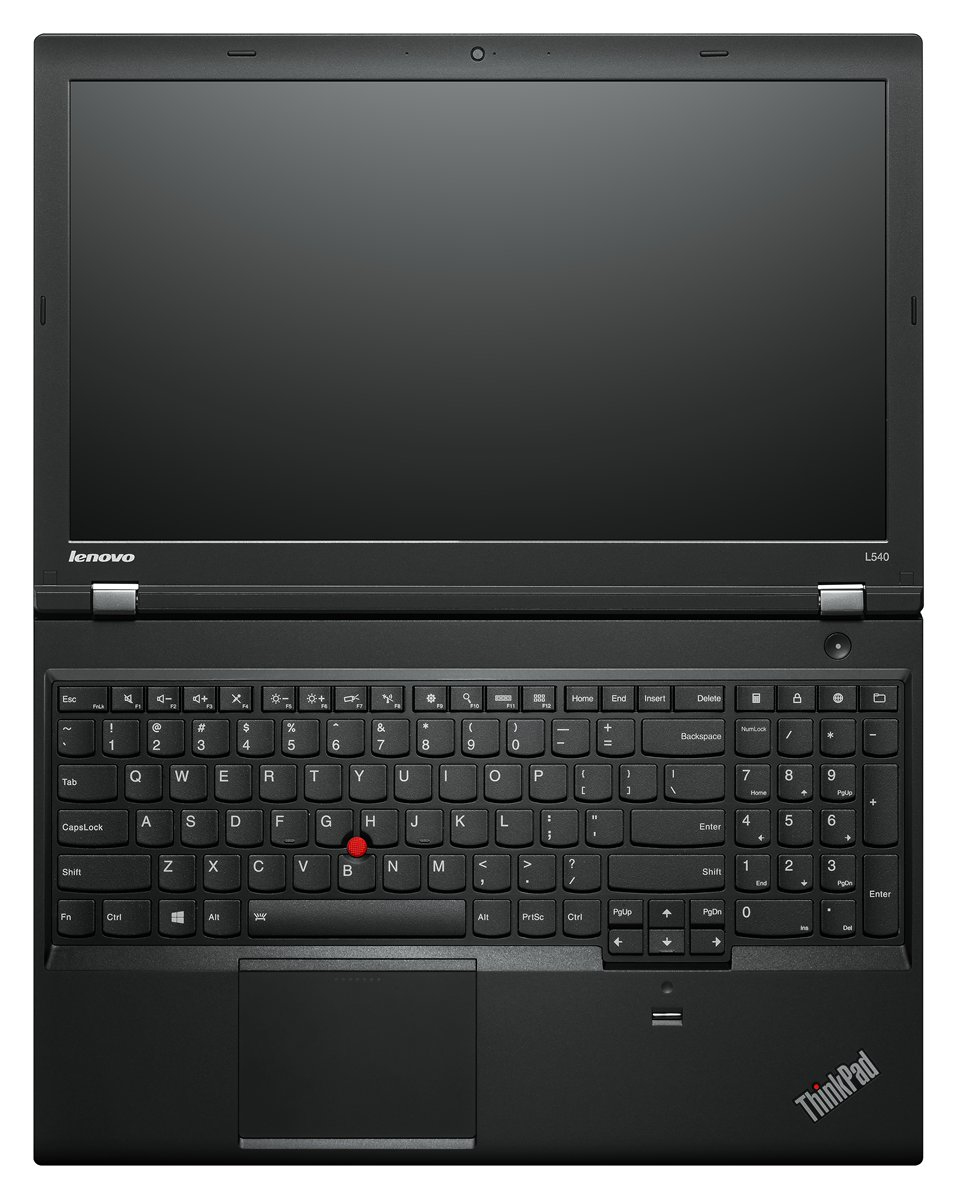

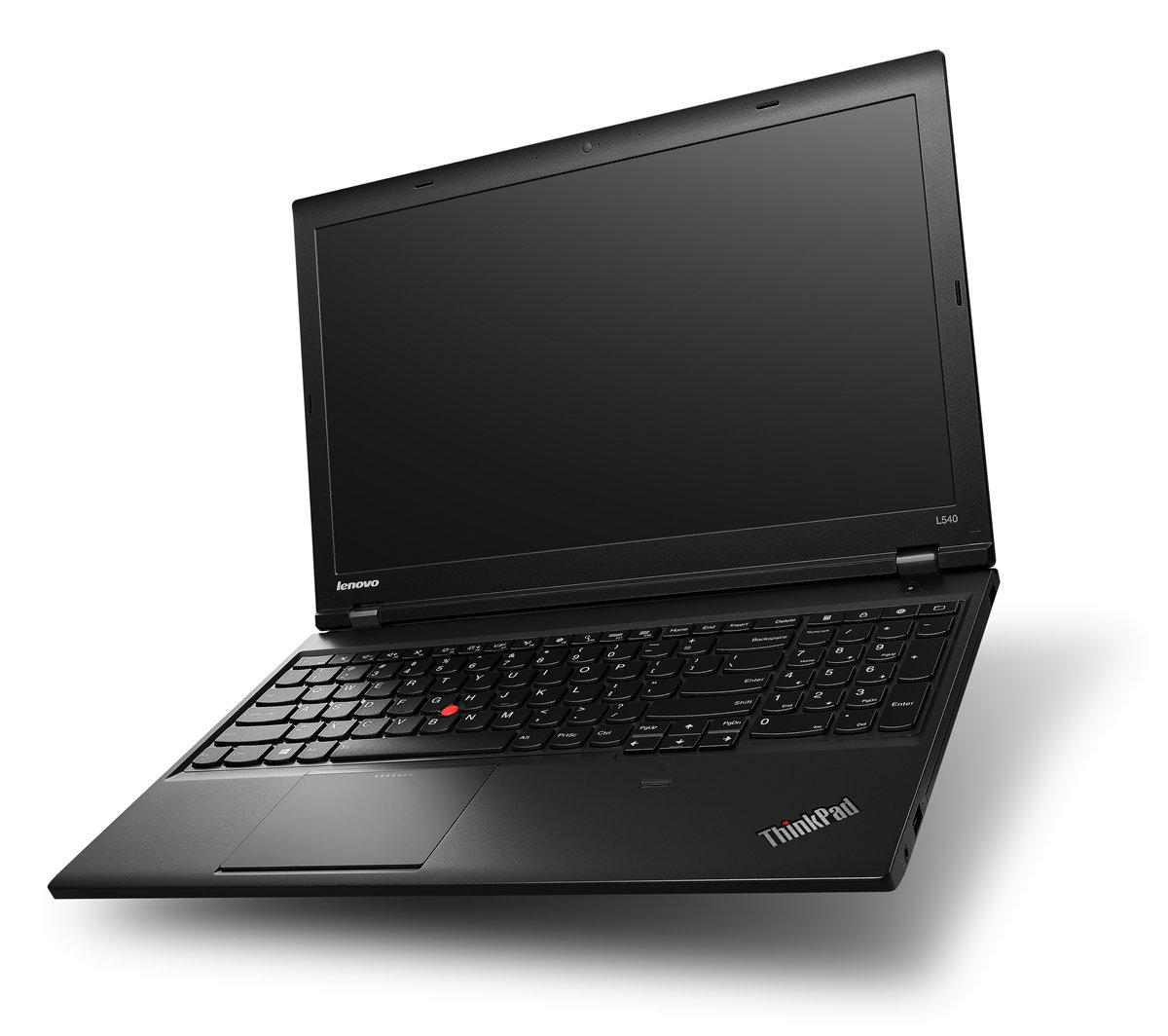

Lenovo L540+ThinkPad Dock

Model L540+ThinkPad DockPart no. 20AV0069FR#KIT

177 specifications Checked 3 days ago

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory4 GB
Storage500 GB
Battery48 Wh

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 500 GB
Battery: 48 Wh

Brand: Lenovo
Category: Laptop
Model: L540+ThinkPad Dock
Part numbers: 20AV0069FR#KIT, 20AV006JFR#KIT
Also known as: Lenovo ThinkPad L540+ Dock Intel® Core™ i5 i5-4210M Laptop 39.6 cm (15.6") Full HD 4 GB DDR3L-SDRAM 500 GB Hybrid-HDD Windows 7 Professional Black

Specifications

177 specifications in 23 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Housing material	Polycarbonate (PC)

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt
Display brightness	300 cd/m²
Contrast ratio (typical)	500:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	4th gen Intel® Core™ i5
Processor model	i5-4210M
Processor cores	2
Processor threads	4
Processor boost frequency	3.2 GHz
Processor frequency	2.6 GHz
System bus rate	5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	PGA946
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-4200 Mobile series
Processor codename	Haswell
Bus type	DMI
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	37 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3L-SDRAM
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x SO-DIMM
Maximum internal memory	16 GB
Maximum internal memory (64-bit)	16 GB

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	Hybrid-HDD
Number of HDDs installed	1
HDD speed	5400 RPM
Hybrid-HDD cache type	Flash
Hybrid-HDD capacity	500 GB
Hybrid-HDD cache memory	8 GB
HDD size	2.5"
Optical drive type	DVD±RW
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4600
Maximum on-board graphics card memory	1.74 GB
On-board graphics card base frequency	400 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	11.1
On-board graphics card ID	0x416

Audio

Specification	Value
Audio system	Dolby Advanced v2
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution	1280 x 720 pixels

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	0
Mini DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Thunderbolt ports quantity	0
Headphone outputs	0
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	No
Docking connector	Yes
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Performance

Specification	Value
Motherboard chipset	Intel® QM87

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Numeric keypad	Yes
Spill-resistant keyboard	Yes
Full-size keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Recovery operating system	Windows 8.1 Pro

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Smart Connect Technology	No
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Active Management Technology (Intel® AMT)	No
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Rapid Start Technology	No
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	2.0
Intel® Virtualization Technology (Intel® VT)	VT-x
Processor ARK ID	81012
Processor code	SR1L4
Processor package size	37.5 x 37.5 x 4.7 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	48 Wh
Battery life (max)	7 h

Power

Specification	Value
AC adapter power	65 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Password protection	Yes
Password protection type	HDD, Power on, Supervisor

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.58 kg
Width	377 mm
Depth	247 mm
Height (front)	3.1 cm
Height (rear)	3.62 cm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes

Other features

Specification	Value
Intel segment tagging	Home office, Small Business
